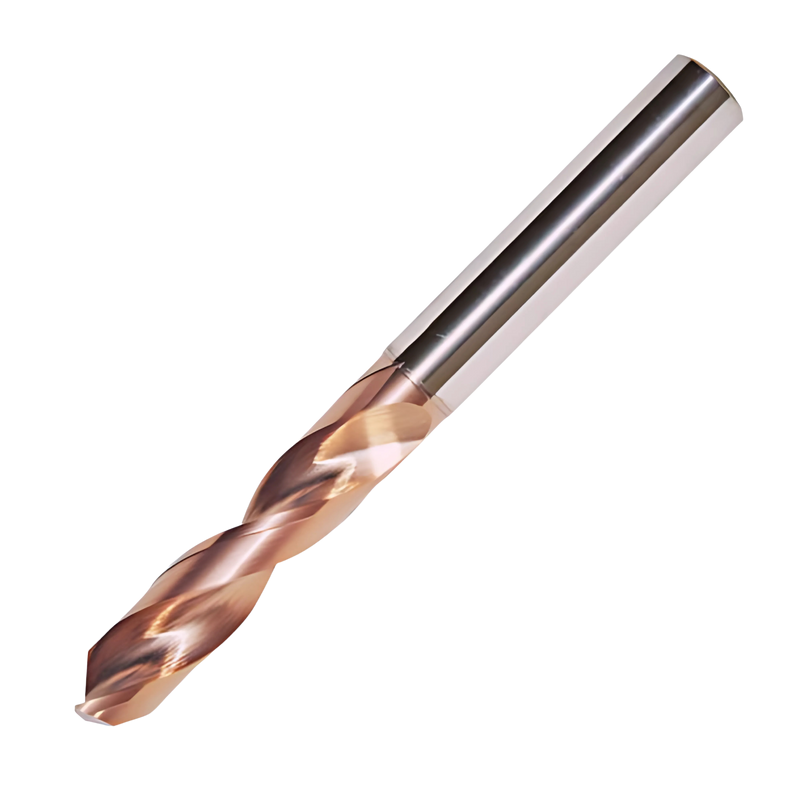

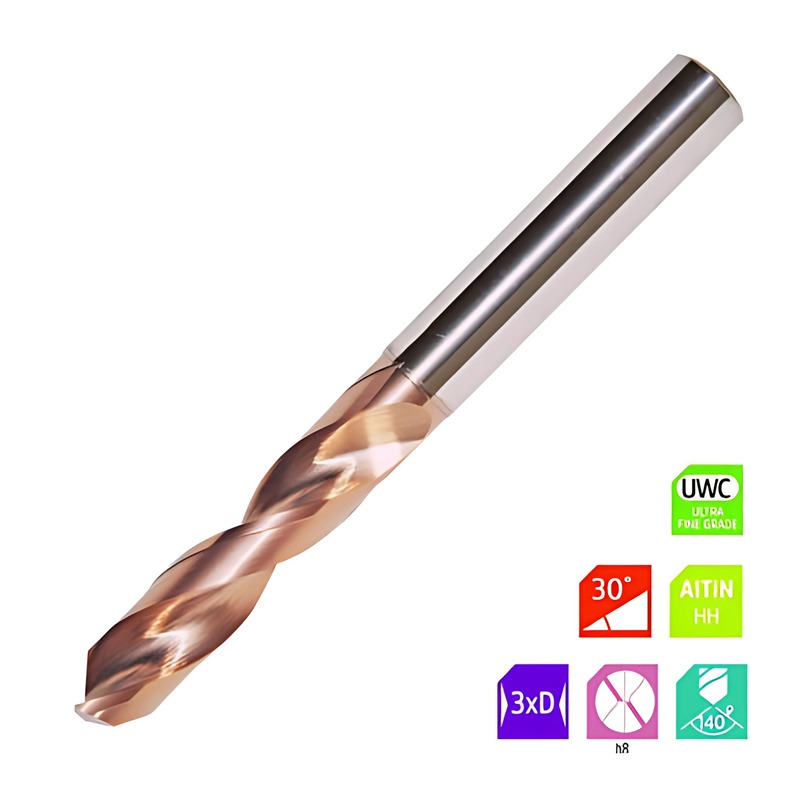

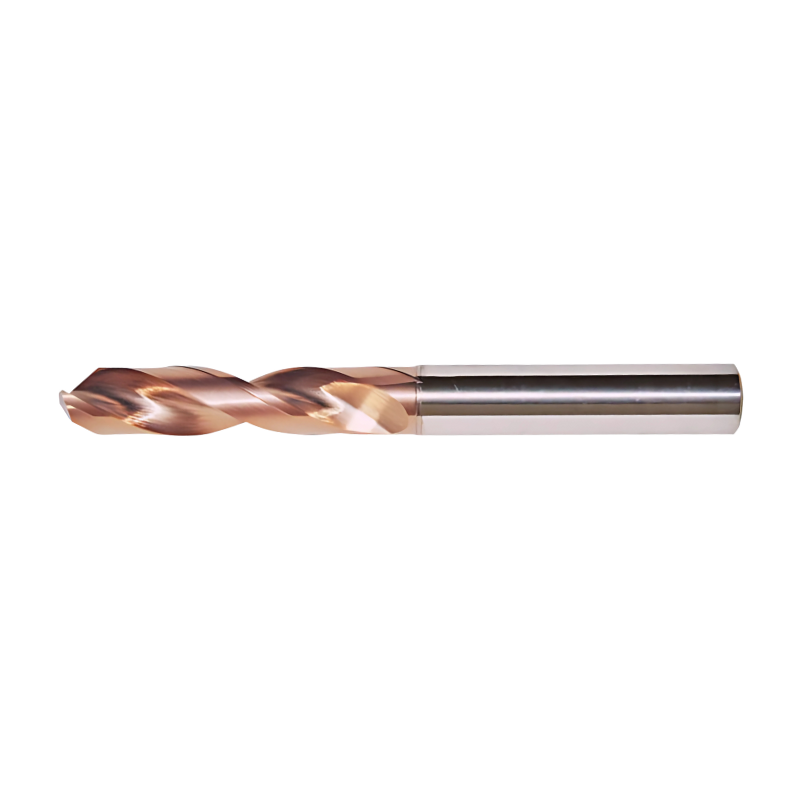

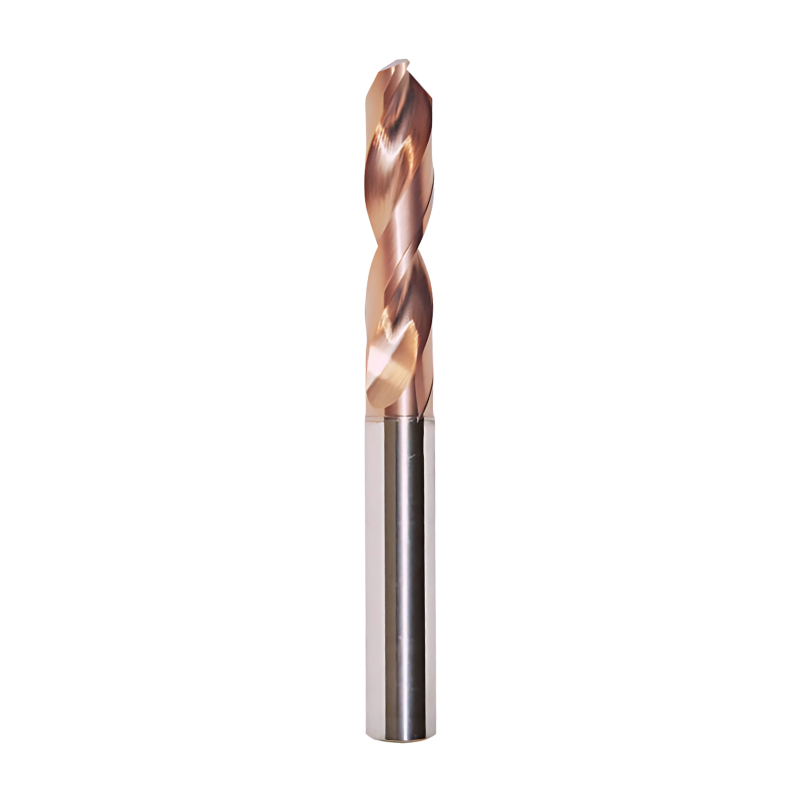

Widin Carbide Drills Solid 3xD AlTiN Coated - 7.7mm
SKU:PF503077
Widin Carbide Drills Solid 3xD AlTiN Coated - 7.7mm are professional-grade drill bits designed for precision metalworking. Made from solid carbide, they deliver exceptional hardness and wear resi...
Read more ↓
Material Compatibility
P
M
K
N
S
Specifications at a glance
View all specifications ↓
Download Cutting Data
| Drill Diameter | 7.70 |
| Flute Length | 40 |
| Overall Length | 79 |
| Shank Diameter | 8 |
£49.52
Prices shown ex. VAT
In Stock— only 1 left
Free delivery over £50 ex VAT
Secure checkout
14-day returns
30+ years expertise
Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna
Learn more about Klarna
Description
Widin Carbide Drills Solid 3xD AlTiN Coated - 7.7mm are professional-grade drill bits designed for precision metalworking. Made from solid carbide, they deliver exceptional hardness and wear resistance for long tool life and consistent performance.
With a 7.7 mm diameter and a 3xD flute length, these bits strike a practical balance between rigidity and versatile drilling depth, making them suitable for a wide range of metals and thicknesses.
- Solid carbide core for long tool life: The ultra-hard carbide body resists wear, maintains sharpness through many holes, and reduces the need for frequent tool changes.
- AlTiN coating for high-heat performance: The advanced coating lowers friction and manages heat, improving chip evacuation and extending cutting edge life in demanding materials.
- 3xD length for rigidity and depth flexibility: The 3xD design provides stable, accurate drilling at deeper depths while preserving clear chip flow and minimizing wandering.
This drill delivers reliable, repeatable results that support faster workflows, fewer reworks, and higher-quality holes across a broad range of commercial and hobbyist applications.
Part Numbers
- Protool Part Number
- PF503077
- Brand
- Widin
- Category
- Drill
Delivery
Free UK mainland delivery on orders over £50 ex VAT. In-stock items ordered before 4:30pm are dispatched the same working day. Full delivery information.
Returns
14-day returns on unused stock items in original packaging. Special-order and bespoke tooling is non-returnable. Read our returns policy.
Technical Support
Over 30 years of machining experience behind the counter. Call 01732 887334, Mon–Thurs 8:30–17:30, Fri 8:30–16:30.
Trade Accounts
Credit accounts, contract pricing and scheduled call-off orders available for trade customers. Apply for an account.
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Ask our technical team about this tool
Full Range: Widin Solid Carbide Drills - 3xD AlTiN Coated (PF503)
View full collection →You are viewing PF503077. Click any other SKU to view its full details.
| Product SKU | Drill Diameter | Flute Length | Overall Length | Shank Diameter | Coated | Coolant | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|
| PF503020 | 2.00 | 14 | 50 | 3 | Coated | NO | £22.30 | In Stock | |
| PF503021 | 2.10 | 14 | 50 | 3 | Coated | NO | £22.30 | In Stock | |
| PF503022 | 2.20 | 14 | 50 | 3 | Coated | NO | £22.30 | In Stock | |
| PF503023 | 2.30 | 14 | 50 | 3 | Coated | NO | £22.30 | In Stock | |
| PF503024 | 2.40 | 14 | 50 | 3 | Coated | NO | £22.30 | In Stock | |
| PF503025 | 2.50 | 14 | 50 | 3 | Coated | NO | £22.30 | In Stock | |
| PF503026 | 2.60 | 14 | 50 | 3 | Coated | NO | £22.30 | In Stock | |
| PF503027 | 2.70 | 14 | 50 | 3 | Coated | NO | £22.30 | In Stock | |
| PF503028 | 2.80 | 14 | 50 | 3 | Coated | NO | £22.30 | 5 days | |
| PF503029 | 2.90 | 14 | 50 | 3 | Coated | NO | £22.30 | In Stock | |
| PF503030 | 3.00 | 18 | 60 | 3 | Coated | NO | £22.30 | 5 days | |
| PF503031 | 3.10 | 20 | 60 | 4 | Coated | NO | £22.30 | In Stock | |
| PF503032 | 3.20 | 20 | 60 | 4 | Coated | NO | £22.30 | 5 days | |
| PF503033 | 3.30 | 20 | 60 | 4 | Coated | NO | £22.30 | In Stock | |
| PF503034 | 3.40 | 22 | 60 | 4 | Coated | NO | £22.30 | 5 days | |
| PF503035 | 3.50 | 22 | 60 | 4 | Coated | NO | £22.30 | In Stock | |
| PF503036 | 3.60 | 22 | 60 | 4 | Coated | NO | £22.30 | In Stock | |
| PF503037 | 3.70 | 22 | 60 | 4 | Coated | NO | £22.30 | In Stock | |
| PF503038 | 3.80 | 24 | 60 | 4 | Coated | NO | £22.30 | In Stock | |
| PF503039 | 3.90 | 24 | 60 | 4 | Coated | NO | £22.30 | In Stock | |
| PF503040 | 4.00 | 24 | 60 | 4 | Coated | NO | £22.30 | In Stock | |
| PF503041 | 4.10 | 24 | 60 | 4 | Coated | NO | £22.30 | In Stock | |
| PF503042 | 4.20 | 26 | 62 | 5 | Coated | NO | £27.15 | 5 days | |
| PF503043 | 4.30 | 26 | 62 | 5 | Coated | NO | £27.15 | 5 days | |
| PF503044 | 4.40 | 26 | 62 | 5 | Coated | NO | £27.15 | In Stock | |
| PF503045 | 4.50 | 26 | 62 | 5 | Coated | NO | £27.15 | 5 days | |
| PF503046 | 4.60 | 26 | 62 | 5 | Coated | NO | £27.15 | 5 days | |
| PF503047 | 4.70 | 26 | 62 | 5 | Coated | NO | £27.15 | In Stock | |
| PF503048 | 4.80 | 26 | 62 | 5 | Coated | NO | £27.15 | In Stock | |
| PF503049 | 4.90 | 26 | 62 | 5 | Coated | NO | £27.15 | In Stock | |
| PF503050 | 5.00 | 26 | 62 | 5 | Coated | NO | £27.15 | In Stock | |
| PF503051 | 5.10 | 26 | 62 | 5 | Coated | NO | £27.15 | 5 days | |
| PF503052 | 5.20 | 28 | 66 | 6 | Coated | NO | £33.10 | 5 days | |
| PF503053 | 5.30 | 28 | 66 | 6 | Coated | NO | £33.10 | In Stock | |
| PF503054 | 5.40 | 28 | 66 | 6 | Coated | NO | £33.10 | In Stock | |
| PF503055 | 5.50 | 28 | 66 | 6 | Coated | NO | £33.10 | 5 days | |
| PF503056 | 5.60 | 30 | 66 | 6 | Coated | NO | £33.10 | In Stock | |
| PF503057 | 5.70 | 30 | 66 | 6 | Coated | NO | £33.10 | In Stock | |
| PF503058 | 5.80 | 30 | 66 | 6 | Coated | NO | £33.10 | In Stock | |
| PF503059 | 5.90 | 30 | 66 | 6 | Coated | NO | £33.10 | 5 days | |
| PF503060 | 6.00 | 30 | 66 | 6 | Coated | NO | £33.10 | In Stock | |
| PF503061 | 6.10 | 30 | 66 | 6 | Coated | NO | £33.12 | 5 days | |
| PF503062 | 6.20 | 34 | 74 | 7 | Coated | NO | £44.50 | In Stock | |
| PF503063 | 6.30 | 34 | 74 | 7 | Coated | NO | £44.50 | In Stock | |
| PF503064 | 6.40 | 34 | 74 | 7 | Coated | NO | £44.50 | 5 days | |
| PF503065 | 6.50 | 34 | 74 | 7 | Coated | NO | £44.50 | 5 days | |
| PF503066 | 6.60 | 34 | 74 | 7 | Coated | NO | £44.50 | 5 days | |
| PF503067 | 6.70 | 37 | 74 | 7 | Coated | NO | £44.50 | In Stock | |
| PF503068 | 6.80 | 37 | 74 | 7 | Coated | NO | £44.50 | 5 days | |
| PF503069 | 6.90 | 37 | 74 | 7 | Coated | NO | £44.50 | In Stock | |
| PF503070 | 7.00 | 37 | 74 | 7 | Coated | NO | £44.50 | In Stock | |
| PF503071 | 7.10 | 37 | 74 | 7 | Coated | NO | £44.50 | In Stock | |
| PF503072 | 7.20 | 40 | 79 | 8 | Coated | NO | £49.52 | 5 days | |
| PF503073 | 7.30 | 40 | 79 | 8 | Coated | NO | £49.52 | In Stock | |
| PF503074 | 7.40 | 40 | 79 | 8 | Coated | NO | £49.52 | In Stock | |
| PF503075 | 7.50 | 40 | 79 | 8 | Coated | NO | £49.52 | In Stock | |
| PF503076 | 7.60 | 40 | 79 | 8 | Coated | NO | £49.52 | In Stock | |
| PF503077 Viewing | 7.70 | 40 | 79 | 8 | Coated | NO | £49.52 | In Stock | |
| PF503078 | 7.80 | 40 | 79 | 8 | Coated | NO | £49.52 | In Stock | |
| PF503079 | 7.90 | 40 | 79 | 8 | Coated | NO | £49.52 | In Stock | |
| PF503080 | 8.00 | 40 | 79 | 8 | Coated | NO | £49.52 | In Stock | |
| PF503081 | 8.10 | 40 | 79 | 8 | Coated | NO | £49.52 | In Stock | |
| PF503082 | 8.20 | 43 | 84 | 9 | Coated | NO | £56.13 | 5 days | |
| PF503083 | 8.30 | 43 | 84 | 9 | Coated | NO | £56.13 | In Stock | |
| PF503084 | 8.40 | 43 | 84 | 9 | Coated | NO | £56.13 | In Stock | |
| PF503085 | 8.50 | 43 | 84 | 9 | Coated | NO | £56.13 | In Stock | |
| PF503086 | 8.60 | 43 | 84 | 9 | Coated | NO | £56.13 | In Stock | |
| PF503087 | 8.70 | 43 | 84 | 9 | Coated | NO | £56.13 | In Stock | |
| PF503088 | 8.80 | 43 | 84 | 9 | Coated | NO | £56.13 | In Stock | |
| PF503089 | 8.90 | 43 | 84 | 9 | Coated | NO | £56.13 | In Stock | |
| PF503090 | 9.00 | 43 | 84 | 9 | Coated | NO | £56.13 | 5 days | |
| PF503091 | 9.10 | 43 | 84 | 9 | Coated | NO | £56.13 | In Stock | |
| PF503092 | 9.20 | 47 | 89 | 10 | Coated | NO | £69.22 | 5 days | |
| PF503093 | 9.30 | 47 | 89 | 10 | Coated | NO | £69.22 | In Stock | |
| PF503094 | 9.40 | 47 | 89 | 10 | Coated | NO | £69.22 | In Stock | |
| PF503095 | 9.50 | 47 | 89 | 10 | Coated | NO | £69.22 | In Stock | |
| PF503096 | 9.60 | 47 | 89 | 10 | Coated | NO | £69.22 | In Stock | |
| PF503097 | 9.70 | 47 | 89 | 10 | Coated | NO | £69.22 | 5 days | |
| PF503098 | 9.80 | 47 | 89 | 10 | Coated | NO | £69.22 | In Stock | |
| PF503099 | 9.90 | 47 | 89 | 10 | Coated | NO | £69.22 | 5 days | |
| PF503100 | 10.00 | 47 | 89 | 10 | Coated | NO | £69.22 | 5 days | |
| PF503101 | 10.10 | 47 | 89 | 10 | Coated | NO | £69.22 | 5 days | |
| PF503102 | 10.20 | 51 | 95 | 11 | Coated | NO | £90.55 | In Stock | |
| PF503103 | 10.30 | 51 | 95 | 11 | Coated | NO | £90.55 | In Stock | |
| PF503104 | 10.40 | 51 | 95 | 11 | Coated | NO | £90.55 | In Stock | |
| PF503105 | 10.50 | 51 | 95 | 11 | Coated | NO | £90.55 | 5 days | |
| PF503106 | 10.60 | 51 | 95 | 11 | Coated | NO | £90.55 | In Stock | |
| PF503107 | 10.70 | 51 | 95 | 11 | Coated | NO | £90.55 | 5 days | |
| PF503108 | 10.80 | 51 | 95 | 11 | Coated | NO | £90.55 | In Stock | |
| PF503109 | 10.90 | 51 | 95 | 11 | Coated | NO | £90.55 | 5 days | |
| PF503110 | 11.00 | 51 | 95 | 11 | Coated | NO | £90.55 | In Stock | |
| PF503111 | 11.10 | 51 | 95 | 11 | Coated | NO | £90.55 | In Stock | |
| PF503112 | 11.20 | 54 | 102 | 12 | Coated | NO | £104.48 | In Stock | |
| PF503113 | 11.30 | 54 | 102 | 12 | Coated | NO | £104.48 | In Stock | |
| PF503114 | 11.40 | 54 | 102 | 12 | Coated | NO | £104.48 | 5 days | |
| PF503115 | 11.50 | 54 | 102 | 12 | Coated | NO | £104.48 | In Stock | |
| PF503116 | 11.60 | 54 | 102 | 12 | Coated | NO | £104.48 | In Stock | |
| PF503117 | 11.70 | 54 | 102 | 12 | Coated | NO | £104.48 | In Stock | |
| PF503118 | 11.80 | 54 | 102 | 12 | Coated | NO | £104.48 | 5 days | |
| PF503119 | 11.90 | 54 | 102 | 12 | Coated | NO | £104.48 | In Stock | |
| PF503120 | 12.00 | 54 | 102 | 12 | Coated | NO | £104.48 | In Stock | |
| PF503121 | 12.10 | 54 | 102 | 12 | Coated | NO | £104.48 | In Stock | |
| PF503122 | 12.20 | 57 | 102 | 13 | Coated | NO | £169.62 | In Stock | |
| PF503123 | 12.30 | 57 | 102 | 13 | Coated | NO | £169.62 | 5 days | |
| PF503124 | 12.40 | 57 | 102 | 13 | Coated | NO | £169.62 | 5 days | |
| PF503125 | 12.50 | 57 | 102 | 13 | Coated | NO | £169.62 | 5 days | |
| PF503126 | 12.60 | 57 | 102 | 13 | Coated | NO | £169.62 | In Stock | |
| PF503127 | 12.70 | 57 | 102 | 13 | Coated | NO | £169.62 | 5 days | |
| PF503128 | 12.80 | 57 | 102 | 13 | Coated | NO | £169.62 | 5 days | |
| PF503129 | 12.90 | 57 | 102 | 13 | Coated | NO | £169.62 | 5 days | |
| PF503130 | 13.00 | 57 | 102 | 13 | Coated | NO | £169.62 | In Stock | |
| PF503131 | 13.10 | 57 | 102 | 13 | Coated | NO | £169.62 | In Stock | |
| PF503132 | 13.20 | 60 | 107 | 14 | Coated | NO | £187.45 | In Stock | |
| PF503133 | 13.30 | 60 | 107 | 14 | Coated | NO | £187.45 | In Stock | |
| PF503134 | 13.40 | 60 | 107 | 14 | Coated | NO | £187.45 | 5 days | |
| PF503135 | 13.50 | 60 | 107 | 14 | Coated | NO | £187.45 | In Stock | |
| PF503136 | 13.60 | 60 | 107 | 14 | Coated | NO | £187.45 | 5 days | |
| PF503137 | 13.70 | 60 | 107 | 14 | Coated | NO | £187.45 | 5 days | |
| PF503138 | 13.80 | 60 | 107 | 14 | Coated | NO | £187.45 | 5 days | |
| PF503139 | 13.90 | 60 | 107 | 14 | Coated | NO | £187.45 | 5 days | |
| PF503140 | 14.00 | 60 | 107 | 14 | Coated | NO | £187.45 | 5 days | |
| PF503141 | 14.10 | 60 | 107 | 14 | Coated | NO | £187.45 | 5 days | |
| PF503142 | 14.20 | 62 | 111 | 15 | Coated | NO | £214.22 | In Stock | |
| PF503143 | 14.30 | 62 | 111 | 15 | Coated | NO | £214.22 | 5 days | |
| PF503144 | 14.40 | 62 | 111 | 15 | Coated | NO | £214.22 | 5 days | |
| PF503145 | 14.50 | 62 | 111 | 15 | Coated | NO | £214.22 | In Stock | |
| PF503146 | 14.60 | 62 | 111 | 15 | Coated | NO | £214.22 | 5 days | |
| PF503147 | 14.70 | 62 | 111 | 15 | Coated | NO | £214.22 | 5 days | |
| PF503148 | 14.80 | 62 | 111 | 15 | Coated | NO | £214.22 | 5 days | |
| PF503149 | 14.90 | 62 | 111 | 15 | Coated | NO | £214.22 | 5 days | |
| PF503150 | 15.00 | 62 | 111 | 15 | Coated | NO | £214.22 | 5 days | |
| PF503151 | 15.10 | 62 | 111 | 15 | Coated | NO | £214.22 | 5 days | |
| PF503152 | 15.20 | 64 | 115 | 16 | Coated | NO | £252.82 | 5 days | |
| PF503153 | 15.30 | 64 | 115 | 16 | Coated | NO | £252.82 | 5 days | |
| PF503154 | 15.40 | 64 | 115 | 16 | Coated | NO | £252.82 | 5 days | |
| PF503155 | 15.50 | 64 | 115 | 16 | Coated | NO | £252.82 | In Stock | |
| PF503156 | 15.60 | 64 | 115 | 16 | Coated | NO | £252.82 | 5 days | |
| PF503157 | 15.70 | 64 | 115 | 16 | Coated | NO | £252.82 | 5 days | |
| PF503158 | 15.80 | 64 | 115 | 16 | Coated | NO | £252.82 | 5 days | |
| PF503160 | 16.00 | 64 | 115 | 16 | Coated | NO | £252.82 | In Stock | |
| PF503161 | 16.10 | 64 | 115 | 16 | Coated | NO | £252.82 | 5 days | |
| PF503163 | 16.30 | 66 | 119 | 17 | Coated | NO | £314.83 | 5 days | |
| PF503165 | 16.50 | 66 | 119 | 17 | Coated | NO | £314.83 | In Stock | |
| PF503170 | 17.00 | 66 | 119 | 17 | Coated | NO | £314.83 | 5 days | |
| PF503171 | 17.10 | 66 | 119 | 17 | Coated | NO | £314.83 | 5 days | |
| PF503172 | 17.20 | 66 | 123 | 18 | Coated | NO | £400.22 | 5 days | |
| PF503173 | 17.30 | 66 | 123 | 18 | Coated | NO | £243.60 | 5 days | |
| PF503175 | 17.50 | 66 | 123 | 18 | Coated | NO | £400.22 | 5 days | |
| PF503177 | 17.70 | 66 | 123 | 18 | Coated | NO | £400.22 | 5 days | |
| PF503178 | 17.80 | 66 | 123 | 18 | Coated | NO | £400.22 | 5 days | |
| PF503180 | 18.00 | 66 | 123 | 18 | Coated | NO | £400.22 | In Stock | |
| PF503181 | 18.10 | 66 | 123 | 18 | Coated | NO | £400.22 | 5 days | |
| PF503182 | 18.20 | 70 | 127 | 19 | Coated | NO | £466.91 | 5 days | |
| PF503185 | 18.50 | 70 | 127 | 19 | Coated | NO | £466.91 | In Stock | |
| PF503190 | 19.00 | 70 | 127 | 19 | Coated | NO | £466.91 | In Stock | |
| PF503191 | 19.10 | 70 | 127 | 19 | Coated | NO | £466.91 | 5 days | |
| PF503193 | 19.30 | 70 | 131 | 20 | Coated | NO | £246.88 | 5 days | |
| PF503195 | 19.50 | 70 | 131 | 20 | Coated | NO | £506.94 | In Stock | |
| PF503197 | 19.70 | 70 | 131 | 20 | Coated | NO | £506.94 | 5 days | |
| PF503200 | 20.00 | 70 | 131 | 20 | Coated | NO | £506.94 | In Stock |
No products match your filters.
