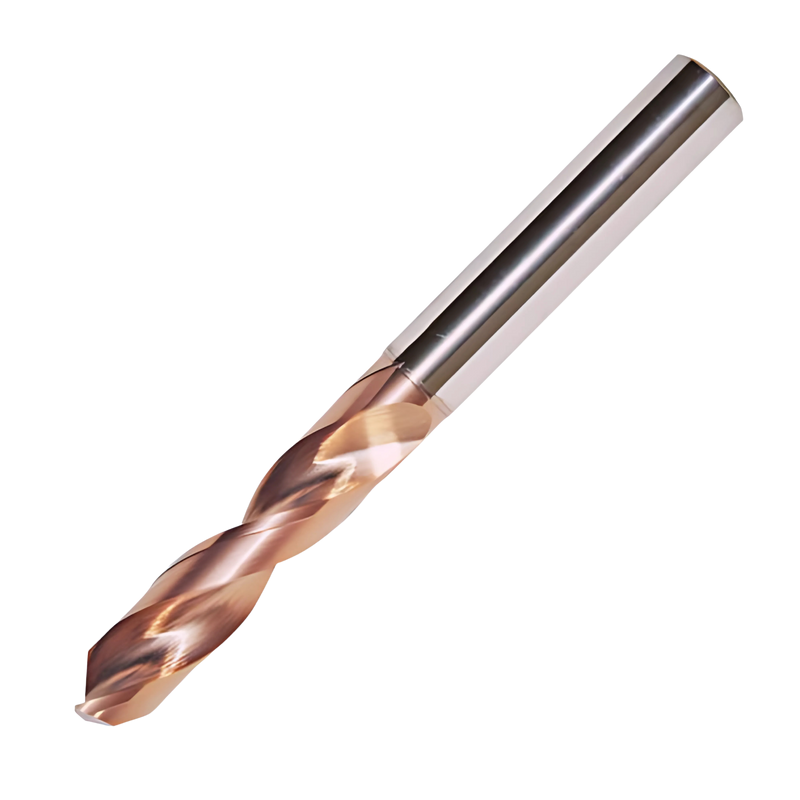

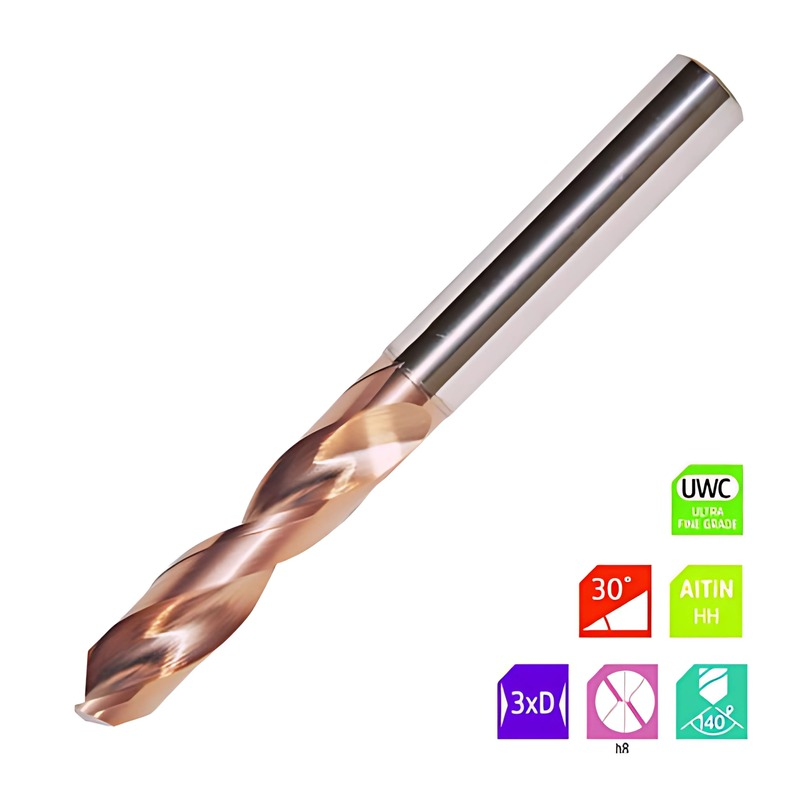

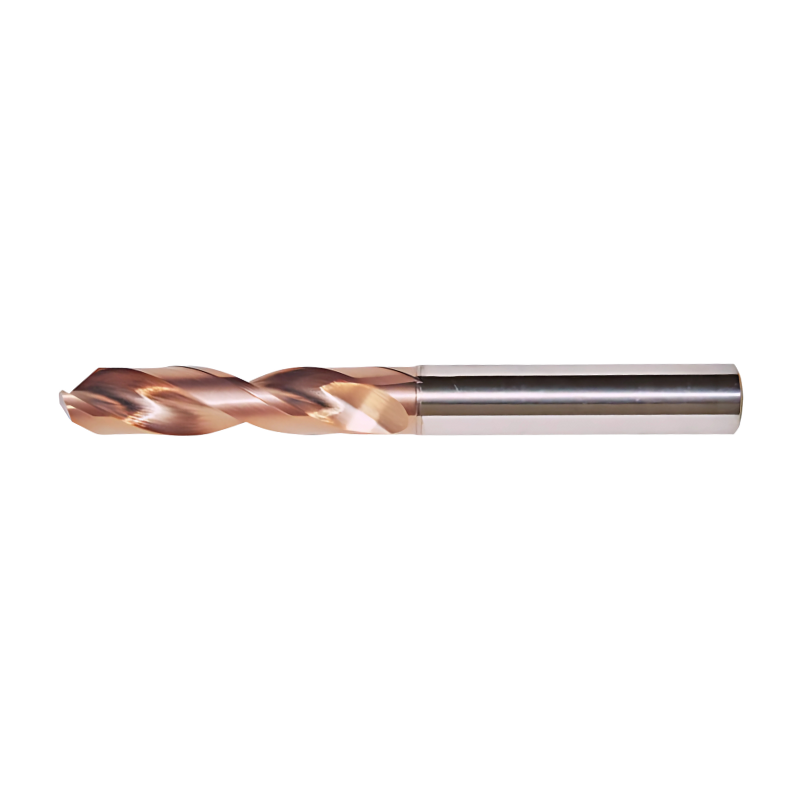

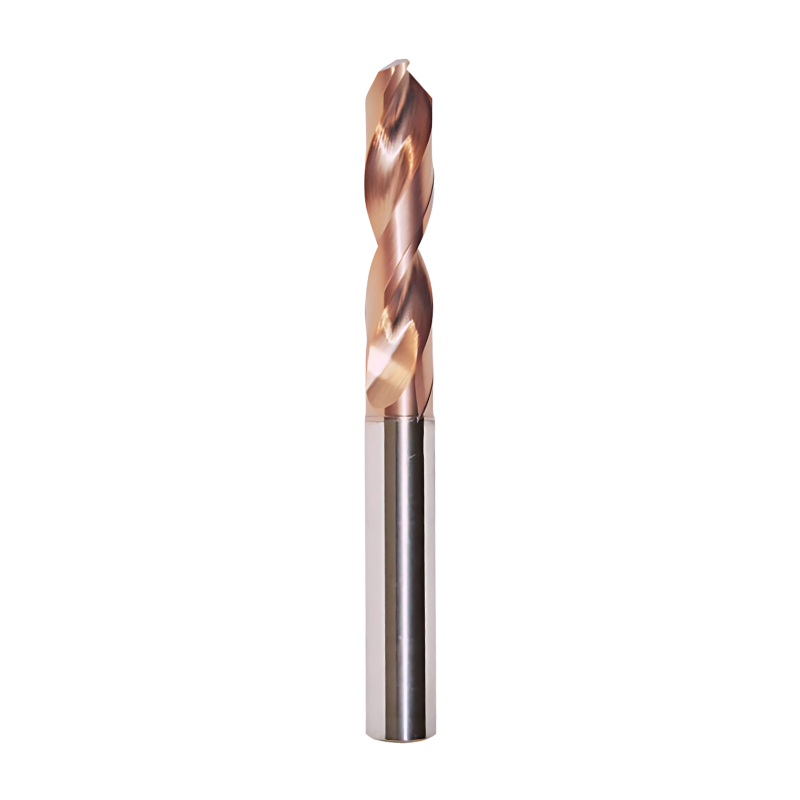

Widin Carbide Drills Solid 3xD AlTiN Coated - 16.3mm
SKU:PF503163
The Widin Carbide Drills Solid 3xD AlTiN Coated - 16.3mm is a high-performance drilling tool designed for demanding metalworking tasks. Made from solid carbide, it delivers exceptional hardness a...
Read more ↓
Material Compatibility
P
M
K
N
S
Specification
Download Cutting Data
| Drill Diameter | 16.30 |
| Flute Length | 66 |
| Overall Length | 119 |
| Shank Diameter | 17 |
| Coated | Coated |
| Coolant | NO |
£314.83
Prices shown ex. VAT
5 days estimated lead time
— subject to availability
View Other Sizes →
Free delivery over £50 ex VAT
Secure checkout
14-day returns
30+ years expertise
Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna
Learn more about Klarna
The Widin Carbide Drills Solid 3xD AlTiN Coated - 16.3mm is a high-performance drilling tool designed for demanding metalworking tasks. Made from solid carbide, it delivers exceptional hardness and durability for consistent, repeatable hole quality even under tough cutting conditions.
The AlTiN coating boosts high-temperature resistance and reduces friction, helping chips evacuate quickly and wear rates stay low. The 3xD length (three times the drill diameter) provides solid rigidity while maintaining access to deeper holes, making it versatile for a wide range of drilling depths and applications.
- Long Tool Life: The solid carbide core combined with the AlTiN coating resists heat and wear, delivering dependable performance and fewer tool changes in busy workshops.
- Efficient Heat Management: AlTiN coating lowers friction and enhances heat resistance, helping maintain sharpness, improve chip evacuation, and extend cutting life.
- Rigid, Versatile 3xD Design: The 3xD length provides stiffness for true, straight holes while offering reach for deeper applications without sacrificing accuracy.
With these drills, you’ll experience consistent hole quality, fewer interruptions for tool changes, and reliable performance across a range of metals and materials. The combination of solid carbide and AlTiN ensures hardness and heat resistance that hold up under high-speed, high-feed conditions, while the 3xD length supports both rigid guidance and flexible depth options. This translates to smoother workflows, faster cycle times, and confidence in every hole you drill.
| Drill Diameter | 16.30 |
| Flute Length | 66 |
| Overall Length | 119 |
| Shank Diameter | 17 |
| Coated | Coated |
| Coolant | NO |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
★★★★★
Nice experience staff are very helpful and interested...
Staff are very helpful and interested in providing a good service making us the customer feel valued.
★★★★★
first place we look
honest about stock and prices are competitive.
★★★★★
Polite and helpful
Staff are very helpful and polite.Goods that were in stock were dispatched same day and back orders were quick in coming through .
★★★★★
Buying experience
Phone requests are handled quickly and without any fuss. The website is easy to use and straightforward to order from. It’s especially helpful that it shows real‑time availability, so we don’t need to call to confirm whether parts will arrive.
Full Range: Widin Solid Carbide Drills - 3xD AlTiN Coated (PF503)
View full collection →You are viewing PF503163. Click any other SKU to view its full details.
| Product SKU | Drill Diameter | Flute Length | Overall Length | Shank Diameter | Coated | Coolant | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|
| PF503020 | 2.00 | 14 | 50 | 3 | Coated | NO | £22.30 | In Stock | |
| PF503021 | 2.10 | 14 | 50 | 3 | Coated | NO | £22.30 | In Stock | |
| PF503022 | 2.20 | 14 | 50 | 3 | Coated | NO | £22.30 | In Stock | |
| PF503023 | 2.30 | 14 | 50 | 3 | Coated | NO | £22.30 | In Stock | |
| PF503024 | 2.40 | 14 | 50 | 3 | Coated | NO | £22.30 | In Stock | |
| PF503025 | 2.50 | 14 | 50 | 3 | Coated | NO | £22.30 | In Stock | |
| PF503026 | 2.60 | 14 | 50 | 3 | Coated | NO | £22.30 | In Stock | |
| PF503027 | 2.70 | 14 | 50 | 3 | Coated | NO | £22.30 | In Stock | |
| PF503028 | 2.80 | 14 | 50 | 3 | Coated | NO | £22.30 | In Stock | |
| PF503029 | 2.90 | 14 | 50 | 3 | Coated | NO | £22.30 | In Stock | |
| PF503030 | 3.00 | 18 | 60 | 3 | Coated | NO | £22.30 | 5 days | |
| PF503031 | 3.10 | 20 | 60 | 4 | Coated | NO | £22.30 | In Stock | |
| PF503032 | 3.20 | 20 | 60 | 4 | Coated | NO | £22.30 | 5 days | |
| PF503033 | 3.30 | 20 | 60 | 4 | Coated | NO | £22.30 | 5 days | |
| PF503034 | 3.40 | 22 | 60 | 4 | Coated | NO | £22.30 | 5 days | |
| PF503035 | 3.50 | 22 | 60 | 4 | Coated | NO | £22.30 | In Stock | |
| PF503036 | 3.60 | 22 | 60 | 4 | Coated | NO | £22.30 | In Stock | |
| PF503037 | 3.70 | 22 | 60 | 4 | Coated | NO | £22.30 | In Stock | |
| PF503038 | 3.80 | 24 | 60 | 4 | Coated | NO | £22.30 | In Stock | |
| PF503039 | 3.90 | 24 | 60 | 4 | Coated | NO | £22.30 | In Stock | |
| PF503040 | 4.00 | 24 | 60 | 4 | Coated | NO | £22.30 | In Stock | |
| PF503041 | 4.10 | 24 | 60 | 4 | Coated | NO | £22.30 | In Stock | |
| PF503042 | 4.20 | 26 | 62 | 5 | Coated | NO | £27.15 | 5 days | |
| PF503043 | 4.30 | 26 | 62 | 5 | Coated | NO | £27.15 | 5 days | |
| PF503044 | 4.40 | 26 | 62 | 5 | Coated | NO | £27.15 | In Stock | |
| PF503045 | 4.50 | 26 | 62 | 5 | Coated | NO | £27.15 | 5 days | |
| PF503046 | 4.60 | 26 | 62 | 5 | Coated | NO | £27.15 | 5 days | |
| PF503047 | 4.70 | 26 | 62 | 5 | Coated | NO | £27.15 | In Stock | |
| PF503048 | 4.80 | 26 | 62 | 5 | Coated | NO | £27.15 | In Stock | |
| PF503049 | 4.90 | 26 | 62 | 5 | Coated | NO | £27.15 | In Stock | |
| PF503050 | 5.00 | 26 | 62 | 5 | Coated | NO | £27.15 | 5 days | |
| PF503051 | 5.10 | 26 | 62 | 5 | Coated | NO | £27.15 | 5 days | |
| PF503052 | 5.20 | 28 | 66 | 6 | Coated | NO | £33.10 | 5 days | |
| PF503053 | 5.30 | 28 | 66 | 6 | Coated | NO | £33.10 | In Stock | |
| PF503054 | 5.40 | 28 | 66 | 6 | Coated | NO | £33.10 | In Stock | |
| PF503055 | 5.50 | 28 | 66 | 6 | Coated | NO | £33.10 | 5 days | |
| PF503056 | 5.60 | 30 | 66 | 6 | Coated | NO | £33.10 | In Stock | |
| PF503057 | 5.70 | 30 | 66 | 6 | Coated | NO | £33.10 | In Stock | |
| PF503058 | 5.80 | 30 | 66 | 6 | Coated | NO | £33.10 | In Stock | |
| PF503059 | 5.90 | 30 | 66 | 6 | Coated | NO | £33.10 | 5 days | |
| PF503060 | 6.00 | 30 | 66 | 6 | Coated | NO | £33.10 | In Stock | |
| PF503061 | 6.10 | 30 | 66 | 6 | Coated | NO | £33.12 | 5 days | |
| PF503062 | 6.20 | 34 | 74 | 7 | Coated | NO | £44.50 | In Stock | |
| PF503063 | 6.30 | 34 | 74 | 7 | Coated | NO | £44.50 | In Stock | |
| PF503064 | 6.40 | 34 | 74 | 7 | Coated | NO | £44.50 | 5 days | |
| PF503065 | 6.50 | 34 | 74 | 7 | Coated | NO | £44.50 | 5 days | |
| PF503066 | 6.60 | 34 | 74 | 7 | Coated | NO | £44.50 | 5 days | |
| PF503067 | 6.70 | 37 | 74 | 7 | Coated | NO | £44.50 | In Stock | |
| PF503068 | 6.80 | 37 | 74 | 7 | Coated | NO | £44.50 | 5 days | |
| PF503069 | 6.90 | 37 | 74 | 7 | Coated | NO | £44.50 | In Stock | |
| PF503070 | 7.00 | 37 | 74 | 7 | Coated | NO | £44.50 | In Stock | |
| PF503071 | 7.10 | 37 | 74 | 7 | Coated | NO | £44.50 | In Stock | |
| PF503072 | 7.20 | 40 | 79 | 8 | Coated | NO | £49.52 | 5 days | |
| PF503073 | 7.30 | 40 | 79 | 8 | Coated | NO | £49.52 | In Stock | |
| PF503074 | 7.40 | 40 | 79 | 8 | Coated | NO | £49.52 | In Stock | |
| PF503075 | 7.50 | 40 | 79 | 8 | Coated | NO | £49.52 | In Stock | |
| PF503076 | 7.60 | 40 | 79 | 8 | Coated | NO | £49.52 | In Stock | |
| PF503077 | 7.70 | 40 | 79 | 8 | Coated | NO | £49.52 | In Stock | |
| PF503078 | 7.80 | 40 | 79 | 8 | Coated | NO | £49.52 | In Stock | |
| PF503079 | 7.90 | 40 | 79 | 8 | Coated | NO | £49.52 | In Stock | |
| PF503080 | 8.00 | 40 | 79 | 8 | Coated | NO | £49.52 | In Stock | |
| PF503081 | 8.10 | 40 | 79 | 8 | Coated | NO | £49.52 | In Stock | |
| PF503082 | 8.20 | 43 | 84 | 9 | Coated | NO | £56.13 | 5 days | |
| PF503083 | 8.30 | 43 | 84 | 9 | Coated | NO | £56.13 | In Stock | |
| PF503084 | 8.40 | 43 | 84 | 9 | Coated | NO | £56.13 | In Stock | |
| PF503085 | 8.50 | 43 | 84 | 9 | Coated | NO | £56.13 | In Stock | |
| PF503086 | 8.60 | 43 | 84 | 9 | Coated | NO | £56.13 | In Stock | |
| PF503087 | 8.70 | 43 | 84 | 9 | Coated | NO | £56.13 | In Stock | |
| PF503088 | 8.80 | 43 | 84 | 9 | Coated | NO | £56.13 | In Stock | |
| PF503089 | 8.90 | 43 | 84 | 9 | Coated | NO | £56.13 | In Stock | |
| PF503090 | 9.00 | 43 | 84 | 9 | Coated | NO | £56.13 | 5 days | |
| PF503091 | 9.10 | 43 | 84 | 9 | Coated | NO | £56.13 | In Stock | |
| PF503092 | 9.20 | 47 | 89 | 10 | Coated | NO | £69.22 | 5 days | |
| PF503093 | 9.30 | 47 | 89 | 10 | Coated | NO | £69.22 | In Stock | |
| PF503094 | 9.40 | 47 | 89 | 10 | Coated | NO | £69.22 | In Stock | |
| PF503095 | 9.50 | 47 | 89 | 10 | Coated | NO | £69.22 | In Stock | |
| PF503096 | 9.60 | 47 | 89 | 10 | Coated | NO | £69.22 | In Stock | |
| PF503097 | 9.70 | 47 | 89 | 10 | Coated | NO | £69.22 | 5 days | |
| PF503098 | 9.80 | 47 | 89 | 10 | Coated | NO | £69.22 | In Stock | |
| PF503099 | 9.90 | 47 | 89 | 10 | Coated | NO | £69.22 | 5 days | |
| PF503100 | 10.00 | 47 | 89 | 10 | Coated | NO | £69.22 | 5 days | |
| PF503101 | 10.10 | 47 | 89 | 10 | Coated | NO | £69.22 | 5 days | |
| PF503102 | 10.20 | 51 | 95 | 11 | Coated | NO | £90.55 | In Stock | |
| PF503103 | 10.30 | 51 | 95 | 11 | Coated | NO | £90.55 | In Stock | |
| PF503104 | 10.40 | 51 | 95 | 11 | Coated | NO | £90.55 | In Stock | |
| PF503105 | 10.50 | 51 | 95 | 11 | Coated | NO | £90.55 | 5 days | |
| PF503106 | 10.60 | 51 | 95 | 11 | Coated | NO | £90.55 | In Stock | |
| PF503107 | 10.70 | 51 | 95 | 11 | Coated | NO | £90.55 | 5 days | |
| PF503108 | 10.80 | 51 | 95 | 11 | Coated | NO | £90.55 | In Stock | |
| PF503109 | 10.90 | 51 | 95 | 11 | Coated | NO | £90.55 | 5 days | |
| PF503110 | 11.00 | 51 | 95 | 11 | Coated | NO | £90.55 | In Stock | |
| PF503111 | 11.10 | 51 | 95 | 11 | Coated | NO | £90.55 | In Stock | |
| PF503112 | 11.20 | 54 | 102 | 12 | Coated | NO | £104.48 | In Stock | |
| PF503113 | 11.30 | 54 | 102 | 12 | Coated | NO | £104.48 | In Stock | |
| PF503114 | 11.40 | 54 | 102 | 12 | Coated | NO | £104.48 | 5 days | |
| PF503115 | 11.50 | 54 | 102 | 12 | Coated | NO | £104.48 | In Stock | |
| PF503116 | 11.60 | 54 | 102 | 12 | Coated | NO | £104.48 | In Stock | |
| PF503117 | 11.70 | 54 | 102 | 12 | Coated | NO | £104.48 | In Stock | |
| PF503118 | 11.80 | 54 | 102 | 12 | Coated | NO | £104.48 | 5 days | |
| PF503119 | 11.90 | 54 | 102 | 12 | Coated | NO | £104.48 | In Stock | |
| PF503120 | 12.00 | 54 | 102 | 12 | Coated | NO | £104.48 | In Stock | |
| PF503121 | 12.10 | 54 | 102 | 12 | Coated | NO | £104.48 | In Stock | |
| PF503122 | 12.20 | 57 | 102 | 13 | Coated | NO | £169.62 | In Stock | |
| PF503123 | 12.30 | 57 | 102 | 13 | Coated | NO | £169.62 | 5 days | |
| PF503124 | 12.40 | 57 | 102 | 13 | Coated | NO | £169.62 | 5 days | |
| PF503125 | 12.50 | 57 | 102 | 13 | Coated | NO | £169.62 | 5 days | |
| PF503126 | 12.60 | 57 | 102 | 13 | Coated | NO | £169.62 | In Stock | |
| PF503127 | 12.70 | 57 | 102 | 13 | Coated | NO | £169.62 | 5 days | |
| PF503128 | 12.80 | 57 | 102 | 13 | Coated | NO | £169.62 | 5 days | |
| PF503129 | 12.90 | 57 | 102 | 13 | Coated | NO | £169.62 | 5 days | |
| PF503130 | 13.00 | 57 | 102 | 13 | Coated | NO | £169.62 | In Stock | |
| PF503131 | 13.10 | 57 | 102 | 13 | Coated | NO | £169.62 | In Stock | |
| PF503132 | 13.20 | 60 | 107 | 14 | Coated | NO | £187.45 | In Stock | |
| PF503133 | 13.30 | 60 | 107 | 14 | Coated | NO | £187.45 | In Stock | |
| PF503134 | 13.40 | 60 | 107 | 14 | Coated | NO | £187.45 | 5 days | |
| PF503135 | 13.50 | 60 | 107 | 14 | Coated | NO | £187.45 | In Stock | |
| PF503136 | 13.60 | 60 | 107 | 14 | Coated | NO | £187.45 | 5 days | |
| PF503137 | 13.70 | 60 | 107 | 14 | Coated | NO | £187.45 | 5 days | |
| PF503138 | 13.80 | 60 | 107 | 14 | Coated | NO | £187.45 | 5 days | |
| PF503139 | 13.90 | 60 | 107 | 14 | Coated | NO | £187.45 | 5 days | |
| PF503140 | 14.00 | 60 | 107 | 14 | Coated | NO | £187.45 | 5 days | |
| PF503141 | 14.10 | 60 | 107 | 14 | Coated | NO | £187.45 | 5 days | |
| PF503142 | 14.20 | 62 | 111 | 15 | Coated | NO | £214.22 | In Stock | |
| PF503143 | 14.30 | 62 | 111 | 15 | Coated | NO | £214.22 | 5 days | |
| PF503144 | 14.40 | 62 | 111 | 15 | Coated | NO | £214.22 | 5 days | |
| PF503145 | 14.50 | 62 | 111 | 15 | Coated | NO | £214.22 | In Stock | |
| PF503146 | 14.60 | 62 | 111 | 15 | Coated | NO | £214.22 | 5 days | |
| PF503147 | 14.70 | 62 | 111 | 15 | Coated | NO | £214.22 | 5 days | |
| PF503148 | 14.80 | 62 | 111 | 15 | Coated | NO | £214.22 | 5 days | |
| PF503149 | 14.90 | 62 | 111 | 15 | Coated | NO | £214.22 | 5 days | |
| PF503150 | 15.00 | 62 | 111 | 15 | Coated | NO | £214.22 | 5 days | |
| PF503151 | 15.10 | 62 | 111 | 15 | Coated | NO | £214.22 | 5 days | |
| PF503152 | 15.20 | 64 | 115 | 16 | Coated | NO | £252.82 | 5 days | |
| PF503153 | 15.30 | 64 | 115 | 16 | Coated | NO | £252.82 | 5 days | |
| PF503154 | 15.40 | 64 | 115 | 16 | Coated | NO | £252.82 | 5 days | |
| PF503155 | 15.50 | 64 | 115 | 16 | Coated | NO | £252.82 | In Stock | |
| PF503156 | 15.60 | 64 | 115 | 16 | Coated | NO | £252.82 | 5 days | |
| PF503157 | 15.70 | 64 | 115 | 16 | Coated | NO | £252.82 | 5 days | |
| PF503158 | 15.80 | 64 | 115 | 16 | Coated | NO | £252.82 | 5 days | |
| PF503160 | 16.00 | 64 | 115 | 16 | Coated | NO | £252.82 | In Stock | |
| PF503161 | 16.10 | 64 | 115 | 16 | Coated | NO | £252.82 | 5 days | |
| PF503163 Viewing | 16.30 | 66 | 119 | 17 | Coated | NO | £314.83 | 5 days | |
| PF503165 | 16.50 | 66 | 119 | 17 | Coated | NO | £314.83 | In Stock | |
| PF503170 | 17.00 | 66 | 119 | 17 | Coated | NO | £314.83 | 5 days | |
| PF503171 | 17.10 | 66 | 119 | 17 | Coated | NO | £314.83 | 5 days | |
| PF503172 | 17.20 | 66 | 123 | 18 | Coated | NO | £400.22 | 5 days | |
| PF503173 | 17.30 | 66 | 123 | 18 | Coated | NO | £243.60 | 5 days | |
| PF503175 | 17.50 | 66 | 123 | 18 | Coated | NO | £400.22 | 5 days | |
| PF503177 | 17.70 | 66 | 123 | 18 | Coated | NO | £400.22 | 5 days | |
| PF503178 | 17.80 | 66 | 123 | 18 | Coated | NO | £400.22 | 5 days | |
| PF503180 | 18.00 | 66 | 123 | 18 | Coated | NO | £400.22 | In Stock | |
| PF503181 | 18.10 | 66 | 123 | 18 | Coated | NO | £400.22 | 5 days | |
| PF503182 | 18.20 | 70 | 127 | 19 | Coated | NO | £466.91 | 5 days | |
| PF503185 | 18.50 | 70 | 127 | 19 | Coated | NO | £466.91 | In Stock | |
| PF503190 | 19.00 | 70 | 127 | 19 | Coated | NO | £466.91 | In Stock | |
| PF503191 | 19.10 | 70 | 127 | 19 | Coated | NO | £466.91 | 5 days | |
| PF503193 | 19.30 | 70 | 131 | 20 | Coated | NO | £246.88 | 5 days | |
| PF503195 | 19.50 | 70 | 131 | 20 | Coated | NO | £506.94 | In Stock | |
| PF503197 | 19.70 | 70 | 131 | 20 | Coated | NO | £506.94 | 5 days | |
| PF503200 | 20.00 | 70 | 131 | 20 | Coated | NO | £506.94 | In Stock |
No products match your filters.
