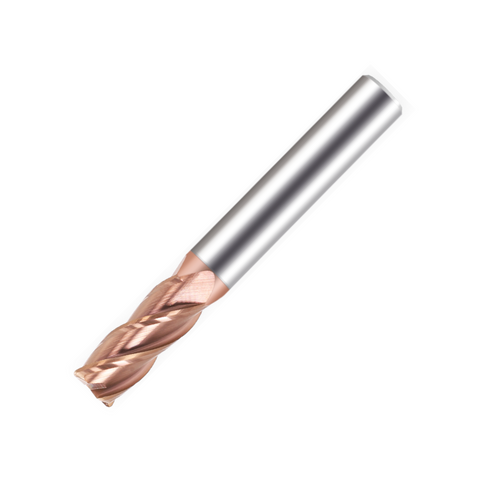

Vortex Carbide End Mill - 4 Flute Radius Edge - TiSiN Coated - 5mm x 75mm x 5mm xR1
| Cutter Diameter | 5 |
| Number of Flutes | 4 |
| Flute Length | 20 |
| Overall Length | 75 |
| Shank Diameter | 5 |
| Corner Radius | 1 |
Learn more about Klarna
Meet the Vortex Carbide End Mill — a precision cutting tool built for metalworking professionals who demand clean contours and long tool life. With a 5 mm diameter, 75 mm overall length, 5 mm shank, and a 1 mm radius edge, it delivers dependable performance for contouring, profiling, and slotting across demanding materials.
- Material: Premium carbide substrate with TiSiN coating for exceptional wear resistance and rigidity under load.
- Flute design: 4-flute geometry engineered for efficient chip evacuation and steadier cuts in hard metals.
- Radius edge: 1 mm corner radius (R1) enables smooth radii, precise contouring, and reduced edge chipping.
- Dimensions: Diameter 5 mm, overall length 75 mm, shank diameter 5 mm, corner radius 1 mm for consistent engagement in deep pockets.
- Coating: TiSiN coating lowers friction and minimizes heat buildup, extending tool life during tough milling operations.
Designed to tackle steel, stainless steel, cast iron, and high-performance alloys, this end mill delivers reliable accuracy in profiling, contouring, and slotting. The combination of carbide hardness and a durable coating helps maintain sharpness across long production runs, while the 4-flute geometry improves chip clearance and surface finish. Ideal for production shops and precision prototyping, it supports deeper cuts with less deflection and fewer tool changes, helping you complete projects faster with consistent results.
| Cutter Diameter | 5 |
| Number of Flutes | 4 |
| Flute Length | 20 |
| Overall Length | 75 |
| Shank Diameter | 5 |
| Corner Radius | 1 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Vortex Carbide End Mills - 4 Flute Radius Edge - TiSiN Coated
View full collection →You are viewing PRO1500088. Click any other SKU to view its full details.
| Product SKU | Cutter Diameter | Number of Flutes | Flute Length | Overall Length | Shank Diameter | Corner Radius | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|
| PRO1500069 | 3 | 4 | 8 | 50 | 3 | 0.5 | £5.02 | 4-6 weeks | |
| PRO1500072 | 3 | 4 | 8 | 50 | 4 | 1 | £5.02 | In Stock | |
| PRO1500070 | 3 | 4 | 8 | 50 | 3 | 1 | £5.02 | In Stock | |
| PRO1500073 | 4 | 4 | 10 | 50 | 4 | 0.5 | £5.02 | 4-6 weeks | |
| PRO1500071 | 3 | 4 | 8 | 50 | 4 | 0.5 | £5.02 | 4-6 weeks | |
| PRO1500074 | 4 | 4 | 10 | 50 | 4 | 1 | £5.02 | 4-6 weeks | |
| PRO1500075 | 5 | 4 | 13 | 50 | 5 | 0.5 | £9.69 | In Stock | |
| PRO1500076 | 5 | 4 | 13 | 50 | 5 | 1 | £9.69 | In Stock | |
| PRO1500078 | 5 | 4 | 13 | 50 | 6 | 1 | £9.69 | In Stock | |
| PRO1500077 | 5 | 4 | 13 | 50 | 6 | 0.5 | £9.69 | In Stock | |
| PRO1500079 | 6 | 4 | 15 | 50 | 6 | 0.5 | £9.69 | In Stock | |
| PRO1500080 | 6 | 4 | 15 | 50 | 6 | 1 | £9.69 | In Stock | |
| PRO1500081 | 8 | 4 | 20 | 60 | 8 | 0.5 | £18.87 | In Stock | |
| PRO1500082 | 8 | 4 | 20 | 60 | 8 | 1 | £18.87 | In Stock | |
| PRO1500083 | 3 | 4 | 12 | 75 | 3 | 0.5 | £7.44 | 4-6 weeks | |
| PRO1500084 | 3 | 4 | 12 | 75 | 3 | 1 | £7.44 | In Stock | |
| PRO1500086 | 4 | 4 | 15 | 75 | 4 | 1 | £7.44 | In Stock | |
| PRO1500085 | 4 | 4 | 15 | 75 | 4 | 0.5 | £7.44 | 4-6 weeks | |
| PRO1500089 | 6 | 4 | 20 | 75 | 6 | 0.5 | £14.71 | 4-6 weeks | |
| PRO1500087 | 5 | 4 | 20 | 75 | 5 | 0.5 | £14.71 | 4-6 weeks | |
| PRO1500088 Viewing | 5 | 4 | 20 | 75 | 5 | 1 | £14.71 | In Stock | |
| PRO1500090 | 6 | 4 | 20 | 75 | 6 | 1 | £14.71 | 4-6 weeks | |
| PRO1500091 | 8 | 4 | 25 | 75 | 8 | 0.5 | £24.23 | 4-6 weeks | |
| PRO1500092 | 8 | 4 | 25 | 75 | 8 | 1 | £24.23 | In Stock | |
| PRO1500094 | 10 | 4 | 25 | 75 | 10 | 1 | £34.44 | In Stock | |
| PRO1500093 | 10 | 4 | 25 | 75 | 10 | 0.5 | £34.44 | In Stock | |
| PRO1500095 | 12 | 4 | 30 | 75 | 12 | 0.5 | £48.81 | In Stock | |
| PRO1500096 | 12 | 4 | 30 | 75 | 12 | 1 | £48.81 | 4-6 weeks | |
| PRO1500097 | 3 | 4 | 12 | 100 | 3 | 0.5 | £9.52 | In Stock | |
| PRO1500099 | 4 | 4 | 16 | 100 | 4 | 0.5 | £9.52 | 4-6 weeks | |
| PRO1500098 | 3 | 4 | 12 | 100 | 3 | 1 | £9.52 | 4-6 weeks | |
| PRO1500101 | 5 | 4 | 20 | 100 | 5 | 0.5 | £19.04 | 4-6 weeks | |
| PRO1500100 | 4 | 4 | 16 | 100 | 4 | 1 | £9.52 | In Stock | |
| PRO1500102 | 5 | 4 | 20 | 100 | 5 | 1 | £19.04 | In Stock | |
| PRO1500103 | 6 | 4 | 25 | 100 | 6 | 0.5 | £19.04 | 4-6 weeks | |
| PRO1500104 | 6 | 4 | 25 | 100 | 6 | 1 | £19.04 | In Stock | |
| PRO1500105 | 8 | 4 | 35 | 100 | 8 | 0.5 | £31.15 | In Stock | |
| PRO1500106 | 8 | 4 | 35 | 100 | 8 | 1 | £31.15 | In Stock | |
| PRO1500107 | 10 | 4 | 40 | 100 | 10 | 0.5 | £46.56 | In Stock | |
| PRO1500108 | 10 | 4 | 40 | 100 | 10 | 1 | £46.56 | In Stock | |
| PRO1500109 | 12 | 4 | 45 | 100 | 12 | 0.5 | £65.94 | In Stock | |
| PRO1500110 | 12 | 4 | 45 | 100 | 12 | 1 | £65.94 | 4-6 weeks | |
| PRO1500111 | 16 | 4 | 45 | 100 | 16 | 0.5 | £92.49 | In Stock | |
| PRO1500112 | 16 | 4 | 45 | 100 | 16 | 1 | £92.49 | In Stock | |
| PRO1500113 | 20 | 4 | 45 | 100 | 20 | 0.5 | £142.20 | In Stock | |
| PRO1500114 | 20 | 4 | 45 | 100 | 20 | 1 | £142.20 | In Stock | |
| PRO1500115 | 6 | 4 | 25 | 150 | 6 | 0.5 | £30.81 | In Stock | |
| PRO1500116 | 6 | 4 | 25 | 150 | 6 | 1 | £30.81 | In Stock | |
| PRO1500117 | 8 | 4 | 35 | 150 | 8 | 0.5 | £52.27 | In Stock | |
| PRO1500118 | 8 | 4 | 35 | 150 | 8 | 1 | £52.27 | In Stock | |
| PRO1500119 | 10 | 4 | 45 | 150 | 10 | 0.5 | £80.65 | In Stock | |
| PRO1500121 | 12 | 4 | 45 | 150 | 12 | 0.5 | £114.92 | In Stock | |
| PRO1500120 | 10 | 4 | 45 | 150 | 10 | 1 | £80.65 | In Stock | |
| PRO1500123 | 16 | 4 | 50 | 150 | 16 | 0.5 | £158.54 | In Stock | |
| PRO1500122 | 12 | 4 | 45 | 150 | 12 | 1 | £114.92 | In Stock | |
| PRO1500124 | 16 | 4 | 50 | 150 | 16 | 1 | £158.54 | 4-6 weeks | |
| PRO1500125 | 20 | 4 | 55 | 150 | 20 | 0.5 | £246.46 | In Stock | |
| PRO1500126 | 20 | 4 | 55 | 150 | 20 | 1 | £246.46 | In Stock |
