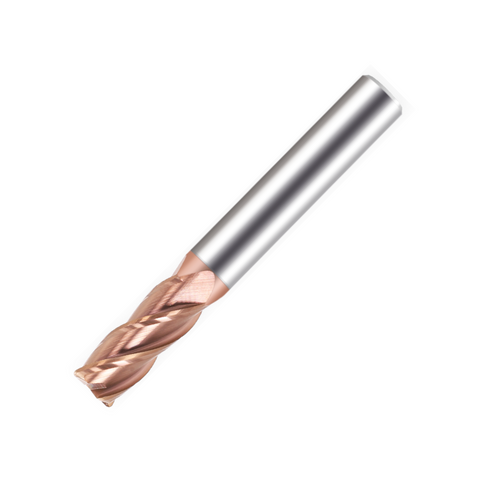

Vortex Carbide End Mill - 4 Flute Radius Edge - TiSiN Coated - 5mm x 100mm x 5mm xR1
| Cutter Diameter | 5 |
| Number of Flutes | 4 |
| Flute Length | 20 |
| Overall Length | 100 |
| Shank Diameter | 5 |
| Corner Radius | 1 |
Learn more about Klarna
The Vortex Carbide End Mill is a precision cutting tool designed for profiling, contouring, and slotting across ferrous materials. With a 5 mm cutting diameter, 100 mm overall length, a 4-flute design, and a TiSiN-coated carbide body, it delivers consistent finishes and extended tool life in demanding milling jobs.
- Diameter: 5 mm cutting diameter for precise, repeatable cuts.
- Length: 100 mm overall length for deep pockets and hard-to-reach features.
- Flutes: 4-flute geometry enhances chip evacuation and cutting stability.
- Edge Radius: Radius edge design with R1 supports smoother contouring and reduces corner chipping.
- Coating: TiSiN coating minimizes friction and heat buildup to extend tool life.
- Material: Premium carbide core delivers rigidity and durability for demanding metals.
- Recommended Materials: Effective on steel, stainless steel, cast iron, and high-performance alloys.
The combination of a carbide core and TiSiN coating enables higher speeds and feeds without sacrificing edge quality, making it a reliable choice for busy shops. The 4-flute configuration provides efficient chip clearance in longer cuts, helping maintain dimensional accuracy and a smooth surface finish. The R1 edge radius improves contouring performance, producing cleaner profiles on intricate parts and reducing wear on the cutting edges. With its long reach and robust construction, this end mill is well-suited for CNC mills and manual machines alike, offering versatility from simple slots to complex contouring tasks.
| Cutter Diameter | 5 |
| Number of Flutes | 4 |
| Flute Length | 20 |
| Overall Length | 100 |
| Shank Diameter | 5 |
| Corner Radius | 1 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Vortex Carbide End Mills - 4 Flute Radius Edge - TiSiN Coated
View full collection →You are viewing PRO1500102. Click any other SKU to view its full details.
| Product SKU | Cutter Diameter | Number of Flutes | Flute Length | Overall Length | Shank Diameter | Corner Radius | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|
| PRO1500069 | 3 | 4 | 8 | 50 | 3 | 0.5 | £5.02 | 4-6 weeks | |
| PRO1500072 | 3 | 4 | 8 | 50 | 4 | 1 | £5.02 | In Stock | |
| PRO1500070 | 3 | 4 | 8 | 50 | 3 | 1 | £5.02 | In Stock | |
| PRO1500073 | 4 | 4 | 10 | 50 | 4 | 0.5 | £5.02 | 4-6 weeks | |
| PRO1500071 | 3 | 4 | 8 | 50 | 4 | 0.5 | £5.02 | 4-6 weeks | |
| PRO1500074 | 4 | 4 | 10 | 50 | 4 | 1 | £5.02 | 4-6 weeks | |
| PRO1500075 | 5 | 4 | 13 | 50 | 5 | 0.5 | £9.69 | In Stock | |
| PRO1500076 | 5 | 4 | 13 | 50 | 5 | 1 | £9.69 | In Stock | |
| PRO1500078 | 5 | 4 | 13 | 50 | 6 | 1 | £9.69 | In Stock | |
| PRO1500077 | 5 | 4 | 13 | 50 | 6 | 0.5 | £9.69 | In Stock | |
| PRO1500079 | 6 | 4 | 15 | 50 | 6 | 0.5 | £9.69 | In Stock | |
| PRO1500080 | 6 | 4 | 15 | 50 | 6 | 1 | £9.69 | In Stock | |
| PRO1500081 | 8 | 4 | 20 | 60 | 8 | 0.5 | £18.87 | In Stock | |
| PRO1500082 | 8 | 4 | 20 | 60 | 8 | 1 | £18.87 | In Stock | |
| PRO1500083 | 3 | 4 | 12 | 75 | 3 | 0.5 | £7.44 | 4-6 weeks | |
| PRO1500084 | 3 | 4 | 12 | 75 | 3 | 1 | £7.44 | In Stock | |
| PRO1500086 | 4 | 4 | 15 | 75 | 4 | 1 | £7.44 | In Stock | |
| PRO1500085 | 4 | 4 | 15 | 75 | 4 | 0.5 | £7.44 | 4-6 weeks | |
| PRO1500089 | 6 | 4 | 20 | 75 | 6 | 0.5 | £14.71 | 4-6 weeks | |
| PRO1500087 | 5 | 4 | 20 | 75 | 5 | 0.5 | £14.71 | 4-6 weeks | |
| PRO1500088 | 5 | 4 | 20 | 75 | 5 | 1 | £14.71 | In Stock | |
| PRO1500090 | 6 | 4 | 20 | 75 | 6 | 1 | £14.71 | 4-6 weeks | |
| PRO1500091 | 8 | 4 | 25 | 75 | 8 | 0.5 | £24.23 | 4-6 weeks | |
| PRO1500092 | 8 | 4 | 25 | 75 | 8 | 1 | £24.23 | In Stock | |
| PRO1500094 | 10 | 4 | 25 | 75 | 10 | 1 | £34.44 | In Stock | |
| PRO1500093 | 10 | 4 | 25 | 75 | 10 | 0.5 | £34.44 | In Stock | |
| PRO1500095 | 12 | 4 | 30 | 75 | 12 | 0.5 | £48.81 | In Stock | |
| PRO1500096 | 12 | 4 | 30 | 75 | 12 | 1 | £48.81 | 4-6 weeks | |
| PRO1500097 | 3 | 4 | 12 | 100 | 3 | 0.5 | £9.52 | In Stock | |
| PRO1500099 | 4 | 4 | 16 | 100 | 4 | 0.5 | £9.52 | 4-6 weeks | |
| PRO1500098 | 3 | 4 | 12 | 100 | 3 | 1 | £9.52 | 4-6 weeks | |
| PRO1500101 | 5 | 4 | 20 | 100 | 5 | 0.5 | £19.04 | 4-6 weeks | |
| PRO1500100 | 4 | 4 | 16 | 100 | 4 | 1 | £9.52 | In Stock | |
| PRO1500102 Viewing | 5 | 4 | 20 | 100 | 5 | 1 | £19.04 | In Stock | |
| PRO1500103 | 6 | 4 | 25 | 100 | 6 | 0.5 | £19.04 | 4-6 weeks | |
| PRO1500104 | 6 | 4 | 25 | 100 | 6 | 1 | £19.04 | In Stock | |
| PRO1500105 | 8 | 4 | 35 | 100 | 8 | 0.5 | £31.15 | In Stock | |
| PRO1500106 | 8 | 4 | 35 | 100 | 8 | 1 | £31.15 | In Stock | |
| PRO1500107 | 10 | 4 | 40 | 100 | 10 | 0.5 | £46.56 | In Stock | |
| PRO1500108 | 10 | 4 | 40 | 100 | 10 | 1 | £46.56 | In Stock | |
| PRO1500109 | 12 | 4 | 45 | 100 | 12 | 0.5 | £65.94 | In Stock | |
| PRO1500110 | 12 | 4 | 45 | 100 | 12 | 1 | £65.94 | 4-6 weeks | |
| PRO1500111 | 16 | 4 | 45 | 100 | 16 | 0.5 | £92.49 | In Stock | |
| PRO1500112 | 16 | 4 | 45 | 100 | 16 | 1 | £92.49 | In Stock | |
| PRO1500113 | 20 | 4 | 45 | 100 | 20 | 0.5 | £142.20 | In Stock | |
| PRO1500114 | 20 | 4 | 45 | 100 | 20 | 1 | £142.20 | In Stock | |
| PRO1500115 | 6 | 4 | 25 | 150 | 6 | 0.5 | £30.81 | In Stock | |
| PRO1500116 | 6 | 4 | 25 | 150 | 6 | 1 | £30.81 | In Stock | |
| PRO1500117 | 8 | 4 | 35 | 150 | 8 | 0.5 | £52.27 | In Stock | |
| PRO1500118 | 8 | 4 | 35 | 150 | 8 | 1 | £52.27 | In Stock | |
| PRO1500119 | 10 | 4 | 45 | 150 | 10 | 0.5 | £80.65 | In Stock | |
| PRO1500121 | 12 | 4 | 45 | 150 | 12 | 0.5 | £114.92 | In Stock | |
| PRO1500120 | 10 | 4 | 45 | 150 | 10 | 1 | £80.65 | In Stock | |
| PRO1500123 | 16 | 4 | 50 | 150 | 16 | 0.5 | £158.54 | In Stock | |
| PRO1500122 | 12 | 4 | 45 | 150 | 12 | 1 | £114.92 | In Stock | |
| PRO1500124 | 16 | 4 | 50 | 150 | 16 | 1 | £158.54 | 4-6 weeks | |
| PRO1500125 | 20 | 4 | 55 | 150 | 20 | 0.5 | £246.46 | In Stock | |
| PRO1500126 | 20 | 4 | 55 | 150 | 20 | 1 | £246.46 | In Stock |
