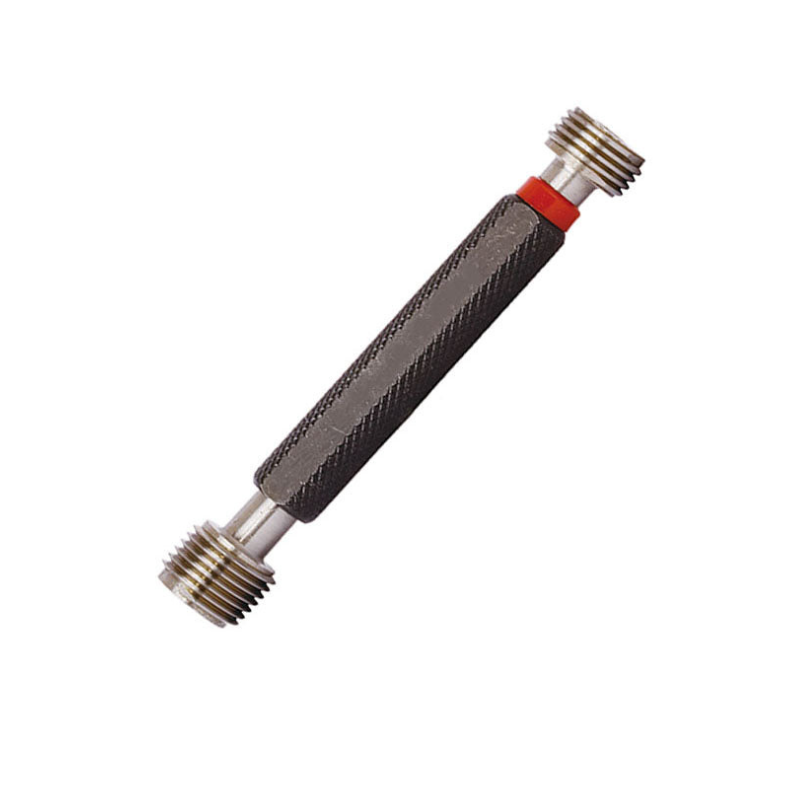

Truthread Plug Thread Gauge (D/E) - UNC - Right Hand - 2B - 1/4x20
| Thead Form | UNC |
| Size | 1/4 |
| Pitch | 20 |
| Gauge Type | Plug Thread Guage (D/E) |
Learn more about Klarna
Compatible certification
The ones our customers buy most.
Description
The Truthread Plug Thread Gauge is a precision tool designed to verify internal threads in tapped holes. It covers UNC, UNF, and UNEF thread standards, making it a versatile choice for engineers, quality teams, tradespeople, and hobbyists who need reliable thread checks in a single, easy-to-use instrument.
This right‑hand gauge features a tapered tip and a built‑in handle for smooth insertion into threaded holes, enabling quick, repeatable assessments of thread fit. Crafted for high accuracy with tight tolerances, it helps you confirm that your holes meet the intended UNC/UNF/UNEF specifications, including 1/4×20 UNC sizes.
- UNC/UNF/UNEF compatibility: Conforms to Unified National Coarse, Fine, and Extra Fine thread standards, allowing fast, accurate checks across the most common internal thread types (including 1/4×20 UNC).
- Right-hand, 2B tolerance for repeatable results: Precise 2B tolerance with right‑hand threading delivers consistent measurements, reducing guesswork in QA and maintenance workflows.
- Tapered design with handle for easy insertion: The tapered plug and integrated handle guide alignment, enabling reliable insertion and quick assessment of thread condition in holes with varying depths.
In daily use, the Truthread Plug Thread Gauge helps you streamline inspections, prevent misfits, and maintain consistent component mating. Its precise construction supports accurate results, supports calibration routines, and helps you maintain steady throughput across production or repair activities.
Part Numbers
- Protool Part Number
- PRO2100014
- Brand
- Truthread
- Category
- Gauge
Need cutting data? Call 01732 887334 or email sales@protool-ltd.co.uk.
Delivery
Free UK mainland delivery on orders over £50 ex VAT. In-stock items ordered before 4:30pm are dispatched the same working day. Full delivery information.
Returns
14-day returns on unused stock items in original packaging. Special-order and bespoke tooling is non-returnable. Read our returns policy.
Technical Support
Over 30 years of machining experience behind the counter. Call 01732 887334, Mon–Thurs 8:30–17:30, Fri 8:30–16:30.
Trade Accounts
Credit accounts, contract pricing and scheduled call-off orders available for trade customers. Apply for an account.
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Truthread Plug Thread Guage's (D/E) - UN - Right Hand - 2B
View full collection →You are viewing PRO2100014. Click any other SKU to view its full details.
| Product SKU | Thread Form | Size | Pitch | Price | Stock | Order |
|---|---|---|---|---|---|---|
| PRO2100001 | UNC | No. 4 | 40 | £62.96 | In Stock | |
| PRO2100002 | UNF | No. 4 | 48 | £62.96 | In Stock | |
| PRO2100003 | UNC | No. 5 | 40 | £62.96 | In Stock | |
| PRO2100004 | UNF | No. 5 | 44 | £62.96 | Out of Stock | |
| PRO2100005 | UNC | No. 6 | 32 | £51.52 | In Stock | |
| PRO2100006 | UNF | No. 6 | 40 | £51.52 | In Stock | |
| PRO2100007 | UNC | No. 8 | 32 | £51.52 | Out of Stock | |
| PRO2100008 | UNF | No. 8 | 36 | £51.52 | In Stock | |
| PRO2100009 | UNC | No. 10 | 24 | £51.52 | Out of Stock | |
| PRO2100010 | UNF | No. 10 | 32 | £51.52 | In Stock | |
| PRO2100011 | UNC | No. 12 | 24 | £51.52 | In Stock | |
| PRO2100012 | UNF | No. 12 | 28 | £51.52 | In Stock | |
| PRO2100013 | UNEF | No. 12 | 32 | £62.96 | In Stock | |
| PRO2100014 Viewing | UNC | 1/4 | 20 | £51.52 | Out of Stock | |
| PRO2100015 | UNF | 1/4 | 28 | £51.52 | In Stock | |
| PRO2100016 | UNEF | 1/4 | 32 | £62.96 | In Stock | |
| PRO2100017 | UNC | 5/16 | 18 | £51.52 | In Stock | |
| PRO2100018 | UNF | 5/16 | 24 | £51.52 | Out of Stock | |
| PRO2100019 | UNEF | 5/16 | 32 | £62.96 | In Stock | |
| PRO2100020 | UNC | 3/8 | 16 | £51.52 | In Stock | |
| PRO2100021 | UNF | 3/8 | 24 | £51.52 | Out of Stock | |
| PRO2100022 | UNEF | 3/8 | 32 | £62.96 | In Stock | |
| PRO2100023 | UNC | 7/16 | 14 | £51.52 | Out of Stock | |
| PRO2100024 | UNF | 7/16 | 20 | £51.52 | Out of Stock | |
| PRO2100025 | UNEF | 7/16 | 28 | £62.96 | In Stock | |
| PRO2100026 | UNC | 1/2 | 13 | £51.52 | In Stock | |
| PRO2100027 | UNF | 1/2 | 20 | £51.52 | Out of Stock | |
| PRO2100028 | UNEF | 1/2 | 28 | £62.96 | Out of Stock | |
| PRO2100029 | UNC | 9/16 | 12 | £68.69 | In Stock | |
| PRO2100030 | UNF | 9/16 | 18 | £57.24 | Out of Stock | |
| PRO2100031 | UN | 9/16 | 20 | £80.14 | Out of Stock | |
| PRO2100032 | UNEF | 9/16 | 24 | £91.58 | In Stock | |
| PRO2100033 | UNC | 5/8 | 11 | £68.69 | Out of Stock | |
| PRO2100034 | UNF | 5/8 | 18 | £57.24 | Out of Stock | |
| PRO2100035 | UN | 5/8 | 20 | £80.14 | Out of Stock | |
| PRO2100036 | UNEF | 5/8 | 24 | £91.58 | In Stock | |
| PRO2100037 | UN | 11/16 | 12 | £85.86 | Out of Stock | |
| PRO2100038 | UN | 11/16 | 16 | £85.86 | Out of Stock | |
| PRO2100039 | UN | 11/16 | 20 | £91.58 | In Stock | |
| PRO2100040 | UNEF | 11/16 | 24 | £91.58 | Out of Stock | |
| PRO2100041 | UNC | 3/4 | 10 | £85.86 | Out of Stock | |
| PRO2100042 | UN | 3/4 | 12 | £85.86 | In Stock | |
| PRO2100043 | UNF | 3/4 | 16 | £68.69 | Out of Stock | |
| PRO2100044 | UNEF | 3/4 | 20 | £91.58 | Out of Stock | |
| PRO2100045 | UN | 13/16 | 12 | £103.03 | Out of Stock | |
| PRO2100046 | UN | 13/16 | 16 | £103.03 | In Stock | |
| PRO2100047 | UNEF | 13/16 | 20 | £103.03 | Out of Stock | |
| PRO2100048 | UNEF | 13/16 | 24 | £114.48 | Out of Stock | |
| PRO2100049 | UNC | 7/8 | 9 | £103.03 | In Stock | |
| PRO2100050 | UN | 7/8 | 12 | £91.58 | Out of Stock | |
| PRO2100051 | UNF | 7/8 | 14 | £68.69 | Out of Stock | |
| PRO2100052 | UN | 7/8 | 16 | £97.31 | In Stock | |
| PRO2100053 | UNEF | 7/8 | 20 | £97.31 | Out of Stock | |
| PRO2100054 | UN | 15/16 | 12 | £103.03 | In Stock | |
| PRO2100055 | UN | 15/16 | 16 | £103.03 | Out of Stock | |
| PRO2100056 | UNEF | 15/16 | 20 | £103.03 | In Stock | |
| PRO2100057 | UNC | 1 | 8 | £120.20 | Out of Stock | |
| PRO2100058 | UNF | 1 | 12 | £97.31 | In Stock | |
| PRO2100059 | UN | 1 | 14 | £97.31 | Out of Stock | |
| PRO2100060 | UN | 1 | 16 | £97.31 | Out of Stock | |
| PRO2100061 | UNEF | 1 | 20 | £97.31 | Out of Stock | |
| PRO2100062 | UNC | 1.1/16 | 8 | £143.10 | Out of Stock | |
| PRO2100063 | UNF | 1.1/16 | 12 | £103.03 | Out of Stock | |
| PRO2100064 | UN | 1.1/16 | 16 | £103.03 | In Stock | |
| PRO2100065 | UNEF | 1.1/16 | 18 | £137.38 | In Stock | |
| PRO2100066 | UNC | 1.1/8 | 7 | £143.10 | In Stock | |
| PRO2100067 | UNF | 1.1/8 | 12 | £97.31 | Out of Stock | |
| PRO2100068 | UN | 1.1/8 | 16 | £97.31 | In Stock | |
| PRO2100069 | UNEF | 1.1/8 | 18 | £137.38 | In Stock | |
| PRO2100070 | UN | 1.3/16 | 8 | £143.10 | In Stock | |
| PRO2100071 | UN | 1.3/16 | 12 | £103.03 | Out of Stock | |
| PRO2100072 | UN | 1.3/16 | 16 | £103.03 | In Stock | |
| PRO2100073 | UNEF | 1.3/16 | 18 | £137.38 | In Stock | |
| PRO2100074 | UNC | 1.1/4 | 7 | £143.10 | In Stock | |
| PRO2100075 | UN | 1.1/4 | 8 | £143.10 | Out of Stock | |
| PRO2100076 | UNF | 1.1/4 | 12 | £97.31 | Out of Stock | |
| PRO2100077 | UN | 1.1/4 | 16 | £97.31 | Out of Stock | |
| PRO2100078 | UNEF | 1.1/4 | 18 | £137.38 | In Stock | |
| PRO2100079 | UN | 1.1/4 | 20 | £137.38 | In Stock | |
| PRO2100080 | UN | 1.5/16 | 8 | £143.10 | In Stock | |
| PRO2100081 | UNF | 1.5/16 | 12 | £103.03 | Out of Stock | |
| PRO2100082 | UN | 1.5/16 | 16 | £103.03 | In Stock | |
| PRO2100083 | UNEF | 1.5/16 | 18 | £137.38 | Out of Stock | |
| PRO2100084 | UN | 1.5/16 | 20 | £137.38 | In Stock | |
| PRO2100085 | UNC | 1.3/8 | 6 | £157.41 | In Stock | |
| PRO2100086 | UN | 1.3/8 | 8 | £143.10 | Out of Stock | |
| PRO2100087 | UNF | 1.3/8 | 12 | £103.03 | Out of Stock | |
| PRO2100088 | UN | 1.3/8 | 16 | £103.03 | In Stock | |
| PRO2100089 | UNEF | 1.3/8 | 18 | £137.38 | Out of Stock | |
| PRO2100090 | UN | 1.3/8 | 20 | £137.38 | Out of Stock | |
| PRO2100091 | UN | 1.3/8 | 6 | £157.41 | Out of Stock | |
| PRO2100092 | UN | 1.3/8 | 8 | £143.10 | In Stock | |
| PRO2100093 | UN | 1.7/16 | 12 | £103.03 | Out of Stock | |
| PRO2100094 | UNEF | 1.7/16 | 18 | £137.38 | In Stock | |
| PRO2100095 | UN | 1.7/16 | 20 | £137.38 | In Stock | |
| PRO2100096 | UNC | 1.1/2 | 6 | £157.41 | Out of Stock | |
| PRO2100097 | UN | 1.1/2 | 8 | £143.10 | In Stock | |
| PRO2100098 | UNF | 1.1/2 | 12 | £103.03 | Out of Stock | |
| PRO2100099 | UN | 1.1/2 | 16 | £103.03 | In Stock | |
| PRO2100100 | UNEF | 1.1/2 | 18 | £137.38 | In Stock | |
| PRO2100101 | UN | 1.1/2 | 20 | £137.38 | In Stock |
