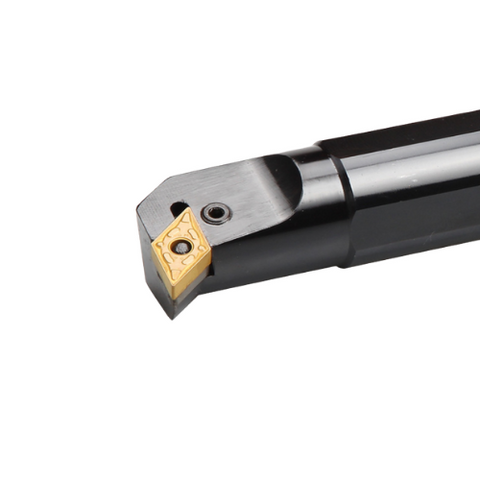

Vortex Boring Bar Pin Lock - Steel Shank 93 Deg - For DNMG1104 Inserts - S20Q-PDUNR11
| ISO Code | S20QPDUNR11 |
| Type | Steel Shank |
| Through Coolant | No |
| Shank Diameter | 20 |
Learn more about Klarna
Compatible inserts
The ones our customers buy most.
Description
The Vortex Boring Bar with Pin Lock is engineered for machinists who demand stable, precise boring and turning with DNMG1104 PDUNR inserts. Its rugged steel shank and 93-degree geometry deliver dependable performance across heavy cuts and fine-detail work. For a complete setup, explore compatible components: Clamping Screw (https://www.protool-ltd.co.uk/products/VHX0512), Shim (https://www.protool-ltd.co.uk/products/PD11270), Wrench (https://www.protool-ltd.co.uk/products/S2), Lever (https://www.protool-ltd.co.uk/products/LV3D), Shim Pin (https://www.protool-ltd.co.uk/products/SP3).
- 93° cutting geometry: Optimized to pair with DNMG1104 PDUNR inserts, delivering precise bore geometry and predictable chip flow for accurate turning and boring.
- Sturdy steel shank: Robust construction resists deflection during heavy cuts, helping maintain tight tolerances and repeatable results.
- Pin lock insert retention: Secure grip on the DNMG PDUNR insert minimizes movement, reducing disruptions and improving consistency throughout the cut.
- PDUNR11 compatibility: Specifically designed to align with S20Q-PDUNR11 inserts, ensuring reliable seating and dependable performance in demanding machining tasks.
- Versatile integration: Suited for standard toolholders and CNC machines, enabling reliable boring and turning across a range of materials.
With the pin-lock mechanism, you’ll experience reduced insert chatter and improved surface finishes even on challenging materials. The sturdy steel shank maintains straightness and alignment through long runs, helping you achieve accurate bores and consistent diameters. This boring bar is a reliable choice for toolrooms and production environments that prioritize uptime, repeatable results, and long-term tool life in turning and boring operations.
Part Numbers
- Protool Part Number
- PRO1600147
- Brand
- Vortex
- Category
- ISO Lathe Tool
Need cutting data? Call 01732 887334 or email sales@protool-ltd.co.uk.
Delivery
Free UK mainland delivery on orders over £50 ex VAT. In-stock items ordered before 4:30pm are dispatched the same working day. Full delivery information.
Returns
14-day returns on unused stock items in original packaging. Special-order and bespoke tooling is non-returnable. Read our returns policy.
Technical Support
Over 30 years of machining experience behind the counter. Call 01732 887334, Mon–Thurs 8:30–17:30, Fri 8:30–16:30.
Trade Accounts
Credit accounts, contract pricing and scheduled call-off orders available for trade customers. Apply for an account.
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Vortex Boring Bars Pin Lock - Steel Shank 93 Deg - For DNMG Inserts (PDUNR/L)
View full collection →You are viewing PRO1600147. Click any other SKU to view its full details.
| Product SKU | ISO Code | Type | Through Coolant | Shank Diameter | Insert Type | Locking System | Hand | Minimum Bore | Overall Length | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PRO1600147 Viewing | S20QPDUNR11 | Steel Shank | No | 20 | DN** 1104 | Pin Lock | Right | 25 | 180 | £25.92 | 4-6 weeks | |
| PRO1600148 | S25RPDUNR11 | Steel Shank | No | 25 | DN** 1104 | Pin Lock | Right | 32 | 200 | £27.04 | In Stock | |
| PRO1600149 | S32SPDUNR11 | Steel Shank | No | 32 | DN** 1104 | Pin Lock | Right | 41 | 250 | £39.48 | 4-6 weeks | |
| PRO1600150 | S32SPDUNR1506 | Steel Shank | No | 32 | DN** 1506 | Pin Lock | Right | 41 | 250 | £39.48 | 4-6 weeks | |
| PRO1600151 | S40TPDUNR1506 | Steel Shank | No | 40 | DN** 1506 | Pin Lock | Right | 50 | 300 | £67.90 | 4-6 weeks |
