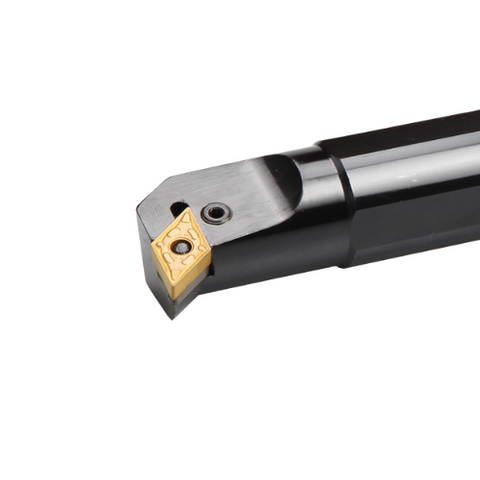

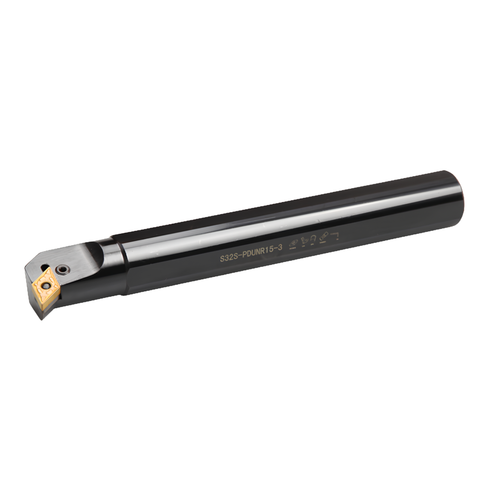

Vortex Boring Bar Pin Lock - Steel Shank 93 Deg - For DNMG1104 Inserts - S32S-PDUNR11
| ISO Code | S32SPDUNR11 |
| Type | Steel Shank |
| Through Coolant | No |
| Shank Diameter | 32 |
Learn more about Klarna
Compatible inserts
The ones our customers buy most.
Description
The Vortex Boring Bar with Pin Lock is engineered for precision turning and boring tasks, delivering stable, accurate results. Built around a robust steel shank and a 93-degree head, it’s designed to pair with DNMG1104 inserts (PDUNR) to maintain consistent geometry through demanding cuts.
- Shank Material: Robust steel shank delivers rigidity to minimize deflection under heavy cutting loads.
- Head Geometry: 93° design optimized for DNMG1104 inserts, ensuring proper secondary relief and cutting edge engagement.
- Insert Compatibility: Specifically engineered for PDUNR-style DNMG1104 inserts, including S32S-PDUNR11, for secure seating and reliable performance.
- Pin Lock System: Dedicated pin-lock mechanism provides secure retention of the insert, reducing movement and improving consistency during operation.
- Application Scope: Suitable for both turning and boring tasks, excelling in roughing and finishing passes with stable chip control.
The combination of a rugged steel shank, precise 93-degree head geometry, and a reliable pin-lock insert retention translates to fewer interruptions, better surface quality, and predictable tool life in everyday machining. For a complete setup, explore related accessories to optimize clamping and alignment: Clamping Screw, Shim, Wrench, Lever, Shim Pin.
Part Numbers
- Protool Part Number
- PRO1600149
- Brand
- Vortex
- Category
- ISO Lathe Tool
Need cutting data? Call 01732 887334 or email sales@protool-ltd.co.uk.
Delivery
Free UK mainland delivery on orders over £50 ex VAT. In-stock items ordered before 4:30pm are dispatched the same working day. Full delivery information.
Returns
14-day returns on unused stock items in original packaging. Special-order and bespoke tooling is non-returnable. Read our returns policy.
Technical Support
Over 30 years of machining experience behind the counter. Call 01732 887334, Mon–Thurs 8:30–17:30, Fri 8:30–16:30.
Trade Accounts
Credit accounts, contract pricing and scheduled call-off orders available for trade customers. Apply for an account.
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Vortex Boring Bars Pin Lock - Steel Shank 93 Deg - For DNMG Inserts (PDUNR/L)
View full collection →You are viewing PRO1600149. Click any other SKU to view its full details.
| Product SKU | ISO Code | Type | Through Coolant | Shank Diameter | Insert Type | Locking System | Hand | Minimum Bore | Overall Length | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PRO1600147 | S20QPDUNR11 | Steel Shank | No | 20 | DN** 1104 | Pin Lock | Right | 25 | 180 | £25.92 | 4-6 weeks | |
| PRO1600148 | S25RPDUNR11 | Steel Shank | No | 25 | DN** 1104 | Pin Lock | Right | 32 | 200 | £27.04 | In Stock | |
| PRO1600149 Viewing | S32SPDUNR11 | Steel Shank | No | 32 | DN** 1104 | Pin Lock | Right | 41 | 250 | £39.48 | 4-6 weeks | |
| PRO1600150 | S32SPDUNR1506 | Steel Shank | No | 32 | DN** 1506 | Pin Lock | Right | 41 | 250 | £39.48 | 4-6 weeks | |
| PRO1600151 | S40TPDUNR1506 | Steel Shank | No | 40 | DN** 1506 | Pin Lock | Right | 50 | 300 | £67.90 | 4-6 weeks |
