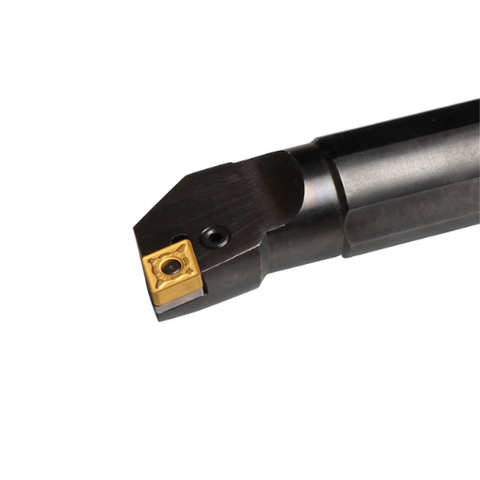

Vortex Boring Bar Pin Lock - Steel Shank 95 Deg - For CNMG1204 Inserts - S40T-PCLNR12
| ISO Code | S40TPCLNR12 |
| Type | Steel Shank |
| Through Coolant | No |
| Shank Diameter | 40 |
Learn more about Klarna
Compatible inserts
The ones our customers buy most.
Description
The Vortex Boring Bar Pin Lock combines a rugged steel shank with a precise 95-degree geometry, engineered for CNMG1204 inserts (PCLNR). It delivers stable, accurate performance for turning and boring tasks in demanding machining environments.
- Shank material: Steel shank designed for rigidity and long tool life in tough materials.
- Geometry: 95-degree configuration optimized for CNMG1204 inserts (PCLNR) to ensure consistent engagement and chip control.
- Pin lock mechanism: Reliable insert retention minimizes movement and downtime during cutting.
- Compatibility: Specifically tuned for S40T-PCLNR12 applications, delivering repeatable seating and accuracy.
- Durability: Built to withstand heavy-duty machining without warping or vibration.
Enhance your setup with compatible accessories available from Pro Tool: Clamping Screw, Shim, Wrench, Lever, Shim Pin.
With the Vortex Boring Bar Pin Lock, you gain predictable performance: reduced insert chatter, consistent depth of cut, and longer tool life due to improved clamping stability. The combination of a sturdy steel shank and a precisely engineered 95° geometry helps you achieve tight tolerances and smooth surface finishes, even in challenging materials. This boring bar is a dependable choice for workshops prioritizing reliability and repeatable results in both turning and boring applications.
Part Numbers
- Protool Part Number
- PRO1600146
- Brand
- Vortex
- Category
- ISO Lathe Tool
Need cutting data? Call 01732 887334 or email sales@protool-ltd.co.uk.
Delivery
Free UK mainland delivery on orders over £50 ex VAT. In-stock items ordered before 4:30pm are dispatched the same working day. Full delivery information.
Returns
14-day returns on unused stock items in original packaging. Special-order and bespoke tooling is non-returnable. Read our returns policy.
Technical Support
Over 30 years of machining experience behind the counter. Call 01732 887334, Mon–Thurs 8:30–17:30, Fri 8:30–16:30.
Trade Accounts
Credit accounts, contract pricing and scheduled call-off orders available for trade customers. Apply for an account.
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Vortex Boring Bars Pin Lock - Steel Shank 95 Deg - For CNMG Inserts (PCLNR)
View full collection →You are viewing PRO1600146. Click any other SKU to view its full details.
| Product SKU | ISO Code | Type | Through Coolant | Shank Diameter | Insert Type | Locking System | Hand | Minimum Bore | Overall Length | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PRO1600143 | S20QPCLNR12 | Steel Shank | No | 20 | CN** 1204 | Pin Lock | Right | 25 | 180 | £25.92 | In Stock | |
| PRO1600144 | S25RPCLNR12 | Steel Shank | No | 25 | CN** 1204 | Pin Lock | Right | 32 | 200 | £27.04 | In Stock | |
| PRO1600145 | S32SPCLNR12 | Steel Shank | No | 32 | CN** 1204 | Pin Lock | Right | 41 | 250 | £39.48 | 4-6 weeks | |
| PRO1600146 Viewing | S40TPCLNR12 | Steel Shank | No | 40 | CN** 1204 | Pin Lock | Right | 50 | 300 | £67.90 | 4-6 weeks |
