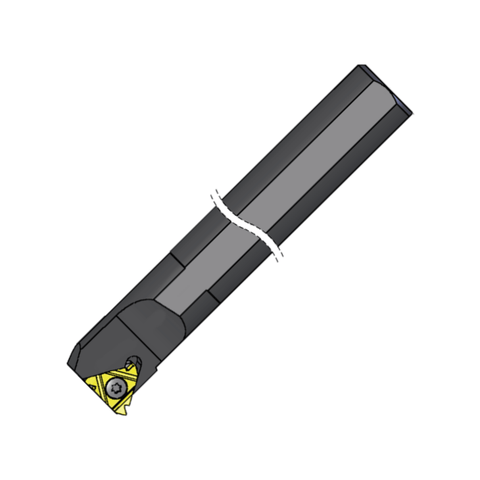

Carmex Thread Turning Holder Standard - Internal - Left Hand - 200mm OAL - 22IL Insert - 25 Shank Size
| Type | Standard |
| Internal or External | Internal |
| Minimum Bore | 29 |
| Shank Size | 25 |
Learn more about Klarna
Compatible inserts
The ones our customers buy most.
Description
Engineered for precision internal threading, the Carmex Thread Turning Holder Standard – Internal, Left Hand is designed for machinists who need reliable LH internal threads with a long reach and secure toolholding.
- Orientation: Left-hand internal threading holder, optimized for LH thread production and consistent chip flow.
- Length: 200 mm overall length (OAL) to reach deeper bore depths without repositioning.
- Shank Size: 25 mm shank to fit standard toolposts and compatible CNC setups.
- Insert Compatibility: Designed to work with 22IL U-Type inserts for precise, secure engagement in internal threads.
- Clamping: Carmex screw clamp mechanism provides reliable, repeatable toolholding with minimal runout.
- Helix Angle: 1.5° helix angle to improve chip evacuation and reduce cutting forces for smoother threading.
This holder delivers a stable, high-precision platform for internal threading operations, helping you achieve accurate thread profiles, cleaner finishes, and longer insert life. Its combination of LH orientation, extended reach, and secure U-Type insert compatibility makes it a practical choice for complex internal threads in aerospace, automotive, hydraulic, and general manufacturing applications.
Part Numbers
- Protool Part Number
- SIL0025R22
- Brand
- Carmex
- Category
- Thread Turning
Need cutting data? Call 01732 887334 or email sales@protool-ltd.co.uk.
Delivery
Free UK mainland delivery on orders over £50 ex VAT. In-stock items ordered before 4:30pm are dispatched the same working day. Full delivery information.
Returns
14-day returns on unused stock items in original packaging. Special-order and bespoke tooling is non-returnable. Read our returns policy.
Technical Support
Over 30 years of machining experience behind the counter. Call 01732 887334, Mon–Thurs 8:30–17:30, Fri 8:30–16:30.
Trade Accounts
Credit accounts, contract pricing and scheduled call-off orders available for trade customers. Apply for an account.
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Carmex Screw Clamp Threading Bars - Internal - Right/Left Hand - For IR/IL Inserts
View full collection →You are viewing SIL0025R22. Click any other SKU to view its full details.
| Product SKU | Minimum Bore | Shank Size | Hand | Overall Length | Insert | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| SIR0005H06 | 6 | 12 | Right | 100 | 06IR | £53.12 | 5 days | |
| SIR0007K08 | 7.8 | 16 | Right | 125 | 08IR | £53.12 | In Stock | |
| SIR0008K08U | 9 | 16 | Right | 125 | 08UIR | £61.04 | 5 days | |
| SIR0010H11 | 12 | 10 | Right | 100 | 11IR | £49.72 | 5 days | |
| SIR0010K11 | 12 | 16 | Right | 125 | 11IR | £49.72 | In Stock | |
| SIR0013L11 | 15 | 16 | Right | 140 | 11IR | £49.72 | 5 days | |
| SIR0013M16 | 16 | 16 | Right | 150 | 16IR | £49.72 | 5 days | |
| SIR0016P16 | 19 | 20 | Right | 170 | 16IR | £49.72 | In Stock | |
| SIR0020P16 | 24 | 20 | Right | 170 | 16IR | £56.14 | 5 days | |
| SIR0025R16 | 29 | 25 | Right | 200 | 16IR | £71.92 | 5 days | |
| SIR0032S16 | 36 | 32 | Right | 250 | 16IR | £139.86 | 5 days | |
| SIR0040T16 | 44 | 40 | Right | 300 | 16IR | £166.47 | 5 days | |
| SIR0050U16 | 54 | 50 | Right | 350 | 16IR | £225.93 | 5 days | |
| SIR0020P22 | 24 | 20 | Right | 170 | 22IR | £56.58 | 5 days | |
| SIR0025R22 | 29 | 25 | Right | 200 | 22IR | £69.04 | 5 days | |
| SIR0032S22 | 38 | 32 | Right | 250 | 22IR | £146.70 | 5 days | |
| SIR0040T22 | 46 | 40 | Right | 300 | 22IR | £173.52 | In Stock | |
| SIR0050U22 | 56 | 50 | Right | 350 | 22IR | £242.28 | 5 days | |
| SIR0032S22U | 38 | 32 | Right | 250 | 22UIR | £151.08 | 5 days | |
| SIR0040T22U | 46 | 40 | Right | 300 | 22UIR | £188.10 | In Stock | |
| SIR0050U22U | 57 | 50 | Right | 350 | 22UIR | £268.92 | 5 days | |
| SIR0032S27 | 40 | 32 | Right | 250 | 27IR | £152.76 | 5 days | |
| SIR0040T27 | 48 | 40 | Right | 300 | 27IR | £190.83 | In Stock | |
| SIR0050U27 | 58 | 50 | Right | 350 | 27IR | £243.81 | 5 days | |
| SIR0060V27 | 68 | 60 | Right | 400 | 27IR | £292.95 | 5 days | |
| SIR0032S27U | 40 | 32 | Right | 250 | 27UIR | £163.44 | 5 days | |
| SIR0040T27U | 48 | 40 | Right | 300 | 27UIR | £197.97 | 5 days | |
| SIR0050U27U | 58 | 50 | Right | 350 | 27UIR | £245.61 | 5 days | |
| SIR0060V27U | 68 | 60 | Right | 400 | 27UIR | £302.79 | 5 days | |
| SIR0050U33U | 62 | 50 | Right | 350 | 33UIR | £408.21 | 5 days | |
| SIL0005H06 | 6 | 12 | Left | 100 | 06IL | £53.12 | 5 days | |
| SIL0007K08 | 7.8 | 16 | Left | 125 | 08IL | £53.12 | 5 days | |
| SIL0008K08U | 9 | 16 | Left | 125 | 08UIL | £61.04 | 5 days | |
| SIL0010H11 | 12 | 10 | Left | 100 | 11IL | £49.72 | 5 days | |
| SIL0010K11 | 12 | 16 | Left | 125 | 11IL | £49.72 | 5 days | |
| SIL0013L11 | 15 | 16 | Left | 140 | 11IL | £49.72 | 5 days | |
| SIL0013M16 | 16 | 16 | Left | 150 | 16IL | £49.72 | 5 days | |
| SIL0016P16 | 19 | 20 | Left | 170 | 16IL | £49.72 | 5 days | |
| SIL0020P16 | 24 | 20 | Left | 170 | 16IL | £56.14 | 5 days | |
| SIL0025R16 | 29 | 25 | Left | 200 | 16IL | £71.92 | 5 days | |
| SIL0032S16 | 36 | 32 | Left | 250 | 16IL | £93.24 | 5 days | |
| SIL0040T16 | 44 | 40 | Left | 300 | 16IL | £110.98 | 5 days | |
| SIL0050U16 | 54 | 50 | Left | 350 | 16IL | £150.62 | 5 days | |
| SIL0020P22 | 24 | 20 | Left | 170 | 22IL | £56.58 | 5 days | |
| SIL0025R22 Viewing | 29 | 25 | Left | 200 | 22IL | £69.04 | 5 days | |
| SIL0032S22 | 38 | 32 | Left | 250 | 22IL | £97.80 | 5 days | |
| SIL0040T22 | 46 | 40 | Left | 300 | 22IL | £115.68 | 5 days | |
| SIL0050U22 | 56 | 50 | Left | 350 | 22IL | £161.52 | 5 days | |
| SIL0032S22U | 38 | 32 | Left | 250 | 22UIL | £100.72 | 5 days | |
| SIL0040T22U | 46 | 40 | Left | 300 | 22UIL | £125.40 | 5 days | |
| SIL0050U22U | 57 | 50 | Left | 350 | 22UIL | £179.26 | 5 days | |
| SIL0032S27 | 40 | 32 | Left | 250 | 27IL | £101.84 | 5 days | |
| SIL0040T27 | 48 | 40 | Left | 300 | 27IL | £127.22 | 5 days | |
| SIL0050U27 | 58 | 50 | Left | 350 | 27IL | £162.54 | 5 days | |
| SIL0060V27 | 68 | 60 | Left | 400 | 27IL | £195.30 | 5 days | |
| SIL0032S27U | 40 | 32 | Left | 250 | 27UIL | £108.96 | In Stock | |
| SIL0040T27U | 48 | 40 | Left | 300 | 27UIL | £131.98 | 5 days | |
| SIL0050U27U | 58 | 50 | Left | 350 | 27UIL | £163.74 | 5 days | |
| SIL0060V27U | 68 | 60 | Left | 400 | 27UIL | £201.86 | 5 days | |
| SIL0050U33U | 62 | 50 | Left | 350 | 33UIL | £272.14 | 5 days |
