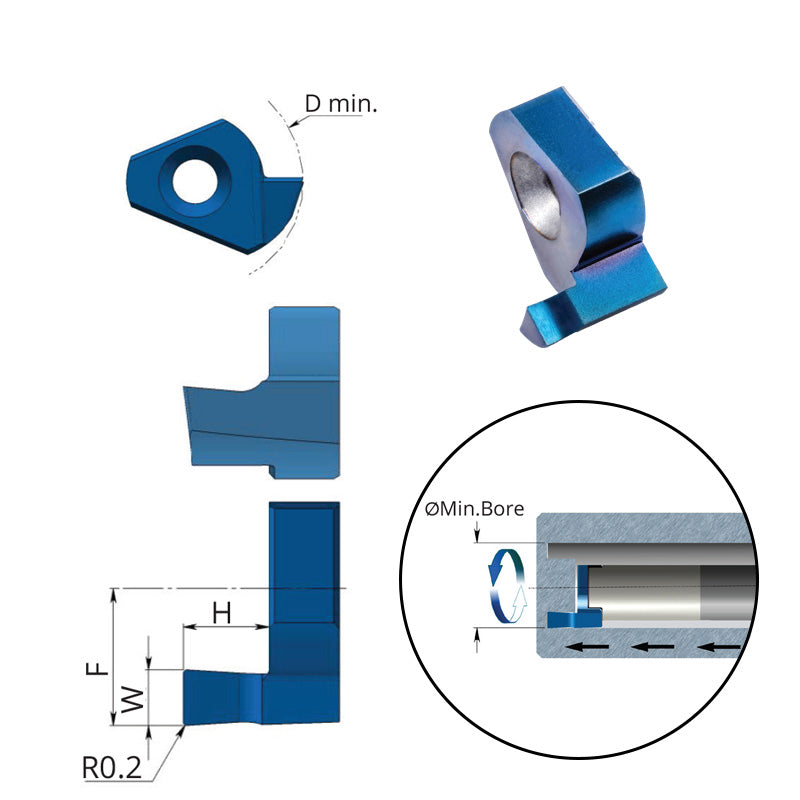

Carmex Small Indexable Carbide Insert Face Grooving Internal - T10 - 14mm Min Bore - 1mm Width - 1.5mm Groove Depth
| Insert Size | T10 |
| Groove Width | 1.00 |
| Groove Depth | 1.50 |
| Minimum Bore | 14 |
| F | 8 |
Learn more about Klarna
Compact, high-precision carbide insert designed for internal face grooving. The Carmex Small Indexable Carbide Insert delivers reliable performance for internal machining tasks, with a 14.0 mm minimum bore, 1.0 mm width, and a 1.5 mm groove depth.
- Insert Size: T10, small indexable insert optimized for internal face grooving
- Min Bore (Internal): 14.0 mm / 0.55 in
- Width: 1.0 mm
- Groove Depth: 1.5 mm
- Material: Carbide
- Coating / Grade: BLU PVD triple-layer coating with sub-micron grain for enhanced wear resistance
- Recommended Materials: Stainless steels, cast iron, titanium, non-ferrous metals, and most high-temperature alloys (M10–M20, K05–K20, N10–N20, S10–S20)
- Applications: Internal face grooving and other internal machining operations
This insert pair combines a robust carbide substrate with a durable BLU PVD coating to maintain sharpness and deliver consistent groove geometry under demanding conditions. The 14 mm minimum bore ensures compatibility with a range of internal tooling setups, while the 1.0 mm width and 1.5 mm groove depth enable precise, clean grooves in tight internal cavities. The coating’s performance across stainless steels, cast iron, titanium, non-ferrous metals, and high-temperature alloys helps minimize built-up edge and stabilize cutting conditions, supporting efficient cycle times and reliable part finish.
| Insert Size | T10 |
| Groove Width | 1.00 |
| Groove Depth | 1.50 |
| Minimum Bore | 14 |
| F | 8 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Carmex Small Indexable Carbide Insert Face Grooving Internal
View full collection →You are viewing T10FIW10H15BLU. Click any other SKU to view its full details.
| Product SKU | Insert Size | Groove Width | Groove Depth | Minimum Bore | F | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| T10FIW10H15BLU Viewing | T10 | 1.00 | 1.50 | 14 | 8 | £17.74 | In Stock | |
| T10FIW15H25BLU | T10 | 1.50 | 2.50 | 14 | 8 | £18.66 | 5 days | |
| T10FIW20H30BLU | T10 | 2.00 | 3.00 | 14 | 8 | £19.24 | In Stock | |
| T10FIW20H50BLU | T10 | 2.00 | 5.00 | 14 | 8 | £21.22 | In Stock | |
| T10FIW25H30BLU | T10 | 2.50 | 3.00 | 14 | 8 | £19.24 | 5 days | |
| T10FIW25H50BLU | T10 | 2.50 | 5.00 | 14 | 8 | £21.22 | 5 days | |
| T10FIW30H30BLU | T10 | 3.00 | 3.00 | 14 | 8 | £19.24 | In Stock | |
| T10FIW30H50BLU | T10 | 3.00 | 5.00 | 14 | 8 | £21.22 | In Stock |
