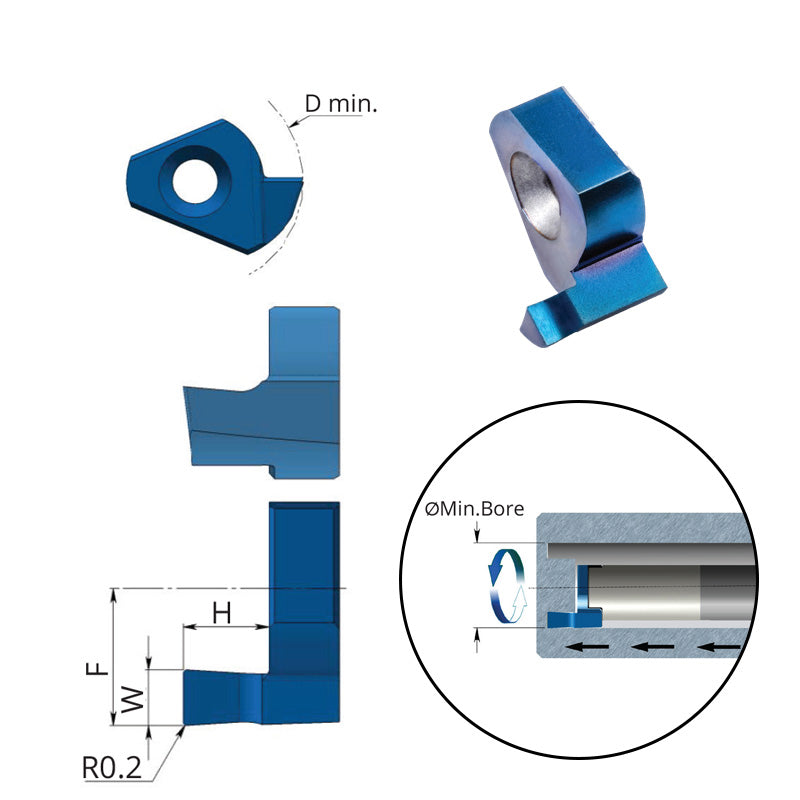

Carmex Small Indexable Carbide Insert Face Grooving Internal - T10 - 14mm Min Bore - 1.5mm Width - 2.5mm Groove Depth
| Insert Size | T10 |
| Groove Width | 1.50 |
| Groove Depth | 2.50 |
| Minimum Bore | 14 |
| F | 8 |
Learn more about Klarna
The Carmex Small Indexable Carbide Insert is built for internal face grooving, delivering precise, repeatable grooves inside bores with a compact, swap-in design. Optimized for internal machining, this T10 insert supports tight tolerances in restricted spaces.
- Insert Type: Small indexable carbide insert for internal face grooving
- Min Bore: Internal minimum bore diameter 14.0 mm (0.55 in)
- Width: 1.5 mm working width for narrow, controlled grooves
- Groove Depth: 2.5 mm groove depth
- Size/Code: T10 insert size
- Material & Coating: Carbide with BLU PVD triple-layer coating (sub-micron grade)
- Applications: Suitable for stainless steels, cast iron, titanium, non-ferrous metals, and most high-temperature alloys
The BLU PVD triple-layer coating provides enhanced wear resistance across a range of materials, helping extend insert life in demanding internal grooving jobs. The combination of a small 1.5 mm width and a 2.5 mm groove depth enables precise, repeatable internal cuts, while the 14 mm minimum bore supports reliable engagement in compact tooling setups. A true indexable solution, this insert helps maintain consistent performance across multiple cuts with quick insert indexing and minimal downtime.
| Insert Size | T10 |
| Groove Width | 1.50 |
| Groove Depth | 2.50 |
| Minimum Bore | 14 |
| F | 8 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Carmex Small Indexable Carbide Insert Face Grooving Internal
View full collection →You are viewing T10FIW15H25BLU. Click any other SKU to view its full details.
| Product SKU | Insert Size | Groove Width | Groove Depth | Minimum Bore | F | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| T10FIW10H15BLU | T10 | 1.00 | 1.50 | 14 | 8 | £17.74 | In Stock | |
| T10FIW15H25BLU Viewing | T10 | 1.50 | 2.50 | 14 | 8 | £18.66 | 5 days | |
| T10FIW20H30BLU | T10 | 2.00 | 3.00 | 14 | 8 | £19.24 | In Stock | |
| T10FIW20H50BLU | T10 | 2.00 | 5.00 | 14 | 8 | £21.22 | In Stock | |
| T10FIW25H30BLU | T10 | 2.50 | 3.00 | 14 | 8 | £19.24 | 5 days | |
| T10FIW25H50BLU | T10 | 2.50 | 5.00 | 14 | 8 | £21.22 | 5 days | |
| T10FIW30H30BLU | T10 | 3.00 | 3.00 | 14 | 8 | £19.24 | In Stock | |
| T10FIW30H50BLU | T10 | 3.00 | 5.00 | 14 | 8 | £21.22 | In Stock |
