Carmex Small Indexable Carbide Insert - Threading Partial Profile 60° - T10 - 12.3mm Min Bore
| Insert Size | T10 |
| Thread Form | 60 Degree Partial |
| Metric Range | Int 1.0-2.0 |
| TPI | 28-13 |
Learn more about Klarna
Precision threading insert built for CNC operators and tooling engineers who demand reliability in tight spaces. The Carmex Small Indexable Carbide Insert combines a 60° partial-profile geometry with a durable blue BLU PVD coating for versatile performance across a wide range of metals.
- Profile: 60° threading with a partial-profile geometry designed for access in restricted pockets and deep bores.
- Edge type: Indexable carbide insert for easy edge rotation and extended tool life.
- Coating: Blue BLU PVD triple-layer coating providing wear resistance on stainless steels, cast iron, titanium, non-ferrous metals, and high-temperature alloys.
- Material compatibility: Suitable for stainless steels, cast iron, titanium, non-ferrous metals, and most high-temperature alloys (M10–M20, K05–K20, N10–N20, S10–S20).
- Min bore: Minimum bore diameter 8.0 mm (0.31 in).
- Thread pitches: Pitches from 0.4 mm (364 TPI) to 3.0 mm (8 TPI).
- Size/designation: T10 size; designed as a compact, small indexable insert.
This insert enables consistent, high-quality threads in challenging bores, reducing tool changes and downtime. The BLU PVD coating extends edge life under demanding materials, while the partial-profile geometry helps control chips and deliver reliable finishes across a broad range of thread sizes. With a practical 8.0 mm minimum bore and a versatile 0.4–3.0 mm pitch range, it’s a flexible choice for precision threading workflows on CNC lathes and multi-axis machines.

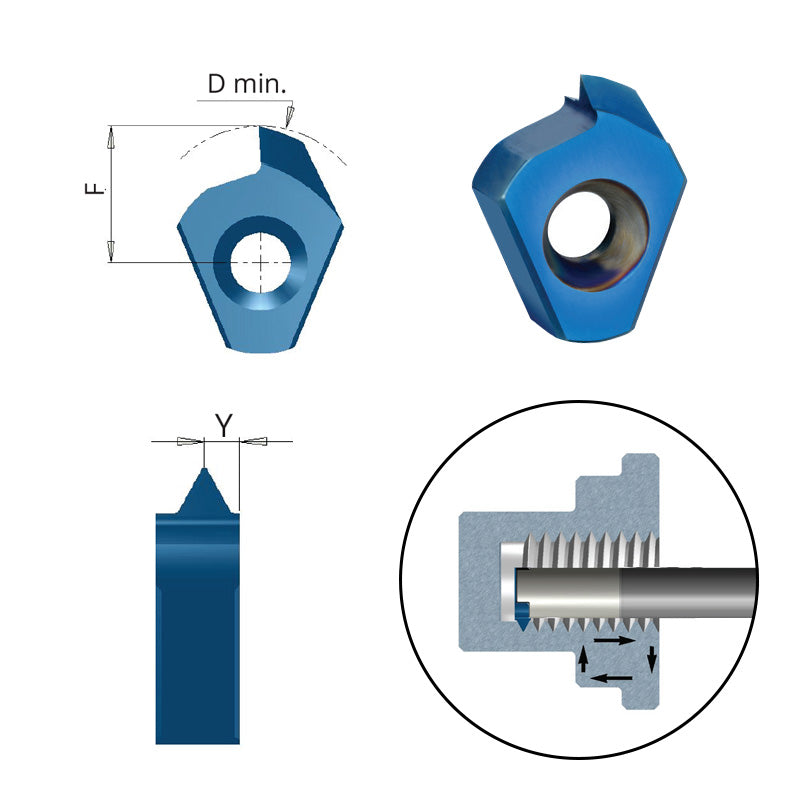

| Insert Size | T10 |
| Thread Form | 60 Degree Partial |
| Metric Range | Int 1.0-2.0 |
| TPI | 28-13 |
| Minimum Bore | 12.3 |
| F | 7.1 |
| Y | 1.3 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Carmex Small Indexable Carbide Insert Threading Partial Profile 60°
View full collection →You are viewing T10G60BLU. Click any other SKU to view its full details.
| Product SKU | Insert Size | Thread Form | Metric Range | Ex 0.8-1.75 | TPI | 32-15 | Minimum Bore | F | Y | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T8A60BLU | T8 | 60 Degree Partial | Int 0.5-0.75 | Ex 0.4-0.75 | 56-32 | 64-32 | 8 | 3.7 | 0.6 | £17.32 | In Stock | |
| T8G60BLU | T8 | 60 Degree Partial | Int1.0-1.25 | Ex 0.8-1.0 | 28-20 | 32-28 | 8.4 | 4.1 | 0.8 | £17.32 | 5 days | |
| T10A60BLU | T10 | 60 Degree Partial | Int 0.5-0.8 | Ex 0.4-0.8 | 56-28 | 64-32 | 11.6 | 6.4 | 0.6 | £17.32 | 5 days | |
| T10G60BLU Viewing | T10 | 60 Degree Partial | Int 1.0-2.0 | Ex 0.8-1.75 | 28-13 | 32-15 | 12.3 | 7.1 | 1.3 | £17.32 | In Stock | |
| T10D60BLU | T10 | 60 Degree Partial | Int 2.0-3.0 | Ex 1.75-2.5 | 13-8 | 15-10 | 13.1 | 7.9 | 1.5 | £17.32 | In Stock |
