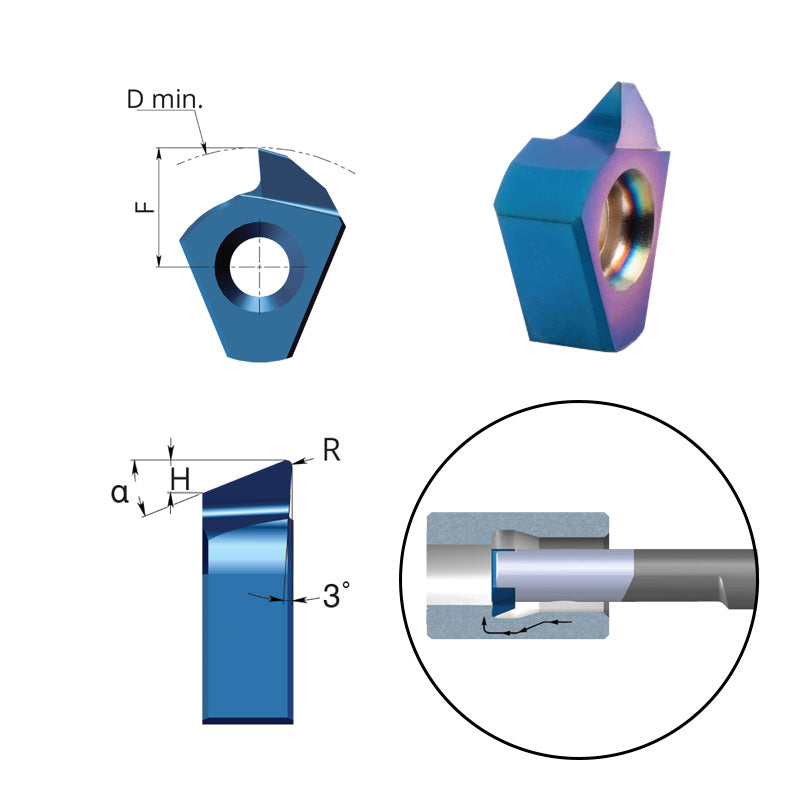

Carmex Small Indexable Carbide Insert Boring & Profiling - T8 - 22° - 9.2mm Min Bore - R0.2

The Carmex Small Indexable Carbide Insert is engineered for precise boring and profiling, delivering reliable performance in tight internal features and general turning tasks. With a 22° nose angle (T8 geometry) and through-hole mounting, it’s ready for demanding materials from stainless steels to high-temperature alloys.

• Geometry: T8 indexable carbide insert with a 22° nose angle, optimized for boring and profiling.
• Minimum bore diameter: 9.15 mm (0.36 in).
• Coating: BLU PVD triple-layer coating with sub-micron grain for enhanced wear resistance.
• Material: Carbide insert designed for durability in tough cutting environments.
• Applications: Suitable for boring, profiling, and general turning.
• Compatibility: Works with stainless steels, cast iron, titanium, non‑ferrous metals, and most high-temperature alloys (M10–M20, K05–K20, N10–N20, S10–S20).
• Mounting: Through-hole design for secure clamping in standard tool holders.

This indexable insert helps extend tool life and maintain consistent tolerances across challenging materials. The BLU PVD coating reduces wear in high-heat applications, while the through-hole mounting provides stable, repeatable seating and minimizes runout. Its small, agile profile supports precise internal features down to a 9.15 mm bore, making it a versatile choice for both boring and profiling operations in mixed-metal environments.
