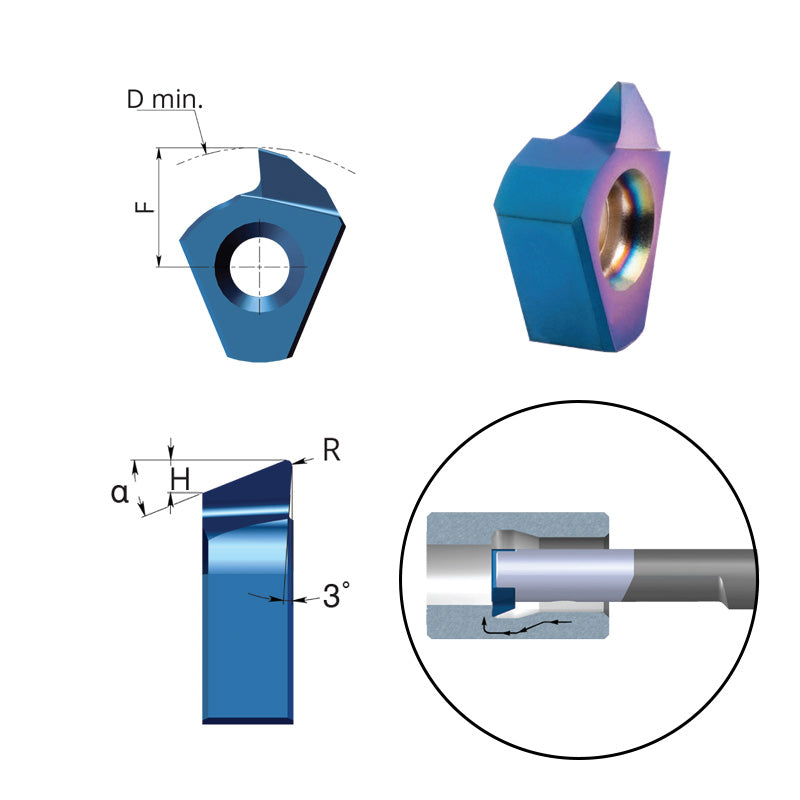

Carmex Small Indexable Carbide Insert Boring & Profiling - T8 - 47° - 9.2mm Min Bore - R0.1

A compact, indexable carbide insert engineered for boring and profiling, featuring a 47° nose, T8 size, and an R0.1 corner radius. It’s well-suited for boring and profiling tasks, with reliable performance in general turning as well.

• Type: Small indexable carbide insert designed for boring, profiling, and general turning applications.
• Geometry: 47° nose angle for efficient material removal and clean edge formation.
• Corner radius: R0.1 for smooth transitions and good surface finish on profiles.
• Tool size: T8 insert size compatible with standard tooling.
• Minimum bore diameter: From 9.15 mm (0.36 in).
• Material: Carbide substrate with BLU PVD triple-layer coating in a sub-micron grade.
• Coating compatibility: Suitable for stainless steels, cast iron, titanium, non-ferrous metals, and most high-temperature alloys (M10-M20, K05-K20, N10-N20, S10-S20).
• Applications: Primarily for boring and profiling; also usable in general turning operations.

The insert combines a precise 47° cutting geometry with a small, durable R0.1 corner radius to deliver accurate bore profiles and smooth surface finishes. The BLU PVD triple-layer coating provides wear resistance across a broad range of materials, including stainless steel, cast iron, titanium, and other high-temperature alloys, helping to extend insert life and reduce tool changes. With a minimum bore capability starting at 9.15 mm, it supports tight tolerances and consistent performance across production runs, while its compact T8 form fits standard boring setups for versatile, efficient machining.
