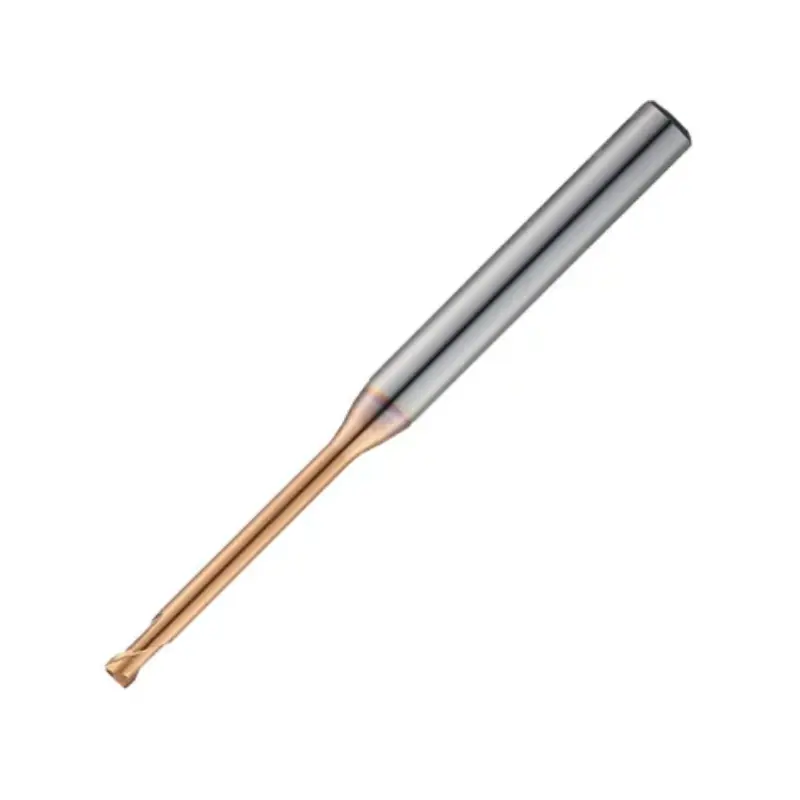

Vortex Long Neck Corner Radius 2 Flute End Mill - TiSiN Coated - 2mm Cutter Dia x 10mm Reach x 0.2 Corner Radius

The Vortex Long Neck Corner Radius 2 Flute End Mill is a precision CNC cutting tool engineered for machining deep, narrow cavities with specific radiused internal corners. Featuring a 2mm cutter diameter and a 10mm reach, this TiSiN-coated end mill is built for access and durability in demanding metalworking applications.

• Dimensions: Specifically sized with a 2mm cutter diameter, 10mm reach (long neck length), and a 0.2mm corner radius (nose radius) for creating precise internal fillets.
• TiSiN Coating: The Titanium Silicon Nitride coating provides a hard, heat-resistant surface that reduces friction and built-up edge, making it ideal for machining stainless steel, hardened tool steel, and cast iron.
• Long Neck Design: The extended 10mm reach allows the tool to access deep pockets and undercuts that standard end mills cannot reach without excessive deflection.
• 2 Flute Configuration: Optimized for efficient chip evacuation and reduced vibration during deep cuts, ensuring clean finishes even in tight spaces.
• Corner Radius Geometry: The 0.2mm radius at the tip eliminates sharp 90-degree corners in the workpiece, reducing stress concentration and improving surface finish.

This end mill solves the problem of machining deep, tight corners without tool deflection. The TiSiN coating allows for higher cutting speeds compared to uncoated carbide, particularly when working with tacky materials like stainless steel. The long neck design ensures you can reach deep features while the corner radius produces a finished internal fillet, often eliminating the need for a secondary finishing operation. It is ideal for mold and die making, aerospace components, and precision metalworking where access is limited.
