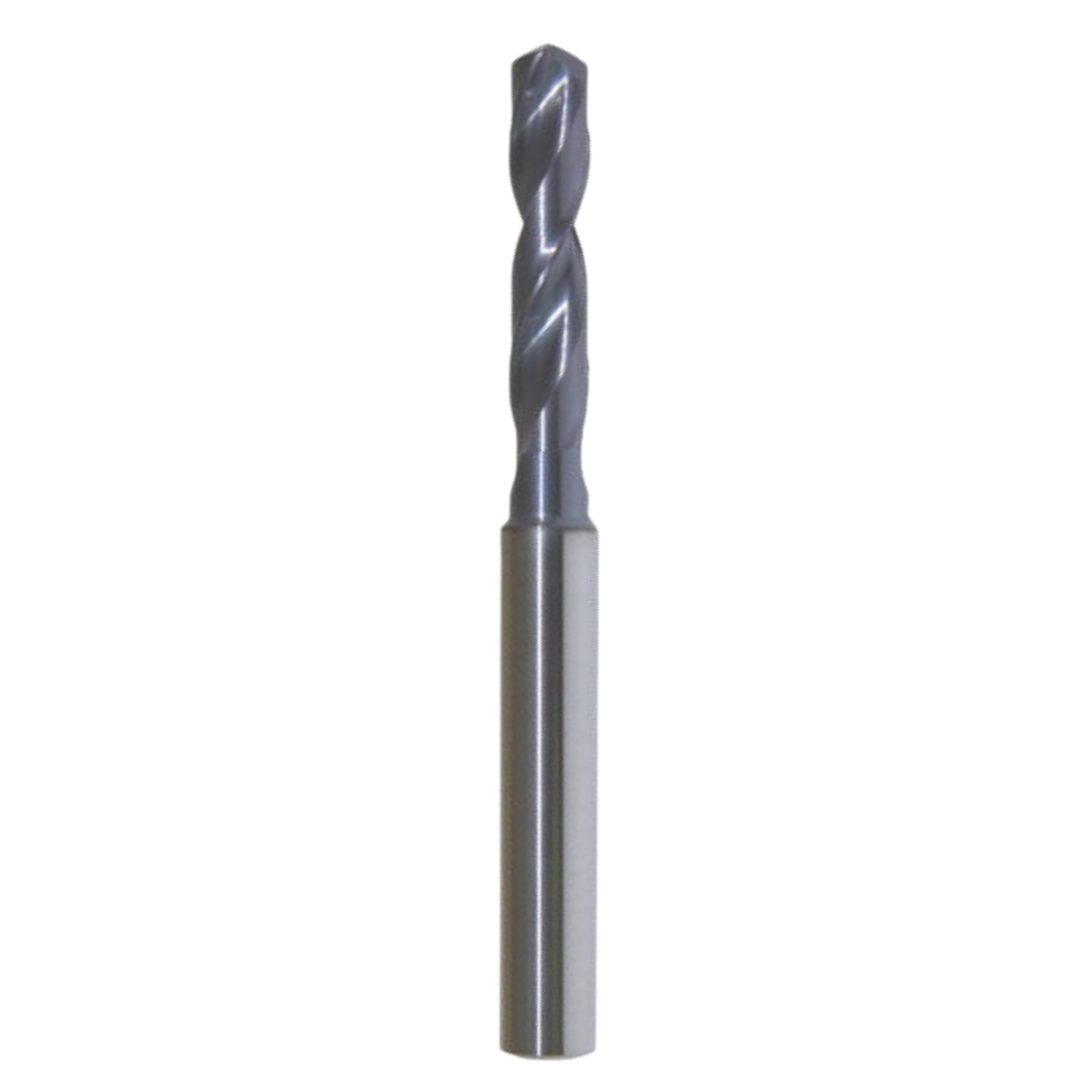

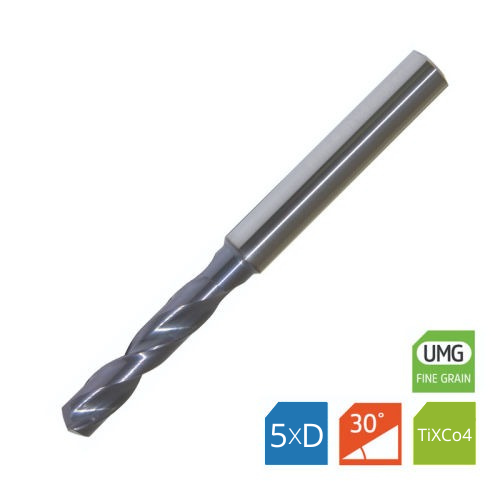

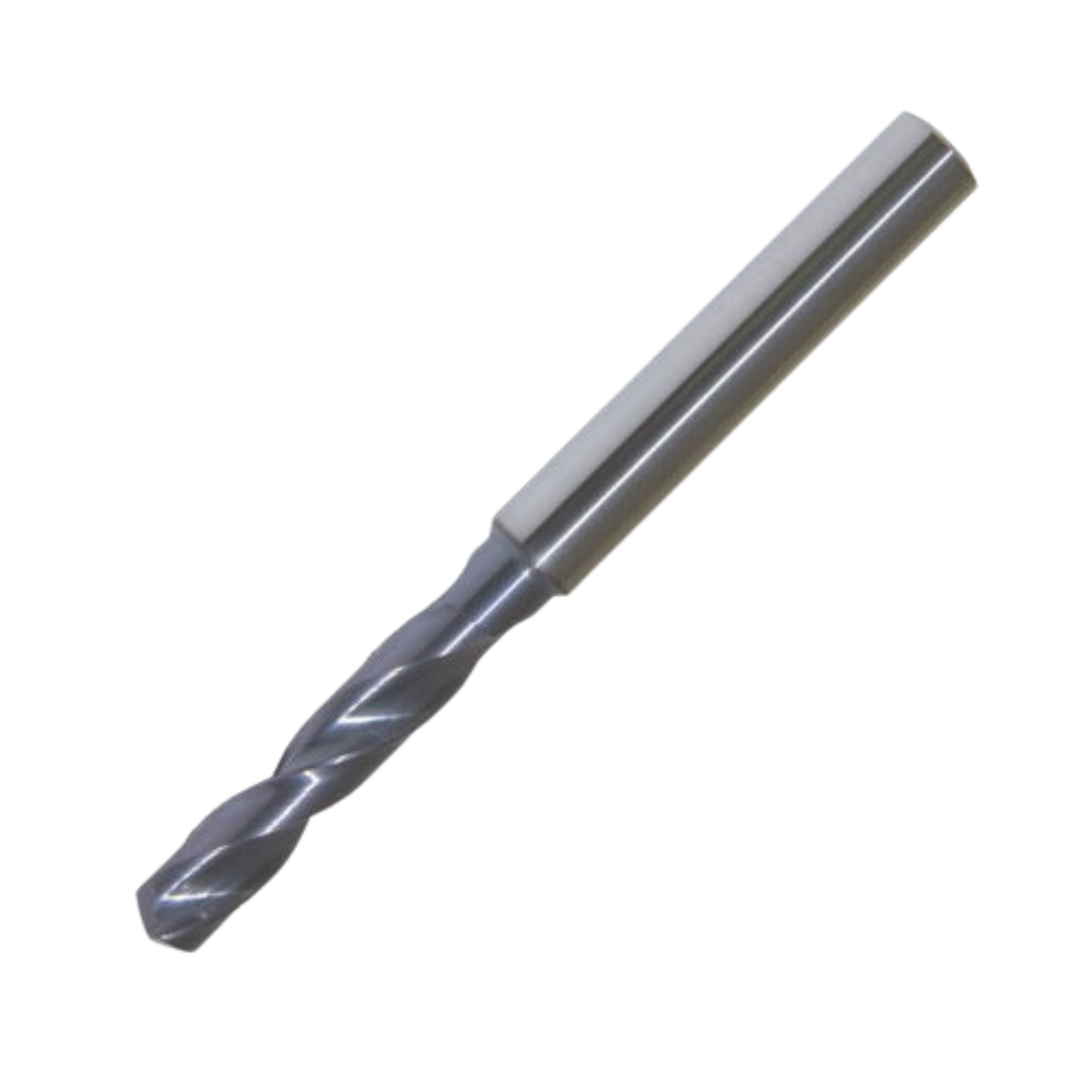

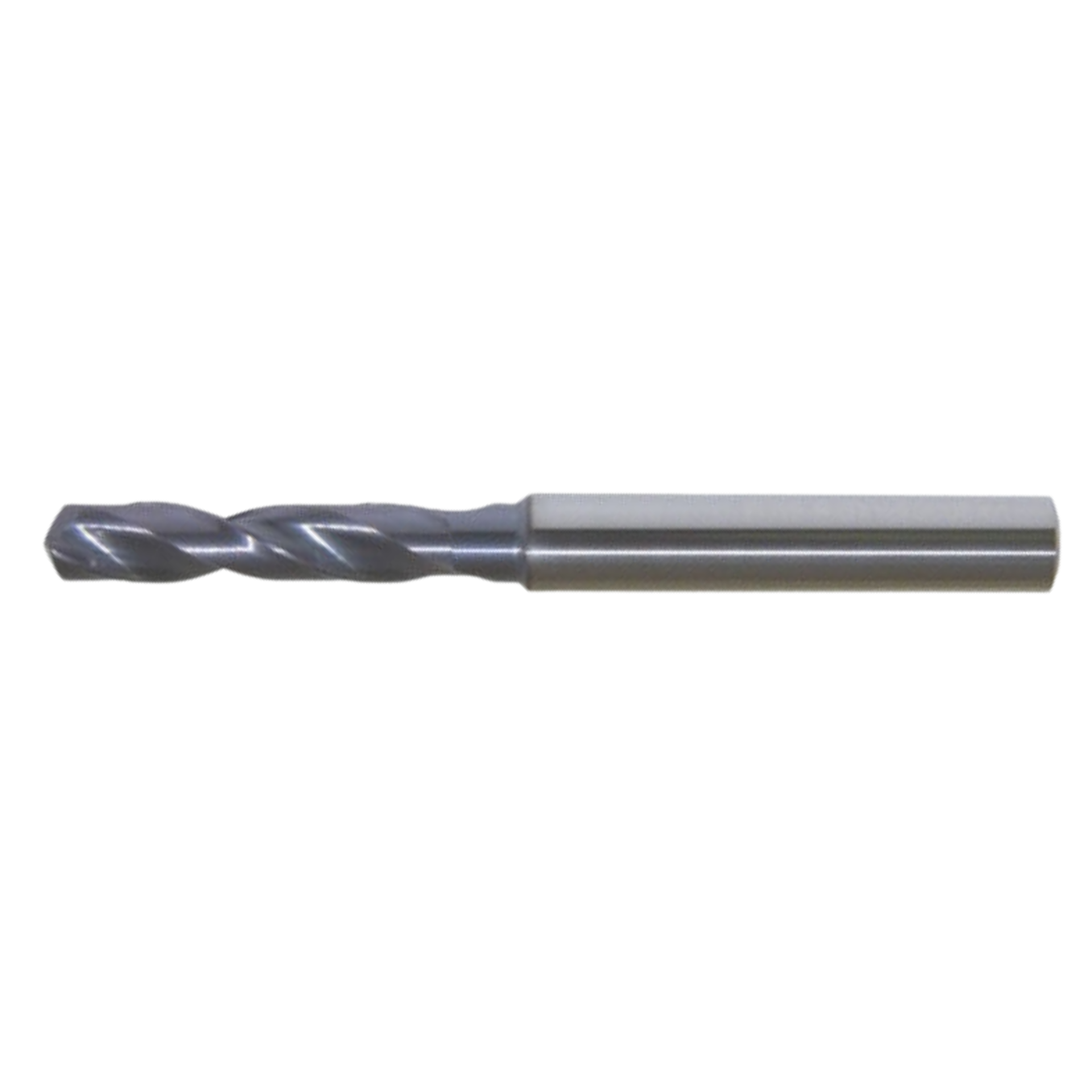

VORTEX Carbide Drill Solid 5xD TiXCo4 Coated - 9.6mm
SKU:VX50096
The VORTEX Carbide Drill Solid 5xD TiXCo4 Coated, a 9.6 mm diameter solid carbide drill, is built for professionals and serious hobbyists who demand reliable, repeatable holes and long tool life....
Read more ↓
Material Compatibility
P
M
K
N
S
Specification
Download Cutting Data
| Drill Diameter | 9.60 |
| Flute Length | 61 |
| Overall Length | 103 |
| Shank Diameter | 10 |
| Coated | Coated |
| Coolant | NO |
£31.70
Prices shown ex. VAT
In Stock— only 5 left
View Other Sizes →
Free delivery over £50 ex VAT
Secure checkout
14-day returns
30+ years expertise
Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna
Learn more about Klarna
The VORTEX Carbide Drill Solid 5xD TiXCo4 Coated, a 9.6 mm diameter solid carbide drill, is built for professionals and serious hobbyists who demand reliable, repeatable holes and long tool life. Its solid carbide core delivers exceptional hardness and wear resistance for consistent performance across tough materials.
Coated with TiXCo4, this drill offers high wear and heat resistance with low friction, improving chip evacuation and reducing cutting forces. The 5xD length provides extra reach for deeper holes while preserving stability and accuracy in a wide range of drilling tasks.
- Solid carbide core for long tool life: The solid carbide construction delivers outstanding hardness and wear resistance, helping you maintain tight hole tolerances and enjoy longer tool life even in tough materials.
- TiXCo4 coating for wear and heat resistance: The advanced coating reduces friction, boosts heat resistance, and improves chip evacuation for smoother drilling and fewer premature wear incidents.
- 5xD length for deeper, stable holes: The 5xD reach allows you to drill deeper holes without sacrificing rigidity, ensuring accurate hole placement and reduced deflection in challenging applications.
With the VORTEX Carbide Drill, you gain a reliable, versatile tool that supports faster, cleaner drilling across a range of materials. The combination of a tough carbide core and TiXCo4 coating delivers consistent hole quality, longer service life, and reduced downtime due to wear. The 5xD reach expands your capabilities for deeper holes while maintaining stability and precision, making it a practical choice for fabrication shops, maintenance teams, and DIYers who demand professional results from every project.
| Drill Diameter | 9.60 |
| Flute Length | 61 |
| Overall Length | 103 |
| Shank Diameter | 10 |
| Coated | Coated |
| Coolant | NO |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
★★★★★
Nice experience staff are very helpful and interested...
Staff are very helpful and interested in providing a good service making us the customer feel valued.
★★★★★
first place we look
honest about stock and prices are competitive.
★★★★★
Polite and helpful
Staff are very helpful and polite.Goods that were in stock were dispatched same day and back orders were quick in coming through .
★★★★★
Buying experience
Phone requests are handled quickly and without any fuss. The website is easy to use and straightforward to order from. It’s especially helpful that it shows real‑time availability, so we don’t need to call to confirm whether parts will arrive.
Full Range: Vortex Solid Carbide Drills - 5xD TiXCo4 Coated (VX5)
View full collection →You are viewing VX50096. Click any other SKU to view its full details.
| Product SKU | Drill Diameter | Flute Length | Overall Length | Shank Diameter | Coated | Coolant | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|
| VX50010 | 1.00 | 6 | 50 | 4 | Coated | NO | £12.00 | 4-6 weeks | |
| VX50011 | 1.10 | 6 | 50 | 4 | Coated | NO | £12.00 | In Stock | |
| VX50012 | 1.20 | 7 | 50 | 4 | Coated | NO | £12.00 | In Stock | |
| VX50013 | 1.30 | 8 | 50 | 4 | Coated | NO | £12.00 | In Stock | |
| VX50014 | 1.40 | 9 | 50 | 4 | Coated | NO | £12.00 | In Stock | |
| VX50015 | 1.50 | 9 | 50 | 4 | Coated | NO | £12.00 | In Stock | |
| VX50016 | 1.60 | 10 | 50 | 4 | Coated | NO | £12.00 | In Stock | |
| VX50017 | 1.70 | 10 | 50 | 4 | Coated | NO | £12.00 | In Stock | |
| VX50018 | 1.80 | 11 | 50 | 4 | Coated | NO | £12.00 | In Stock | |
| VX50019 | 1.90 | 12 | 50 | 4 | Coated | NO | £12.00 | In Stock | |
| VX50020 | 2.00 | 12 | 50 | 4 | Coated | NO | £12.00 | 4-6 weeks | |
| VX50021 | 2.10 | 13 | 50 | 4 | Coated | NO | £12.00 | In Stock | |
| VX50022 | 2.20 | 13 | 50 | 4 | Coated | NO | £12.00 | In Stock | |
| VX50023 | 2.30 | 14 | 50 | 4 | Coated | NO | £12.00 | In Stock | |
| VX50024 | 2.40 | 14 | 50 | 4 | Coated | NO | £12.00 | In Stock | |
| VX50025 | 2.50 | 15 | 50 | 4 | Coated | NO | £12.00 | In Stock | |
| VX50026 | 2.60 | 16 | 50 | 4 | Coated | NO | £12.00 | In Stock | |
| VX50027 | 2.70 | 16 | 50 | 4 | Coated | NO | £12.00 | In Stock | |
| VX50028 | 2.80 | 17 | 50 | 4 | Coated | NO | £12.00 | In Stock | |
| VX50029 | 2.90 | 17 | 50 | 4 | Coated | NO | £12.00 | In Stock | |
| VX50030 | 3.00 | 28 | 66 | 4 | Coated | NO | £13.20 | In Stock | |
| VX50031 | 3.10 | 28 | 66 | 4 | Coated | NO | £13.20 | In Stock | |
| VX50032 | 3.20 | 28 | 66 | 4 | Coated | NO | £13.20 | In Stock | |
| VX50033 | 3.30 | 28 | 66 | 4 | Coated | NO | £13.20 | In Stock | |
| VX50034 | 3.40 | 28 | 66 | 4 | Coated | NO | £13.20 | In Stock | |
| VX50035 | 3.50 | 28 | 66 | 4 | Coated | NO | £13.20 | In Stock | |
| VX50036 | 3.60 | 28 | 66 | 4 | Coated | NO | £13.20 | In Stock | |
| VX50037 | 3.70 | 28 | 66 | 4 | Coated | NO | £13.20 | In Stock | |
| VX50038 | 3.80 | 36 | 66 | 4 | Coated | NO | £13.20 | In Stock | |
| VX50039 | 3.90 | 36 | 66 | 4 | Coated | NO | £13.20 | In Stock | |
| VX50040 | 4.00 | 36 | 66 | 4 | Coated | NO | £13.20 | In Stock | |
| VX50041 | 4.10 | 36 | 74 | 6 | Coated | NO | £24.30 | In Stock | |
| VX50042 | 4.20 | 36 | 74 | 6 | Coated | NO | £24.30 | In Stock | |
| VX50043 | 4.30 | 36 | 74 | 6 | Coated | NO | £24.30 | In Stock | |
| VX50044 | 4.40 | 36 | 74 | 6 | Coated | NO | £24.30 | In Stock | |
| VX50045 | 4.50 | 36 | 74 | 6 | Coated | NO | £24.30 | In Stock | |
| VX50046 | 4.60 | 36 | 74 | 6 | Coated | NO | £24.30 | In Stock | |
| VX50047 | 4.70 | 36 | 74 | 6 | Coated | NO | £24.30 | In Stock | |
| VX50048 | 4.80 | 44 | 82 | 6 | Coated | NO | £24.30 | In Stock | |
| VX50049 | 4.90 | 44 | 82 | 6 | Coated | NO | £24.30 | In Stock | |
| VX50050 | 5.00 | 44 | 82 | 6 | Coated | NO | £24.30 | In Stock | |
| VX50051 | 5.10 | 44 | 82 | 6 | Coated | NO | £27.00 | In Stock | |
| VX50052 | 5.20 | 44 | 82 | 6 | Coated | NO | £27.00 | In Stock | |
| VX50053 | 5.30 | 44 | 82 | 6 | Coated | NO | £27.00 | In Stock | |
| VX50054 | 5.40 | 44 | 82 | 6 | Coated | NO | £27.00 | In Stock | |
| VX50055 | 5.50 | 44 | 82 | 6 | Coated | NO | £27.00 | In Stock | |
| VX50056 | 5.60 | 44 | 82 | 6 | Coated | NO | £27.00 | In Stock | |
| VX50057 | 5.70 | 44 | 82 | 6 | Coated | NO | £27.00 | In Stock | |
| VX50058 | 5.80 | 44 | 82 | 6 | Coated | NO | £27.00 | In Stock | |
| VX50059 | 5.90 | 44 | 82 | 6 | Coated | NO | £27.00 | In Stock | |
| VX50060 | 6.00 | 44 | 82 | 6 | Coated | NO | £27.00 | In Stock | |
| VX50061 | 6.10 | 53 | 91 | 8 | Coated | NO | £35.10 | In Stock | |
| VX50062 | 6.20 | 53 | 91 | 8 | Coated | NO | £21.60 | In Stock | |
| VX50063 | 6.30 | 53 | 91 | 8 | Coated | NO | £35.10 | In Stock | |
| VX50064 | 6.40 | 53 | 91 | 8 | Coated | NO | £35.10 | In Stock | |
| VX50065 | 6.50 | 53 | 91 | 8 | Coated | NO | £35.10 | In Stock | |
| VX50066 | 6.60 | 53 | 91 | 8 | Coated | NO | £21.60 | In Stock | |
| VX50067 | 6.70 | 53 | 91 | 8 | Coated | NO | £35.10 | In Stock | |
| VX50068 | 6.80 | 53 | 91 | 8 | Coated | NO | £35.10 | In Stock | |
| VX50069 | 6.90 | 53 | 91 | 8 | Coated | NO | £21.60 | In Stock | |
| VX50070 | 7.00 | 53 | 91 | 8 | Coated | NO | £35.10 | In Stock | |
| VX50071 | 7.10 | 53 | 91 | 8 | Coated | NO | £35.10 | In Stock | |
| VX50072 | 7.20 | 53 | 91 | 8 | Coated | NO | £21.60 | In Stock | |
| VX50073 | 7.30 | 53 | 91 | 8 | Coated | NO | £21.60 | In Stock | |
| VX50074 | 7.40 | 53 | 91 | 8 | Coated | NO | £21.60 | In Stock | |
| VX50075 | 7.50 | 53 | 91 | 8 | Coated | NO | £21.60 | In Stock | |
| VX50076 | 7.60 | 53 | 91 | 8 | Coated | NO | £21.60 | In Stock | |
| VX50077 | 7.70 | 53 | 91 | 8 | Coated | NO | £21.60 | In Stock | |
| VX50078 | 7.80 | 53 | 91 | 8 | Coated | NO | £21.60 | In Stock | |
| VX50079 | 7.90 | 53 | 91 | 8 | Coated | NO | £35.10 | 4-6 weeks | |
| VX50080 | 8.00 | 53 | 91 | 8 | Coated | NO | £35.10 | In Stock | |
| VX50081 | 8.10 | 61 | 103 | 10 | Coated | NO | £31.70 | In Stock | |
| VX50082 | 8.20 | 61 | 103 | 10 | Coated | NO | £31.70 | In Stock | |
| VX50083 | 8.30 | 61 | 103 | 10 | Coated | NO | £31.70 | In Stock | |
| VX50084 | 8.40 | 61 | 103 | 10 | Coated | NO | £31.70 | In Stock | |
| VX50085 | 8.50 | 61 | 103 | 10 | Coated | NO | £57.00 | In Stock | |
| VX50086 | 8.60 | 61 | 103 | 10 | Coated | NO | £57.00 | In Stock | |
| VX50087 | 8.70 | 61 | 103 | 10 | Coated | NO | £31.70 | In Stock | |
| VX50088 | 8.80 | 61 | 103 | 10 | Coated | NO | £31.70 | In Stock | |
| VX50089 | 8.90 | 61 | 103 | 10 | Coated | NO | £31.70 | In Stock | |
| VX50090 | 9.00 | 61 | 103 | 10 | Coated | NO | £57.00 | In Stock | |
| VX50091 | 9.10 | 61 | 103 | 10 | Coated | NO | £57.00 | In Stock | |
| VX50092 | 9.20 | 61 | 103 | 10 | Coated | NO | £31.70 | In Stock | |
| VX50093 | 9.30 | 61 | 103 | 10 | Coated | NO | £31.70 | In Stock | |
| VX50094 | 9.40 | 61 | 103 | 10 | Coated | NO | £31.70 | In Stock | |
| VX50095 | 9.50 | 61 | 103 | 10 | Coated | NO | £57.00 | In Stock | |
| VX50096 Viewing | 9.60 | 61 | 103 | 10 | Coated | NO | £31.70 | In Stock | |
| VX50097 | 9.70 | 61 | 103 | 10 | Coated | NO | £31.70 | In Stock | |
| VX50098 | 9.80 | 61 | 103 | 10 | Coated | NO | £31.70 | In Stock | |
| VX50099 | 9.90 | 61 | 103 | 10 | Coated | NO | £31.70 | In Stock | |
| VX50100 | 10.00 | 61 | 103 | 10 | Coated | NO | £57.00 | In Stock | |
| VX50101 | 10.10 | 71 | 118 | 12 | Coated | NO | £43.48 | In Stock | |
| VX50102 | 10.20 | 71 | 118 | 12 | Coated | NO | £73.50 | 4-6 weeks | |
| VX50103 | 10.30 | 71 | 118 | 12 | Coated | NO | £43.48 | In Stock | |
| VX50104 | 10.40 | 71 | 118 | 12 | Coated | NO | £43.48 | In Stock | |
| VX50105 | 10.50 | 71 | 118 | 12 | Coated | NO | £73.50 | In Stock | |
| VX50106 | 10.60 | 71 | 118 | 12 | Coated | NO | £43.48 | In Stock | |
| VX50107 | 10.70 | 71 | 118 | 12 | Coated | NO | £43.48 | In Stock | |
| VX50108 | 10.80 | 71 | 118 | 12 | Coated | NO | £73.50 | In Stock | |
| VX50109 | 10.90 | 71 | 118 | 12 | Coated | NO | £43.48 | In Stock | |
| VX50110 | 11.00 | 71 | 118 | 12 | Coated | NO | £73.50 | In Stock | |
| VX50111 | 11.10 | 71 | 118 | 12 | Coated | NO | £43.48 | In Stock | |
| VX50112 | 11.20 | 71 | 118 | 12 | Coated | NO | £43.48 | In Stock | |
| VX50113 | 11.30 | 71 | 118 | 12 | Coated | NO | £43.48 | In Stock | |
| VX50114 | 11.40 | 71 | 118 | 12 | Coated | NO | £43.48 | In Stock | |
| VX50115 | 11.50 | 71 | 118 | 12 | Coated | NO | £73.50 | In Stock | |
| VX50116 | 11.60 | 71 | 118 | 12 | Coated | NO | £43.48 | In Stock | |
| VX50117 | 11.70 | 71 | 118 | 12 | Coated | NO | £43.48 | In Stock | |
| VX50118 | 11.80 | 71 | 118 | 12 | Coated | NO | £73.50 | In Stock | |
| VX50119 | 11.90 | 71 | 118 | 12 | Coated | NO | £43.48 | In Stock | |
| VX50120 | 12.00 | 71 | 118 | 12 | Coated | NO | £73.50 | In Stock | |
| VX50121 | 12.10 | 77 | 124 | 14 | Coated | NO | £56.94 | 4-6 weeks | |
| VX50122 | 12.20 | 77 | 124 | 14 | Coated | NO | £56.94 | 4-6 weeks | |
| VX50123 | 12.30 | 77 | 124 | 14 | Coated | NO | £56.94 | 4-6 weeks | |
| VX50124 | 12.40 | 77 | 124 | 14 | Coated | NO | £56.94 | 4-6 weeks | |
| VX50125 | 12.50 | 77 | 124 | 14 | Coated | NO | £117.00 | 4-6 weeks | |
| VX50126 | 12.60 | 77 | 124 | 14 | Coated | NO | £56.94 | 4-6 weeks | |
| VX50127 | 12.70 | 77 | 124 | 14 | Coated | NO | £56.94 | 4-6 weeks | |
| VX50128 | 12.80 | 77 | 124 | 14 | Coated | NO | £56.94 | 4-6 weeks | |
| VX50130 | 13.00 | 77 | 124 | 14 | Coated | NO | £117.00 | 4-6 weeks | |
| VX50135 | 13.50 | 77 | 124 | 14 | Coated | NO | £117.00 | 4-6 weeks | |
| VX50137 | 13.70 | 77 | 124 | 14 | Coated | NO | £56.94 | 4-6 weeks | |
| VX50138 | 13.80 | 77 | 124 | 14 | Coated | NO | £56.94 | 4-6 weeks | |
| VX50140 | 14.00 | 77 | 124 | 14 | Coated | NO | £117.00 | In Stock | |
| VX50145 | 14.50 | 83 | 133 | 16 | Coated | NO | £160.50 | 4-6 weeks | |
| VX50147 | 14.70 | 83 | 133 | 16 | Coated | NO | £72.64 | 4-6 weeks | |
| VX50148 | 14.80 | 83 | 133 | 16 | Coated | NO | £72.64 | 4-6 weeks | |
| VX50150 | 15.00 | 83 | 133 | 16 | Coated | NO | £160.50 | 4-6 weeks | |
| VX50155 | 15.50 | 83 | 133 | 16 | Coated | NO | £160.50 | 4-6 weeks | |
| VX50157 | 15.70 | 83 | 133 | 16 | Coated | NO | £72.64 | 4-6 weeks | |
| VX50158 | 15.80 | 83 | 133 | 16 | Coated | NO | £72.64 | 4-6 weeks | |
| VX50160 | 16.00 | 83 | 133 | 16 | Coated | NO | £160.50 | 4-6 weeks |
No products match your filters.
