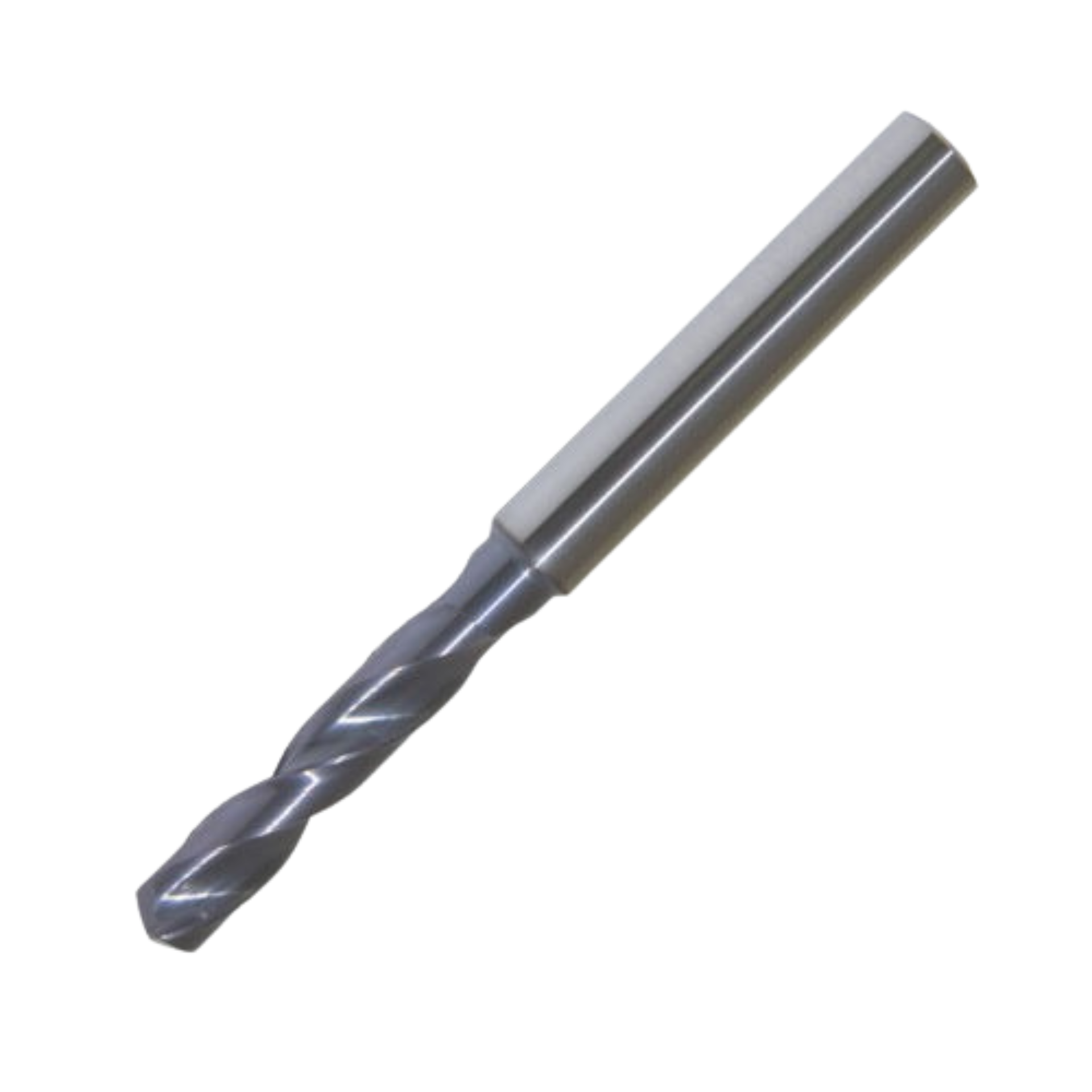

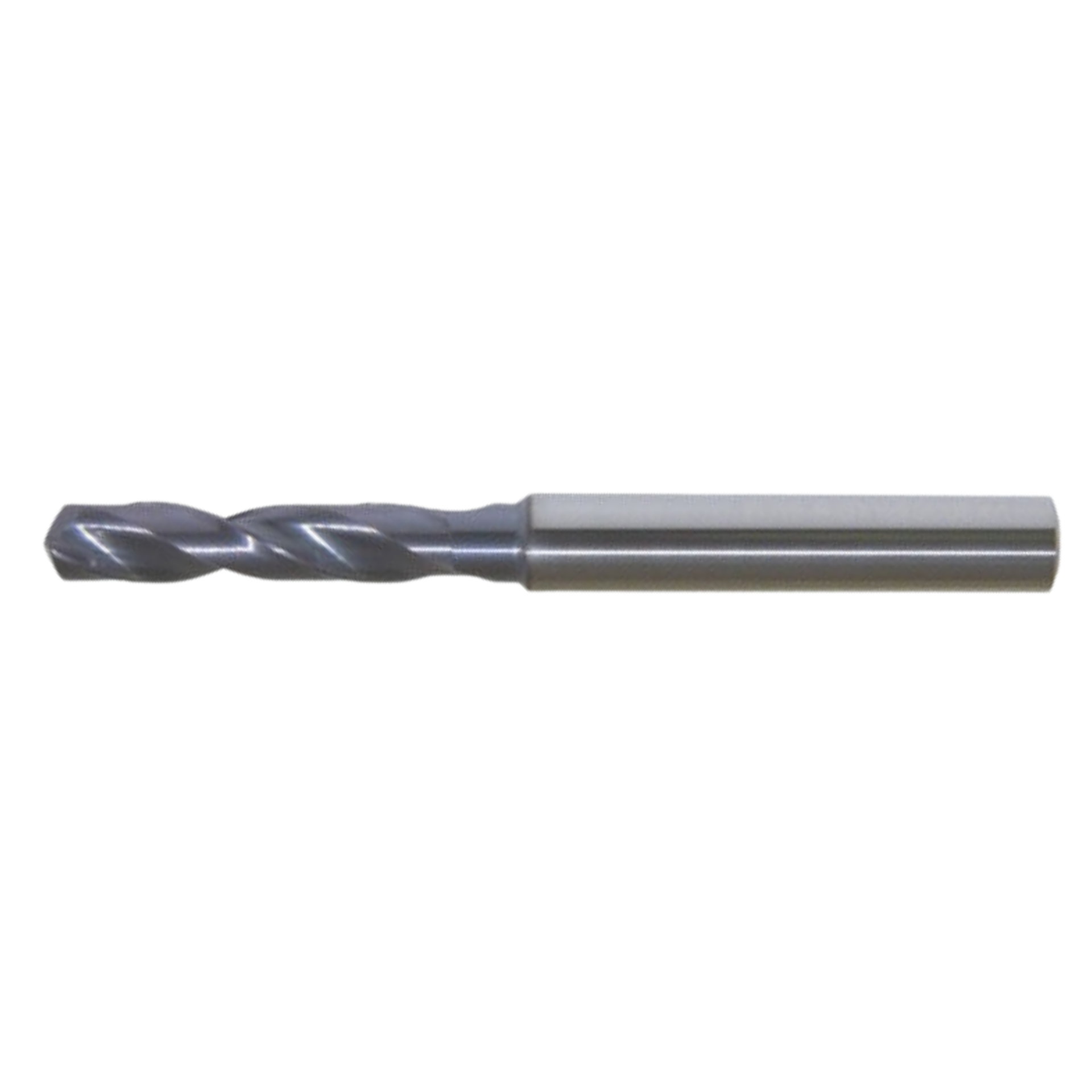

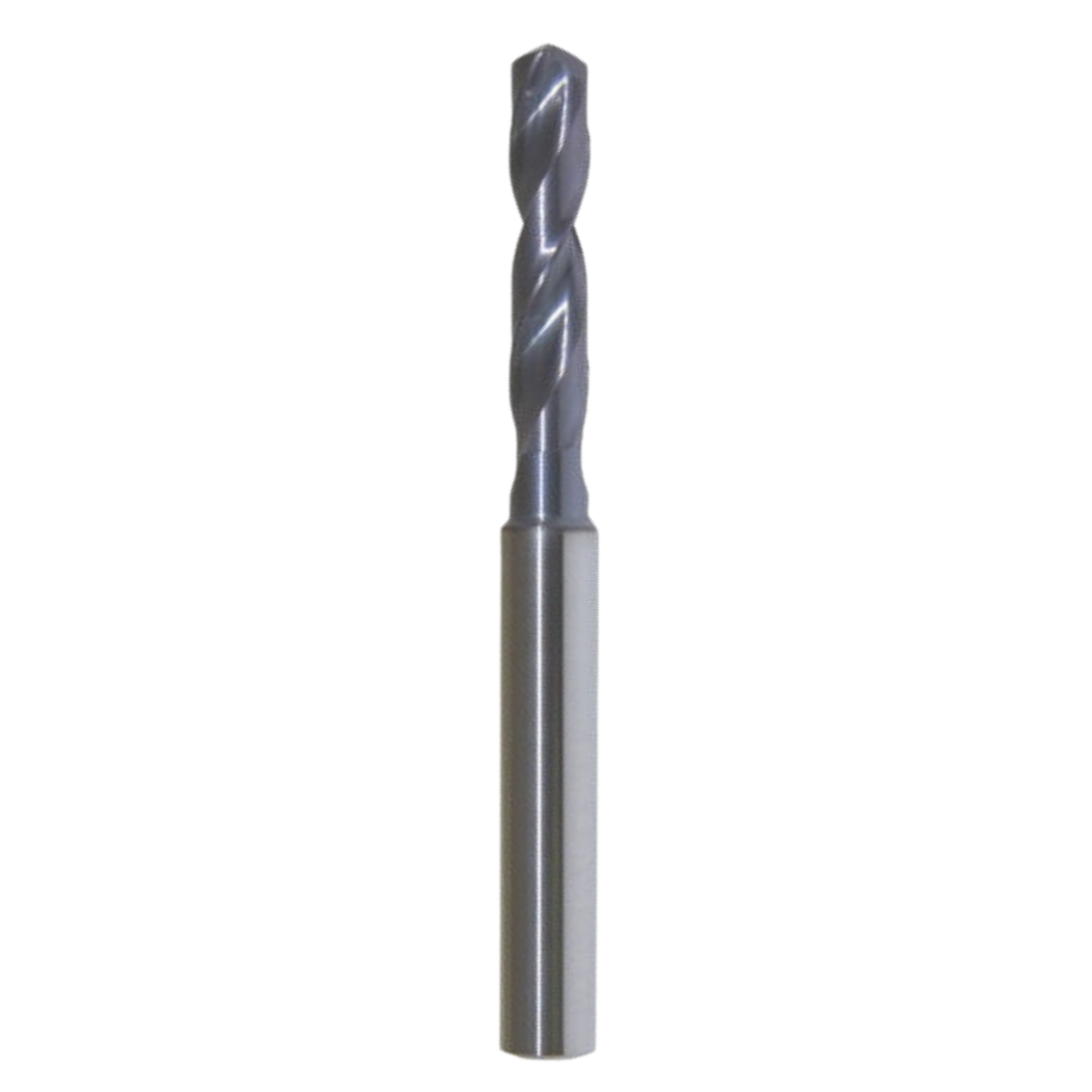

VORTEX Carbide Drill Solid 5xD TiXCo4 Coated - 13.5mm
SKU:VX50135
VORTEX Carbide Drill Solid 5xD TiXCo4 Coated, 13.5 mm diameter, is a high-performance drill designed for professionals who need deep-hole capability with consistent results. Built from solid carb...
Read more ↓
Material Compatibility
P
M
K
N
S
Specification
Download Cutting Data
| Drill Diameter | 13.50 |
| Flute Length | 77 |
| Overall Length | 124 |
| Shank Diameter | 14 |
| Coated | Coated |
| Coolant | NO |
£117.00
Prices shown ex. VAT
2 weeks estimated lead time
— subject to availability
View Other Sizes →
Free delivery over £50 ex VAT
Secure checkout
14-day returns
30+ years expertise
Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna
Learn more about Klarna

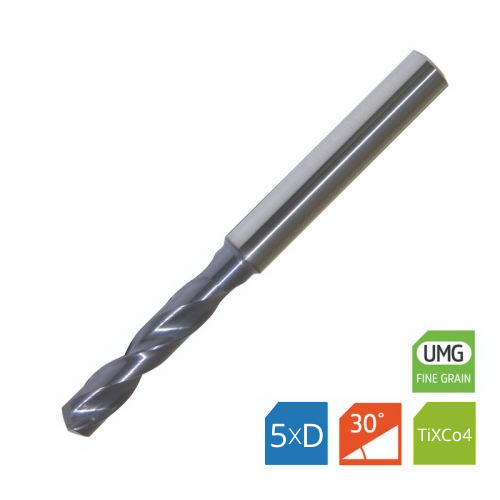

VORTEX Carbide Drill Solid 5xD TiXCo4 Coated, 13.5 mm diameter, is a high-performance drill designed for professionals who need deep-hole capability with consistent results. Built from solid carbide, it delivers outstanding hardness and long tool life, while the 5xD length provides extended reach for deeper holes without compromising stability.
Its TiXCo4 coating adds high wear and heat resistance with a smooth, low-friction surface that aids chip evacuation and lowers cutting forces for smoother drilling across hard materials.
- Extended Reach for Deep Holes: The 5xD length design provides increased reach while maintaining stability and accuracy, enabling deeper drilling without tool deflection or chatter.
- TiXCo4 Coating for Wear, Heat, and Low Friction: This coating delivers excellent wear and heat resistance with reduced friction, promoting smoother cuts, better chip evacuation, and lower cutting forces.
- Solid Carbide Core for Durability and Precision: A hard carbide substrate delivers long tool life and consistent performance on demanding materials, helping maintain hole size accuracy over many cycles.
With its carbide core, TiXCo4 coating, and precise 13.5 mm diameter, this drill is built to deliver dependable, repeatable results across challenging worksites. The combination supports efficient setups, fewer tool changes, and cleaner, more accurate holes—enhancing overall productivity for engineers, machinists, and technicians alike.
| Drill Diameter | 13.50 |
| Flute Length | 77 |
| Overall Length | 124 |
| Shank Diameter | 14 |
| Coated | Coated |
| Coolant | NO |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
★★★★★
Nice experience staff are very helpful and interested...
Staff are very helpful and interested in providing a good service making us the customer feel valued.
★★★★★
first place we look
honest about stock and prices are competitive.
★★★★★
Polite and helpful
Staff are very helpful and polite.Goods that were in stock were dispatched same day and back orders were quick in coming through .
★★★★★
Buying experience
Phone requests are handled quickly and without any fuss. The website is easy to use and straightforward to order from. It’s especially helpful that it shows real‑time availability, so we don’t need to call to confirm whether parts will arrive.
Full Range: Vortex Solid Carbide Drills - 5xD TiXCo4 Coated (VX5)
View full collection →You are viewing VX50135. Click any other SKU to view its full details.
| Product SKU | Drill Diameter | Flute Length | Overall Length | Shank Diameter | Coated | Coolant | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|
| VX50010 | 1.00 | 6 | 50 | 4 | Coated | NO | £12.00 | 4-6 weeks | |
| VX50011 | 1.10 | 6 | 50 | 4 | Coated | NO | £12.00 | In Stock | |
| VX50012 | 1.20 | 7 | 50 | 4 | Coated | NO | £12.00 | In Stock | |
| VX50013 | 1.30 | 8 | 50 | 4 | Coated | NO | £12.00 | In Stock | |
| VX50014 | 1.40 | 9 | 50 | 4 | Coated | NO | £12.00 | In Stock | |
| VX50015 | 1.50 | 9 | 50 | 4 | Coated | NO | £12.00 | In Stock | |
| VX50016 | 1.60 | 10 | 50 | 4 | Coated | NO | £12.00 | In Stock | |
| VX50017 | 1.70 | 10 | 50 | 4 | Coated | NO | £12.00 | In Stock | |
| VX50018 | 1.80 | 11 | 50 | 4 | Coated | NO | £12.00 | In Stock | |
| VX50019 | 1.90 | 12 | 50 | 4 | Coated | NO | £12.00 | In Stock | |
| VX50020 | 2.00 | 12 | 50 | 4 | Coated | NO | £12.00 | 4-6 weeks | |
| VX50021 | 2.10 | 13 | 50 | 4 | Coated | NO | £12.00 | In Stock | |
| VX50022 | 2.20 | 13 | 50 | 4 | Coated | NO | £12.00 | In Stock | |
| VX50023 | 2.30 | 14 | 50 | 4 | Coated | NO | £12.00 | In Stock | |
| VX50024 | 2.40 | 14 | 50 | 4 | Coated | NO | £12.00 | In Stock | |
| VX50025 | 2.50 | 15 | 50 | 4 | Coated | NO | £12.00 | In Stock | |
| VX50026 | 2.60 | 16 | 50 | 4 | Coated | NO | £12.00 | In Stock | |
| VX50027 | 2.70 | 16 | 50 | 4 | Coated | NO | £12.00 | In Stock | |
| VX50028 | 2.80 | 17 | 50 | 4 | Coated | NO | £12.00 | In Stock | |
| VX50029 | 2.90 | 17 | 50 | 4 | Coated | NO | £12.00 | In Stock | |
| VX50030 | 3.00 | 28 | 66 | 4 | Coated | NO | £13.20 | In Stock | |
| VX50031 | 3.10 | 28 | 66 | 4 | Coated | NO | £13.20 | In Stock | |
| VX50032 | 3.20 | 28 | 66 | 4 | Coated | NO | £13.20 | In Stock | |
| VX50033 | 3.30 | 28 | 66 | 4 | Coated | NO | £13.20 | In Stock | |
| VX50034 | 3.40 | 28 | 66 | 4 | Coated | NO | £13.20 | In Stock | |
| VX50035 | 3.50 | 28 | 66 | 4 | Coated | NO | £13.20 | In Stock | |
| VX50036 | 3.60 | 28 | 66 | 4 | Coated | NO | £13.20 | In Stock | |
| VX50037 | 3.70 | 28 | 66 | 4 | Coated | NO | £13.20 | In Stock | |
| VX50038 | 3.80 | 36 | 66 | 4 | Coated | NO | £13.20 | In Stock | |
| VX50039 | 3.90 | 36 | 66 | 4 | Coated | NO | £13.20 | In Stock | |
| VX50040 | 4.00 | 36 | 66 | 4 | Coated | NO | £13.20 | In Stock | |
| VX50041 | 4.10 | 36 | 74 | 6 | Coated | NO | £24.30 | In Stock | |
| VX50042 | 4.20 | 36 | 74 | 6 | Coated | NO | £24.30 | In Stock | |
| VX50043 | 4.30 | 36 | 74 | 6 | Coated | NO | £24.30 | In Stock | |
| VX50044 | 4.40 | 36 | 74 | 6 | Coated | NO | £24.30 | In Stock | |
| VX50045 | 4.50 | 36 | 74 | 6 | Coated | NO | £24.30 | In Stock | |
| VX50046 | 4.60 | 36 | 74 | 6 | Coated | NO | £24.30 | In Stock | |
| VX50047 | 4.70 | 36 | 74 | 6 | Coated | NO | £24.30 | In Stock | |
| VX50048 | 4.80 | 44 | 82 | 6 | Coated | NO | £24.30 | In Stock | |
| VX50049 | 4.90 | 44 | 82 | 6 | Coated | NO | £24.30 | In Stock | |
| VX50050 | 5.00 | 44 | 82 | 6 | Coated | NO | £24.30 | In Stock | |
| VX50051 | 5.10 | 44 | 82 | 6 | Coated | NO | £27.00 | In Stock | |
| VX50052 | 5.20 | 44 | 82 | 6 | Coated | NO | £27.00 | In Stock | |
| VX50053 | 5.30 | 44 | 82 | 6 | Coated | NO | £27.00 | In Stock | |
| VX50054 | 5.40 | 44 | 82 | 6 | Coated | NO | £27.00 | In Stock | |
| VX50055 | 5.50 | 44 | 82 | 6 | Coated | NO | £27.00 | In Stock | |
| VX50056 | 5.60 | 44 | 82 | 6 | Coated | NO | £27.00 | In Stock | |
| VX50057 | 5.70 | 44 | 82 | 6 | Coated | NO | £27.00 | In Stock | |
| VX50058 | 5.80 | 44 | 82 | 6 | Coated | NO | £27.00 | In Stock | |
| VX50059 | 5.90 | 44 | 82 | 6 | Coated | NO | £27.00 | In Stock | |
| VX50060 | 6.00 | 44 | 82 | 6 | Coated | NO | £27.00 | In Stock | |
| VX50061 | 6.10 | 53 | 91 | 8 | Coated | NO | £35.10 | In Stock | |
| VX50062 | 6.20 | 53 | 91 | 8 | Coated | NO | £21.60 | In Stock | |
| VX50063 | 6.30 | 53 | 91 | 8 | Coated | NO | £35.10 | In Stock | |
| VX50064 | 6.40 | 53 | 91 | 8 | Coated | NO | £35.10 | In Stock | |
| VX50065 | 6.50 | 53 | 91 | 8 | Coated | NO | £35.10 | In Stock | |
| VX50066 | 6.60 | 53 | 91 | 8 | Coated | NO | £21.60 | In Stock | |
| VX50067 | 6.70 | 53 | 91 | 8 | Coated | NO | £35.10 | In Stock | |
| VX50068 | 6.80 | 53 | 91 | 8 | Coated | NO | £35.10 | In Stock | |
| VX50069 | 6.90 | 53 | 91 | 8 | Coated | NO | £21.60 | In Stock | |
| VX50070 | 7.00 | 53 | 91 | 8 | Coated | NO | £35.10 | In Stock | |
| VX50071 | 7.10 | 53 | 91 | 8 | Coated | NO | £35.10 | In Stock | |
| VX50072 | 7.20 | 53 | 91 | 8 | Coated | NO | £21.60 | In Stock | |
| VX50073 | 7.30 | 53 | 91 | 8 | Coated | NO | £21.60 | In Stock | |
| VX50074 | 7.40 | 53 | 91 | 8 | Coated | NO | £21.60 | In Stock | |
| VX50075 | 7.50 | 53 | 91 | 8 | Coated | NO | £21.60 | In Stock | |
| VX50076 | 7.60 | 53 | 91 | 8 | Coated | NO | £21.60 | In Stock | |
| VX50077 | 7.70 | 53 | 91 | 8 | Coated | NO | £21.60 | In Stock | |
| VX50078 | 7.80 | 53 | 91 | 8 | Coated | NO | £21.60 | In Stock | |
| VX50079 | 7.90 | 53 | 91 | 8 | Coated | NO | £35.10 | 4-6 weeks | |
| VX50080 | 8.00 | 53 | 91 | 8 | Coated | NO | £35.10 | In Stock | |
| VX50081 | 8.10 | 61 | 103 | 10 | Coated | NO | £31.70 | In Stock | |
| VX50082 | 8.20 | 61 | 103 | 10 | Coated | NO | £31.70 | In Stock | |
| VX50083 | 8.30 | 61 | 103 | 10 | Coated | NO | £31.70 | In Stock | |
| VX50084 | 8.40 | 61 | 103 | 10 | Coated | NO | £31.70 | In Stock | |
| VX50085 | 8.50 | 61 | 103 | 10 | Coated | NO | £57.00 | In Stock | |
| VX50086 | 8.60 | 61 | 103 | 10 | Coated | NO | £57.00 | In Stock | |
| VX50087 | 8.70 | 61 | 103 | 10 | Coated | NO | £31.70 | In Stock | |
| VX50088 | 8.80 | 61 | 103 | 10 | Coated | NO | £31.70 | In Stock | |
| VX50089 | 8.90 | 61 | 103 | 10 | Coated | NO | £31.70 | In Stock | |
| VX50090 | 9.00 | 61 | 103 | 10 | Coated | NO | £57.00 | In Stock | |
| VX50091 | 9.10 | 61 | 103 | 10 | Coated | NO | £57.00 | In Stock | |
| VX50092 | 9.20 | 61 | 103 | 10 | Coated | NO | £31.70 | In Stock | |
| VX50093 | 9.30 | 61 | 103 | 10 | Coated | NO | £31.70 | In Stock | |
| VX50094 | 9.40 | 61 | 103 | 10 | Coated | NO | £31.70 | In Stock | |
| VX50095 | 9.50 | 61 | 103 | 10 | Coated | NO | £57.00 | In Stock | |
| VX50096 | 9.60 | 61 | 103 | 10 | Coated | NO | £31.70 | In Stock | |
| VX50097 | 9.70 | 61 | 103 | 10 | Coated | NO | £31.70 | In Stock | |
| VX50098 | 9.80 | 61 | 103 | 10 | Coated | NO | £31.70 | In Stock | |
| VX50099 | 9.90 | 61 | 103 | 10 | Coated | NO | £31.70 | In Stock | |
| VX50100 | 10.00 | 61 | 103 | 10 | Coated | NO | £57.00 | In Stock | |
| VX50101 | 10.10 | 71 | 118 | 12 | Coated | NO | £43.48 | In Stock | |
| VX50102 | 10.20 | 71 | 118 | 12 | Coated | NO | £73.50 | 4-6 weeks | |
| VX50103 | 10.30 | 71 | 118 | 12 | Coated | NO | £43.48 | In Stock | |
| VX50104 | 10.40 | 71 | 118 | 12 | Coated | NO | £43.48 | In Stock | |
| VX50105 | 10.50 | 71 | 118 | 12 | Coated | NO | £73.50 | In Stock | |
| VX50106 | 10.60 | 71 | 118 | 12 | Coated | NO | £43.48 | In Stock | |
| VX50107 | 10.70 | 71 | 118 | 12 | Coated | NO | £43.48 | In Stock | |
| VX50108 | 10.80 | 71 | 118 | 12 | Coated | NO | £73.50 | In Stock | |
| VX50109 | 10.90 | 71 | 118 | 12 | Coated | NO | £43.48 | In Stock | |
| VX50110 | 11.00 | 71 | 118 | 12 | Coated | NO | £73.50 | In Stock | |
| VX50111 | 11.10 | 71 | 118 | 12 | Coated | NO | £43.48 | In Stock | |
| VX50112 | 11.20 | 71 | 118 | 12 | Coated | NO | £43.48 | In Stock | |
| VX50113 | 11.30 | 71 | 118 | 12 | Coated | NO | £43.48 | In Stock | |
| VX50114 | 11.40 | 71 | 118 | 12 | Coated | NO | £43.48 | In Stock | |
| VX50115 | 11.50 | 71 | 118 | 12 | Coated | NO | £73.50 | In Stock | |
| VX50116 | 11.60 | 71 | 118 | 12 | Coated | NO | £43.48 | In Stock | |
| VX50117 | 11.70 | 71 | 118 | 12 | Coated | NO | £43.48 | In Stock | |
| VX50118 | 11.80 | 71 | 118 | 12 | Coated | NO | £73.50 | In Stock | |
| VX50119 | 11.90 | 71 | 118 | 12 | Coated | NO | £43.48 | In Stock | |
| VX50120 | 12.00 | 71 | 118 | 12 | Coated | NO | £73.50 | In Stock | |
| VX50121 | 12.10 | 77 | 124 | 14 | Coated | NO | £56.94 | 4-6 weeks | |
| VX50122 | 12.20 | 77 | 124 | 14 | Coated | NO | £56.94 | 4-6 weeks | |
| VX50123 | 12.30 | 77 | 124 | 14 | Coated | NO | £56.94 | 4-6 weeks | |
| VX50124 | 12.40 | 77 | 124 | 14 | Coated | NO | £56.94 | 4-6 weeks | |
| VX50125 | 12.50 | 77 | 124 | 14 | Coated | NO | £117.00 | 4-6 weeks | |
| VX50126 | 12.60 | 77 | 124 | 14 | Coated | NO | £56.94 | 4-6 weeks | |
| VX50127 | 12.70 | 77 | 124 | 14 | Coated | NO | £56.94 | 4-6 weeks | |
| VX50128 | 12.80 | 77 | 124 | 14 | Coated | NO | £56.94 | 4-6 weeks | |
| VX50130 | 13.00 | 77 | 124 | 14 | Coated | NO | £117.00 | 4-6 weeks | |
| VX50135 Viewing | 13.50 | 77 | 124 | 14 | Coated | NO | £117.00 | 4-6 weeks | |
| VX50137 | 13.70 | 77 | 124 | 14 | Coated | NO | £56.94 | 4-6 weeks | |
| VX50138 | 13.80 | 77 | 124 | 14 | Coated | NO | £56.94 | 4-6 weeks | |
| VX50140 | 14.00 | 77 | 124 | 14 | Coated | NO | £117.00 | In Stock | |
| VX50145 | 14.50 | 83 | 133 | 16 | Coated | NO | £160.50 | 4-6 weeks | |
| VX50147 | 14.70 | 83 | 133 | 16 | Coated | NO | £72.64 | 4-6 weeks | |
| VX50148 | 14.80 | 83 | 133 | 16 | Coated | NO | £72.64 | 4-6 weeks | |
| VX50150 | 15.00 | 83 | 133 | 16 | Coated | NO | £160.50 | 4-6 weeks | |
| VX50155 | 15.50 | 83 | 133 | 16 | Coated | NO | £160.50 | 4-6 weeks | |
| VX50157 | 15.70 | 83 | 133 | 16 | Coated | NO | £72.64 | 4-6 weeks | |
| VX50158 | 15.80 | 83 | 133 | 16 | Coated | NO | £72.64 | 4-6 weeks | |
| VX50160 | 16.00 | 83 | 133 | 16 | Coated | NO | £160.50 | 4-6 weeks |
No products match your filters.
