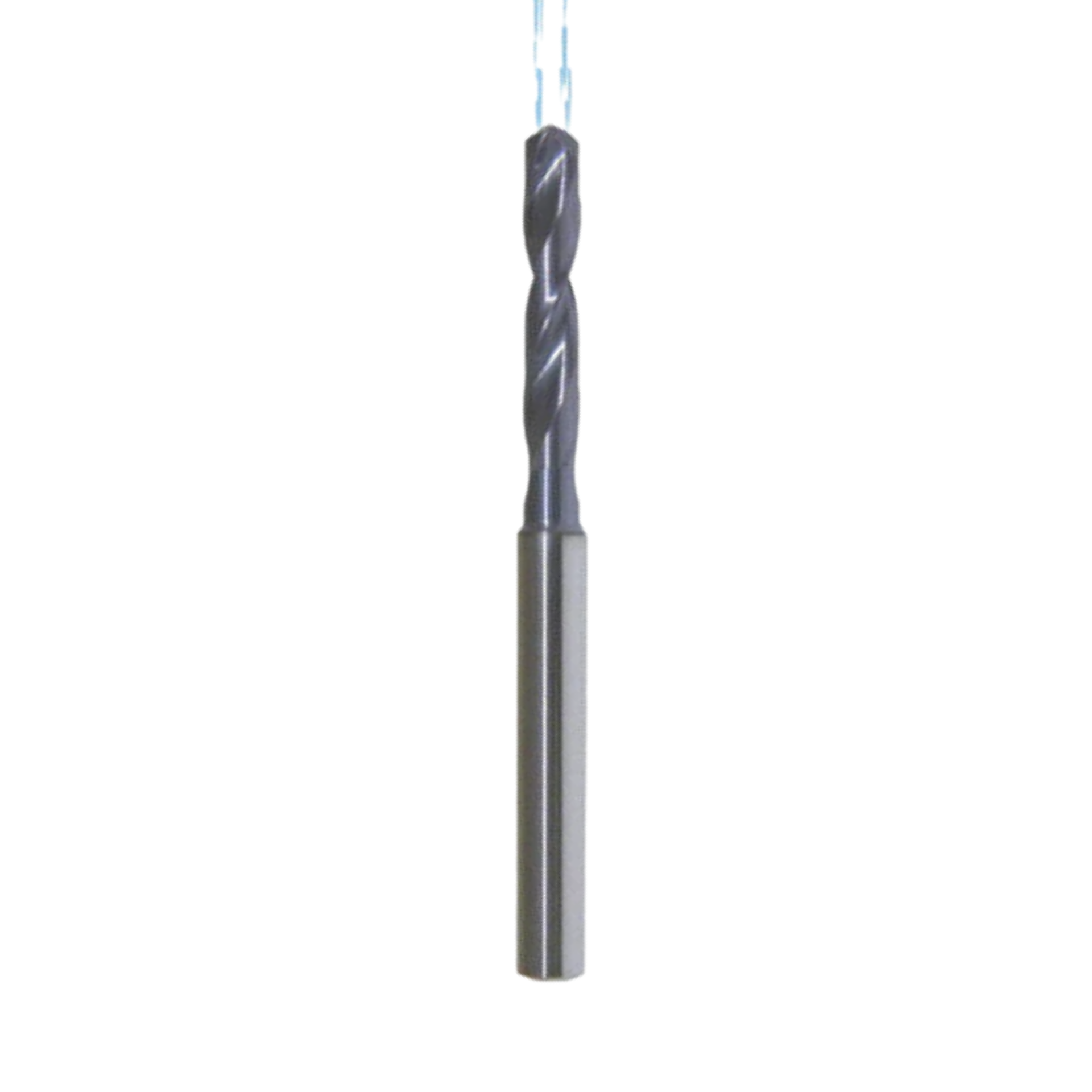

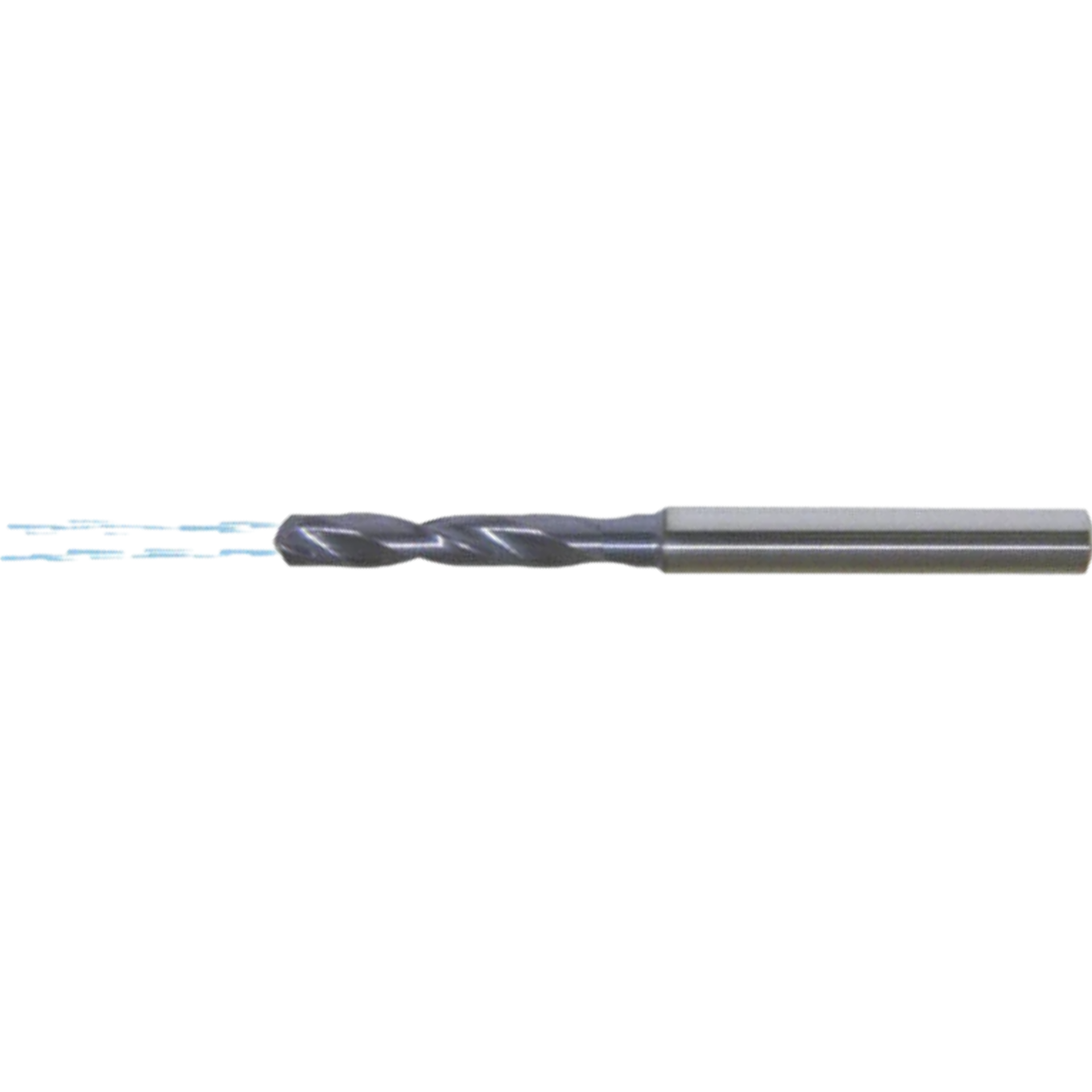

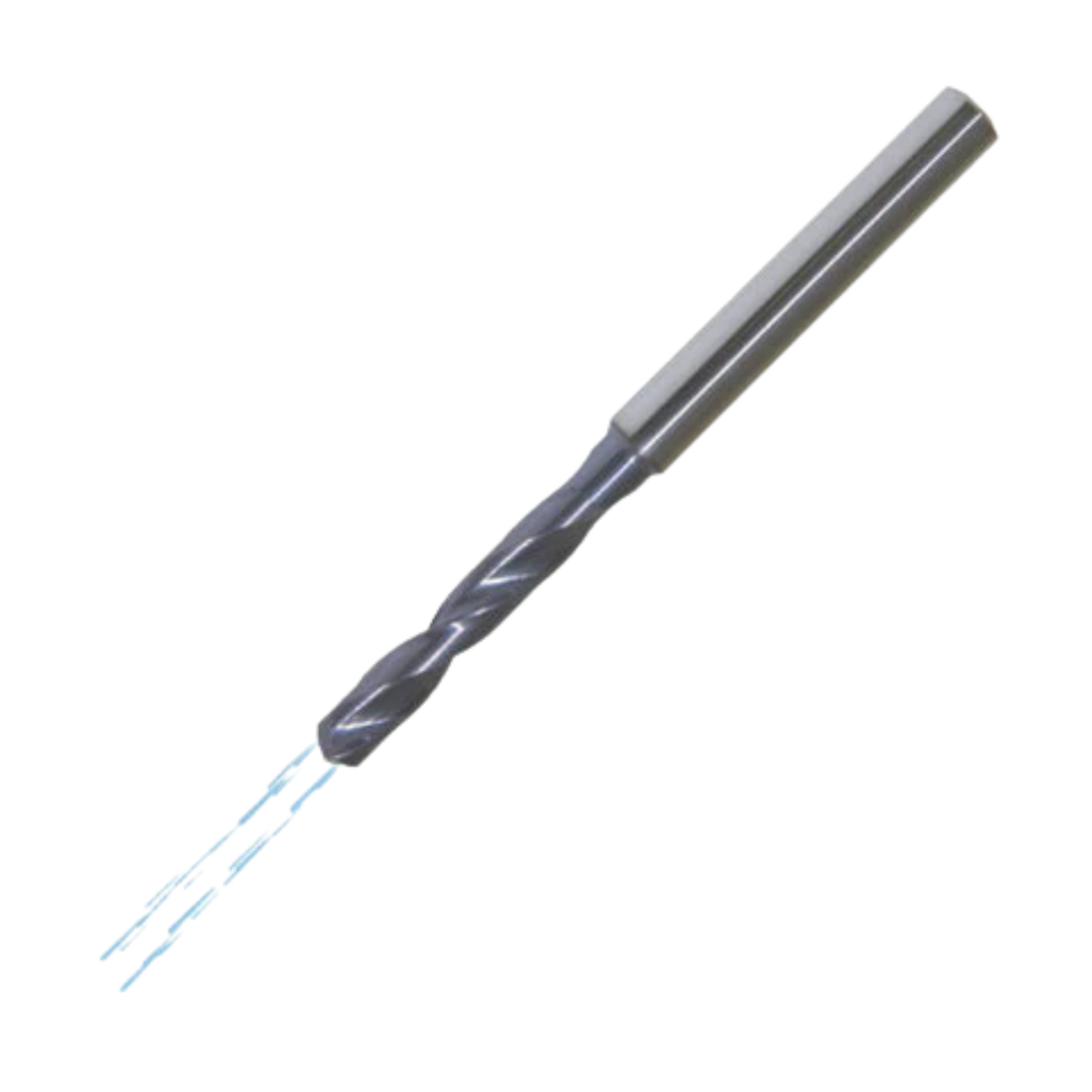

VORTEX Carbide Drill Through Coolant 3xD TiXCo4 Coated - 5.2mm
SKU:VXC30052
Meet the VORTEX Carbide Drill, a through-coolant drill built for demanding metalworking tasks. With a solid carbide core, TiXCo4 coating, and a 3xD length in a 5.2 mm diameter, it delivers excepti...
Read more ↓
Material Compatibility
P
M
K
N
S
Specification
Download Cutting Data
| Drill Diameter | 5.20 |
| Flute Length | 28 |
| Overall Length | 66 |
| Shank Diameter | 6 |
| Coated | Coated |
| Coolant | YES |
£33.00
Prices shown ex. VAT
In Stock
View Other Sizes →
Free delivery over £50 ex VAT
Secure checkout
14-day returns
30+ years expertise
Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna
Learn more about Klarna
Meet the VORTEX Carbide Drill, a through-coolant drill built for demanding metalworking tasks. With a solid carbide core, TiXCo4 coating, and a 3xD length in a 5.2 mm diameter, it delivers exceptional strength, wear resistance, and hole accuracy across depths. Designed for engineers, machinists, and hobbyists alike, this drill is ready for deep-hole drilling with reduced heat and consistent results.
- Solid carbide construction for strength and longevity: A rigid carbide core resists bending and wear, delivering consistent hole sizes and extended tool life even in tough materials.
- TiXCo4 coating for wear and heat resistance: This advanced coating reduces friction, guards against wear, and helps maintain sharpness for longer cutting life and steady performance.
- Through coolant plus 3xD length for versatility: Through-coolant channels improve chip evacuation and cooling during drilling, while the 3xD length provides reach and stability for accurate deep holes across a range of depths.
With these features, you gain faster chip removal, cooler cutting, and reliable, repeatable hole quality. The through-coolant design minimizes heat build-up and downtime, while the TiXCo4 coating maintains sharpness longer—reducing tool changes and boosting productivity. The 3xD length balances reach and rigidity, allowing clean starts and precise drilling at varying depths, making this drill a dependable addition to any workshop or production environment.
| Drill Diameter | 5.20 |
| Flute Length | 28 |
| Overall Length | 66 |
| Shank Diameter | 6 |
| Coated | Coated |
| Coolant | YES |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
★★★★★
Nice experience staff are very helpful and interested...
Staff are very helpful and interested in providing a good service making us the customer feel valued.
★★★★★
first place we look
honest about stock and prices are competitive.
★★★★★
Polite and helpful
Staff are very helpful and polite.Goods that were in stock were dispatched same day and back orders were quick in coming through .
★★★★★
Buying experience
Phone requests are handled quickly and without any fuss. The website is easy to use and straightforward to order from. It’s especially helpful that it shows real‑time availability, so we don’t need to call to confirm whether parts will arrive.
Full Range: Vortex Solid Carbide Drills - 3xD TiXCo4 Coated - With Through Coolant (VXC3)
View full collection →You are viewing VXC30052. Click any other SKU to view its full details.
| Product SKU | Drill Diameter | Flute Length | Overall Length | Shank Diameter | Coated | Coolant | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|
| VXC30030 | 3.00 | 20 | 62 | 6 | Coated | YES | £30.00 | In Stock | |
| VXC30031 | 3.10 | 20 | 62 | 6 | Coated | YES | £30.00 | In Stock | |
| VXC30032 | 3.20 | 20 | 62 | 6 | Coated | YES | £30.00 | In Stock | |
| VXC30033 | 3.30 | 20 | 62 | 6 | Coated | YES | £30.00 | In Stock | |
| VXC30034 | 3.40 | 20 | 62 | 6 | Coated | YES | £30.00 | In Stock | |
| VXC30035 | 3.50 | 20 | 62 | 6 | Coated | YES | £30.00 | In Stock | |
| VXC30036 | 3.60 | 20 | 62 | 6 | Coated | YES | £30.00 | In Stock | |
| VXC30037 | 3.70 | 20 | 62 | 6 | Coated | YES | £30.00 | In Stock | |
| VXC30038 | 3.80 | 24 | 62 | 6 | Coated | YES | £30.00 | In Stock | |
| VXC30039 | 3.90 | 24 | 62 | 6 | Coated | YES | £30.00 | In Stock | |
| VXC30040 | 4.00 | 24 | 62 | 6 | Coated | YES | £30.00 | In Stock | |
| VXC30041 | 4.10 | 24 | 66 | 6 | Coated | YES | £33.00 | In Stock | |
| VXC30042 | 4.20 | 24 | 66 | 6 | Coated | YES | £33.00 | 4-6 weeks | |
| VXC30043 | 4.30 | 24 | 66 | 6 | Coated | YES | £33.00 | In Stock | |
| VXC30044 | 4.40 | 24 | 66 | 6 | Coated | YES | £33.00 | In Stock | |
| VXC30045 | 4.50 | 24 | 66 | 6 | Coated | YES | £33.00 | In Stock | |
| VXC30046 | 4.60 | 24 | 66 | 6 | Coated | YES | £33.00 | In Stock | |
| VXC30047 | 4.70 | 24 | 66 | 6 | Coated | YES | £33.00 | In Stock | |
| VXC30048 | 4.80 | 28 | 66 | 6 | Coated | YES | £33.00 | In Stock | |
| VXC30049 | 4.90 | 28 | 66 | 6 | Coated | YES | £33.00 | In Stock | |
| VXC30050 | 5.00 | 28 | 66 | 6 | Coated | YES | £33.00 | In Stock | |
| VXC30051 | 5.10 | 28 | 66 | 6 | Coated | YES | £33.00 | In Stock | |
| VXC30052 Viewing | 5.20 | 28 | 66 | 6 | Coated | YES | £33.00 | In Stock | |
| VXC30053 | 5.30 | 28 | 66 | 6 | Coated | YES | £33.00 | In Stock | |
| VXC30054 | 5.40 | 28 | 66 | 6 | Coated | YES | £33.00 | In Stock | |
| VXC30055 | 5.50 | 28 | 66 | 6 | Coated | YES | £33.00 | 4-6 weeks | |
| VXC30056 | 5.60 | 28 | 66 | 6 | Coated | YES | £33.00 | 4-6 weeks | |
| VXC30057 | 5.70 | 28 | 66 | 6 | Coated | YES | £33.00 | In Stock | |
| VXC30058 | 5.80 | 28 | 66 | 6 | Coated | YES | £33.00 | In Stock | |
| VXC30059 | 5.90 | 28 | 66 | 6 | Coated | YES | £33.00 | In Stock | |
| VXC30060 | 6.00 | 28 | 66 | 6 | Coated | YES | £33.00 | In Stock | |
| VXC30061 | 6.10 | 34 | 79 | 8 | Coated | YES | £48.90 | In Stock | |
| VXC30062 | 6.20 | 34 | 79 | 8 | Coated | YES | £33.80 | In Stock | |
| VXC30063 | 6.30 | 34 | 79 | 8 | Coated | YES | £48.90 | In Stock | |
| VXC30064 | 6.40 | 34 | 79 | 8 | Coated | YES | £48.90 | In Stock | |
| VXC30065 | 6.50 | 34 | 79 | 8 | Coated | YES | £48.90 | In Stock | |
| VXC30066 | 6.60 | 34 | 79 | 8 | Coated | YES | £33.80 | In Stock | |
| VXC30067 | 6.70 | 34 | 79 | 8 | Coated | YES | £48.90 | In Stock | |
| VXC30068 | 6.80 | 34 | 79 | 8 | Coated | YES | £48.90 | In Stock | |
| VXC30069 | 6.90 | 34 | 79 | 8 | Coated | YES | £33.80 | In Stock | |
| VXC30070 | 7.00 | 34 | 79 | 8 | Coated | YES | £48.90 | In Stock | |
| VXC30071 | 7.10 | 41 | 79 | 8 | Coated | YES | £48.90 | In Stock | |
| VXC30072 | 7.20 | 41 | 79 | 8 | Coated | YES | £33.80 | In Stock | |
| VXC30073 | 7.30 | 41 | 79 | 8 | Coated | YES | £33.80 | In Stock | |
| VXC30074 | 7.40 | 41 | 79 | 8 | Coated | YES | £33.80 | In Stock | |
| VXC30075 | 7.50 | 41 | 79 | 8 | Coated | YES | £33.80 | In Stock | |
| VXC30076 | 7.60 | 41 | 79 | 8 | Coated | YES | £33.80 | In Stock | |
| VXC30077 | 7.70 | 41 | 79 | 8 | Coated | YES | £33.80 | In Stock | |
| VXC30078 | 7.80 | 41 | 79 | 8 | Coated | YES | £33.80 | In Stock | |
| VXC30079 | 7.90 | 41 | 79 | 8 | Coated | YES | £48.90 | In Stock | |
| VXC30080 | 8.00 | 41 | 79 | 8 | Coated | YES | £48.90 | In Stock | |
| VXC30081 | 8.10 | 47 | 89 | 10 | Coated | YES | £54.70 | In Stock | |
| VXC30082 | 8.20 | 47 | 89 | 10 | Coated | YES | £48.38 | In Stock | |
| VXC30083 | 8.30 | 47 | 89 | 10 | Coated | YES | £48.38 | In Stock | |
| VXC30084 | 8.40 | 47 | 89 | 10 | Coated | YES | £48.38 | In Stock | |
| VXC30085 | 8.50 | 47 | 89 | 10 | Coated | YES | £72.90 | In Stock | |
| VXC30086 | 8.60 | 47 | 89 | 10 | Coated | YES | £72.90 | In Stock | |
| VXC30087 | 8.70 | 47 | 89 | 10 | Coated | YES | £48.38 | In Stock | |
| VXC30088 | 8.80 | 47 | 89 | 10 | Coated | YES | £48.38 | In Stock | |
| VXC30089 | 8.90 | 47 | 89 | 10 | Coated | YES | £48.38 | In Stock | |
| VXC30090 | 9.00 | 47 | 89 | 10 | Coated | YES | £72.90 | In Stock | |
| VXC30091 | 9.10 | 47 | 89 | 10 | Coated | YES | £72.90 | In Stock | |
| VXC30092 | 9.20 | 47 | 89 | 10 | Coated | YES | £48.38 | In Stock | |
| VXC30093 | 9.30 | 47 | 89 | 10 | Coated | YES | £54.70 | In Stock | |
| VXC30094 | 9.40 | 47 | 89 | 10 | Coated | YES | £48.38 | In Stock | |
| VXC30095 | 9.50 | 47 | 89 | 10 | Coated | YES | £72.90 | In Stock | |
| VXC30096 | 9.60 | 47 | 89 | 10 | Coated | YES | £48.38 | In Stock | |
| VXC30097 | 9.70 | 47 | 89 | 10 | Coated | YES | £48.38 | In Stock | |
| VXC30098 | 9.80 | 47 | 89 | 10 | Coated | YES | £48.38 | In Stock | |
| VXC30099 | 9.90 | 47 | 89 | 10 | Coated | YES | £48.38 | In Stock | |
| VXC30100 | 10.00 | 47 | 89 | 10 | Coated | YES | £72.90 | In Stock | |
| VXC30101 | 10.10 | 55 | 102 | 12 | Coated | YES | £68.44 | In Stock | |
| VXC30102 | 10.20 | 55 | 102 | 12 | Coated | YES | £114.00 | In Stock | |
| VXC30103 | 10.30 | 55 | 102 | 12 | Coated | YES | £68.44 | In Stock | |
| VXC30104 | 10.40 | 55 | 102 | 12 | Coated | YES | £68.44 | In Stock | |
| VXC30105 | 10.50 | 55 | 102 | 12 | Coated | YES | £114.00 | In Stock | |
| VXC30106 | 10.60 | 55 | 102 | 12 | Coated | YES | £68.44 | In Stock | |
| VXC30107 | 10.70 | 55 | 102 | 12 | Coated | YES | £68.44 | In Stock | |
| VXC30108 | 10.80 | 55 | 102 | 12 | Coated | YES | £114.00 | In Stock | |
| VXC30109 | 10.90 | 55 | 102 | 12 | Coated | YES | £68.44 | In Stock | |
| VXC30110 | 11.00 | 55 | 102 | 12 | Coated | YES | £114.00 | In Stock | |
| VXC30111 | 11.10 | 55 | 102 | 12 | Coated | YES | £68.44 | In Stock | |
| VXC30112 | 11.20 | 55 | 102 | 12 | Coated | YES | £68.44 | In Stock | |
| VXC30113 | 11.30 | 55 | 102 | 12 | Coated | YES | £68.44 | In Stock | |
| VXC30114 | 11.40 | 55 | 102 | 12 | Coated | YES | £68.44 | In Stock | |
| VXC30115 | 11.50 | 55 | 102 | 12 | Coated | YES | £114.00 | In Stock | |
| VXC30116 | 11.60 | 55 | 102 | 12 | Coated | YES | £68.44 | In Stock | |
| VXC30117 | 11.70 | 55 | 102 | 12 | Coated | YES | £68.44 | In Stock | |
| VXC30118 | 11.80 | 55 | 102 | 12 | Coated | YES | £114.00 | In Stock | |
| VXC30119 | 11.90 | 55 | 102 | 12 | Coated | YES | £68.44 | 4-6 weeks | |
| VXC30120 | 12.00 | 55 | 102 | 12 | Coated | YES | £114.00 | In Stock | |
| VXC30122 | 12.20 | 60 | 107 | 14 | Coated | YES | £90.04 | 4-6 weeks | |
| VXC30125 | 12.50 | 60 | 107 | 14 | Coated | YES | £162.00 | 4-6 weeks | |
| VXC30126 | 12.60 | 60 | 107 | 14 | Coated | YES | £90.04 | 4-6 weeks | |
| VXC30127 | 12.70 | 60 | 107 | 14 | Coated | YES | £90.04 | 4-6 weeks | |
| VXC30130 | 13.00 | 60 | 107 | 14 | Coated | YES | £162.00 | 4-6 weeks | |
| VXC30135 | 13.50 | 60 | 107 | 14 | Coated | YES | £162.00 | 4-6 weeks | |
| VXC30137 | 13.70 | 60 | 107 | 14 | Coated | YES | £90.04 | 4-6 weeks | |
| VXC30140 | 14.00 | 60 | 107 | 14 | Coated | YES | £162.00 | 4-6 weeks | |
| VXC30145 | 14.50 | 65 | 115 | 16 | Coated | YES | £216.00 | 4-6 weeks | |
| VXC30147 | 14.70 | 65 | 115 | 16 | Coated | YES | £114.32 | 4-6 weeks | |
| VXC30150 | 15.00 | 65 | 115 | 16 | Coated | YES | £216.00 | 4-6 weeks | |
| VXC30155 | 15.50 | 65 | 115 | 16 | Coated | YES | £216.00 | 4-6 weeks | |
| VXC30157 | 15.70 | 65 | 115 | 16 | Coated | YES | £114.32 | 4-6 weeks | |
| VXC30160 | 16.00 | 65 | 115 | 16 | Coated | YES | £216.00 | 4-6 weeks |
