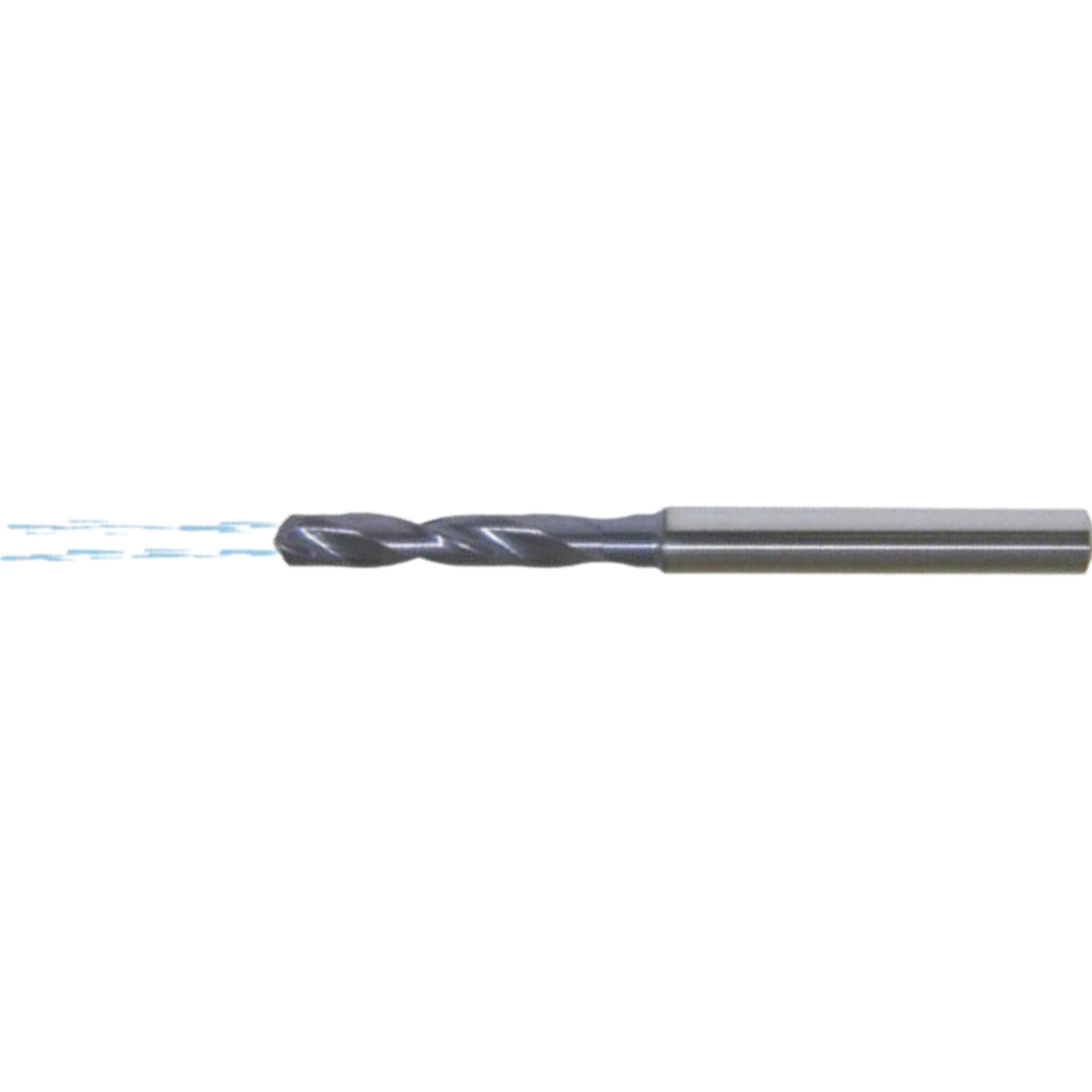

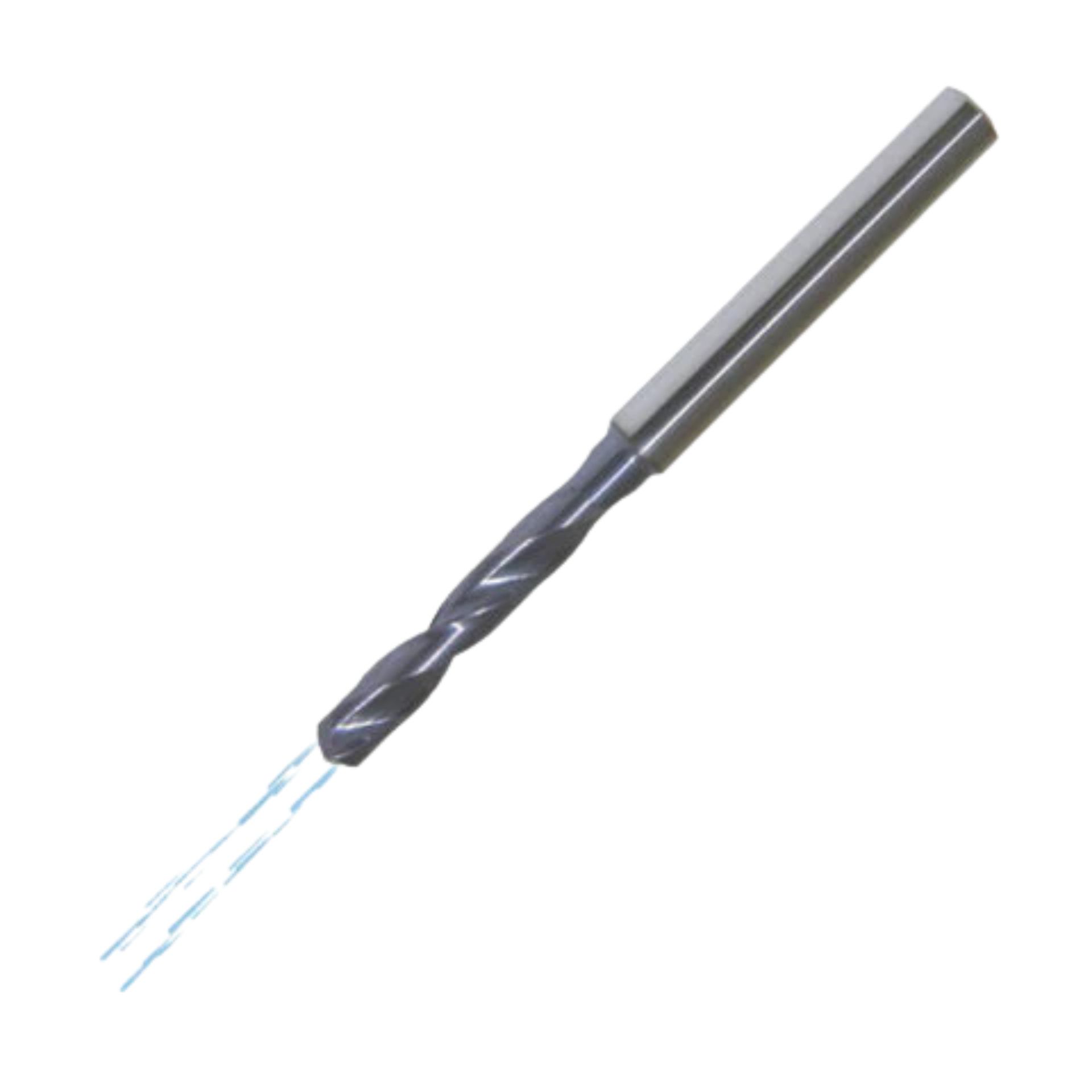

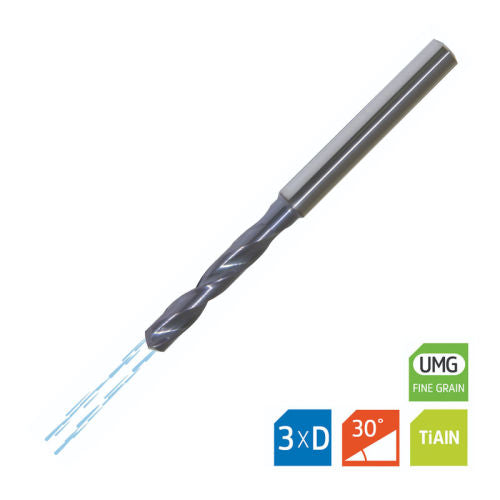

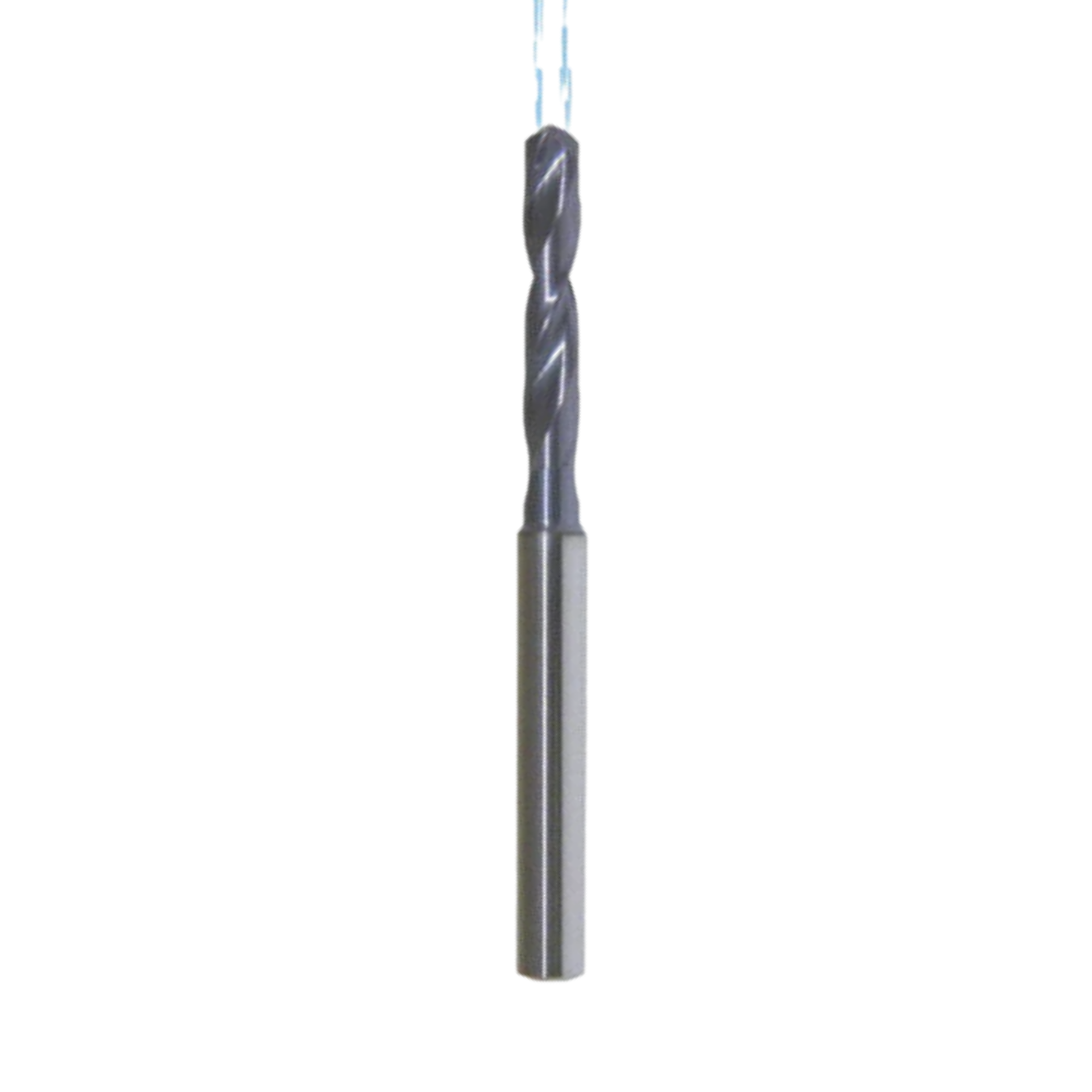

VORTEX Carbide Drill Through Coolant 3xD TiXCo4 Coated - 13.5mm
SKU:VXC30135
The VORTEX Carbide Drill Through Coolant 3xD TiXCo4 Coated – 13.5 mm is a solid carbide drill engineered for through-coolant operation. Built for reliability in demanding metalworking and fabrica...
Read more ↓
Material Compatibility
P
M
K
N
S
Specification
Download Cutting Data
| Drill Diameter | 13.50 |
| Flute Length | 60 |
| Overall Length | 107 |
| Shank Diameter | 14 |
| Coated | Coated |
| Coolant | YES |
£162.00
Prices shown ex. VAT
2 weeks estimated lead time
— subject to availability
View Other Sizes →
Free delivery over £50 ex VAT
Secure checkout
14-day returns
30+ years expertise
Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna
Learn more about Klarna
The VORTEX Carbide Drill Through Coolant 3xD TiXCo4 Coated – 13.5 mm is a solid carbide drill engineered for through-coolant operation. Built for reliability in demanding metalworking and fabrication tasks, it delivers consistent performance and extended tool life even in tough materials.
With a TiXCo4 coating for enhanced wear and heat resistance and a 3xD length for depth flexibility, this drill maintains a sharp edge, reduces friction, and stays stable through challenging holes.
- Solid carbide core for durability: A rigid carbide construction resists chipping and deflection, helping maintain hole size accuracy and extend tool life across repeated drilling.
- TiXCo4 coating for wear and heat resistance: The coating lowers wear and friction, preserving edge sharpness and enabling more consistent cutting temperatures for reliable performance.
- Through coolant and 3xD geometry for stability: Direct cooling at the cutting edge plus a 3xD length improves chip evacuation, reduces heat buildup, and supports deeper holes with minimal vibration.
This combination translates to faster, more predictable drilling with fewer tool changes and less downtime. You’ll achieve cleaner holes, tighter tolerances, and consistent results across a range of materials, while the through-coolant design and durable TiXCo4 coating help sustain productivity without compromising reliability.
| Drill Diameter | 13.50 |
| Flute Length | 60 |
| Overall Length | 107 |
| Shank Diameter | 14 |
| Coated | Coated |
| Coolant | YES |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
★★★★★
Nice experience staff are very helpful and interested...
Staff are very helpful and interested in providing a good service making us the customer feel valued.
★★★★★
first place we look
honest about stock and prices are competitive.
★★★★★
Polite and helpful
Staff are very helpful and polite.Goods that were in stock were dispatched same day and back orders were quick in coming through .
★★★★★
Buying experience
Phone requests are handled quickly and without any fuss. The website is easy to use and straightforward to order from. It’s especially helpful that it shows real‑time availability, so we don’t need to call to confirm whether parts will arrive.
Full Range: Vortex Solid Carbide Drills - 3xD TiXCo4 Coated - With Through Coolant (VXC3)
View full collection →You are viewing VXC30135. Click any other SKU to view its full details.
| Product SKU | Drill Diameter | Flute Length | Overall Length | Shank Diameter | Coated | Coolant | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|
| VXC30030 | 3.00 | 20 | 62 | 6 | Coated | YES | £30.00 | In Stock | |
| VXC30031 | 3.10 | 20 | 62 | 6 | Coated | YES | £30.00 | In Stock | |
| VXC30032 | 3.20 | 20 | 62 | 6 | Coated | YES | £30.00 | In Stock | |
| VXC30033 | 3.30 | 20 | 62 | 6 | Coated | YES | £30.00 | In Stock | |
| VXC30034 | 3.40 | 20 | 62 | 6 | Coated | YES | £30.00 | In Stock | |
| VXC30035 | 3.50 | 20 | 62 | 6 | Coated | YES | £30.00 | In Stock | |
| VXC30036 | 3.60 | 20 | 62 | 6 | Coated | YES | £30.00 | In Stock | |
| VXC30037 | 3.70 | 20 | 62 | 6 | Coated | YES | £30.00 | In Stock | |
| VXC30038 | 3.80 | 24 | 62 | 6 | Coated | YES | £30.00 | In Stock | |
| VXC30039 | 3.90 | 24 | 62 | 6 | Coated | YES | £30.00 | In Stock | |
| VXC30040 | 4.00 | 24 | 62 | 6 | Coated | YES | £30.00 | In Stock | |
| VXC30041 | 4.10 | 24 | 66 | 6 | Coated | YES | £33.00 | In Stock | |
| VXC30042 | 4.20 | 24 | 66 | 6 | Coated | YES | £33.00 | 4-6 weeks | |
| VXC30043 | 4.30 | 24 | 66 | 6 | Coated | YES | £33.00 | In Stock | |
| VXC30044 | 4.40 | 24 | 66 | 6 | Coated | YES | £33.00 | In Stock | |
| VXC30045 | 4.50 | 24 | 66 | 6 | Coated | YES | £33.00 | In Stock | |
| VXC30046 | 4.60 | 24 | 66 | 6 | Coated | YES | £33.00 | In Stock | |
| VXC30047 | 4.70 | 24 | 66 | 6 | Coated | YES | £33.00 | In Stock | |
| VXC30048 | 4.80 | 28 | 66 | 6 | Coated | YES | £33.00 | In Stock | |
| VXC30049 | 4.90 | 28 | 66 | 6 | Coated | YES | £33.00 | In Stock | |
| VXC30050 | 5.00 | 28 | 66 | 6 | Coated | YES | £33.00 | In Stock | |
| VXC30051 | 5.10 | 28 | 66 | 6 | Coated | YES | £33.00 | In Stock | |
| VXC30052 | 5.20 | 28 | 66 | 6 | Coated | YES | £33.00 | In Stock | |
| VXC30053 | 5.30 | 28 | 66 | 6 | Coated | YES | £33.00 | In Stock | |
| VXC30054 | 5.40 | 28 | 66 | 6 | Coated | YES | £33.00 | In Stock | |
| VXC30055 | 5.50 | 28 | 66 | 6 | Coated | YES | £33.00 | 4-6 weeks | |
| VXC30056 | 5.60 | 28 | 66 | 6 | Coated | YES | £33.00 | 4-6 weeks | |
| VXC30057 | 5.70 | 28 | 66 | 6 | Coated | YES | £33.00 | In Stock | |
| VXC30058 | 5.80 | 28 | 66 | 6 | Coated | YES | £33.00 | In Stock | |
| VXC30059 | 5.90 | 28 | 66 | 6 | Coated | YES | £33.00 | In Stock | |
| VXC30060 | 6.00 | 28 | 66 | 6 | Coated | YES | £33.00 | In Stock | |
| VXC30061 | 6.10 | 34 | 79 | 8 | Coated | YES | £48.90 | In Stock | |
| VXC30062 | 6.20 | 34 | 79 | 8 | Coated | YES | £33.80 | In Stock | |
| VXC30063 | 6.30 | 34 | 79 | 8 | Coated | YES | £48.90 | In Stock | |
| VXC30064 | 6.40 | 34 | 79 | 8 | Coated | YES | £48.90 | In Stock | |
| VXC30065 | 6.50 | 34 | 79 | 8 | Coated | YES | £48.90 | In Stock | |
| VXC30066 | 6.60 | 34 | 79 | 8 | Coated | YES | £33.80 | In Stock | |
| VXC30067 | 6.70 | 34 | 79 | 8 | Coated | YES | £48.90 | In Stock | |
| VXC30068 | 6.80 | 34 | 79 | 8 | Coated | YES | £48.90 | In Stock | |
| VXC30069 | 6.90 | 34 | 79 | 8 | Coated | YES | £33.80 | In Stock | |
| VXC30070 | 7.00 | 34 | 79 | 8 | Coated | YES | £48.90 | In Stock | |
| VXC30071 | 7.10 | 41 | 79 | 8 | Coated | YES | £48.90 | In Stock | |
| VXC30072 | 7.20 | 41 | 79 | 8 | Coated | YES | £33.80 | In Stock | |
| VXC30073 | 7.30 | 41 | 79 | 8 | Coated | YES | £33.80 | In Stock | |
| VXC30074 | 7.40 | 41 | 79 | 8 | Coated | YES | £33.80 | In Stock | |
| VXC30075 | 7.50 | 41 | 79 | 8 | Coated | YES | £33.80 | In Stock | |
| VXC30076 | 7.60 | 41 | 79 | 8 | Coated | YES | £33.80 | In Stock | |
| VXC30077 | 7.70 | 41 | 79 | 8 | Coated | YES | £33.80 | In Stock | |
| VXC30078 | 7.80 | 41 | 79 | 8 | Coated | YES | £33.80 | In Stock | |
| VXC30079 | 7.90 | 41 | 79 | 8 | Coated | YES | £48.90 | In Stock | |
| VXC30080 | 8.00 | 41 | 79 | 8 | Coated | YES | £48.90 | In Stock | |
| VXC30081 | 8.10 | 47 | 89 | 10 | Coated | YES | £54.70 | In Stock | |
| VXC30082 | 8.20 | 47 | 89 | 10 | Coated | YES | £48.38 | In Stock | |
| VXC30083 | 8.30 | 47 | 89 | 10 | Coated | YES | £48.38 | In Stock | |
| VXC30084 | 8.40 | 47 | 89 | 10 | Coated | YES | £48.38 | In Stock | |
| VXC30085 | 8.50 | 47 | 89 | 10 | Coated | YES | £72.90 | In Stock | |
| VXC30086 | 8.60 | 47 | 89 | 10 | Coated | YES | £72.90 | In Stock | |
| VXC30087 | 8.70 | 47 | 89 | 10 | Coated | YES | £48.38 | In Stock | |
| VXC30088 | 8.80 | 47 | 89 | 10 | Coated | YES | £48.38 | In Stock | |
| VXC30089 | 8.90 | 47 | 89 | 10 | Coated | YES | £48.38 | In Stock | |
| VXC30090 | 9.00 | 47 | 89 | 10 | Coated | YES | £72.90 | In Stock | |
| VXC30091 | 9.10 | 47 | 89 | 10 | Coated | YES | £72.90 | In Stock | |
| VXC30092 | 9.20 | 47 | 89 | 10 | Coated | YES | £48.38 | In Stock | |
| VXC30093 | 9.30 | 47 | 89 | 10 | Coated | YES | £54.70 | In Stock | |
| VXC30094 | 9.40 | 47 | 89 | 10 | Coated | YES | £48.38 | In Stock | |
| VXC30095 | 9.50 | 47 | 89 | 10 | Coated | YES | £72.90 | In Stock | |
| VXC30096 | 9.60 | 47 | 89 | 10 | Coated | YES | £48.38 | In Stock | |
| VXC30097 | 9.70 | 47 | 89 | 10 | Coated | YES | £48.38 | In Stock | |
| VXC30098 | 9.80 | 47 | 89 | 10 | Coated | YES | £48.38 | In Stock | |
| VXC30099 | 9.90 | 47 | 89 | 10 | Coated | YES | £48.38 | In Stock | |
| VXC30100 | 10.00 | 47 | 89 | 10 | Coated | YES | £72.90 | In Stock | |
| VXC30101 | 10.10 | 55 | 102 | 12 | Coated | YES | £68.44 | In Stock | |
| VXC30102 | 10.20 | 55 | 102 | 12 | Coated | YES | £114.00 | In Stock | |
| VXC30103 | 10.30 | 55 | 102 | 12 | Coated | YES | £68.44 | In Stock | |
| VXC30104 | 10.40 | 55 | 102 | 12 | Coated | YES | £68.44 | In Stock | |
| VXC30105 | 10.50 | 55 | 102 | 12 | Coated | YES | £114.00 | In Stock | |
| VXC30106 | 10.60 | 55 | 102 | 12 | Coated | YES | £68.44 | In Stock | |
| VXC30107 | 10.70 | 55 | 102 | 12 | Coated | YES | £68.44 | In Stock | |
| VXC30108 | 10.80 | 55 | 102 | 12 | Coated | YES | £114.00 | In Stock | |
| VXC30109 | 10.90 | 55 | 102 | 12 | Coated | YES | £68.44 | In Stock | |
| VXC30110 | 11.00 | 55 | 102 | 12 | Coated | YES | £114.00 | In Stock | |
| VXC30111 | 11.10 | 55 | 102 | 12 | Coated | YES | £68.44 | In Stock | |
| VXC30112 | 11.20 | 55 | 102 | 12 | Coated | YES | £68.44 | In Stock | |
| VXC30113 | 11.30 | 55 | 102 | 12 | Coated | YES | £68.44 | In Stock | |
| VXC30114 | 11.40 | 55 | 102 | 12 | Coated | YES | £68.44 | In Stock | |
| VXC30115 | 11.50 | 55 | 102 | 12 | Coated | YES | £114.00 | In Stock | |
| VXC30116 | 11.60 | 55 | 102 | 12 | Coated | YES | £68.44 | In Stock | |
| VXC30117 | 11.70 | 55 | 102 | 12 | Coated | YES | £68.44 | In Stock | |
| VXC30118 | 11.80 | 55 | 102 | 12 | Coated | YES | £114.00 | In Stock | |
| VXC30119 | 11.90 | 55 | 102 | 12 | Coated | YES | £68.44 | 4-6 weeks | |
| VXC30120 | 12.00 | 55 | 102 | 12 | Coated | YES | £114.00 | In Stock | |
| VXC30122 | 12.20 | 60 | 107 | 14 | Coated | YES | £90.04 | 4-6 weeks | |
| VXC30125 | 12.50 | 60 | 107 | 14 | Coated | YES | £162.00 | 4-6 weeks | |
| VXC30126 | 12.60 | 60 | 107 | 14 | Coated | YES | £90.04 | 4-6 weeks | |
| VXC30127 | 12.70 | 60 | 107 | 14 | Coated | YES | £90.04 | 4-6 weeks | |
| VXC30130 | 13.00 | 60 | 107 | 14 | Coated | YES | £162.00 | 4-6 weeks | |
| VXC30135 Viewing | 13.50 | 60 | 107 | 14 | Coated | YES | £162.00 | 4-6 weeks | |
| VXC30137 | 13.70 | 60 | 107 | 14 | Coated | YES | £90.04 | 4-6 weeks | |
| VXC30140 | 14.00 | 60 | 107 | 14 | Coated | YES | £162.00 | 4-6 weeks | |
| VXC30145 | 14.50 | 65 | 115 | 16 | Coated | YES | £216.00 | 4-6 weeks | |
| VXC30147 | 14.70 | 65 | 115 | 16 | Coated | YES | £114.32 | 4-6 weeks | |
| VXC30150 | 15.00 | 65 | 115 | 16 | Coated | YES | £216.00 | 4-6 weeks | |
| VXC30155 | 15.50 | 65 | 115 | 16 | Coated | YES | £216.00 | 4-6 weeks | |
| VXC30157 | 15.70 | 65 | 115 | 16 | Coated | YES | £114.32 | 4-6 weeks | |
| VXC30160 | 16.00 | 65 | 115 | 16 | Coated | YES | £216.00 | 4-6 weeks |
