Widin Carbide Corner Radius End Mill For Aluminium & Non-Ferrous - 2 Flute 45° Helix - 20mm x R4.0

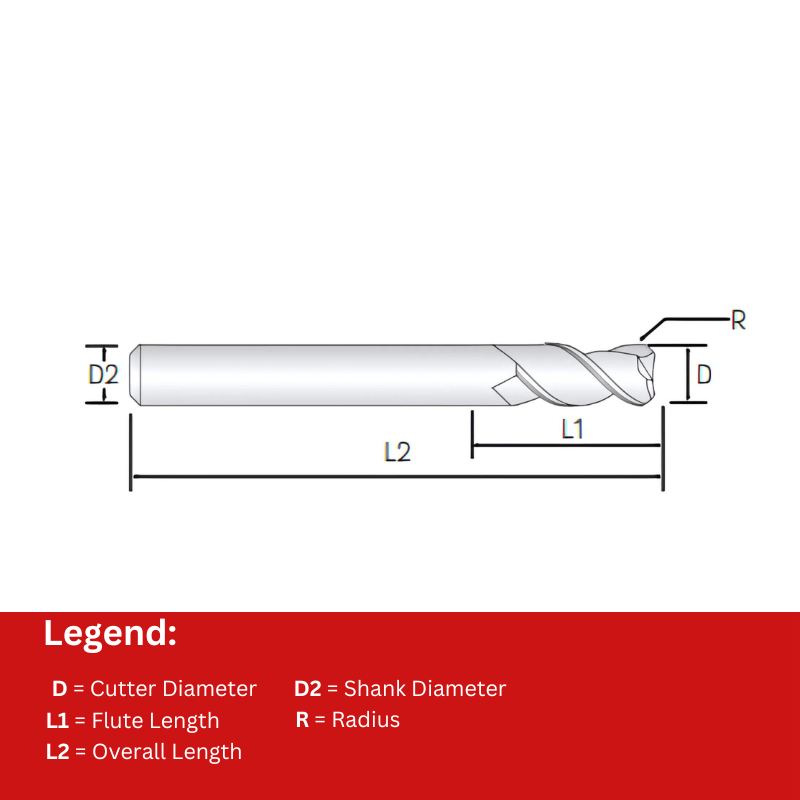

| Cutter Diameter | 20 |
| Number of Flutes | 2 |
| Flute Length | 45 |
| Overall Length | 100 |
| Shank Diameter | 20 |
| Corner Radius | 4 |
Learn more about Klarna

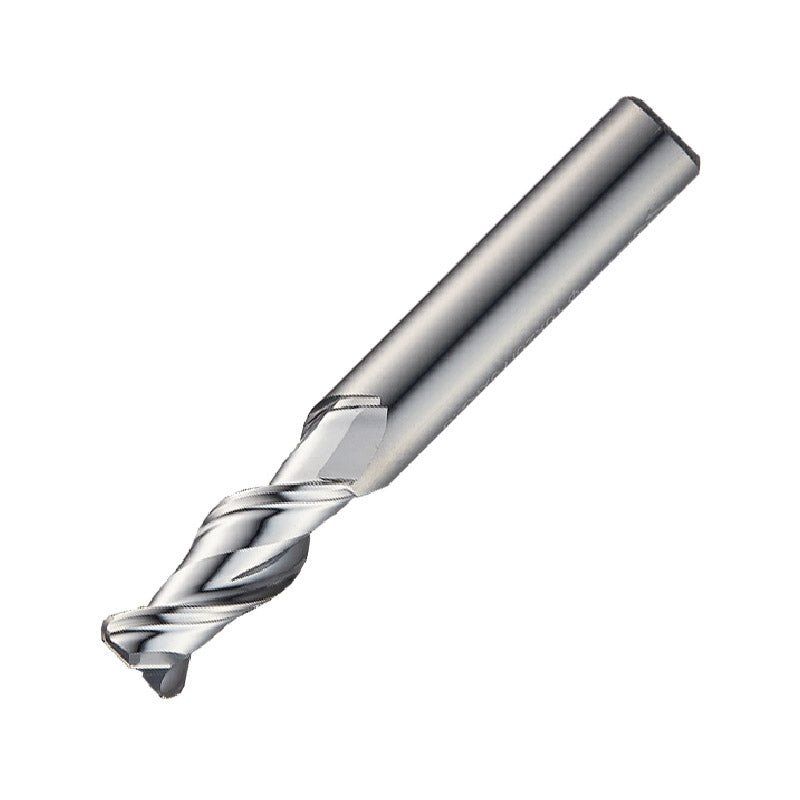

Meet the Widin Carbide Corner Radius End Mill — a precision cutting tool designed for aluminum and other non-ferrous metals. With a 20 mm diameter, a 4.0 mm corner radius, and a 2‑flute, 45° helix geometry, it delivers efficient material removal and reliable performance in a range of milling tasks.
- Diameter: 20 mm
- Corner Radius: R4.0 (4.0 mm)
- Flute Count: 2 flutes
- Helix Angle: 45°
- Material: Carbide
- Applications: Suitable for aluminium and non-ferrous milling
- Cutting Type: End mill
This end mill geometry is optimized to clear chips quickly and maintain steady cutting forces, which helps prevent vibration and deflection during milling. The corner radius strengthens the tip, reducing the risk of chipping or breakage at higher speeds and feeds. The 45° helix improves chip evacuation and contributes to a cleaner cut and better surface finish on soft metals. Ideal for pocketing, contouring, deburring, and light finishing work in prototyping, fixture work, and small to medium production settings.
| Cutter Diameter | 20 |
| Number of Flutes | 2 |
| Flute Length | 45 |
| Overall Length | 100 |
| Shank Diameter | 20 |
| Corner Radius | 4 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Widin Carbide Corner Radius End Mill For Aluminium & Non-Ferrous - 2 Flute 45° Helix (WAR302)
View full collection →You are viewing AWR31220040. Click any other SKU to view its full details.
| Product SKU | Cutter Diameter | Number of Flutes | Flute Length | Overall Length | Shank Diameter | Corner Radius | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|
| AWR31206005 | 6 | 2 | 15 | 50 | 6 | 0.5 | £15.48 | In Stock | |
| AWR31206010 | 6 | 2 | 15 | 50 | 6 | 1 | £35.19 | In Stock | |
| AWR31206015 | 6 | 2 | 15 | 50 | 6 | 1.5 | £15.48 | In Stock | |
| AWR31206020 | 6 | 2 | 15 | 50 | 6 | 2 | £35.19 | 5 days | |
| AWR31208005 | 8 | 2 | 20 | 60 | 8 | 0.5 | £50.93 | In Stock | |
| AWR31208010 | 8 | 2 | 20 | 60 | 8 | 1 | £22.41 | In Stock | |
| AWR31208015 | 8 | 2 | 20 | 60 | 8 | 1.5 | £22.41 | In Stock | |
| AWR31208020 | 8 | 2 | 20 | 60 | 8 | 2 | £22.41 | In Stock | |
| AWR31208030 | 8 | 2 | 20 | 60 | 8 | 3 | £22.41 | In Stock | |
| AWR31210005 | 10 | 2 | 25 | 70 | 10 | 0.5 | £70.14 | In Stock | |
| AWR31210010 | 10 | 2 | 25 | 70 | 10 | 1 | £30.86 | In Stock | |
| AWR31210015 | 10 | 2 | 25 | 70 | 10 | 1.5 | £30.86 | In Stock | |
| AWR31210020 | 10 | 2 | 25 | 70 | 10 | 2 | £30.86 | In Stock | |
| AWR31210030 | 10 | 2 | 25 | 70 | 10 | 3 | £30.86 | In Stock | |
| AWR31210040 | 10 | 2 | 25 | 70 | 10 | 4 | £30.86 | In Stock | |
| AWR31212010 | 12 | 2 | 30 | 75 | 12 | 1 | £90.71 | 5 days | |
| AWR31212020 | 12 | 2 | 30 | 75 | 12 | 2 | £39.91 | In Stock | |
| AWR31212030 | 12 | 2 | 30 | 75 | 12 | 3 | £90.71 | 5 days | |
| AWR31212040 | 12 | 2 | 30 | 75 | 12 | 4 | £39.91 | In Stock | |
| AWR31214010S14 | 14 | 2 | 35 | 80 | 14 | 1 | £184.99 | 5 days | |
| AWR31214020S14 | 14 | 2 | 35 | 80 | 14 | 2 | £81.40 | In Stock | |
| AWR31214030S14 | 14 | 2 | 35 | 80 | 14 | 3 | £81.40 | In Stock | |
| AWR31214040S14 | 14 | 2 | 35 | 80 | 14 | 4 | £81.40 | In Stock | |
| AWR31214050S14 | 14 | 2 | 35 | 80 | 14 | 5 | £81.40 | In Stock | |
| AWR31216010 | 16 | 2 | 40 | 90 | 16 | 1 | £97.89 | In Stock | |
| AWR31216020 | 16 | 2 | 40 | 90 | 16 | 2 | £222.48 | 5 days | |
| AWR31216030 | 16 | 2 | 40 | 90 | 16 | 3 | £97.89 | In Stock | |
| AWR31216040 | 16 | 2 | 40 | 90 | 16 | 4 | £222.48 | 5 days | |
| AWR31216050 | 16 | 2 | 40 | 90 | 16 | 5 | £97.89 | In Stock | |
| AWR31220010 | 20 | 2 | 45 | 100 | 20 | 1 | £199.61 | In Stock | |
| AWR31220020 | 20 | 2 | 45 | 100 | 20 | 2 | £199.61 | In Stock | |
| AWR31220030 | 20 | 2 | 45 | 100 | 20 | 3 | £199.61 | In Stock | |
| AWR31220040 Viewing | 20 | 2 | 45 | 100 | 20 | 4 | £199.61 | In Stock | |
| AWR31220050 | 20 | 2 | 45 | 100 | 20 | 5 | £199.61 | In Stock |
