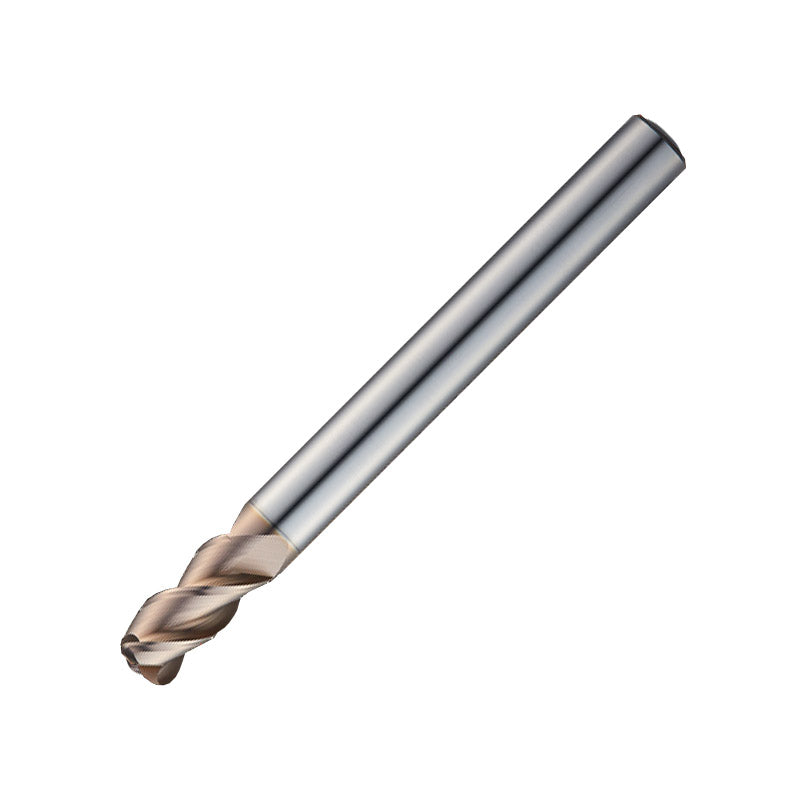

Widin Carbide Corner Radius End Mill For Mold & Die - 3 Flute - 10mm x R2.0

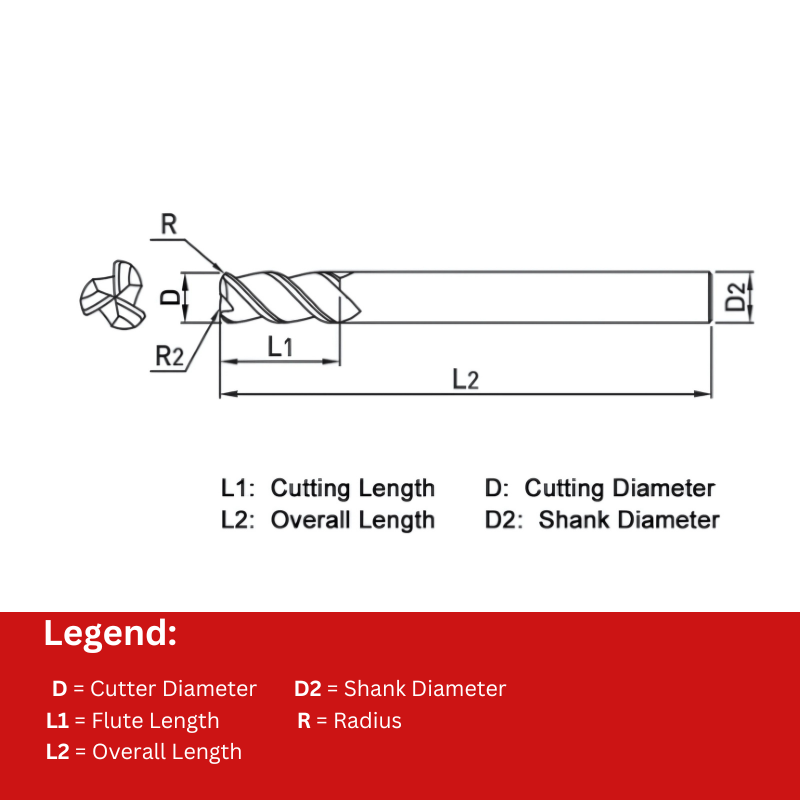

| Cutter Diameter | 10 |
| Number of Flutes | 3 |
| Flute Length | 20 |
| Overall Length | 100 |
| Shank Diameter | 10 |
| Corner Radius | 2 |
Learn more about Klarna
The Widin Carbide Corner Radius End Mill for Mold & Die is a versatile tool designed to deliver high-performance machining in mold and die applications. With its 3-flute design, this end mill ensures reduced cutting load on the end face part, minimizing wear and prolonging tool life. The double radius type provides enhanced stability and improved surface finishes during high-speed and high-feed machining operations. The proper design of the rake angle takes into consideration the specific characteristics of the workpiece, resulting in excellent machining surface quality.
| Cutter Diameter | 10 |
| Number of Flutes | 3 |
| Flute Length | 20 |
| Overall Length | 100 |
| Shank Diameter | 10 |
| Corner Radius | 2 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Widin Carbide Corner Radius End Mill For Mold & Die - 3 Flute (WDR503)
View full collection →You are viewing UDR50310020. Click any other SKU to view its full details.
| Product SKU | Cutter Diameter | Number of Flutes | Flute Length | Overall Length | Shank Diameter | Corner Radius | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|
| UDR50306005 | 6 | 3 | 10 | 90 | 6 | 0.5 | £48.20 | 5 days | |
| UDR50306020 | 6 | 3 | 10 | 90 | 6 | 2 | £48.20 | 5 days | |
| UDR50306010 | 6 | 3 | 10 | 90 | 6 | 1 | £48.20 | 5 days | |
| UDR50308005 | 8 | 3 | 16 | 100 | 8 | 0.5 | £76.79 | 5 days | |
| UDR50308020 | 8 | 3 | 16 | 100 | 8 | 2 | £76.79 | 5 days | |
| UDR50308010 | 8 | 3 | 16 | 100 | 8 | 1 | £76.79 | 5 days | |
| UDR50310005 | 10 | 3 | 20 | 100 | 10 | 0.5 | £100.80 | 5 days | |
| UDR50310010 | 10 | 3 | 20 | 100 | 10 | 1 | £100.80 | 5 days | |
| UDR50310020 Viewing | 10 | 3 | 20 | 100 | 10 | 2 | £100.80 | 5 days | |
| UDR50312005 | 12 | 3 | 24 | 110 | 12 | 0.5 | £150.15 | 5 days | |
| UDR50312010 | 12 | 3 | 24 | 110 | 12 | 1 | £150.15 | 5 days | |
| UDR50316005 | 16 | 3 | 32 | 150 | 16 | 0.5 | £424.00 | 5 days | |
| UDR50312020 | 12 | 3 | 24 | 110 | 12 | 2 | £150.15 | 5 days | |
| UDR50316010 | 16 | 3 | 32 | 150 | 16 | 1 | £424.00 | 5 days | |
| UDR50320010 | 20 | 3 | 40 | 150 | 20 | 1 | £590.87 | 5 days | |
| UDR50320005 | 20 | 3 | 40 | 150 | 20 | 0.5 | £590.87 | 5 days |
