Widin Carbide Corner Radius End Mill For Mold & Die - 3 Flute - 20mm x R0.5

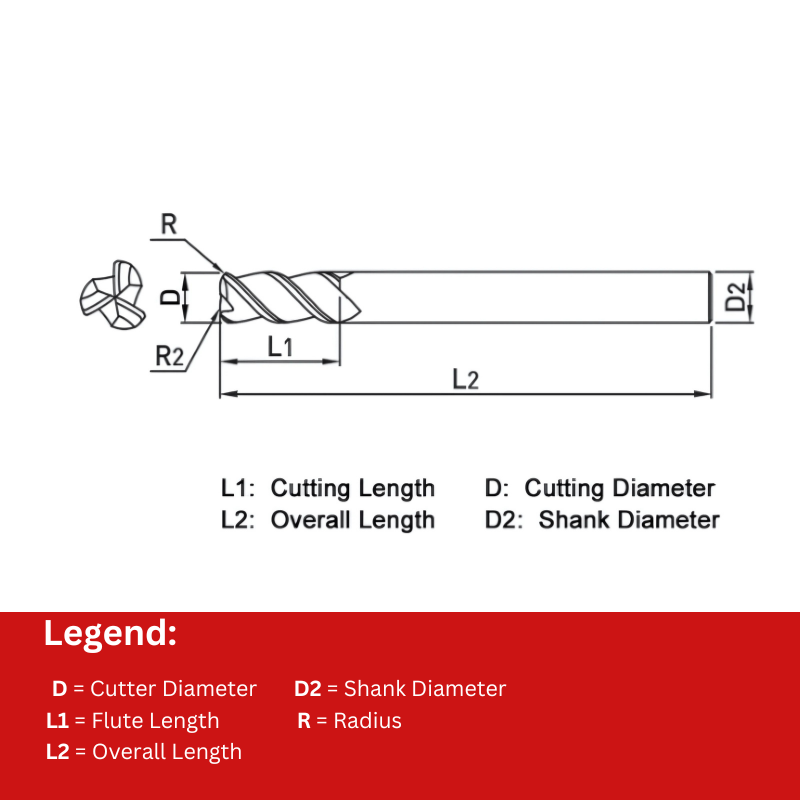

| Cutter Diameter | 20 |
| Number of Flutes | 3 |
| Flute Length | 40 |
| Overall Length | 150 |
Learn more about Klarna
Description

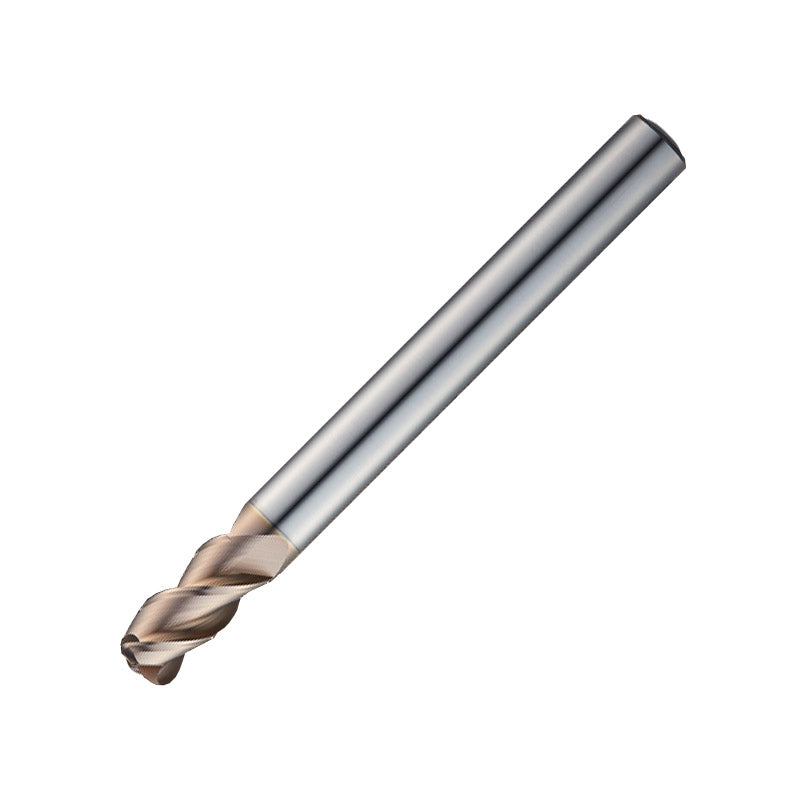

The Widin Carbide Corner Radius End Mill for Mold & Die is a 20 mm diameter carbide milling tool with a 0.5 mm corner radius (R0.5) designed specifically for mold and die work. Its 3-flute design reduces cutting load on the end face, helping to minimize wear and extend tool life in demanding milling tasks.
Built for high-speed and high-feed machining, the double radius geometry provides enhanced stability and smoother surface finishes on complex corners. The rake angle is thoughtfully optimized to suit a range of workpiece characteristics, delivering consistently excellent surface quality across challenging mold and die applications.
- Reduced cutting load for longer tool life: The 3-flute configuration lowers the cutting load on the end face, reducing wear and extending tool life in tough milling scenarios.
- Enhanced stability and surface finish: The double radius design improves stability at high speeds and feeds, yielding cleaner corners and better surface quality on molded parts.
- Optimized rake angle for consistent quality: Carefully designed rake angle accounts for typical workpiece behavior, helping you achieve reliable, high-quality surfaces with every pass.
This end mill is a reliable choice for professionals and hobbyists alike, supporting efficient workflows, durable performance, and repeatable results across mold and die projects.
Part Numbers
- Protool Part Number
- UDR50320005
- Brand
- Widin
- Category
- End Mill
Delivery
Free UK mainland delivery on orders over £50 ex VAT. In-stock items ordered before 4:30pm are dispatched the same working day. Full delivery information.
Returns
14-day returns on unused stock items in original packaging. Special-order and bespoke tooling is non-returnable. Read our returns policy.
Technical Support
Over 30 years of machining experience behind the counter. Call 01732 887334, Mon–Thurs 8:30–17:30, Fri 8:30–16:30.
Trade Accounts
Credit accounts, contract pricing and scheduled call-off orders available for trade customers. Apply for an account.
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Widin Carbide Corner Radius End Mill For Mold & Die - 3 Flute (WDR503)
View full collection →You are viewing UDR50320005. Click any other SKU to view its full details.
| Product SKU | Cutter Diameter | Number of Flutes | Flute Length | Overall Length | Shank Diameter | Corner Radius | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|
| UDR50306005 | 6 | 3 | 10 | 90 | 6 | 0.5 | £47.75 | 5 days | |
| UDR50306020 | 6 | 3 | 10 | 90 | 6 | 2 | £47.75 | 5 days | |
| UDR50306010 | 6 | 3 | 10 | 90 | 6 | 1 | £47.75 | 5 days | |
| UDR50308005 | 8 | 3 | 16 | 100 | 8 | 0.5 | £78.13 | 5 days | |
| UDR50308020 | 8 | 3 | 16 | 100 | 8 | 2 | £78.13 | 5 days | |
| UDR50308010 | 8 | 3 | 16 | 100 | 8 | 1 | £78.13 | 5 days | |
| UDR50310005 | 10 | 3 | 20 | 100 | 10 | 0.5 | £107.00 | 5 days | |
| UDR50310010 | 10 | 3 | 20 | 100 | 10 | 1 | £107.00 | 5 days | |
| UDR50310020 | 10 | 3 | 20 | 100 | 10 | 2 | £107.00 | 5 days | |
| UDR50312005 | 12 | 3 | 24 | 110 | 12 | 0.5 | £166.05 | 5 days | |
| UDR50312010 | 12 | 3 | 24 | 110 | 12 | 1 | £166.05 | 5 days | |
| UDR50316005 | 16 | 3 | 32 | 150 | 16 | 0.5 | £487.60 | 5 days | |
| UDR50312020 | 12 | 3 | 24 | 110 | 12 | 2 | £166.05 | 5 days | |
| UDR50316010 | 16 | 3 | 32 | 150 | 16 | 1 | £487.60 | 5 days | |
| UDR50320010 | 20 | 3 | 40 | 150 | 20 | 1 | £679.50 | 5 days | |
| UDR50320005 Viewing | 20 | 3 | 40 | 150 | 20 | 0.5 | £679.50 | 5 days |
