Widin Carbide Square End Mill For Mold & Die - 4 Flute Long Length - 16mm x 90mm x150mm

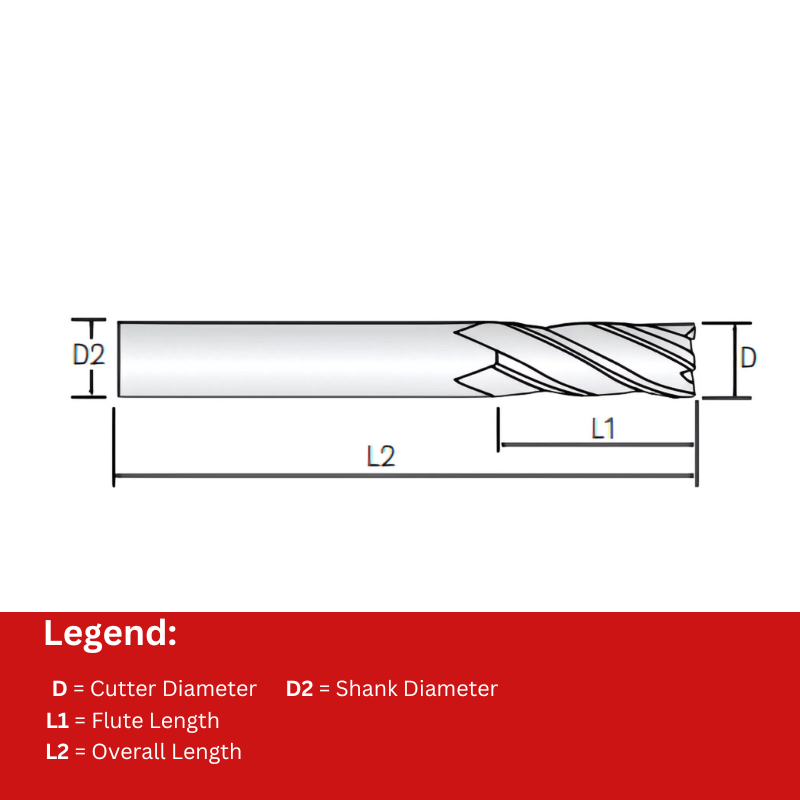

| Cutter Diameter | 16 |
| Number of Flutes | 4 |
| Flute Length | 90 |
| Overall Length | 150 |
Learn more about Klarna
Description

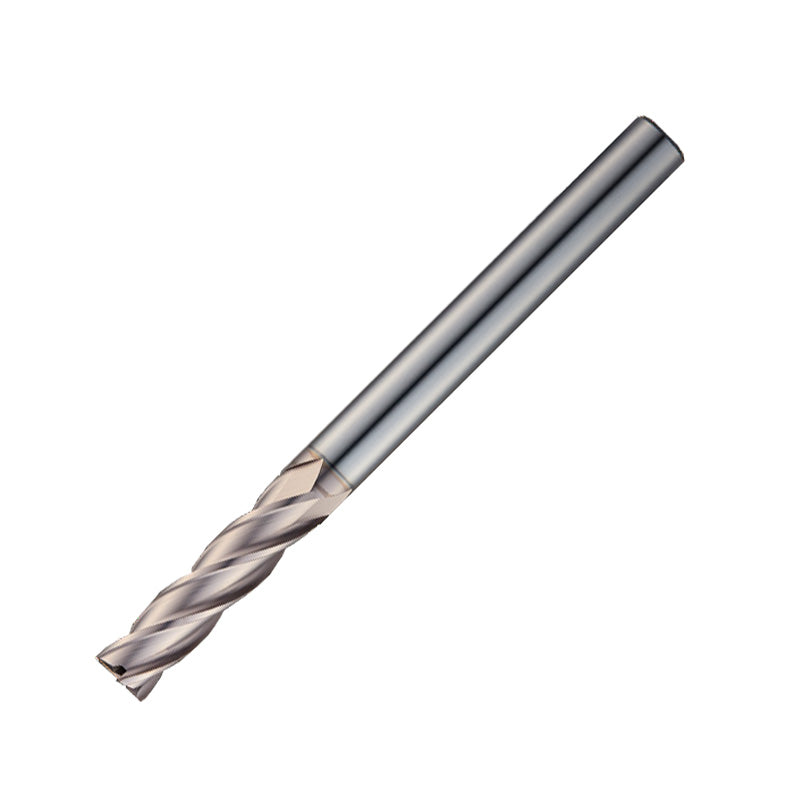

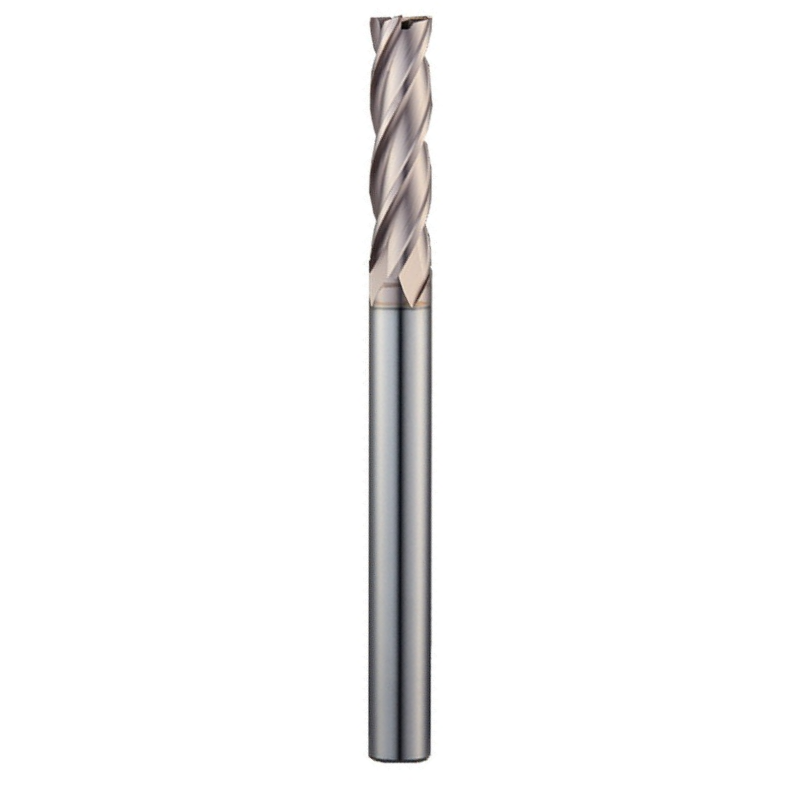

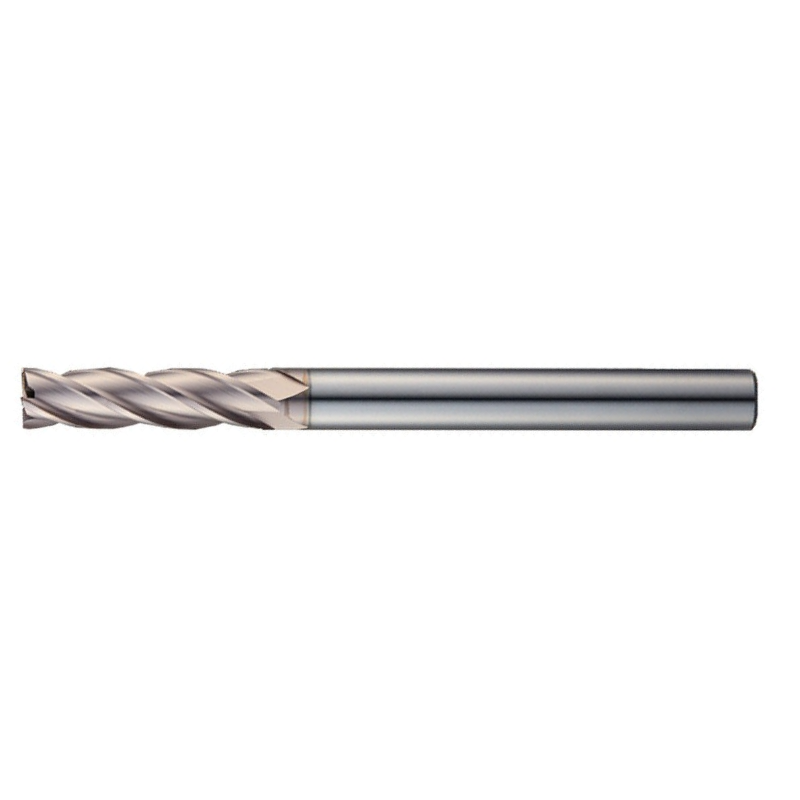

Widin's Carbide Square End Mill is a long-length, 4-flute tool purpose-built for mold and die machining. Its robust design and precise geometry make it a reliable choice for shops that need consistent performance across a range of mold features—from fine details to larger cavities.
This end mill covers a broad cutting diameter range from 1.0 mm to 20.0 mm and maintains a tight diameter tolerance of +0/-0.03 mm, delivering repeatable, accurate finishes. Crafted from premium carbide and finished with a durable W coating, it offers enhanced wear resistance and cutting stability, helping you maximize tool life and minimize downtime. It’s particularly well-suited for mold and die work on materials below 55 HRc, including pre-hardened steel, alloy steel, and carbon steel.
- Broad diameter range (1.0–20.0 mm): Enables versatile tooling for multiple features within a single workflow, reducing tool changes and setup time.
- Long-length, 4-flute square end geometry: Delivers stable, precise pocket and wall cuts with smooth finishes, even in deep or complex mold cavities.
- Premium carbide with W coating: Extends tool life, improves heat resistance, and enhances cutting stability for reliable performance on tougher steels.
This combination of versatility, durability, and precision helps you streamline mold and die production, shorten cycle times, and achieve consistent results across a wide range of materials. With reliable performance and lower overall tooling costs, you can focus on quality outcomes and on delivering projects on time.
Part Numbers
- Protool Part Number
- UE52416090
- Brand
- Widin
- Category
- End Mill
Delivery
Free UK mainland delivery on orders over £50 ex VAT. In-stock items ordered before 4:30pm are dispatched the same working day. Full delivery information.
Returns
14-day returns on unused stock items in original packaging. Special-order and bespoke tooling is non-returnable. Read our returns policy.
Technical Support
Over 30 years of machining experience behind the counter. Call 01732 887334, Mon–Thurs 8:30–17:30, Fri 8:30–16:30.
Trade Accounts
Credit accounts, contract pricing and scheduled call-off orders available for trade customers. Apply for an account.
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Widin Carbide Square End Mill For Mold & Die - 4 Flute Long Length (WE524)
View full collection →You are viewing UE52416090. Click any other SKU to view its full details.
| Product SKU | Cutter Diameter | Number of Flutes | Flute Length | Overall Length | Shank Diameter | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| UE52401003 | 1 | 4 | 3 | 60 | 6 | £24.30 | 5 days | |
| UE52401004 | 1 | 4 | 4 | 60 | 6 | £24.30 | 5 days | |
| UE52401005 | 1 | 4 | 5 | 60 | 6 | £24.30 | 5 days | |
| UE52401007 | 1 | 4 | 7 | 60 | 6 | £25.53 | 5 days | |
| UE52401006 | 1 | 4 | 6 | 60 | 6 | £24.30 | 5 days | |
| UE52401008 | 1 | 4 | 8 | 60 | 6 | £26.75 | 5 days | |
| UE52401010 | 1 | 4 | 10 | 60 | 6 | £29.20 | 5 days | |
| UE52401206 | 1.2 | 4 | 6 | 60 | 6 | £24.30 | 5 days | |
| UE52401204 | 1.2 | 4 | 4 | 60 | 6 | £24.30 | 5 days | |
| UE52401012 | 1 | 4 | 12 | 60 | 6 | £31.53 | 5 days | |
| UE52401208 | 1.2 | 4 | 8 | 60 | 6 | £25.53 | 5 days | |
| UE52401210 | 1.2 | 4 | 10 | 60 | 6 | £26.75 | 5 days | |
| UE52401506 | 1.5 | 4 | 6 | 60 | 6 | £24.30 | 5 days | |
| UE52401212 | 1.2 | 4 | 12 | 60 | 6 | £29.20 | 5 days | |
| UE52401508 | 1.5 | 4 | 8 | 60 | 6 | £25.53 | 5 days | |
| UE52401510 | 1.5 | 4 | 10 | 60 | 6 | £26.75 | 5 days | |
| UE52401512 | 1.5 | 4 | 12 | 60 | 6 | £29.20 | 5 days | |
| UE52401514 | 1.5 | 4 | 14 | 60 | 6 | £31.53 | 5 days | |
| UE52401516 | 1.5 | 4 | 16 | 60 | 6 | £32.75 | In Stock | |
| UE52402010 | 2 | 4 | 10 | 60 | 6 | £25.53 | 5 days | |
| UE52402008 | 2 | 4 | 8 | 60 | 6 | £24.30 | 5 days | |
| UE52402014 | 2 | 4 | 14 | 60 | 6 | £29.20 | 5 days | |
| UE52402012 | 2 | 4 | 12 | 60 | 6 | £26.75 | 5 days | |
| UE52402510 | 2.5 | 4 | 10 | 60 | 6 | £24.30 | 5 days | |
| UE52402512 | 2.5 | 4 | 12 | 60 | 6 | £24.30 | 5 days | |
| UE52402016 | 2 | 4 | 16 | 60 | 6 | £29.20 | 5 days | |
| UE52402516 | 2.5 | 4 | 16 | 60 | 6 | £26.75 | 5 days | |
| UE52402520 | 2.5 | 4 | 20 | 60 | 6 | £29.20 | 5 days | |
| UE52402526 | 2.5 | 4 | 26 | 60 | 6 | £34.13 | In Stock | |
| UE52403010 | 3 | 4 | 10 | 70 | 6 | £24.55 | 5 days | |
| UE52403014 | 3 | 4 | 14 | 70 | 6 | £25.80 | 5 days | |
| UE52403012 | 3 | 4 | 12 | 70 | 6 | £24.55 | 5 days | |
| UE52403016 | 3 | 4 | 16 | 70 | 6 | £26.88 | 5 days | |
| UE52403016S3 | 3 | 4 | 16 | 100 | 3 | £24.83 | 5 days | |
| UE52403020 | 3 | 4 | 20 | 70 | 6 | £29.33 | 5 days | |
| UE52403026 | 3 | 4 | 26 | 70 | 6 | £33.15 | In Stock | |
| UE52403030 | 3 | 4 | 30 | 70 | 6 | £35.48 | In Stock | |
| UE52404012 | 4 | 4 | 12 | 70 | 6 | £24.55 | 5 days | |
| UE52404016 | 4 | 4 | 16 | 70 | 6 | £25.80 | 5 days | |
| UE52404020 | 4 | 4 | 20 | 70 | 6 | £28.10 | 5 days | |
| UE52404020S4 | 4 | 4 | 20 | 100 | 4 | £25.95 | 5 days | |
| UE52404026 | 4 | 4 | 26 | 70 | 6 | £30.70 | 5 days | |
| UE52404030 | 4 | 4 | 30 | 70 | 6 | £33.15 | 5 days | |
| UE52405025 | 5 | 4 | 25 | 70 | 6 | £24.98 | 5 days | |
| UE52405020 | 5 | 4 | 20 | 70 | 6 | £24.55 | 5 days | |
| UE52405030 | 5 | 4 | 30 | 80 | 6 | £27.45 | 5 days | |
| UE52405025100 | 5 | 4 | 25 | 100 | 6 | £27.98 | 5 days | |
| UE52405040 | 5 | 4 | 40 | 100 | 6 | £33.15 | 5 days | |
| UE52406015 | 6 | 4 | 45 | 60 | 6 | £24.30 | 5 days | |
| UE52406015080 | 6 | 4 | 45 | 80 | 6 | £25.53 | 5 days | |
| UE52405035 | 5 | 4 | 35 | 90 | 6 | £30.45 | 5 days | |
| UE52406020090 | 6 | 4 | 20 | 90 | 6 | £27.70 | 5 days | |
| UE52406020 | 6 | 4 | 20 | 70 | 6 | £24.55 | 5 days | |
| UE52406025 | 6 | 4 | 25 | 75 | 6 | £25.53 | 5 days | |
| UE52406030 | 6 | 4 | 30 | 80 | 6 | £27.45 | 5 days | |
| UE52406030100 | 6 | 4 | 30 | 100 | 6 | £29.75 | 5 days | |
| UE52406030150 | 6 | 4 | 30 | 150 | 6 | £39.70 | 5 days | |
| UE52406035 | 6 | 4 | 35 | 90 | 6 | £30.45 | 5 days | |
| UE52406040 | 6 | 4 | 40 | 90 | 6 | £31.93 | In Stock | |
| UE52406040120 | 6 | 4 | 40 | 120 | 6 | £39.45 | 5 days | |
| UE52406045 | 6 | 4 | 45 | 150 | 6 | £46.95 | 5 days | |
| UE52408025 | 8 | 4 | 25 | 80 | 8 | £45.43 | 5 days | |
| UE52408030 | 8 | 4 | 30 | 80 | 8 | £45.43 | 5 days | |
| UE52408030100 | 8 | 4 | 30 | 100 | 8 | £49.13 | In Stock | |
| UE52408040 | 8 | 4 | 40 | 90 | 8 | £54.30 | 5 days | |
| UE52408040150 | 8 | 4 | 40 | 150 | 8 | £68.20 | 5 days | |
| UE52408035 | 8 | 4 | 35 | 90 | 8 | £50.75 | In Stock | |
| UE52408040120 | 8 | 4 | 40 | 120 | 8 | £60.80 | 5 days | |
| UE52408045 | 8 | 4 | 45 | 100 | 8 | £60.08 | 5 days | |
| UE52408050 | 8 | 4 | 50 | 100 | 8 | £61.40 | 5 days | |
| UE52408050150 | 8 | 4 | 50 | 150 | 8 | £73.55 | In Stock | |
| UE524100100 | 10 | 4 | 30 | 100 | 10 | £67.70 | 5 days | |
| UE52410030 | 10 | 4 | 30 | 80 | 10 | £62.63 | 5 days | |
| UE52410035 | 10 | 4 | 35 | 90 | 10 | £65.15 | 5 days | |
| UE52410040 | 10 | 4 | 40 | 90 | 10 | £69.90 | In Stock | |
| UE52410040120 | 10 | 4 | 40 | 120 | 10 | £78.45 | 5 days | |
| UE52410045 | 10 | 4 | 45 | 100 | 10 | £75.78 | 5 days | |
| UE52410050150 | 10 | 4 | 50 | 150 | 10 | £96.70 | 5 days | |
| UE52410050200 | 10 | 4 | 50 | 200 | 10 | £116.05 | 5 days | |
| UE52410050 | 10 | 4 | 50 | 100 | 10 | £80.55 | 5 days | |
| UE52410055 | 10 | 4 | 55 | 150 | 10 | £100.98 | 5 days | |
| UE52410060 | 10 | 4 | 60 | 110 | 10 | £91.15 | In Stock | |
| UE52410060200 | 10 | 4 | 60 | 200 | 10 | £124.30 | 5 days | |
| UE52412035 | 12 | 4 | 35 | 90 | 12 | £92.98 | 5 days | |
| UE52412040 | 12 | 4 | 40 | 100 | 12 | £96.73 | 5 days | |
| UE52412040120 | 12 | 4 | 40 | 120 | 12 | £104.45 | 5 days | |
| UE52412045 | 12 | 4 | 45 | 130 | 12 | £112.20 | 5 days | |
| UE52412050 | 12 | 4 | 50 | 100 | 12 | £108.23 | 5 days | |
| UE52412050150 | 12 | 4 | 50 | 150 | 12 | £129.95 | 5 days | |
| UE52412055 | 12 | 4 | 55 | 110 | 12 | £115.43 | 5 days | |
| UE52412060 | 12 | 4 | 60 | 110 | 12 | £123.13 | 5 days | |
| UE52412060150 | 12 | 4 | 60 | 150 | 12 | £142.53 | 5 days | |
| UE52412060200 | 12 | 4 | 60 | 200 | 12 | £171.43 | In Stock | |
| UE52412065 | 12 | 4 | 65 | 150 | 12 | £146.45 | 5 days | |
| UE52412070 | 12 | 4 | 70 | 120 | 12 | £135.35 | 5 days | |
| UE52412070200 | 12 | 4 | 70 | 200 | 12 | £173.38 | 5 days | |
| UE52414050 | 14 | 4 | 50 | 110 | 16 | £313.73 | 5 days | |
| UE52414060 | 14 | 4 | 60 | 150 | 16 | £363.63 | 5 days | |
| UE524160120 | 16 | 4 | 120 | 250 | 16 | £806.85 | 5 days | |
| UE524160110 | 16 | 4 | 110 | 200 | 16 | £611.10 | 5 days | |
| UE52416040 | 16 | 4 | 40 | 150 | 16 | £363.63 | 5 days | |
| UE52416050 | 16 | 4 | 50 | 110 | 16 | £313.73 | 5 days | |
| UE52416050150 | 16 | 4 | 50 | 150 | 16 | £363.63 | 5 days | |
| UE52416070 | 16 | 4 | 70 | 130 | 16 | £387.10 | 5 days | |
| UE52416060 | 16 | 4 | 60 | 120 | 16 | £350.30 | 5 days | |
| UE52416070150 | 16 | 4 | 70 | 150 | 16 | £418.13 | 5 days | |
| UE52416070200 | 16 | 4 | 70 | 200 | 16 | £501.63 | 5 days | |
| UE52416080 | 16 | 4 | 80 | 150 | 16 | £436.33 | 5 days | |
| UE52416090 Viewing | 16 | 4 | 90 | 150 | 16 | £472.88 | 5 days | |
| UE524180100 | 18 | 4 | 100 | 200 | 20 | £792.25 | 5 days | |
| UE52418070 | 18 | 4 | 70 | 130 | 20 | £546.25 | 5 days | |
| UE52418050 | 18 | 4 | 50 | 120 | 20 | £500.25 | 5 days | |
| UE524200110 | 20 | 4 | 110 | 200 | 20 | £839.00 | 5 days | |
| UE524200120 | 20 | 4 | 120 | 250 | 20 | £1,018.00 | 5 days | |
| UE52420050 | 20 | 4 | 50 | 110 | 20 | £482.25 | 5 days | |
| UE52420060 | 20 | 4 | 60 | 130 | 20 | £517.75 | 5 days | |
| UE52420050150 | 20 | 4 | 50 | 150 | 20 | £559.50 | 5 days | |
| UE52420070 | 20 | 4 | 70 | 130 | 20 | £546.25 | 5 days | |
| UE52420090 | 20 | 4 | 90 | 150 | 20 | £643.25 | 5 days | |
| UE52420090200 | 20 | 4 | 90 | 200 | 20 | £772.00 | 5 days | |
| UE52420080 | 20 | 4 | 80 | 150 | 20 | £615.25 | 5 days | |
| UE524220110 | 22 | 4 | 110 | 200 | 20 | £938.50 | 5 days | |
| UE524250110 | 25 | 4 | 110 | 200 | 25 | £1,088.50 | 5 days | |
| UE52422075 | 22 | 4 | 75 | 150 | 20 | £727.50 | 5 days | |
| UE524250120 | 25 | 4 | 120 | 250 | 25 | £1,327.75 | 5 days | |
| UE52425070 | 25 | 4 | 70 | 150 | 25 | £824.50 | 5 days | |
| UE52425090 | 25 | 4 | 90 | 150 | 25 | £824.50 | 5 days |
