Widin Carbide Square End Mill For Mold & Die - 4 Flute Long Length - 22mm x 110mm x200mm

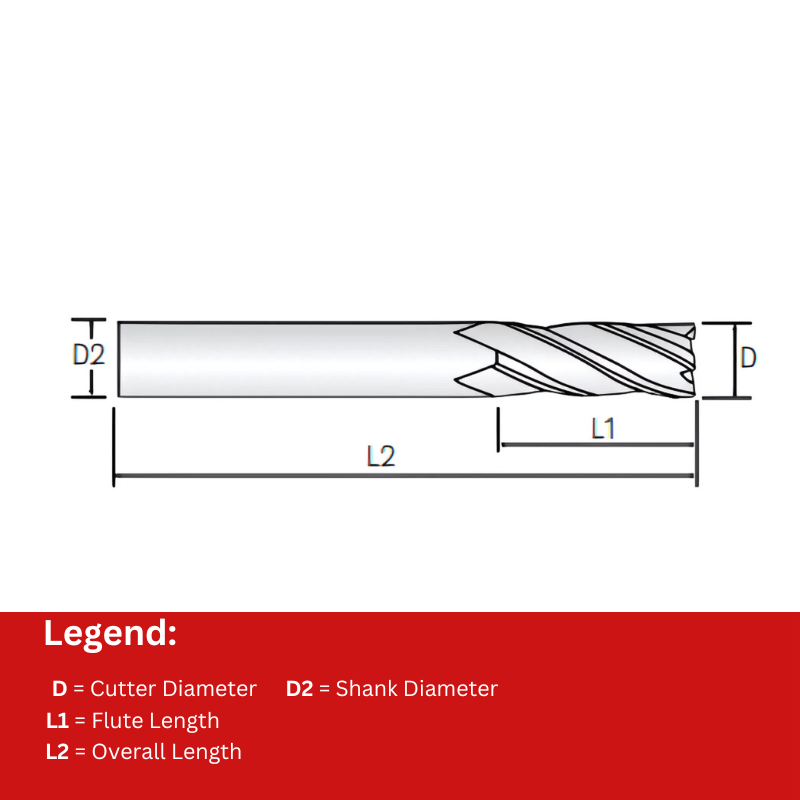

| Cutter Diameter | 22 |
| Number of Flutes | 4 |
| Flute Length | 110 |
| Overall Length | 200 |
Learn more about Klarna
Description

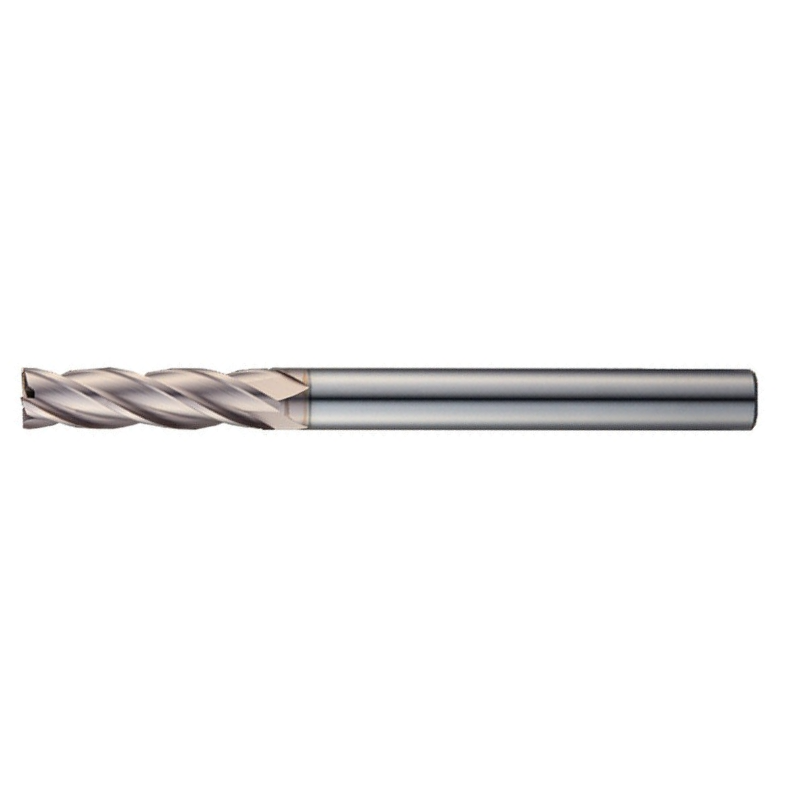

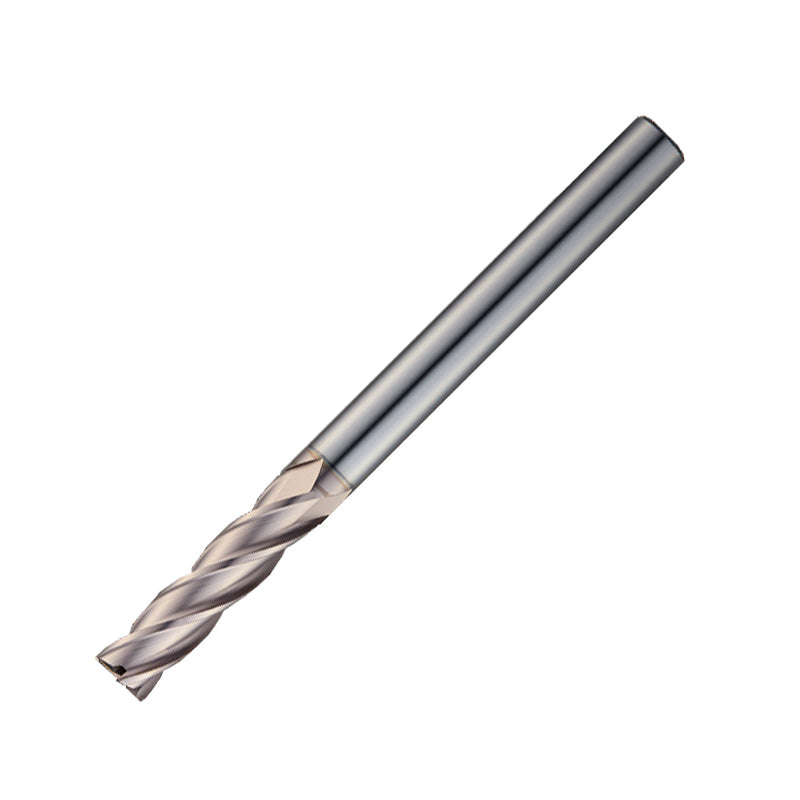

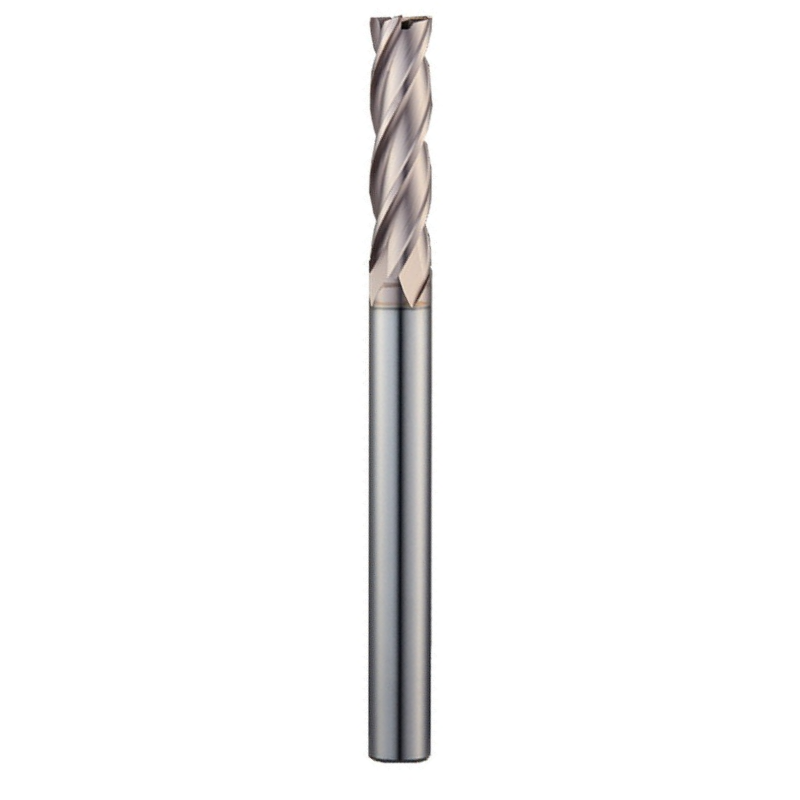

The Widin Carbide Square End Mill is a purpose-built tool for mold and die machining. Its long-length, 4-flute design provides the reach and stability needed for deep pockets and complex profiles across a variety of workpieces.
With a cutting diameter range from 1.0 mm to 20.0 mm and a diameter tolerance of +0/-0.03 mm, this end mill delivers precise, repeatable results. crafted from premium carbide and finished with a durable W coating, it offers enhanced wear resistance and extended tool life. The WE524 end mill designation highlights its suitability for mold-and-die tasks involving materials below 55 HRc, as well as pre-hardened steel, alloy steel, and carbon steel.
- Wide cutting diameter range (1.0–20.0 mm): Enables versatility across a broad set of workpieces, reducing tool changes and increasing shop productivity.
- Precise, repeatable tolerances (+0/-0.03 mm): Ensures consistent cavity profiles and dependable part quality across multiple passes.
- 4-flute long-length WE524 carbide with W coating: Delivers efficient chip evacuation, stable cutting in deep cavities, and extended tool life for mold-and-die applications.
This end mill helps you streamline setups, maintain tight tolerances, and achieve reliable finishes in challenging steels and alloys. Its combination of material quality, coating, and geometry supports faster cycle times, fewer tool changes, and longer intervals between replacements—bringing predictable performance to both high-precision work and busy production environments.
Part Numbers
- Protool Part Number
- UE524220110
- Brand
- Widin
- Category
- End Mill
Delivery
Free UK mainland delivery on orders over £50 ex VAT. In-stock items ordered before 4:30pm are dispatched the same working day. Full delivery information.
Returns
14-day returns on unused stock items in original packaging. Special-order and bespoke tooling is non-returnable. Read our returns policy.
Technical Support
Over 30 years of machining experience behind the counter. Call 01732 887334, Mon–Thurs 8:30–17:30, Fri 8:30–16:30.
Trade Accounts
Credit accounts, contract pricing and scheduled call-off orders available for trade customers. Apply for an account.
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Widin Carbide Square End Mill For Mold & Die - 4 Flute Long Length (WE524)
View full collection →You are viewing UE524220110. Click any other SKU to view its full details.
| Product SKU | Cutter Diameter | Number of Flutes | Flute Length | Overall Length | Shank Diameter | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| UE52401003 | 1 | 4 | 3 | 60 | 6 | £24.30 | 5 days | |
| UE52401004 | 1 | 4 | 4 | 60 | 6 | £24.30 | 5 days | |
| UE52401005 | 1 | 4 | 5 | 60 | 6 | £24.30 | 5 days | |
| UE52401007 | 1 | 4 | 7 | 60 | 6 | £25.53 | 5 days | |
| UE52401006 | 1 | 4 | 6 | 60 | 6 | £24.30 | 5 days | |
| UE52401008 | 1 | 4 | 8 | 60 | 6 | £26.75 | 5 days | |
| UE52401010 | 1 | 4 | 10 | 60 | 6 | £29.20 | 5 days | |
| UE52401206 | 1.2 | 4 | 6 | 60 | 6 | £24.30 | 5 days | |
| UE52401204 | 1.2 | 4 | 4 | 60 | 6 | £24.30 | 5 days | |
| UE52401012 | 1 | 4 | 12 | 60 | 6 | £31.53 | 5 days | |
| UE52401208 | 1.2 | 4 | 8 | 60 | 6 | £25.53 | 5 days | |
| UE52401210 | 1.2 | 4 | 10 | 60 | 6 | £26.75 | 5 days | |
| UE52401506 | 1.5 | 4 | 6 | 60 | 6 | £24.30 | 5 days | |
| UE52401212 | 1.2 | 4 | 12 | 60 | 6 | £29.20 | 5 days | |
| UE52401508 | 1.5 | 4 | 8 | 60 | 6 | £25.53 | 5 days | |
| UE52401510 | 1.5 | 4 | 10 | 60 | 6 | £26.75 | 5 days | |
| UE52401512 | 1.5 | 4 | 12 | 60 | 6 | £29.20 | 5 days | |
| UE52401514 | 1.5 | 4 | 14 | 60 | 6 | £31.53 | 5 days | |
| UE52401516 | 1.5 | 4 | 16 | 60 | 6 | £32.75 | In Stock | |
| UE52402010 | 2 | 4 | 10 | 60 | 6 | £25.53 | 5 days | |
| UE52402008 | 2 | 4 | 8 | 60 | 6 | £24.30 | 5 days | |
| UE52402014 | 2 | 4 | 14 | 60 | 6 | £29.20 | 5 days | |
| UE52402012 | 2 | 4 | 12 | 60 | 6 | £26.75 | 5 days | |
| UE52402510 | 2.5 | 4 | 10 | 60 | 6 | £24.30 | 5 days | |
| UE52402512 | 2.5 | 4 | 12 | 60 | 6 | £24.30 | 5 days | |
| UE52402016 | 2 | 4 | 16 | 60 | 6 | £29.20 | 5 days | |
| UE52402516 | 2.5 | 4 | 16 | 60 | 6 | £26.75 | 5 days | |
| UE52402520 | 2.5 | 4 | 20 | 60 | 6 | £29.20 | 5 days | |
| UE52402526 | 2.5 | 4 | 26 | 60 | 6 | £34.13 | In Stock | |
| UE52403010 | 3 | 4 | 10 | 70 | 6 | £24.55 | 5 days | |
| UE52403014 | 3 | 4 | 14 | 70 | 6 | £25.80 | 5 days | |
| UE52403012 | 3 | 4 | 12 | 70 | 6 | £24.55 | 5 days | |
| UE52403016 | 3 | 4 | 16 | 70 | 6 | £26.88 | 5 days | |
| UE52403016S3 | 3 | 4 | 16 | 100 | 3 | £24.83 | 5 days | |
| UE52403020 | 3 | 4 | 20 | 70 | 6 | £29.33 | 5 days | |
| UE52403026 | 3 | 4 | 26 | 70 | 6 | £33.15 | In Stock | |
| UE52403030 | 3 | 4 | 30 | 70 | 6 | £35.48 | In Stock | |
| UE52404012 | 4 | 4 | 12 | 70 | 6 | £24.55 | 5 days | |
| UE52404016 | 4 | 4 | 16 | 70 | 6 | £25.80 | 5 days | |
| UE52404020 | 4 | 4 | 20 | 70 | 6 | £28.10 | 5 days | |
| UE52404020S4 | 4 | 4 | 20 | 100 | 4 | £25.95 | 5 days | |
| UE52404026 | 4 | 4 | 26 | 70 | 6 | £30.70 | 5 days | |
| UE52404030 | 4 | 4 | 30 | 70 | 6 | £33.15 | 5 days | |
| UE52405025 | 5 | 4 | 25 | 70 | 6 | £24.98 | 5 days | |
| UE52405020 | 5 | 4 | 20 | 70 | 6 | £24.55 | 5 days | |
| UE52405030 | 5 | 4 | 30 | 80 | 6 | £27.45 | 5 days | |
| UE52405025100 | 5 | 4 | 25 | 100 | 6 | £27.98 | 5 days | |
| UE52405040 | 5 | 4 | 40 | 100 | 6 | £33.15 | 5 days | |
| UE52406015 | 6 | 4 | 45 | 60 | 6 | £24.30 | 5 days | |
| UE52406015080 | 6 | 4 | 45 | 80 | 6 | £25.53 | 5 days | |
| UE52405035 | 5 | 4 | 35 | 90 | 6 | £30.45 | 5 days | |
| UE52406020090 | 6 | 4 | 20 | 90 | 6 | £27.70 | 5 days | |
| UE52406020 | 6 | 4 | 20 | 70 | 6 | £24.55 | 5 days | |
| UE52406025 | 6 | 4 | 25 | 75 | 6 | £25.53 | 5 days | |
| UE52406030 | 6 | 4 | 30 | 80 | 6 | £27.45 | 5 days | |
| UE52406030100 | 6 | 4 | 30 | 100 | 6 | £29.75 | 5 days | |
| UE52406030150 | 6 | 4 | 30 | 150 | 6 | £39.70 | 5 days | |
| UE52406035 | 6 | 4 | 35 | 90 | 6 | £30.45 | 5 days | |
| UE52406040 | 6 | 4 | 40 | 90 | 6 | £31.93 | In Stock | |
| UE52406040120 | 6 | 4 | 40 | 120 | 6 | £39.45 | 5 days | |
| UE52406045 | 6 | 4 | 45 | 150 | 6 | £46.95 | 5 days | |
| UE52408025 | 8 | 4 | 25 | 80 | 8 | £45.43 | 5 days | |
| UE52408030 | 8 | 4 | 30 | 80 | 8 | £45.43 | 5 days | |
| UE52408030100 | 8 | 4 | 30 | 100 | 8 | £49.13 | In Stock | |
| UE52408040 | 8 | 4 | 40 | 90 | 8 | £54.30 | 5 days | |
| UE52408040150 | 8 | 4 | 40 | 150 | 8 | £68.20 | 5 days | |
| UE52408035 | 8 | 4 | 35 | 90 | 8 | £50.75 | In Stock | |
| UE52408040120 | 8 | 4 | 40 | 120 | 8 | £60.80 | 5 days | |
| UE52408045 | 8 | 4 | 45 | 100 | 8 | £60.08 | 5 days | |
| UE52408050 | 8 | 4 | 50 | 100 | 8 | £61.40 | 5 days | |
| UE52408050150 | 8 | 4 | 50 | 150 | 8 | £73.55 | In Stock | |
| UE524100100 | 10 | 4 | 30 | 100 | 10 | £67.70 | 5 days | |
| UE52410030 | 10 | 4 | 30 | 80 | 10 | £62.63 | 5 days | |
| UE52410035 | 10 | 4 | 35 | 90 | 10 | £65.15 | 5 days | |
| UE52410040 | 10 | 4 | 40 | 90 | 10 | £69.90 | In Stock | |
| UE52410040120 | 10 | 4 | 40 | 120 | 10 | £78.45 | 5 days | |
| UE52410045 | 10 | 4 | 45 | 100 | 10 | £75.78 | 5 days | |
| UE52410050150 | 10 | 4 | 50 | 150 | 10 | £96.70 | 5 days | |
| UE52410050200 | 10 | 4 | 50 | 200 | 10 | £116.05 | 5 days | |
| UE52410050 | 10 | 4 | 50 | 100 | 10 | £80.55 | 5 days | |
| UE52410055 | 10 | 4 | 55 | 150 | 10 | £100.98 | 5 days | |
| UE52410060 | 10 | 4 | 60 | 110 | 10 | £91.15 | In Stock | |
| UE52410060200 | 10 | 4 | 60 | 200 | 10 | £124.30 | 5 days | |
| UE52412035 | 12 | 4 | 35 | 90 | 12 | £92.98 | 5 days | |
| UE52412040 | 12 | 4 | 40 | 100 | 12 | £96.73 | 5 days | |
| UE52412040120 | 12 | 4 | 40 | 120 | 12 | £104.45 | 5 days | |
| UE52412045 | 12 | 4 | 45 | 130 | 12 | £112.20 | 5 days | |
| UE52412050 | 12 | 4 | 50 | 100 | 12 | £108.23 | 5 days | |
| UE52412050150 | 12 | 4 | 50 | 150 | 12 | £129.95 | 5 days | |
| UE52412055 | 12 | 4 | 55 | 110 | 12 | £115.43 | 5 days | |
| UE52412060 | 12 | 4 | 60 | 110 | 12 | £123.13 | 5 days | |
| UE52412060150 | 12 | 4 | 60 | 150 | 12 | £142.53 | 5 days | |
| UE52412060200 | 12 | 4 | 60 | 200 | 12 | £171.43 | In Stock | |
| UE52412065 | 12 | 4 | 65 | 150 | 12 | £146.45 | 5 days | |
| UE52412070 | 12 | 4 | 70 | 120 | 12 | £135.35 | 5 days | |
| UE52412070200 | 12 | 4 | 70 | 200 | 12 | £173.38 | 5 days | |
| UE52414050 | 14 | 4 | 50 | 110 | 16 | £313.73 | 5 days | |
| UE52414060 | 14 | 4 | 60 | 150 | 16 | £363.63 | 5 days | |
| UE524160120 | 16 | 4 | 120 | 250 | 16 | £806.85 | 5 days | |
| UE524160110 | 16 | 4 | 110 | 200 | 16 | £611.10 | 5 days | |
| UE52416040 | 16 | 4 | 40 | 150 | 16 | £363.63 | 5 days | |
| UE52416050 | 16 | 4 | 50 | 110 | 16 | £313.73 | 5 days | |
| UE52416050150 | 16 | 4 | 50 | 150 | 16 | £363.63 | 5 days | |
| UE52416070 | 16 | 4 | 70 | 130 | 16 | £387.10 | 5 days | |
| UE52416060 | 16 | 4 | 60 | 120 | 16 | £350.30 | 5 days | |
| UE52416070150 | 16 | 4 | 70 | 150 | 16 | £418.13 | 5 days | |
| UE52416070200 | 16 | 4 | 70 | 200 | 16 | £501.63 | 5 days | |
| UE52416080 | 16 | 4 | 80 | 150 | 16 | £436.33 | 5 days | |
| UE52416090 | 16 | 4 | 90 | 150 | 16 | £472.88 | 5 days | |
| UE524180100 | 18 | 4 | 100 | 200 | 20 | £792.25 | 5 days | |
| UE52418070 | 18 | 4 | 70 | 130 | 20 | £546.25 | 5 days | |
| UE52418050 | 18 | 4 | 50 | 120 | 20 | £500.25 | 5 days | |
| UE524200110 | 20 | 4 | 110 | 200 | 20 | £839.00 | 5 days | |
| UE524200120 | 20 | 4 | 120 | 250 | 20 | £1,018.00 | 5 days | |
| UE52420050 | 20 | 4 | 50 | 110 | 20 | £482.25 | 5 days | |
| UE52420060 | 20 | 4 | 60 | 130 | 20 | £517.75 | 5 days | |
| UE52420050150 | 20 | 4 | 50 | 150 | 20 | £559.50 | 5 days | |
| UE52420070 | 20 | 4 | 70 | 130 | 20 | £546.25 | 5 days | |
| UE52420090 | 20 | 4 | 90 | 150 | 20 | £643.25 | 5 days | |
| UE52420090200 | 20 | 4 | 90 | 200 | 20 | £772.00 | 5 days | |
| UE52420080 | 20 | 4 | 80 | 150 | 20 | £615.25 | 5 days | |
| UE524220110 Viewing | 22 | 4 | 110 | 200 | 20 | £938.50 | 5 days | |
| UE524250110 | 25 | 4 | 110 | 200 | 25 | £1,088.50 | 5 days | |
| UE52422075 | 22 | 4 | 75 | 150 | 20 | £727.50 | 5 days | |
| UE524250120 | 25 | 4 | 120 | 250 | 25 | £1,327.75 | 5 days | |
| UE52425070 | 25 | 4 | 70 | 150 | 25 | £824.50 | 5 days | |
| UE52425090 | 25 | 4 | 90 | 150 | 25 | £824.50 | 5 days |
