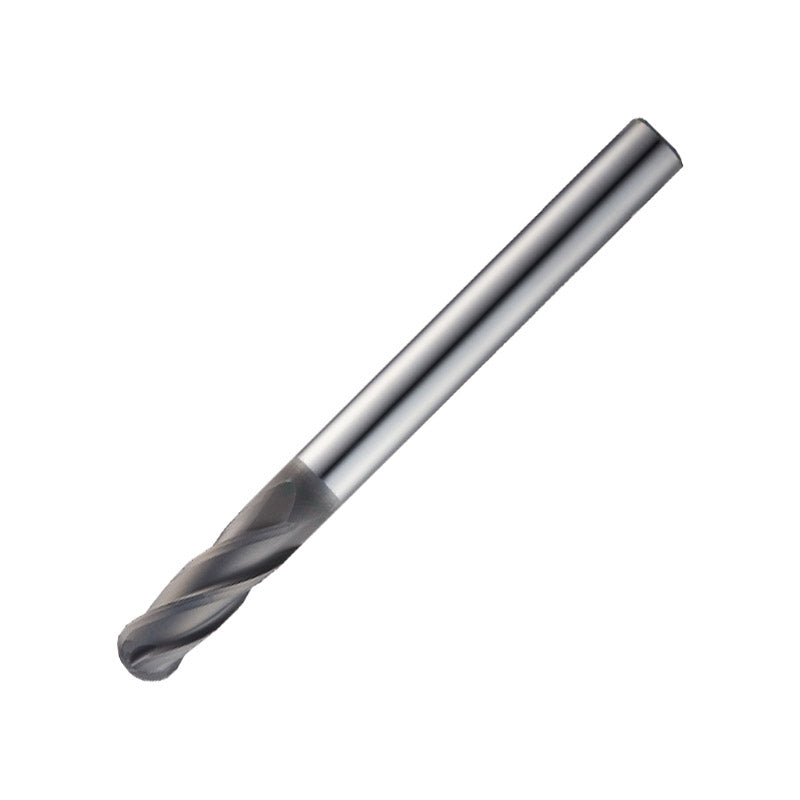

Widin Carbide End Mill For Graphite - 4 Flute Ball Nose - 1mm x 20mm
| Cutter Diameter | 1 |
| Number of Flutes | 4 |
| Flute Length | 3 |
| Overall Length | 60 |
Learn more about Klarna
Description
The Widin Carbide End Mill for Graphite (WGB504) is a precision cutting tool designed specifically for graphite machining. With a 1 mm diameter and a 20 mm length of cut, its 4-flute, ball-nose geometry is optimized for accurate contouring and efficient material removal in tight graphite features.
Graphite's high thermal conductivity and low friction can challenge tools, but this end mill's carbide construction is built for durability and long tool life. A 4-flute design improves chip evacuation, helping prevent clogging and delivering smoother cuts on complex shapes.
- Ball-nose geometry for precise contouring: The rounded tip follows complex graphite shapes with high accuracy, producing smooth profiles and detailed finishes.
- 4-flute design for efficient chip evacuation: More flutes help evacuate graphite chips quickly, reducing heat buildup and preventing clogging for cleaner cuts on intricate features.
- Solid carbide construction for long tool life: Hardened carbide delivers wear resistance and reliability at high speeds, reducing tool changes and downtime.
Designed for engineers, machinists, hobbyists, and production teams, the Widin WGB504 helps you achieve repeatable, high-quality graphite contours with less downtime. Its compact 1 mm diameter and 20 mm LOC are ideal for tight pockets and fine-detail work, while the ball-nose profile and four flutes deliver accurate profiles, smooth finishes, and dependable performance across demanding graphite applications.
Part Numbers
- Protool Part Number
- WGB50401020
- Brand
- Widin
- Category
- End Mill
Delivery
Free UK mainland delivery on orders over £50 ex VAT. In-stock items ordered before 4:30pm are dispatched the same working day. Full delivery information.
Returns
14-day returns on unused stock items in original packaging. Special-order and bespoke tooling is non-returnable. Read our returns policy.
Technical Support
Over 30 years of machining experience behind the counter. Call 01732 887334, Mon–Thurs 8:30–17:30, Fri 8:30–16:30.
Trade Accounts
Credit accounts, contract pricing and scheduled call-off orders available for trade customers. Apply for an account.
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Widin Carbide End Mill For Graphite - 4 Flute Ball Nose (WGB504)
View full collection →You are viewing WGB50401020. Click any other SKU to view its full details.

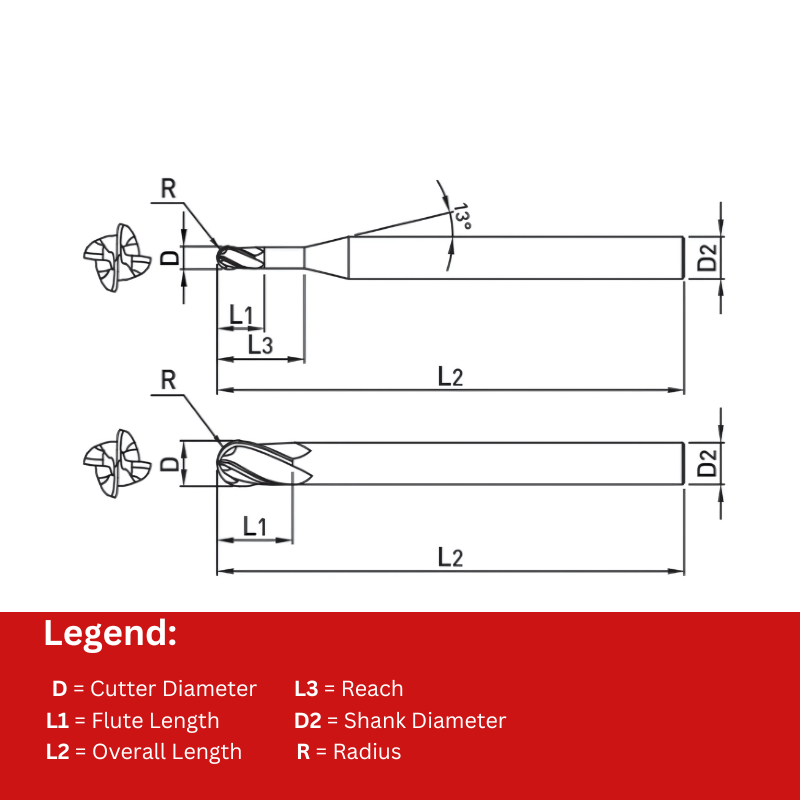

| Product SKU | Cutter Diameter | Number of Flutes | Flute Length | Overall Length | Shank Diameter | Reach | Radius | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|---|
| WGB504010 | 1 | 4 | 3 | 60 | 4 | N/A | 0.5 | £53.10 | 5 days | |
| WGB50401010 | 1 | 4 | 3 | 60 | 4 | 10 | 0.5 | £55.80 | 5 days | |
| WGB50401025 | 1 | 4 | 3 | 80 | 4 | 25 | 0.5 | £60.13 | 5 days | |
| WGB50401020 Viewing | 1 | 4 | 3 | 60 | 4 | 20 | 0.5 | £55.80 | 5 days | |
| WGB50401015 | 1 | 4 | 3 | 60 | 4 | 15 | 0.5 | £55.80 | 5 days | |
| WGB50401515 | 1.5 | 4 | 4 | 80 | 4 | 15 | 0.75 | £55.80 | 5 days | |
| WGB504015 | 1.5 | 4 | 4 | 60 | 4 | N/A | 0.75 | £53.10 | 5 days | |
| WGB50401030 | 1 | 4 | 3 | 80 | 4 | 30 | 0.5 | £60.13 | 5 days | |
| WGB50401510 | 1.5 | 4 | 4 | 80 | 4 | 10 | 0.75 | £55.80 | 5 days | |
| WGB50401525 | 1.5 | 4 | 4 | 80 | 4 | 25 | 0.75 | £60.00 | 5 days | |
| WGB50401520 | 1.5 | 4 | 4 | 80 | 4 | 20 | 0.75 | £55.80 | 5 days | |
| WGB50401530 | 1.5 | 4 | 4 | 80 | 4 | 30 | 0.75 | £60.00 | 5 days | |
| WGB504020 | 2 | 4 | 6 | 60 | 4 | N/A | 1 | £53.10 | 5 days | |
| WGB50402010 | 2 | 4 | 6 | 80 | 4 | 10 | 1 | £55.03 | 5 days | |
| WGB50402020 | 2 | 4 | 6 | 80 | 4 | 20 | 1 | £55.03 | 5 days | |
| WGB50402015 | 2 | 4 | 6 | 80 | 4 | 15 | 1 | £55.03 | 5 days | |
| WGB50402030 | 2 | 4 | 6 | 80 | 4 | 30 | 1 | £55.03 | 5 days | |
| WGB50402025 | 2 | 4 | 6 | 80 | 4 | 25 | 1 | £55.03 | 5 days | |
| WGB50402040 | 2 | 4 | 6 | 100 | 4 | 40 | 1 | £59.63 | 5 days | |
| WGB504030 | 3 | 4 | 9 | 60 | 4 | N/A | 1.5 | £53.10 | 5 days | |
| WGB50403020 | 3 | 4 | 9 | 100 | 4 | 20 | 1.5 | £59.63 | 5 days | |
| WGB50403025 | 3 | 4 | 9 | 100 | 4 | 25 | 1.5 | £59.63 | 5 days | |
| WGB50403015 | 3 | 4 | 9 | 100 | 4 | 15 | 1.5 | £59.63 | 5 days | |
| WGB50403030 | 3 | 4 | 9 | 100 | 4 | 30 | 1.5 | £59.63 | 5 days | |
| WGB50403040 | 3 | 4 | 9 | 100 | 4 | 40 | 1.5 | £63.58 | 5 days | |
| WGB50403050 | 3 | 4 | 9 | 100 | 4 | 50 | 1.5 | £63.58 | 5 days | |
| WGB504040060 | 4 | 4 | 12 | 60 | 4 | N/A | 2 | £53.10 | 5 days | |
| WGB504040080 | 4 | 4 | 12 | 80 | 4 | N/A | 2 | £57.28 | 5 days | |
| WGB504040110 | 4 | 4 | 12 | 110 | 4 | N/A | 2 | £64.35 | 5 days | |
| WGB504040130 | 4 | 4 | 12 | 130 | 4 | N/A | 2 | £71.38 | 5 days | |
| WGB504050080 | 5 | 4 | 15 | 80 | 6 | 25 | 2.5 | £76.55 | 5 days | |
| WGB504060090 | 6 | 4 | 20 | 90 | 6 | N/A | 3 | £76.55 | 5 days | |
| WGB504040150 | 4 | 4 | 12 | 150 | 4 | N/A | 2 | £71.78 | 5 days | |
| WGB504060110 | 6 | 4 | 20 | 110 | 6 | N/A | 3 | £82.70 | 5 days | |
| WGB504060130 | 6 | 4 | 20 | 130 | 6 | N/A | 3 | £89.53 | 5 days | |
| WGB504050110 | 5 | 4 | 15 | 110 | 6 | 25 | 2.5 | £82.70 | 5 days | |
| WGB504080130 | 8 | 4 | 25 | 130 | 8 | N/A | 4 | £118.80 | 5 days | |
| WGB504060150 | 6 | 4 | 20 | 150 | 6 | N/A | 3 | £96.38 | 5 days | |
| WGB504100110 | 10 | 4 | 30 | 110 | 10 | N/A | 5 | £170.40 | 5 days | |
| WGB504080200 | 8 | 4 | 25 | 200 | 8 | N/A | 4 | £166.73 | 5 days | |
| WGB504080150 | 8 | 4 | 25 | 150 | 8 | N/A | 4 | £127.98 | 5 days | |
| WGB504060180 | 6 | 4 | 20 | 180 | 6 | N/A | 3 | £103.18 | 5 days | |
| WGB504080110 | 8 | 4 | 25 | 110 | 8 | N/A | 4 | £109.80 | 5 days | |
| WGB504100130 | 10 | 4 | 30 | 130 | 10 | N/A | 5 | £184.53 | 5 days | |
| WGB504100180 | 10 | 4 | 30 | 180 | 10 | N/A | 5 | £228.13 | 5 days | |
| WGB504120150 | 12 | 4 | 35 | 150 | 12 | N/A | 6 | £279.65 | 5 days | |
| WGB504100150 | 10 | 4 | 30 | 150 | 10 | N/A | 5 | £198.80 | 5 days | |
| WGB504120110 | 12 | 4 | 35 | 110 | 12 | N/A | 6 | £239.28 | 5 days | |
| WGB504120130 | 12 | 4 | 35 | 130 | 12 | N/A | 6 | £259.35 | 5 days | |
| WGB504100200 | 10 | 4 | 30 | 200 | 10 | N/A | 5 | £257.60 | 5 days | |
| WGB504120180 | 12 | 4 | 35 | 180 | 12 | N/A | 6 | £320.73 | 5 days | |
| WGB504120200 | 12 | 4 | 35 | 200 | 12 | N/A | 6 | £348.20 | 5 days |
