Widin Carbide End Mill For Graphite - 4 Flute Ball Nose - 4mm x 110mm

Please log in here to access all benefits, including multibuy discounts and faster checkouts.

Widin Carbide End Mill For Graphite - 4 Flute Ball Nose - 4mm x 110mm

Name: Widin Carbide End Mill For Graphite - 4 Flute Ball Nose - 4mm x 110mm
Brand: Widin
SKU: WGB504040110
Price: 60.62 GBP
Availability: InStock

SKU:WGB504040110

Material Compatibility

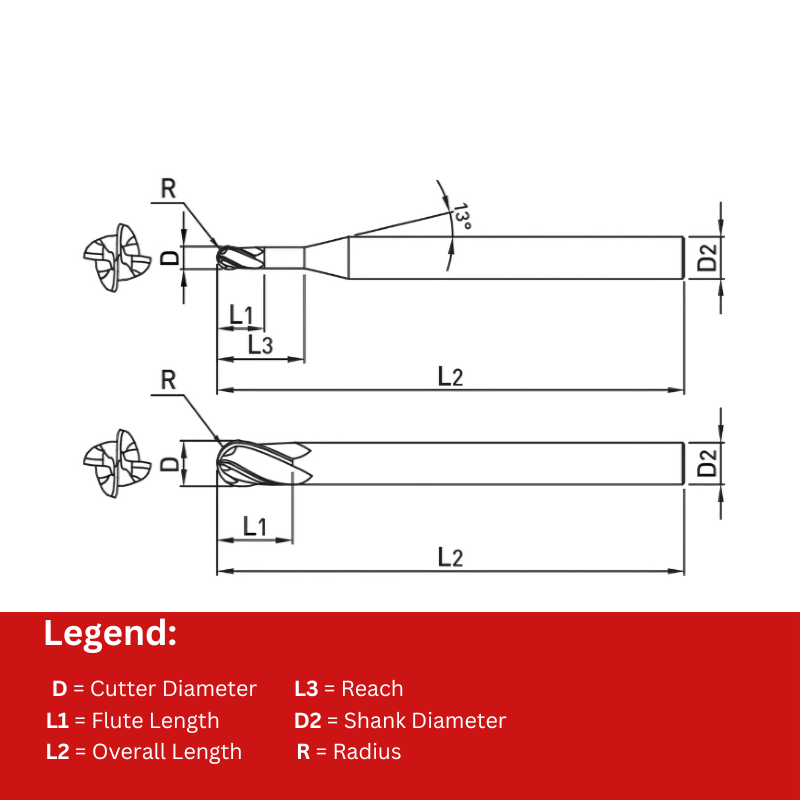

Specification

Cutter Diameter	4
Number of Flutes	4
Flute Length	12
Overall Length	110
Shank Diameter	4
Reach	N/A

View all specifications ↓

Download Cutting Data

£60.62

Prices shown ex. VAT

5 days estimated lead time — subject to availability

View Other Sizes →

Free delivery over £50 ex VAT

Secure checkout

14-day returns

30+ years expertise

Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna

Speak to our team

01732 887334

Mon – Thurs 8:30 – 17:30 · Fri 8:30 – 16:30

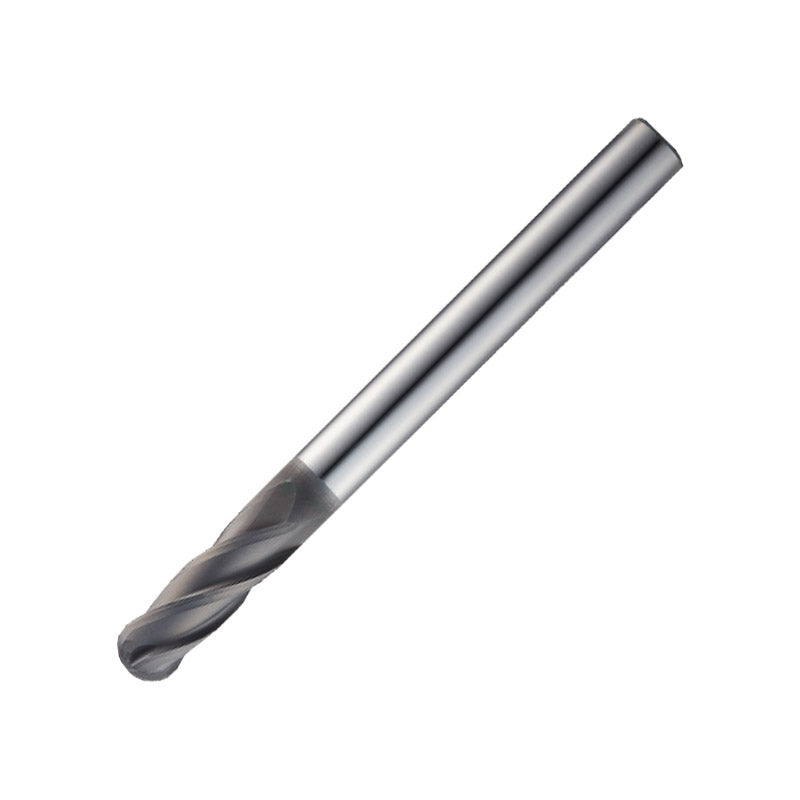

The Widin Carbide End Mill for Graphite with a 4 Flute Ball Nose (WGB504) is a specialized cutting tool designed specifically for machining graphite materials. Graphite is widely used in various industries due to its unique properties, including high thermal conductivity and low friction. This end mill is engineered to provide precise and efficient cutting performance when working with graphite. The 4 flute design allows for improved chip evacuation, reducing the risk of clogging and ensuring smoother cutting operations. The ball nose geometry enables accurate contouring and profiling, making it suitable for complex shapes and intricate details. The carbide construction ensures long tool life and durability, even in high-speed machining applications.

Cutter Diameter	4
Number of Flutes	4
Flute Length	12
Overall Length	110
Shank Diameter	4
Reach	N/A
Radius	2

What time are Protool open?

We are open Monday to Friday between 8:30am and 5pm.

Do you offer Free Next Day delivery?

Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.

We also offer the following:

Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.

For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.

*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.

★★★★★

Nice experience staff are very helpful and interested...

Staff are very helpful and interested in providing a good service making us the customer feel valued.

Bill

★★★★★

first place we look

honest about stock and prices are competitive.

Phil

★★★★★

Polite and helpful

Staff are very helpful and polite.Goods that were in stock were dispatched same day and back orders were quick in coming through .

Graham

★★★★★

Buying experience

Phone requests are handled quickly and without any fuss. The website is easy to use and straightforward to order from. It’s especially helpful that it shows real‑time availability, so we don’t need to call to confirm whether parts will arrive.

Jeremy

Full Range: Widin Carbide End Mill For Graphite - 4 Flute Ball Nose (WGB504)

View full collection →

You are viewing WGB504040110. Click any other SKU to view its full details.

Product SKU	Cutter Diameter	Number of Flutes	Flute Length	Overall Length	Shank Diameter	Reach	Radius	Price	Stock

WGB504010	1	4	3	60	4	N/A	0.5	£50.02	5 days
WGB50401010	1	4	3	60	4	10	0.5	£52.55	5 days
WGB50401025	1	4	3	80	4	25	0.5	£56.64	5 days
WGB50401020	1	4	3	60	4	20	0.5	£52.55	5 days
WGB50401015	1	4	3	60	4	15	0.5	£52.55	5 days
WGB50401515	1.5	4	4	80	4	15	0.75	£52.55	5 days
WGB504015	1.5	4	4	60	4	N/A	0.75	£50.02	5 days
WGB50401030	1	4	3	80	4	30	0.5	£56.64	5 days
WGB50401510	1.5	4	4	80	4	10	0.75	£52.55	5 days
WGB50401525	1.5	4	4	80	4	25	0.75	£56.53	5 days
WGB50401520	1.5	4	4	80	4	20	0.75	£52.55	5 days
WGB50401530	1.5	4	4	80	4	30	0.75	£56.53	5 days
WGB504020	2	4	6	60	4	N/A	1	£50.02	5 days
WGB50402010	2	4	6	80	4	10	1	£51.83	5 days
WGB50402020	2	4	6	80	4	20	1	£51.83	5 days
WGB50402015	2	4	6	80	4	15	1	£51.83	5 days
WGB50402030	2	4	6	80	4	30	1	£51.83	5 days
WGB50402025	2	4	6	80	4	25	1	£51.83	5 days
WGB50402040	2	4	6	100	4	40	1	£56.17	5 days
WGB504030	3	4	9	60	4	N/A	1.5	£50.02	5 days
WGB50403020	3	4	9	100	4	20	1.5	£56.17	5 days
WGB50403025	3	4	9	100	4	25	1.5	£56.17	5 days
WGB50403015	3	4	9	100	4	15	1.5	£56.17	5 days
WGB50403030	3	4	9	100	4	30	1.5	£56.17	5 days
WGB50403040	3	4	9	100	4	40	1.5	£59.90	5 days
WGB50403050	3	4	9	100	4	50	1.5	£59.90	5 days
WGB504040060	4	4	12	60	4	N/A	2	£50.02	5 days
WGB504040080	4	4	12	80	4	N/A	2	£53.94	5 days
WGB504040110 Viewing	4	4	12	110	4	N/A	2	£60.62	5 days
WGB504040130	4	4	12	130	4	N/A	2	£67.25	5 days
WGB504050080	5	4	15	80	6	25	2.5	£69.55	5 days
WGB504060090	6	4	20	90	6	N/A	3	£69.55	5 days
WGB504040150	4	4	12	150	4	N/A	2	£67.61	5 days
WGB504060110	6	4	20	110	6	N/A	3	£75.12	5 days
WGB504060130	6	4	20	130	6	N/A	3	£81.32	5 days
WGB504050110	5	4	15	110	6	25	2.5	£75.12	5 days
WGB504080130	8	4	25	130	8	N/A	4	£105.11	5 days
WGB504060150	6	4	20	150	6	N/A	3	£87.53	5 days
WGB504100110	10	4	30	110	10	N/A	5	£144.48	5 days
WGB504080200	8	4	25	200	8	N/A	4	£147.51	5 days
WGB504080150	8	4	25	150	8	N/A	4	£113.23	5 days
WGB504060180	6	4	20	180	6	N/A	3	£93.72	5 days
WGB504080110	8	4	25	110	8	N/A	4	£97.12	5 days
WGB504100130	10	4	30	130	10	N/A	5	£156.44	5 days
WGB504100180	10	4	30	180	10	N/A	5	£193.40	5 days
WGB504120150	12	4	35	150	12	N/A	6	£227.61	5 days
WGB504100150	10	4	30	150	10	N/A	5	£168.54	5 days
WGB504120110	12	4	35	110	12	N/A	6	£194.74	5 days
WGB504120130	12	4	35	130	12	N/A	6	£211.09	5 days
WGB504100200	10	4	30	200	10	N/A	5	£218.40	5 days
WGB504120180	12	4	35	180	12	N/A	6	£261.05	5 days
WGB504120200	12	4	35	200	12	N/A	6	£283.40	5 days
