Widin Carbide Corner Radius End Mill For Mold & Die - 2 Flute - 6mm x R0.5

Name: Widin Carbide Corner Radius End Mill For Mold & Die - 2 Flute - 6mm x R0.5
Brand: Widin
SKU: UR50206005130
Price: 41.59 GBP
Availability: InStock

SKU:UR50206005130

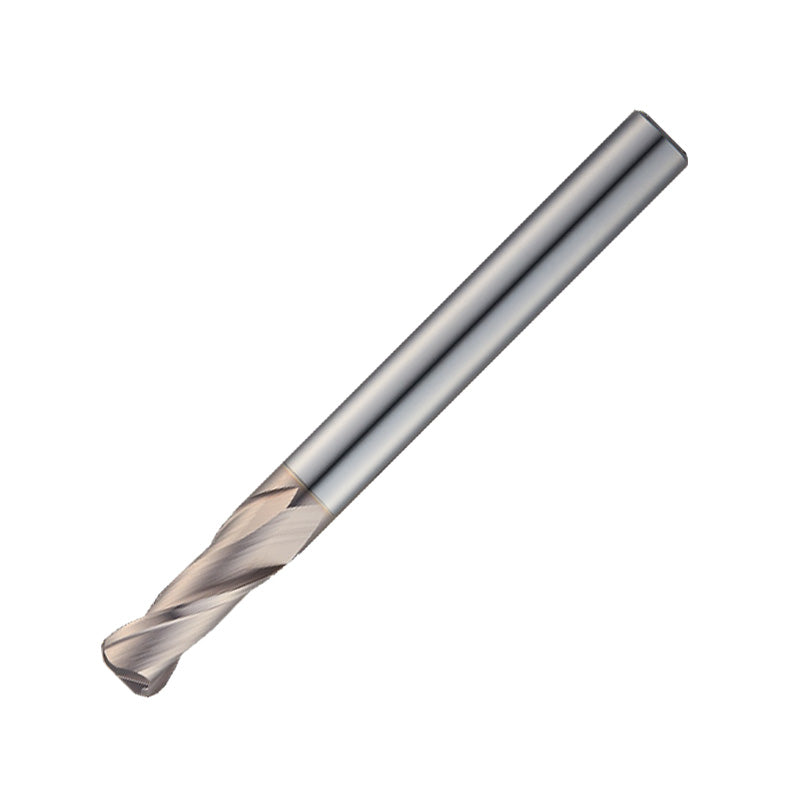

The Widin Carbide Corner Radius End Mill is a precise 6 mm milling cutter designed for mold and die work. Its two-flute geometry and long shank deliver deep-pocket reach with efficient chip evacu... Read more ↓

Material Compatibility

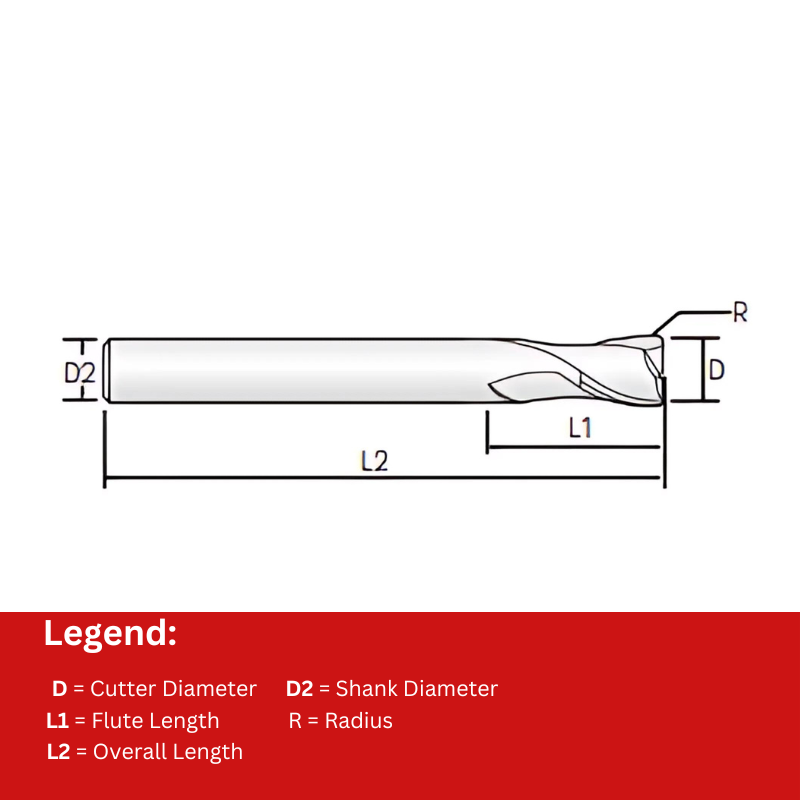

Specification

Cutter Diameter	6
Number of Flutes	2
Flute Length	15
Overall Length	130
Shank Diameter	6
Corner Radius	0.5

Download Cutting Data

£41.59

Prices shown ex. VAT

5 days estimated lead time — subject to availability

View Other Sizes →

Free delivery over £50 ex VAT

Secure checkout

14-day returns

30+ years expertise

Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna

Speak to our team

01732 887334

Mon – Thurs 8:30 – 17:30 · Fri 8:30 – 16:30

Diameter: 6 mm standard bore for compatibility with common collets and holders
Flute count: 2 flutes for smooth cutting and rapid chip evacuation
Material: Carbide construction for high hardness, wear resistance, and long tool life
Shank type: Long shank design to reach deep grooves and complex features with stability
Corner radius: R0.5 plus a variety of corner radii to tailor fillets and cavity corners
Application: Optimized for mold and die machining, including pockets, slots, and intricate contours

With its focus on efficient chip clearance and precise corner radii, this end mill helps reduce finishing passes and enhances surface quality in mold cavities and die components. The combination of carbide durability, deep reach, and selectable corner radii makes it a versatile tool for demanding milling tasks, delivering consistent performance across materials typical in mold and die production.

Cutter Diameter	6
Number of Flutes	2
Flute Length	15
Overall Length	130
Shank Diameter	6
Corner Radius	0.5

What time are Protool open?

We are open Monday to Friday between 8:30am and 5pm.

Do you offer Free Next Day delivery?

Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.

We also offer the following:

Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.

For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.

*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.

★★★★★

Nice experience staff are very helpful and interested...

Staff are very helpful and interested in providing a good service making us the customer feel valued.

Bill

★★★★★

first place we look

honest about stock and prices are competitive.

Phil

★★★★★

Polite and helpful

Staff are very helpful and polite.Goods that were in stock were dispatched same day and back orders were quick in coming through .

Graham

★★★★★

Buying experience

Phone requests are handled quickly and without any fuss. The website is easy to use and straightforward to order from. It’s especially helpful that it shows real‑time availability, so we don’t need to call to confirm whether parts will arrive.

Jeremy

Full Range: Widin Carbide Corner Radius End Mill For Mold & Die - 2 Flute (WR502)

View full collection →

You are viewing UR50206005130. Click any other SKU to view its full details.

Product SKU	Cutter Diameter	Number of Flutes	Flute Length	Overall Length	Shank Diameter	Corner Radius	Price	Stock

UR502002002	0.2	2	0.4	40	4	0.02	£40.31	5 days
UR502002005	0.2	2	0.4	40	4	0.05	£40.31	5 days
UR502003002	0.3	2	0.6	40	4	0.02	£34.81	5 days
UR502003005	0.3	2	0.6	40	4	0.05	£34.81	5 days
UR502004005	0.4	2	0.8	40	4	0.05	£34.81	5 days
UR502005005	0.5	2	1	40	4	0.05	~~£28.38~~ £12.49	In Stock
UR50200401	0.4	2	0.8	40	4	0.1	£34.81	5 days
UR50200501	0.5	2	1	40	4	0.1	£28.38	5 days
UR502006005	0.6	2	1.2	40	4	0.05	£28.38	5 days
UR50200601	0.6	2	1.2	40	4	0.1	£28.38	5 days
UR50200602	0.6	2	1.2	40	4	0.2	£28.38	5 days
UR502007005	0.7	2	1.4	40	4	0.05	£28.38	5 days
UR50200701	0.7	2	1.4	40	4	0.1	£28.38	5 days
UR50200702	0.7	2	1.4	40	4	0.2	£28.38	5 days
UR502008005	0.8	2	1.6	40	4	0.05	£28.38	5 days
UR50200801	0.8	2	1.6	40	4	0.1	£28.38	5 days
UR50200802	0.8	2	1.6	40	4	0.2	£28.38	5 days
UR50200901	0.9	2	1.8	40	4	0.1	£28.38	5 days
UR502009005	0.9	2	1.8	40	4	0.05	£28.38	5 days
UR502010005	1	2	2.5	50	6	0.05	£27.54	5 days
UR50201001	1	2	2.5	50	6	0.1	£27.54	5 days
UR50201002	1	2	2.5	50	6	0.2	£27.54	5 days
UR50201003	1	2	2.5	50	6	0.3	£27.54	5 days
UR502012005	1.2	2	3	50	6	0.05	£27.54	5 days
UR50201201	1.2	2	3	50	6	0.1	£27.54	5 days
UR50201202	1.2	2	3	50	6	0.2	£27.54	5 days
UR50201203	1.2	2	3	50	6	0.3	£27.54	5 days
UR502015005	1.5	2	4	50	6	0.05	£27.54	5 days
UR50201501	1.5	2	4	50	6	0.1	£27.54	5 days
UR50201502	1.5	2	4	50	6	0.2	£27.54	5 days
UR50201503	1.5	2	4	50	6	0.3	£27.54	5 days
UR50201505	1.5	2	4	50	6	0.5	£27.54	5 days
UR50202001	2	2	6	50	6	0.1	~~£27.54~~ £12.12	In Stock
UR50202003	2	2	6	50	6	0.3	£27.54	5 days
UR50202002	2	2	6	50	6	0.2	£27.54	5 days
UR50202005	2	2	6	50	6	0.5	£27.54	5 days
UR50202501	2.5	2	7	60	6	0.1	£28.65	5 days
UR50202502	2.5	2	7	60	6	0.2	£28.65	5 days
UR50202503	2.5	2	7	60	6	0.3	£28.65	5 days
UR50203001	3	2	8	60	6	0.1	£28.65	5 days
UR50202505	2.5	2	7	60	6	0.5	£28.65	5 days
UR50203002	3	2	8	60	6	0.2	£28.65	5 days
UR50203003	3	2	8	60	6	0.3	£28.65	5 days
UR50203005	3	2	8	60	6	0.5	£28.65	5 days
UR50203501	3.5	2	10	70	6	0.1	£29.75	5 days
UR50203010	3	2	8	60	6	1	£28.65	5 days
UR50203502	3.54	2	10	70	6	0.2	£29.75	5 days
UR50203503	3.5	2	10	70	6	0.3	£29.75	5 days
UR50203505	3.5	2	10	70	6	0.5	£29.75	5 days
UR50204001	4	2	10	70	6	0.1	£29.75	5 days
UR50204001100S4	4	2	10	100	4	0.1	£32.68	5 days
UR50204002100S4	4	2	10	100	4	0.2	£32.68	5 days
UR50204002	4	2	10	70	6	0.2	£29.75	5 days
UR50204001S4	4	2	10	70	4	0.1	£28.38	5 days
UR50204002S4	4	2	10	70	4	0.2	£28.38	5 days
UR50204003	4	2	10	70	6	0.3	£29.75	5 days
UR50204003100S4	4	2	10	100	4	0.3	~~£32.68~~ £14.38	In Stock
UR50204003S4	4	2	10	70	4	0.3	£28.38	5 days
UR50204005	4	2	10	70	6	0.5	£29.75	5 days
UR50204005100S4	4	2	10	100	4	0.5	£32.68	5 days
UR50204005S4	4	2	10	70	4	0.5	£28.38	5 days
UR50204010	4	2	10	70	6	1	£29.75	5 days
UR50204010S4	4	2	10	70	4	1	£28.38	5 days
UR50204010100S4	4	2	10	100	4	1	£32.68	5 days
UR50204501	4.5	2	11	80	6	0.1	~~£30.99~~ £13.64	In Stock
UR50205001	5	2	13	90	6	0.1	£32.38	5 days
UR50204503	4.5	2	11	80	6	0.3	£30.99	5 days
UR50205002	5	2	13	90	6	0.2	£32.38	5 days
UR50204505	4.5	2	11	80	6	0.5	£30.99	5 days
UR50204502	4.5	2	11	80	6	0.2	£30.99	5 days
UR50205003	5	2	13	90	6	0.3	£32.38	5 days
UR50205005	5	2	13	90	6	0.5	£32.38	5 days
UR50205010	5	2	13	90	6	1	£32.38	5 days
UR50205501	5.5	2	13	90	6	0.1	£32.38	5 days
UR50205502	5.5	2	13	90	6	0.2	£32.38	5 days
UR50205505	5.5	2	13	90	6	0.5	£32.38	5 days
UR50205503	5.5	2	13	90	6	0.3	£32.38	5 days
UR50206001	6	2	15	90	6	0.1	£32.38	5 days
UR50206002	6	2	15	90	6	0.2	£32.38	5 days
UR50205510	5.5	2	13	90	6	1	£32.38	5 days
UR50206003	6	2	15	90	6	0.3	£32.38	5 days
UR50206005	6	2	15	90	6	0.5	£32.38	5 days
UR5020600360	6	2	15	60	6	0.3	£28.65	5 days
UR50206005110	6	2	15	110	6	0.5	£38.57	5 days
UR5020600560	6	2	15	60	6	0.5	£32.38	5 days
UR50206005130 Viewing	6	2	15	130	6	0.5	£41.59	5 days
UR50206010	6	2	15	90	6	1	£32.38	5 days
UR50206010110	6	2	15	110	6	1	£38.57	5 days
UR50206010130	6	2	15	130	6	1	~~£41.59~~ £18.30	In Stock
UR5020601060	6	2	15	60	6	1	~~£28.65~~ £12.61	In Stock
UR50206015	6	2	15	90	6	1.5	£32.38	5 days
UR50206020	6	2	15	90	6	2	£32.38	5 days
UR50207001	7	2	16	90	8	0.1	£52.65	5 days
UR50207003	7	2	16	90	8	0.3	£52.65	5 days
UR50207002	7	2	16	90	8	0.2	£52.65	5 days
UR50207005	7	2	16	90	8	0.5	£52.65	5 days
UR50207010	7	2	16	90	8	1	£52.65	5 days
UR50207020	7	2	16	90	8	2	~~£52.65~~ £23.17	In Stock
UR50208001	8	2	20	100	8	0.1	~~£54.82~~ £24.12	In Stock
UR50208002	8	2	20	100	8	0.2	£54.82	5 days
UR50208003	8	2	20	100	8	0.3	£54.82	5 days
UR5020800370	8	2	20	70	8	0.3	£48.72	5 days
UR50208005	8	2	20	100	8	0.5	~~£54.82~~ £24.12	In Stock
UR50208005120	8	2	20	120	8	0.5	£65.01	5 days
UR50208005150	8	2	20	150	8	0.5	£73.15	5 days
UR5020800570	8	2	20	70	8	0.5	£48.72	5 days
UR50208010	8	2	20	100	8	1	£54.82	5 days
UR50208010120	8	2	20	120	8	1	~~£65.01~~ £28.60	In Stock
UR50208010150	8	2	20	150	8	1	£73.15	5 days
UR5020801070	8	2	20	70	8	1	£48.72	5 days
UR50208015	8	2	20	100	8	1.5	£54.82	5 days
UR50208020	8	2	20	100	8	2	£54.82	5 days
UR50208025	8	2	20	100	8	2.5	£54.82	5 days
UR50208030	8	2	20	100	8	3	£54.82	5 days
UR50210002	10	2	25	100	10	0.2	£72.58	5 days
UR50210001	10	2	25	100	10	0.1	£72.58	5 days
UR50210003	10	2	25	100	10	0.3	£72.58	5 days
UR5021000375	10	2	25	75	10	0.3	~~£65.86~~ £28.97	In Stock
UR50210005	10	2	25	100	10	0.5	£72.58	5 days
UR50210005150	10	2	25	150	10	0.5	£96.92	5 days
UR50210005130	10	2	25	130	10	0.5	£86.31	5 days
UR5021000575	10	2	25	75	10	0.5	£65.86	5 days
UR50210010130	10	2	25	130	10	1	~~£86.31~~ £37.97	In Stock
UR50210010	10	2	25	100	10	1	£72.58	5 days
UR50210015	10	2	25	100	10	1.5	£72.58	5 days
UR50210010150	10	2	25	150	10	1	£96.92	5 days
UR5021001075	10	2	25	75	10	1	£65.86	5 days
UR50210025	10	2	25	100	10	2.5	£72.58	5 days
UR50210040	10	2	25	100	10	4	£72.58	5 days
UR50210030	10	2	25	100	10	3	£72.58	5 days
UR50210020	10	2	25	100	10	2	£72.58	5 days
UR50211002	11	2	25	110	12	0.2	~~£108.59~~ £47.78	In Stock
UR50211003	11	2	25	110	12	0.3	£108.59	5 days
UR50211005	11	2	25	110	12	0.5	£108.59	5 days
UR50211010	11	2	25	110	12	1	£108.59	5 days
UR50211020	11	2	25	110	12	2	£108.59	5 days
UR50212001	12	2	30	110	12	0.1	£108.59	5 days
UR50212002	12	2	30	110	12	0.2	£108.59	5 days
UR50212003	12	2	30	110	12	0.3	£108.59	5 days
UR5021200380	12	2	30	80	12	0.3	£96.58	5 days
UR50212005	12	2	30	110	12	0.5	£108.59	5 days
UR50212005150	12	2	30	150	12	0.5	£133.26	5 days
UR5021200580	12	2	30	80	12	0.5	£96.58	5 days
UR50212005130	12	2	30	130	12	0.5	£117.36	5 days
UR50212010	12	2	30	110	12	1	£108.59	5 days
UR50212010150	12	2	30	150	12	1	£133.26	5 days
UR50212010130	12	2	30	130	12	1	£117.36	5 days
UR5021201080	12	2	30	80	12	1	£96.58	5 days
UR50212015	12	2	30	110	12	1.5	£108.59	5 days
UR50212020	12	2	30	110	12	2	£108.59	5 days
UR50212025	12	2	30	110	12	2.5	£108.59	5 days
UR50212040	12	2	30	110	12	4	£108.59	5 days
UR50212030	12	2	30	110	12	3	£108.59	5 days
UR50214005	14	2	30	150	16	0.5	£273.20	5 days
UR50212050	12	2	30	110	12	5	£108.59	5 days
UR50214020	14	2	30	150	16	2	£273.20	5 days
UR50214010	14	2	30	150	16	1	£273.20	5 days
UR50216005	16	2	32	150	16	0.5	£322.00	5 days
UR50216010	16	2	32	150	16	1	£322.00	5 days
UR50216015	16	2	32	150	16	1.5	£322.00	5 days
UR50216020	16	2	32	150	16	2	£322.00	5 days
UR50220005	20	2	38	150	20	0.5	£449.35	5 days
UR50220010	20	2	38	150	20	1	£449.35	5 days
UR50220015	20	2	38	150	20	1.5	£449.35	5 days
UR50220020	20	2	38	150	20	2	£449.35	5 days
