Widin Carbide Corner Radius End Mill For Mold & Die - 4 Flute High Feed Rate - 16mmx 100mm x R0.5
| Cutter Diameter | 16 |
| Number of Flutes | 4 |
| Flute Length | 16 |
| Overall Length | 100 |
Learn more about Klarna
Description

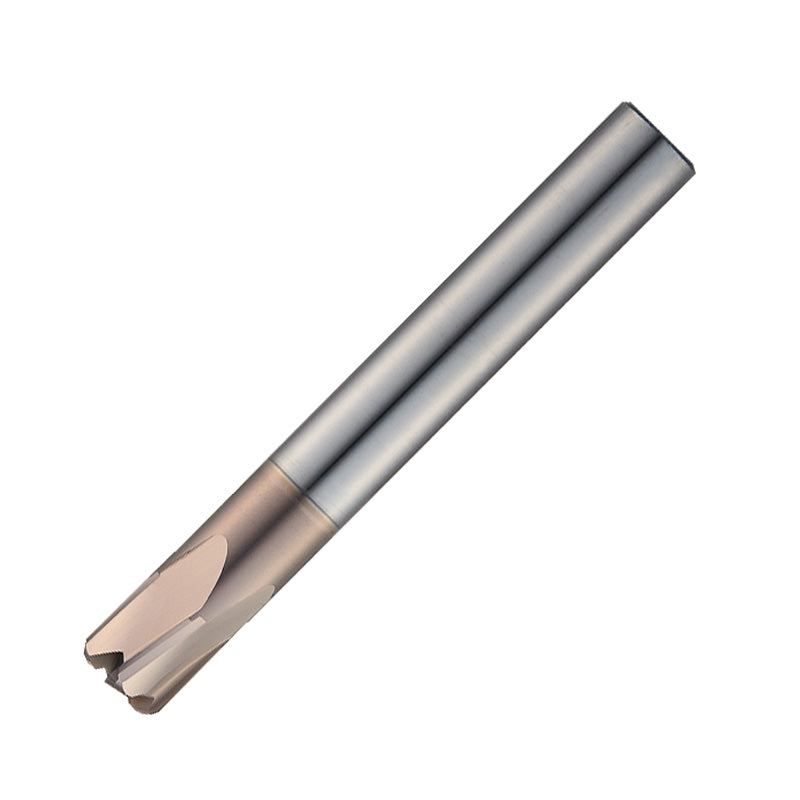

Widin Carbide Corner Radius End Mill for Mold & Die is a precision carbide cutting tool designed for high-speed, high-feed machining in mold and die work. This 16 mm diameter, 100 mm length tool features a 0.5 mm corner radius (R0.5), making it ideal for finishing and detailing corners while delivering aggressive material removal. It also offers extended customer choice with various corner radius sizes to match your specific geometries.
With a 45° helix and four cutting flutes, the end mill promotes efficient chip evacuation and strong edge strength, helping you maintain steady feeds and reliable results even on tougher materials.
- 45° High-Feed Helix: Optimizes chip evacuation and enables fast, stable cutting in high-speed machining, helping reduce heat buildup and improve finish.
- 4-Flute Core for Stability: Provides improved rigidity and chatter resistance, delivering precise, consistent cuts in demanding materials.
- Corner Radius Options: Offers versatile radii to match mold and die geometries, including R0.5, with additional sizes available to suit your process needs.
This end mill is designed to streamline mold-and-die workflows: it speeds material removal, preserves precision across passes, and resists wear in tough alloys. Built for reliability, it helps reduce downtime, deliver consistent surface finishes, and enable confident machining of intricate corners and deep pockets.
Part Numbers
- Protool Part Number
- USPM4160-05
- Brand
- Widin
- Category
- End Mill
Delivery
Free UK mainland delivery on orders over £50 ex VAT. In-stock items ordered before 4:30pm are dispatched the same working day. Full delivery information.
Returns
14-day returns on unused stock items in original packaging. Special-order and bespoke tooling is non-returnable. Read our returns policy.
Technical Support
Over 30 years of machining experience behind the counter. Call 01732 887334, Mon–Thurs 8:30–17:30, Fri 8:30–16:30.
Trade Accounts
Credit accounts, contract pricing and scheduled call-off orders available for trade customers. Apply for an account.
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Widin Carbide Corner Radius End Mill For Mold & Die - 4 Flute High Feed Rate (WSPM4)
View full collection →You are viewing USPM4160-05. Click any other SKU to view its full details.

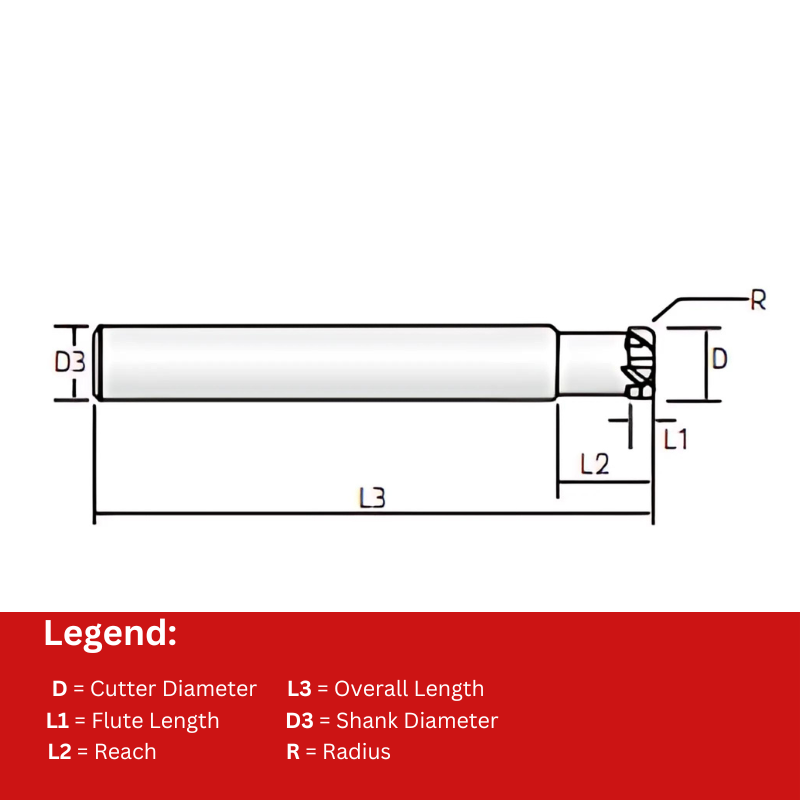

| Product SKU | Cutter Diameter | Number of Flutes | Flute Length | Overall Length | Shank Diameter | Corner Radius | Reach | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|---|
| USPM4010-01 | 1 | 4 | 1 | 50 | 6 | 0.1 | 2.5 | £40.38 | 5 days | |
| USPM4010-03 | 1 | 4 | 1 | 50 | 6 | 0.3 | 2.5 | £40.38 | 5 days | |
| USPM4010-02 | 1 | 4 | 1 | 50 | 6 | 0.2 | 2.5 | £40.38 | 5 days | |
| USPM4015-03 | 1.5 | 4 | 1.5 | 50 | 6 | 0.3 | 4 | £40.38 | 5 days | |
| USPM4015-02 | 1.5 | 4 | 1.5 | 50 | 6 | 0.2 | 4 | £40.38 | 5 days | |
| USPM4015-05 | 1.5 | 4 | 1.5 | 50 | 6 | 0.5 | 4 | £40.38 | 5 days | |
| USPM4020-05 | 2 | 4 | 2 | 50 | 6 | 0.5 | 6 | £40.38 | 5 days | |
| USPM4020-02 | 2 | 4 | 2 | 50 | 6 | 0.2 | 6 | £40.38 | 5 days | |
| USPM4020-03 | 2 | 4 | 2 | 50 | 6 | 0.3 | 6 | £40.38 | In Stock | |
| USPM4030-02 | 3 | 4 | 3 | 50 | 6 | 0.2 | 8 | £40.38 | 5 days | |
| USPM4030-03 | 3 | 4 | 3 | 50 | 6 | 0.3 | 8 | £40.38 | 5 days | |
| USPM4030-05 | 3 | 4 | 3 | 50 | 6 | 0.5 | 8 | £40.38 | 5 days | |
| USPM4040-02 | 4 | 4 | 4 | 50 | 6 | 0.2 | 10 | £40.38 | 5 days | |
| USPM4040-03 | 4 | 4 | 4 | 50 | 6 | 0.3 | 10 | £40.38 | 5 days | |
| USPM4040-05 | 4 | 4 | 4 | 50 | 6 | 0.5 | 10 | £40.38 | In Stock | |
| USPM4040-10 | 4 | 4 | 4 | 50 | 6 | 1 | 10 | £40.38 | 5 days | |
| USPM4060-02 | 6 | 4 | 6 | 60 | 6 | 0.2 | 15 | £41.63 | 5 days | |
| USPM4060-02L | 6 | 4 | 6 | 90 | 6 | 0.2 | 15 | £47.75 | 5 days | |
| USPM4060-03 | 6 | 4 | 6 | 60 | 6 | 0.3 | 15 | £41.63 | 5 days | |
| USPM4060-03L | 6 | 4 | 6 | 90 | 6 | 0.3 | 15 | £47.75 | 5 days | |
| USPM4060-05 | 6 | 4 | 6 | 60 | 6 | 0.5 | 15 | £41.63 | 5 days | |
| USPM4060-05L | 6 | 4 | 6 | 90 | 6 | 0.5 | 15 | £47.75 | 5 days | |
| USPM4060-20 | 6 | 4 | 6 | 60 | 6 | 2 | 15 | £41.63 | 5 days | |
| USPM4060-20L | 6 | 4 | 6 | 90 | 6 | 2 | 15 | £47.75 | 5 days | |
| USPM4080-02 | 8 | 4 | 8 | 70 | 8 | 0.2 | 20 | £70.13 | 5 days | |
| USPM4080-03 | 8 | 4 | 8 | 70 | 8 | 0.3 | 20 | £70.13 | 5 days | |
| USPM4080-05 | 8 | 4 | 8 | 70 | 8 | 0.5 | 20 | £70.13 | 5 days | |
| USPM4080-02L | 8 | 4 | 8 | 100 | 8 | 0.2 | 20 | £78.13 | 5 days | |
| USPM4080-03L | 8 | 4 | 8 | 100 | 8 | 0.3 | 20 | £78.13 | 5 days | |
| USPM4080-05L | 8 | 4 | 8 | 100 | 8 | 0.5 | 20 | £78.13 | 5 days | |
| USPM4080-10 | 8 | 4 | 8 | 70 | 8 | 1 | 20 | £70.13 | 5 days | |
| USPM4080-10L | 8 | 4 | 8 | 100 | 8 | 1 | 20 | £78.13 | 5 days | |
| USPM4080-20 | 8 | 4 | 8 | 70 | 8 | 2 | 20 | £70.13 | 5 days | |
| USPM4080-20L | 8 | 4 | 8 | 100 | 8 | 2 | 20 | £78.13 | 5 days | |
| USPM4100-02 | 10 | 4 | 10 | 75 | 10 | 0.2 | 25 | £97.80 | 5 days | |
| USPM4100-02L | 10 | 4 | 10 | 100 | 10 | 0.2 | 25 | £107.00 | 5 days | |
| USPM4100-03 | 10 | 4 | 10 | 75 | 10 | 0.3 | 25 | £97.80 | 5 days | |
| USPM4100-03L | 10 | 4 | 10 | 100 | 10 | 0.3 | 25 | £107.00 | 5 days | |
| USPM4100-05 | 10 | 4 | 10 | 75 | 10 | 0.5 | 25 | £97.80 | 5 days | |
| USPM4100-05L | 10 | 4 | 10 | 100 | 10 | 0.5 | 25 | £107.00 | 5 days | |
| USPM4100-10 | 10 | 4 | 10 | 75 | 10 | 1 | 25 | £97.80 | 5 days | |
| USPM4100-10L | 10 | 4 | 10 | 100 | 10 | 1 | 25 | £107.00 | 5 days | |
| USPM4100-15 | 10 | 4 | 10 | 75 | 10 | 1.5 | 25 | £97.80 | 5 days | |
| USPM4100-15L | 10 | 4 | 10 | 100 | 10 | 1.5 | 25 | £107.00 | 5 days | |
| USPM4100-20 | 10 | 4 | 10 | 75 | 10 | 2 | 25 | £97.80 | 5 days | |
| USPM4100-20L | 10 | 4 | 10 | 100 | 10 | 2 | 25 | £107.00 | 5 days | |
| USPM4120-03 | 12 | 4 | 12 | 80 | 12 | 0.3 | 12 | £149.50 | 5 days | |
| USPM4120-03L | 12 | 4 | 12 | 110 | 12 | 0.3 | 12 | £166.05 | 5 days | |
| USPM4120-05 | 12 | 4 | 12 | 80 | 12 | 0.5 | 12 | £149.50 | 5 days | |
| USPM4120-05L | 12 | 4 | 12 | 110 | 12 | 0.5 | 12 | £166.05 | 5 days | |
| USPM4120-10 | 12 | 4 | 12 | 80 | 12 | 1 | 12 | £149.50 | 5 days | |
| USPM4120-10L | 12 | 4 | 12 | 110 | 12 | 1 | 12 | £166.05 | 5 days | |
| USPM4120-15 | 12 | 4 | 12 | 80 | 12 | 1.5 | 12 | £149.50 | 5 days | |
| USPM4120-15L | 12 | 4 | 12 | 110 | 12 | 1.5 | 12 | £166.05 | 5 days | |
| USPM4120-20 | 12 | 4 | 12 | 80 | 12 | 2 | 12 | £149.50 | 5 days | |
| USPM4120-20L | 12 | 4 | 12 | 110 | 12 | 2 | 12 | £166.05 | In Stock | |
| USPM4120-30L | 12 | 4 | 12 | 110 | 12 | 3 | 12 | £166.05 | 5 days | |
| USPM4120-30 | 12 | 4 | 12 | 80 | 12 | 3 | 12 | £149.50 | 5 days | |
| USPM4160-05 Viewing | 16 | 4 | 16 | 100 | 16 | 0.5 | 35 | £406.20 | 5 days | |
| USPM4160-05L | 16 | 4 | 16 | 150 | 16 | 0.5 | 35 | £487.60 | 5 days | |
| USPM4160-10 | 16 | 4 | 16 | 100 | 16 | 1 | 35 | £406.20 | 5 days | |
| USPM4160-10L | 16 | 4 | 16 | 150 | 16 | 1 | 35 | £487.60 | 5 days | |
| USPM4160-20 | 16 | 4 | 16 | 100 | 16 | 2 | 35 | £406.20 | 5 days | |
| USPM4160-20L | 16 | 4 | 16 | 150 | 16 | 2 | 35 | £487.60 | 5 days | |
| USPM4200-05 | 20 | 4 | 20 | 100 | 20 | 0.5 | 40 | £566.00 | 5 days | |
| USPM4200-05L | 20 | 4 | 20 | 150 | 20 | 0.5 | 40 | £679.50 | 5 days | |
| USPM4200-10 | 20 | 4 | 20 | 100 | 20 | 1 | 40 | £566.00 | 5 days | |
| USPM4200-10L | 20 | 4 | 20 | 150 | 20 | 1 | 40 | £679.50 | 5 days | |
| USPM4200-20L | 20 | 4 | 20 | 150 | 20 | 2 | 40 | £679.50 | 5 days | |
| USPM4200-20 | 20 | 4 | 20 | 100 | 20 | 2 | 40 | £566.00 | 5 days |
