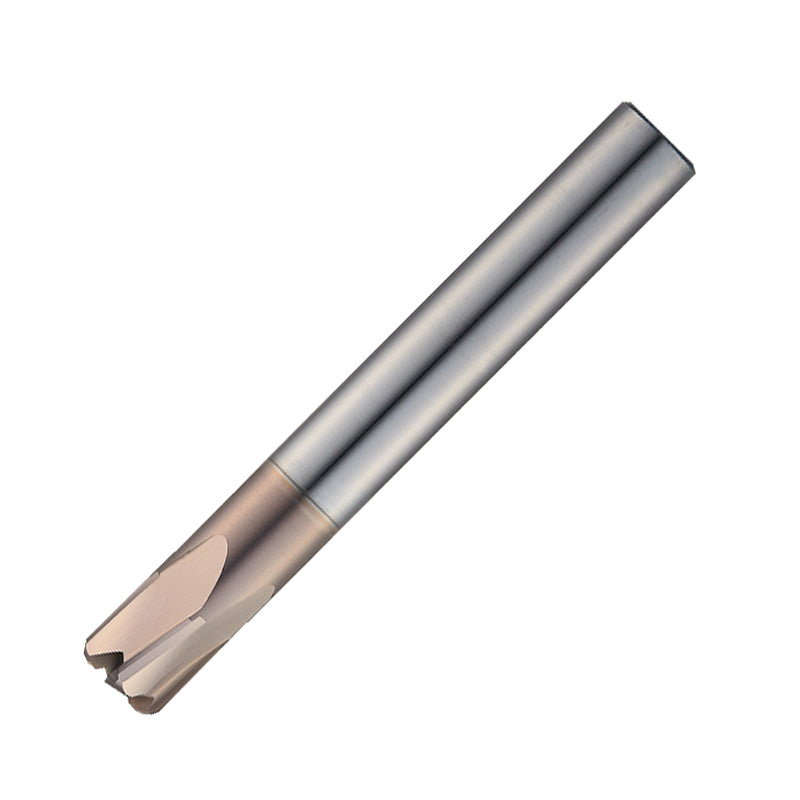

Widin Carbide Corner Radius End Mill For Mold & Die - 4 Flute High Feed Rate - 16mmx 150mm x R2
| Cutter Diameter | 16 |
| Number of Flutes | 4 |
| Flute Length | 16 |
| Overall Length | 150 |
| Shank Diameter | 16 |
| Corner Radius | 2 |
Learn more about Klarna
Designed for high feed rate applications, offering enhanced cutting edge strength with its 45° helix angle. This endmill's specialized design allows for efficient chip evacuation and improved performance in high-speed machining operations. With its 4 flutes, this end mill provides excellent stability and rigidity during cutting, ensuring precise and reliable results. Additionally, it offers extended customer choice with various corner radius sizes, allowing for greater versatility in mold and die machining. Whether you are working with tough materials or requiring aggressive material removal rates, the Widin Carbide Corner Radius End Mill with its high feed rate capabilities and range of corner radius options is an ideal tool for achieving efficient and precise machining in mold and die applications.
| Cutter Diameter | 16 |
| Number of Flutes | 4 |
| Flute Length | 16 |
| Overall Length | 150 |
| Shank Diameter | 16 |
| Corner Radius | 2 |
| Reach | 35 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Widin Carbide Corner Radius End Mill For Mold & Die - 4 Flute High Feed Rate (WSPM4)
View full collection →You are viewing USPM4160-20L. Click any other SKU to view its full details.
| Product SKU | Cutter Diameter | Number of Flutes | Flute Length | Overall Length | Shank Diameter | Corner Radius | Reach | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|---|
| USPM4010-01 | 1 | 4 | 1 | 50 | 6 | 0.1 | 2.5 | £40.77 | 5 days | |
| USPM4010-03 | 1 | 4 | 1 | 50 | 6 | 0.3 | 2.5 | £40.77 | 5 days | |
| USPM4010-02 | 1 | 4 | 1 | 50 | 6 | 0.2 | 2.5 | £40.77 | 5 days | |
| USPM4015-03 | 1.5 | 4 | 1.5 | 50 | 6 | 0.3 | 4 | £40.77 | 5 days | |
| USPM4015-02 | 1.5 | 4 | 1.5 | 50 | 6 | 0.2 | 4 | £40.77 | 5 days | |
| USPM4015-05 | 1.5 | 4 | 1.5 | 50 | 6 | 0.5 | 4 | £40.77 | 5 days | |
| USPM4020-05 | 2 | 4 | 2 | 50 | 6 | 0.5 | 6 | £40.77 | 5 days | |
| USPM4020-02 | 2 | 4 | 2 | 50 | 6 | 0.2 | 6 | £40.77 | 5 days | |
| USPM4020-03 | 2 | 4 | 2 | 50 | 6 | 0.3 | 6 | £17.94 | In Stock | |
| USPM4030-02 | 3 | 4 | 3 | 50 | 6 | 0.2 | 8 | £40.77 | 5 days | |
| USPM4030-03 | 3 | 4 | 3 | 50 | 6 | 0.3 | 8 | £40.77 | 5 days | |
| USPM4030-05 | 3 | 4 | 3 | 50 | 6 | 0.5 | 8 | £40.77 | 5 days | |
| USPM4040-02 | 4 | 4 | 4 | 50 | 6 | 0.2 | 10 | £40.77 | 5 days | |
| USPM4040-03 | 4 | 4 | 4 | 50 | 6 | 0.3 | 10 | £40.77 | 5 days | |
| USPM4040-05 | 4 | 4 | 4 | 50 | 6 | 0.5 | 10 | £17.94 | In Stock | |
| USPM4040-10 | 4 | 4 | 4 | 50 | 6 | 1 | 10 | £40.77 | 5 days | |
| USPM4060-02 | 6 | 4 | 6 | 60 | 6 | 0.2 | 15 | £42.00 | 5 days | |
| USPM4060-02L | 6 | 4 | 6 | 90 | 6 | 0.2 | 15 | £48.20 | 5 days | |
| USPM4060-03 | 6 | 4 | 6 | 60 | 6 | 0.3 | 15 | £42.00 | 5 days | |
| USPM4060-03L | 6 | 4 | 6 | 90 | 6 | 0.3 | 15 | £48.20 | 5 days | |
| USPM4060-05 | 6 | 4 | 6 | 60 | 6 | 0.5 | 15 | £42.00 | 5 days | |
| USPM4060-05L | 6 | 4 | 6 | 90 | 6 | 0.5 | 15 | £48.20 | 5 days | |
| USPM4060-20 | 6 | 4 | 6 | 60 | 6 | 2 | 15 | £42.00 | 5 days | |
| USPM4060-20L | 6 | 4 | 6 | 90 | 6 | 2 | 15 | £48.20 | 5 days | |
| USPM4080-02 | 8 | 4 | 8 | 70 | 8 | 0.2 | 20 | £68.94 | 5 days | |
| USPM4080-03 | 8 | 4 | 8 | 70 | 8 | 0.3 | 20 | £68.94 | 5 days | |
| USPM4080-05 | 8 | 4 | 8 | 70 | 8 | 0.5 | 20 | £68.94 | 5 days | |
| USPM4080-02L | 8 | 4 | 8 | 100 | 8 | 0.2 | 20 | £76.79 | 5 days | |
| USPM4080-03L | 8 | 4 | 8 | 100 | 8 | 0.3 | 20 | £76.79 | 5 days | |
| USPM4080-05L | 8 | 4 | 8 | 100 | 8 | 0.5 | 20 | £76.79 | 5 days | |
| USPM4080-10 | 8 | 4 | 8 | 70 | 8 | 1 | 20 | £68.94 | 5 days | |
| USPM4080-10L | 8 | 4 | 8 | 100 | 8 | 1 | 20 | £76.79 | 5 days | |
| USPM4080-20 | 8 | 4 | 8 | 70 | 8 | 2 | 20 | £68.94 | 5 days | |
| USPM4080-20L | 8 | 4 | 8 | 100 | 8 | 2 | 20 | £76.79 | 5 days | |
| USPM4100-02 | 10 | 4 | 10 | 75 | 10 | 0.2 | 25 | £92.14 | 5 days | |
| USPM4100-02L | 10 | 4 | 10 | 100 | 10 | 0.2 | 25 | £100.80 | 5 days | |
| USPM4100-03 | 10 | 4 | 10 | 75 | 10 | 0.3 | 25 | £92.14 | 5 days | |
| USPM4100-03L | 10 | 4 | 10 | 100 | 10 | 0.3 | 25 | £100.80 | 5 days | |
| USPM4100-05 | 10 | 4 | 10 | 75 | 10 | 0.5 | 25 | £92.14 | 5 days | |
| USPM4100-05L | 10 | 4 | 10 | 100 | 10 | 0.5 | 25 | £100.80 | 5 days | |
| USPM4100-10 | 10 | 4 | 10 | 75 | 10 | 1 | 25 | £92.14 | 5 days | |
| USPM4100-10L | 10 | 4 | 10 | 100 | 10 | 1 | 25 | £100.80 | 5 days | |
| USPM4100-15 | 10 | 4 | 10 | 75 | 10 | 1.5 | 25 | £92.14 | 5 days | |
| USPM4100-15L | 10 | 4 | 10 | 100 | 10 | 1.5 | 25 | £100.80 | 5 days | |
| USPM4100-20 | 10 | 4 | 10 | 75 | 10 | 2 | 25 | £92.14 | 5 days | |
| USPM4100-20L | 10 | 4 | 10 | 100 | 10 | 2 | 25 | £100.80 | 5 days | |
| USPM4120-03 | 12 | 4 | 12 | 80 | 12 | 0.3 | 12 | £135.21 | 5 days | |
| USPM4120-03L | 12 | 4 | 12 | 110 | 12 | 0.3 | 12 | £150.15 | 5 days | |
| USPM4120-05 | 12 | 4 | 12 | 80 | 12 | 0.5 | 12 | £135.21 | 5 days | |
| USPM4120-05L | 12 | 4 | 12 | 110 | 12 | 0.5 | 12 | £150.15 | 5 days | |
| USPM4120-10 | 12 | 4 | 12 | 80 | 12 | 1 | 12 | £135.21 | 5 days | |
| USPM4120-10L | 12 | 4 | 12 | 110 | 12 | 1 | 12 | £150.15 | 5 days | |
| USPM4120-15 | 12 | 4 | 12 | 80 | 12 | 1.5 | 12 | £135.21 | 5 days | |
| USPM4120-15L | 12 | 4 | 12 | 110 | 12 | 1.5 | 12 | £150.15 | 5 days | |
| USPM4120-20 | 12 | 4 | 12 | 80 | 12 | 2 | 12 | £135.21 | 5 days | |
| USPM4120-20L | 12 | 4 | 12 | 110 | 12 | 2 | 12 | £66.07 | In Stock | |
| USPM4120-30L | 12 | 4 | 12 | 110 | 12 | 3 | 12 | £150.15 | 5 days | |
| USPM4120-30 | 12 | 4 | 12 | 80 | 12 | 3 | 12 | £135.21 | 5 days | |
| USPM4160-05 | 16 | 4 | 16 | 100 | 16 | 0.5 | 35 | £353.20 | 5 days | |
| USPM4160-05L | 16 | 4 | 16 | 150 | 16 | 0.5 | 35 | £424.00 | 5 days | |
| USPM4160-10 | 16 | 4 | 16 | 100 | 16 | 1 | 35 | £353.20 | 5 days | |
| USPM4160-10L | 16 | 4 | 16 | 150 | 16 | 1 | 35 | £424.00 | 5 days | |
| USPM4160-20 | 16 | 4 | 16 | 100 | 16 | 2 | 35 | £353.20 | 5 days | |
| USPM4160-20L Viewing | 16 | 4 | 16 | 150 | 16 | 2 | 35 | £424.00 | 5 days | |
| USPM4200-05 | 20 | 4 | 20 | 100 | 20 | 0.5 | 40 | £492.17 | 5 days | |
| USPM4200-05L | 20 | 4 | 20 | 150 | 20 | 0.5 | 40 | £590.87 | 5 days | |
| USPM4200-10 | 20 | 4 | 20 | 100 | 20 | 1 | 40 | £492.17 | 5 days | |
| USPM4200-10L | 20 | 4 | 20 | 150 | 20 | 1 | 40 | £590.87 | 5 days | |
| USPM4200-20L | 20 | 4 | 20 | 150 | 20 | 2 | 40 | £590.87 | 5 days | |
| USPM4200-20 | 20 | 4 | 20 | 100 | 20 | 2 | 40 | £492.17 | 5 days |
