Widin Carbide End Mill For Mold & Die - 2 Flute Tapered Ball Nose - 0.4mm x 1.5
| Cutter Diameter | 0.4 |
| Number of Flutes | 2 |
| Flute Length | 1.6 |
| Overall Length | 40 |
Learn more about Klarna
Description

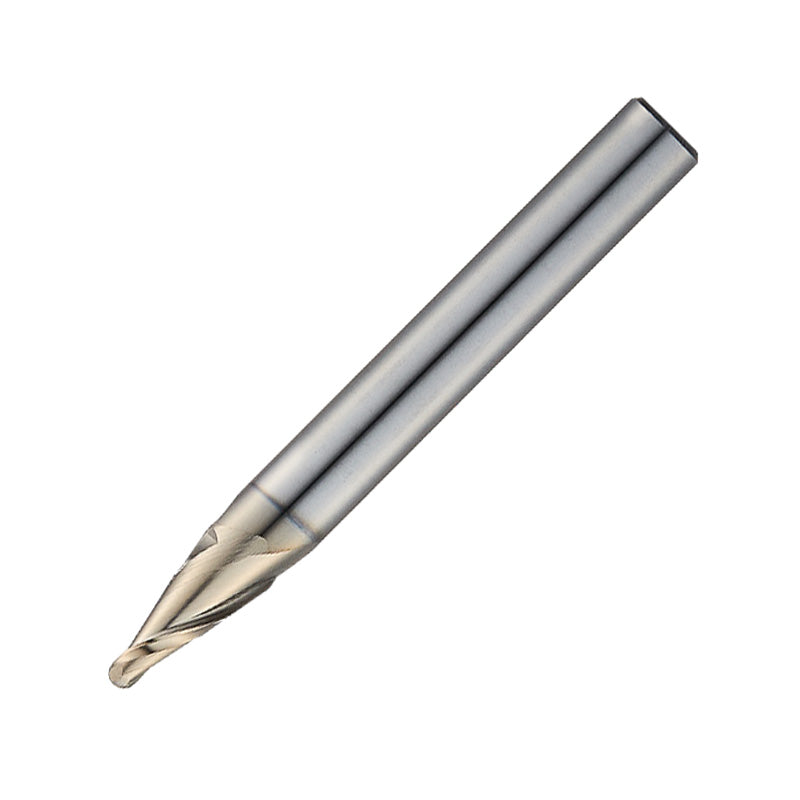

Widin Carbide End Mill for Mold & Die is a precision micro-cutting tool designed for moldmakers, CNC operators, and advanced hobbyists who need accurate contouring, profiling, and slotting. This 2-flute, tapered ball nose end mill features a 0.4 mm diameter, delivering smooth, precise edges on complex geometries.
- Precise Contouring with Tapered Ball Nose: Achieve smooth, accurate profiles and clean edges on complex molds and dies thanks to refined geometry and the 0.4 mm diameter.
- Durable Carbide Construction: Solid carbide delivers long tool life and excellent heat resistance, maintaining sharpness through cuts in hardened steels and alloys.
- Efficient Chip Evacuation for Sloped Surfaces: The tapered geometry promotes better chip clearance and a superior surface finish on angled or curved regions, even with varying taper angles.
With this end mill, you can tackle fine features and complex cavities in mold and die work with confidence. The compact 0.4 mm diameter reaches tight pockets and delicate transitions, while carbide durability supports repeatable performance across challenging materials, helping you reduce rework and finish parts to exacting standards.
Part Numbers
- Protool Part Number
- UTB502004015
- Brand
- Widin
- Category
- End Mill
Delivery
Free UK mainland delivery on orders over £50 ex VAT. In-stock items ordered before 4:30pm are dispatched the same working day. Full delivery information.
Returns
14-day returns on unused stock items in original packaging. Special-order and bespoke tooling is non-returnable. Read our returns policy.
Technical Support
Over 30 years of machining experience behind the counter. Call 01732 887334, Mon–Thurs 8:30–17:30, Fri 8:30–16:30.
Trade Accounts
Credit accounts, contract pricing and scheduled call-off orders available for trade customers. Apply for an account.
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Widin Carbide End Mill For Mold & Die - 2 Flute Tapered Ball Nose (WTB50)
View full collection →You are viewing UTB502004015. Click any other SKU to view its full details.

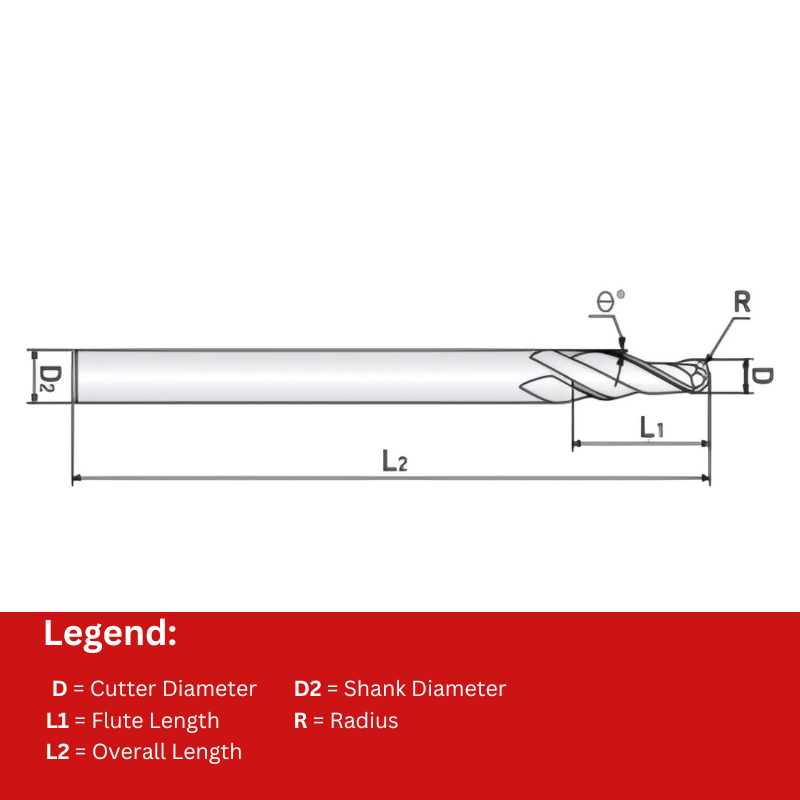

| Product SKU | Cutter Diameter | Number of Flutes | Flute Length | Overall Length | Shank Diameter | Radius | Taper Angle | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|---|
| UTB502003005 | 0.3 | 2 | 1.2 | 40 | 4 | 0.15 | 0.5° | £43.38 | 5 days | |
| UTB50200301 | 0.3 | 2 | 1.2 | 40 | 4 | 0.15 | 1° | £43.38 | 5 days | |
| UTB502003015 | 0.3 | 2 | 1.2 | 40 | 4 | 0.15 | 1.5° | £43.38 | 5 days | |
| UTB50200302 | 0.3 | 2 | 1.2 | 40 | 4 | 0.15 | 2° | £43.38 | 5 days | |
| UTB50200303 | 0.3 | 2 | 1.2 | 40 | 4 | 0.15 | 3° | £43.38 | 5 days | |
| UTB50200305 | 0.3 | 2 | 1.2 | 40 | 4 | 0.15 | 5° | £43.38 | 5 days | |
| UTB50200307 | 0.3 | 2 | 1.5 | 40 | 4 | 0.15 | 7° | £43.38 | 5 days | |
| UTB50200310 | 0.3 | 2 | 1.5 | 40 | 4 | 0.15 | 10° | £43.38 | 5 days | |
| UTB502004005 | 0.4 | 2 | 1.6 | 40 | 4 | 0.2 | 0.5° | £41.05 | 5 days | |
| UTB50200401 | 0.4 | 2 | 1.6 | 40 | 4 | 0.2 | 1° | £41.05 | 5 days | |
| UTB502004015 Viewing | 0.4 | 2 | 1.6 | 40 | 4 | 0.2 | 1.5° | £41.05 | 5 days | |
| UTB50200402 | 0.4 | 2 | 1.6 | 40 | 4 | 0.2 | 2° | £41.05 | 5 days | |
| UTB50200403 | 0.4 | 2 | 1.6 | 40 | 4 | 0.2 | 3° | £41.05 | 5 days | |
| UTB50200405 | 0.4 | 2 | 1.6 | 40 | 4 | 0.2 | 5° | £41.05 | 5 days | |
| UTB50200407 | 0.4 | 2 | 2 | 40 | 4 | 0.2 | 7° | £41.05 | 5 days | |
| UTB50200410 | 0.4 | 2 | 2 | 40 | 4 | 0.2 | 10° | £41.05 | In Stock | |
| UTB50200501 | 0.5 | 2 | 2 | 45 | 4 | 0.25 | 1° | £36.08 | 5 days | |
| UTB502005005 | 0.5 | 2 | 2 | 45 | 4 | 0.25 | 0.5° | £36.08 | 5 days | |
| UTB502005015 | 0.5 | 2 | 2 | 45 | 4 | 0.25 | 1.5° | £36.08 | 5 days | |
| UTB50200502 | 0.5 | 2 | 2 | 45 | 4 | 0.25 | 2° | £36.08 | 5 days | |
| UTB50200503 | 0.5 | 2 | 2 | 45 | 4 | 0.25 | 3° | £36.08 | 5 days | |
| UTB50200507 | 0.5 | 2 | 2.5 | 45 | 4 | 0.25 | 7° | £36.08 | 5 days | |
| UTB50200505 | 0.5 | 2 | 2 | 45 | 4 | 0.25 | 5° | £36.08 | 5 days | |
| UTB50200510 | 0.5 | 2 | 2.5 | 45 | 4 | 0.25 | 10° | £36.08 | 5 days | |
| UTB502006005 | 0.6 | 2 | 2 | 45 | 4 | 0.3 | 0.5° | £36.08 | 5 days | |
| UTB50200601 | 0.6 | 2 | 2 | 45 | 4 | 0.3 | 1° | £36.08 | 5 days | |
| UTB502006015 | 0.6 | 2 | 2 | 45 | 4 | 0.3 | 1.5° | £36.08 | 5 days | |
| UTB50200602 | 0.6 | 2 | 2 | 45 | 4 | 0.3 | 2° | £36.08 | 5 days | |
| UTB50200603 | 0.6 | 2 | 2 | 45 | 4 | 0.3 | 3° | £36.08 | 5 days | |
| UTB50200607 | 0.6 | 2 | 2.5 | 45 | 4 | 0.3 | 7° | £36.08 | 5 days | |
| UTB50200605 | 0.6 | 2 | 2 | 45 | 4 | 0.3 | 5° | £36.08 | 5 days | |
| UTB50200610 | 0.6 | 2 | 2.5 | 45 | 4 | 0.3 | 10° | £36.08 | 5 days | |
| UTB502007005 | 0.7 | 2 | 2.5 | 45 | 4 | 0.35 | 0.5° | £36.08 | 5 days | |
| UTB50200701 | 0.7 | 2 | 2.5 | 45 | 4 | 0.35 | 1° | £36.08 | 5 days | |
| UTB502007015 | 0.7 | 2 | 2.5 | 45 | 4 | 0.35 | 1.5° | £36.08 | 5 days | |
| UTB50200702 | 0.7 | 2 | 2.5 | 45 | 4 | 0.35 | 2° | £36.08 | 5 days | |
| UTB50200707 | 0.7 | 2 | 3 | 45 | 4 | 0.35 | 7° | £36.08 | 5 days | |
| UTB50200703 | 0.7 | 2 | 2.5 | 45 | 4 | 0.35 | 3° | £36.08 | 5 days | |
| UTB50200705 | 0.7 | 2 | 3 | 45 | 4 | 0.35 | 5° | £36.08 | 5 days | |
| UTB50200710 | 0.7 | 2 | 3 | 45 | 4 | 0.35 | 10° | £36.08 | 5 days | |
| UTB50200801 | 0.8 | 2 | 3.2 | 50 | 4 | 0.4 | 1° | £36.08 | 5 days | |
| UTB502008005 | 0.8 | 2 | 3.2 | 50 | 4 | 0.4 | 0.5° | £36.08 | 5 days | |
| UTB50200802 | 0.8 | 2 | 3.2 | 50 | 4 | 0.4 | 2° | £36.08 | 5 days | |
| UTB502008015 | 0.8 | 2 | 3.2 | 50 | 4 | 0.4 | 1.5° | £36.08 | 5 days | |
| UTB50200803 | 0.8 | 2 | 3.2 | 50 | 4 | 0.4 | 3° | £36.08 | 5 days | |
| UTB50200805 | 0.8 | 2 | 3.2 | 50 | 4 | 0.4 | 5° | £36.08 | 5 days | |
| UTB50200807 | 0.8 | 2 | 3.2 | 50 | 4 | 0.4 | 7° | £36.08 | 5 days | |
| UTB50200810 | 0.8 | 2 | 3.2 | 50 | 4 | 0.4 | 10° | £36.08 | 5 days | |
| UTB502010005 | 1 | 2 | 4 | 50 | 4 | 0.5 | 0.5° | £30.45 | 5 days | |
| UTB50201001 | 1 | 2 | 4 | 50 | 4 | 0.5 | 1° | £30.45 | 5 days | |
| UTB502010015 | 1 | 2 | 4 | 50 | 4 | 0.5 | 1.5° | £30.45 | 5 days | |
| UTB50201003 | 1 | 2 | 4 | 50 | 4 | 0.5 | 3° | £30.45 | 5 days | |
| UTB50201002 | 1 | 2 | 4 | 50 | 4 | 0.5 | 2° | £30.45 | 5 days | |
| UTB50201007 | 1 | 2 | 4 | 50 | 4 | 0.5 | 7° | £30.45 | 5 days | |
| UTB50201005 | 1 | 2 | 4 | 50 | 4 | 0.5 | 5° | £30.45 | 5 days | |
| UTB50201010 | 1 | 2 | 4 | 50 | 4 | 0.5 | 10° | £30.45 | 5 days | |
| UTB502015005 | 1.5 | 2 | 6 | 50 | 4 | 0.75 | 0.5° | £30.45 | 5 days | |
| UTB50201501 | 1.5 | 2 | 6 | 50 | 4 | 0.75 | 1° | £30.45 | 5 days | |
| UTB502015015 | 1.5 | 2 | 6 | 50 | 4 | 0.75 | 1.5° | £30.45 | 5 days | |
| UTB50201503 | 1.5 | 2 | 8 | 50 | 4 | 0.75 | 3° | £30.45 | 5 days | |
| UTB50201502 | 1.5 | 2 | 7 | 50 | 4 | 0.75 | 2° | £30.45 | 5 days | |
| UTB50201505 | 1.5 | 2 | 10 | 50 | 4 | 0.75 | 5° | £30.45 | 5 days | |
| UTB50201507 | 1.5 | 2 | 10 | 50 | 4 | 0.75 | 7° | £30.45 | 5 days | |
| UTB50201510 | 1.5 | 2 | 10 | 50 | 6 | 0.75 | 10° | £35.63 | 5 days | |
| UTB502020005 | 2 | 2 | 6 | 50 | 4 | 1 | 0.5° | £30.45 | 5 days | |
| UTB50202001 | 2 | 2 | 6 | 50 | 4 | 1 | 1° | £30.45 | 5 days | |
| UTB502020015 | 2 | 2 | 6 | 50 | 4 | 1 | 1.5° | £30.45 | 5 days | |
| UTB50202003 | 2 | 2 | 10 | 50 | 4 | 1 | 3° | £30.45 | 5 days | |
| UTB50202005 | 2 | 2 | 10 | 50 | 4 | 1 | 5° | £30.45 | 5 days | |
| UTB50202002 | 2 | 2 | 10 | 50 | 4 | 1 | 2° | £30.45 | 5 days | |
| UTB50202010 | 2 | 2 | 11 | 50 | 6 | 1 | 10° | £35.63 | 5 days | |
| UTB50202007 | 2 | 2 | 10 | 50 | 6 | 1 | 7° | £32.48 | 5 days |
