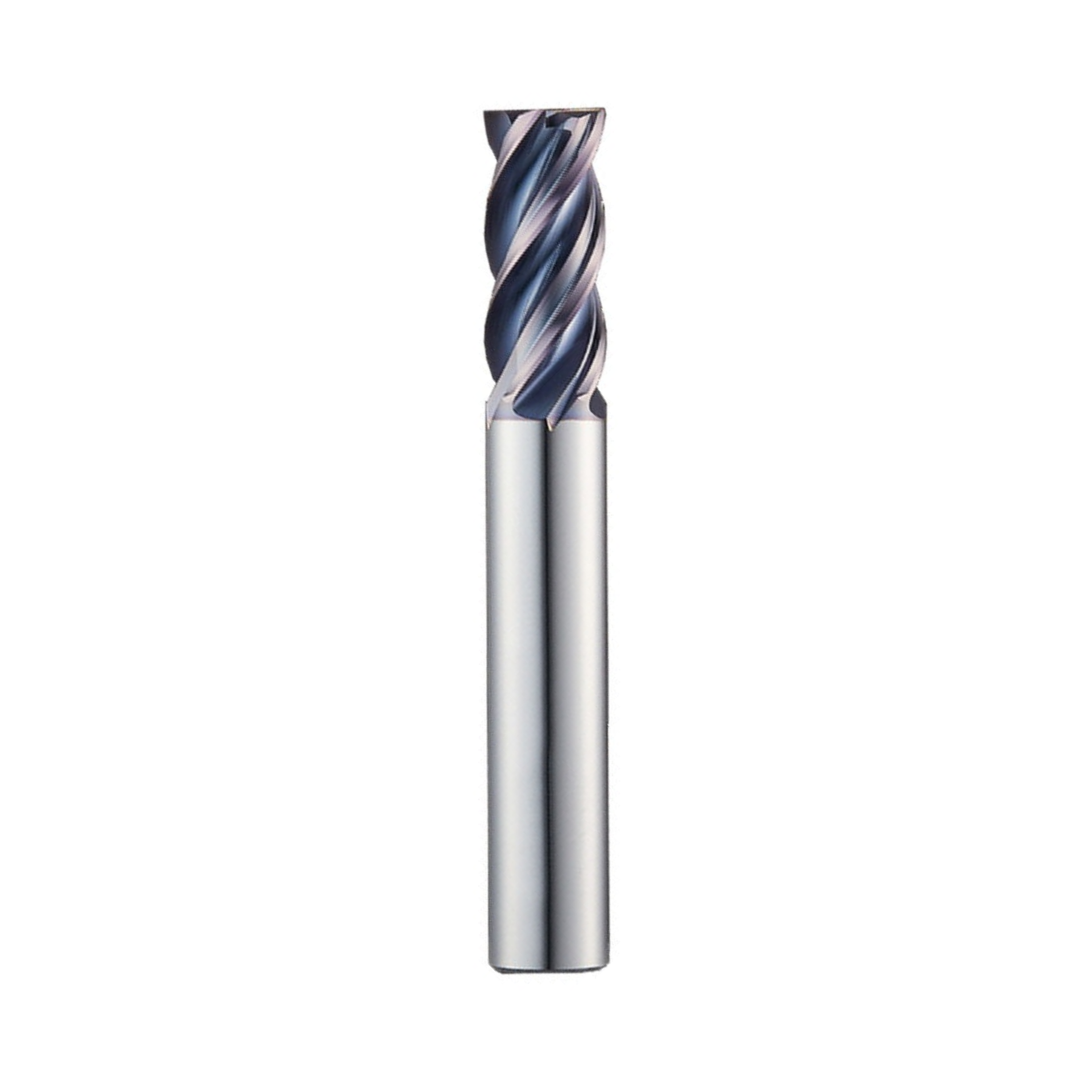

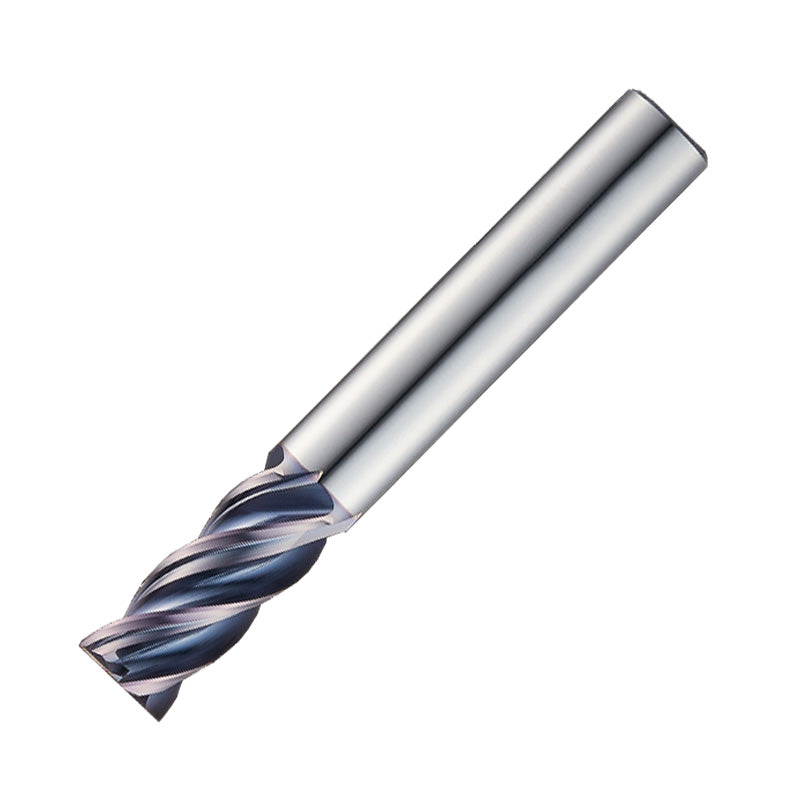

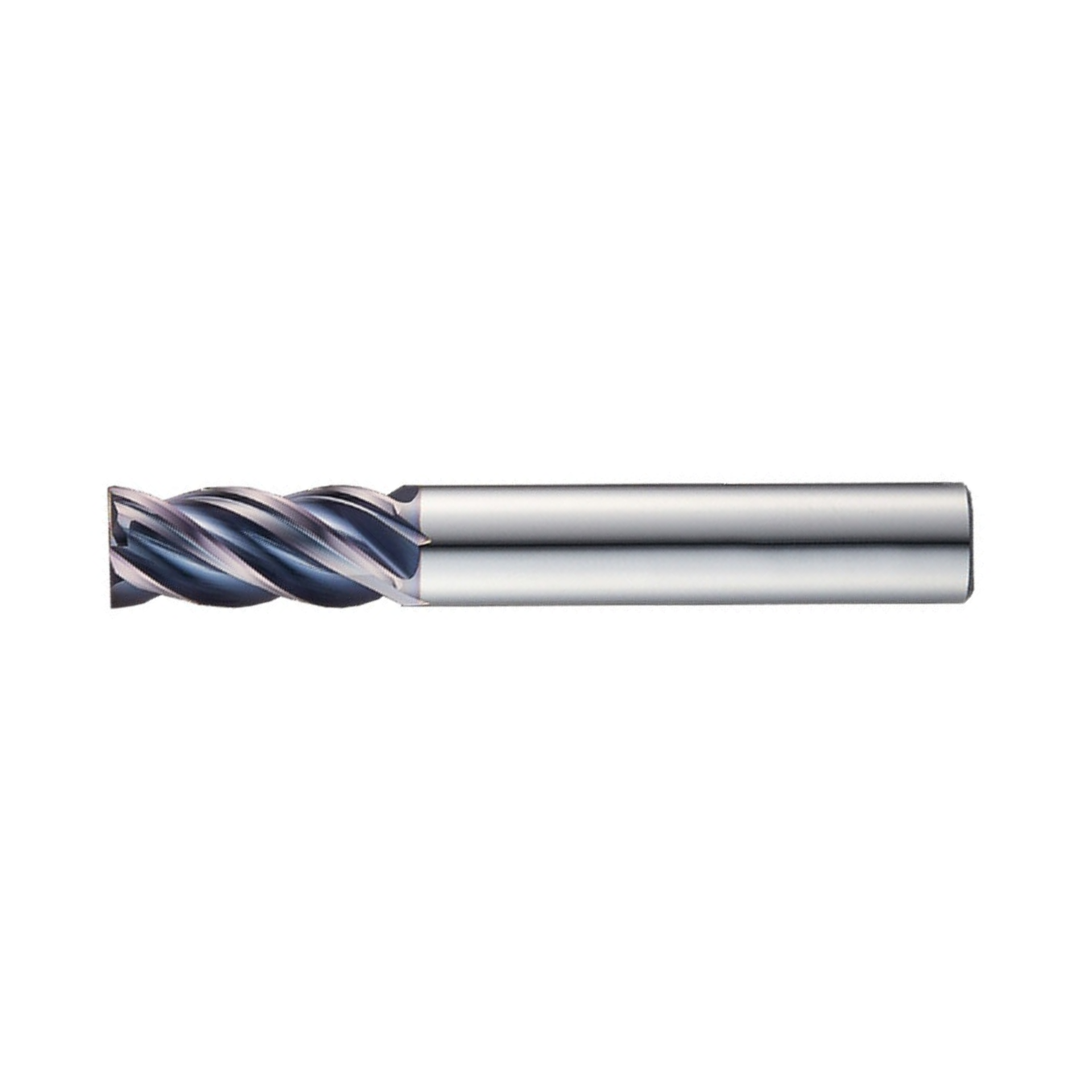

Widin Carbide Corner Radius End Mill For Stainless & Exotics - 4 Flute Variable Helix - 20mm x R5.0
| Cutter Diameter | 20 |
| Number of Flutes | 4 |
| Flute Length | 38 |
| Overall Length | 100 |
| Shank Diameter | 20 |
| Corner Radius | 5 |
Learn more about Klarna
Excellent chip emission and smooth workpiece surface finish by applying unequal index flutes. Excellent wear resistance with high hardness cutting edge. Extend customer choice with various corner R size.
| Cutter Diameter | 20 |
| Number of Flutes | 4 |
| Flute Length | 38 |
| Overall Length | 100 |
| Shank Diameter | 20 |
| Corner Radius | 5 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Widin Carbide Corner Radius End Mill For Stainless & Exotics - 4 Flute Variable Helix (XR514)
View full collection →You are viewing XR5142050. Click any other SKU to view its full details.
| Product SKU | Cutter Diameter | Number of Flutes | Flute Length | Overall Length | Shank Diameter | Corner Radius | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|
| XR5140201 | 2 | 4 | 5 | 45 | 4 | 0.1 | £15.20 | In Stock | |
| XR5140202 | 2 | 4 | 5 | 45 | 4 | 0.2 | £24.60 | In Stock | |
| XR5140302 | 3 | 4 | 8 | 50 | 6 | 0.2 | £21.25 | In Stock | |
| XR5140303 | 3 | 4 | 8 | 50 | 6 | 0.3 | £13.13 | In Stock | |
| XR5140305 | 3 | 4 | 8 | 50 | 6 | 0.5 | £13.13 | In Stock | |
| XR5140403 | 4 | 4 | 10 | 50 | 6 | 0.3 | £13.13 | In Stock | |
| XR5140405 | 4 | 4 | 10 | 50 | 6 | 0.5 | £21.25 | In Stock | |
| XR5140410 | 4 | 4 | 10 | 50 | 6 | 1 | £13.13 | In Stock | |
| XR5140505 | 5 | 4 | 13 | 50 | 6 | 0.5 | £23.66 | In Stock | |
| XR5140510 | 5 | 4 | 13 | 50 | 6 | 1 | £14.62 | In Stock | |
| XR5140605 | 6 | 4 | 13 | 50 | 6 | 0.5 | £14.62 | In Stock | |
| XR5140610 | 6 | 4 | 13 | 50 | 6 | 1 | £14.62 | In Stock | |
| XR5140615 | 6 | 4 | 13 | 50 | 6 | 1.5 | £14.62 | In Stock | |
| XR5140805 | 8 | 4 | 19 | 60 | 8 | 0.5 | £31.08 | In Stock | |
| XR5140810 | 8 | 4 | 19 | 60 | 8 | 1 | £19.21 | In Stock | |
| XR5140815 | 8 | 4 | 19 | 60 | 8 | 1.5 | £19.21 | In Stock | |
| XR5140820 | 8 | 4 | 19 | 60 | 8 | 2 | £19.21 | In Stock | |
| XR5141005 | 10 | 4 | 22 | 70 | 10 | 0.5 | £43.77 | 5 days | |
| XR5141010 | 10 | 4 | 22 | 70 | 10 | 1 | £27.05 | In Stock | |
| XR5141015 | 10 | 4 | 22 | 70 | 10 | 1.5 | £27.05 | In Stock | |
| XR5141020 | 10 | 4 | 22 | 70 | 10 | 2 | £43.77 | In Stock | |
| XR5141205 | 12 | 4 | 26 | 75 | 12 | 0.5 | £63.60 | 5 days | |
| XR5141210 | 12 | 4 | 26 | 75 | 12 | 1 | £63.61 | In Stock | |
| XR5141215 | 12 | 4 | 26 | 75 | 12 | 1.5 | £39.31 | In Stock | |
| XR5141220 | 12 | 4 | 26 | 75 | 12 | 2 | £63.61 | 5 days | |
| XR5141230 | 12 | 4 | 26 | 75 | 12 | 3 | £39.31 | In Stock | |
| XR5141615 | 16 | 4 | 32 | 90 | 16 | 1.5 | £111.71 | In Stock | |
| XR5141620 | 16 | 4 | 32 | 90 | 16 | 2 | £180.75 | In Stock | |
| XR5141630 | 16 | 4 | 32 | 90 | 16 | 3 | £111.71 | In Stock | |
| XR5142030 | 20 | 4 | 38 | 100 | 20 | 3 | £192.93 | In Stock | |
| XR5142040 | 20 | 4 | 38 | 100 | 20 | 4 | £327.82 | 5 days | |
| XR5142050 Viewing | 20 | 4 | 38 | 100 | 20 | 5 | £212.71 | In Stock |
No products match your filters.
