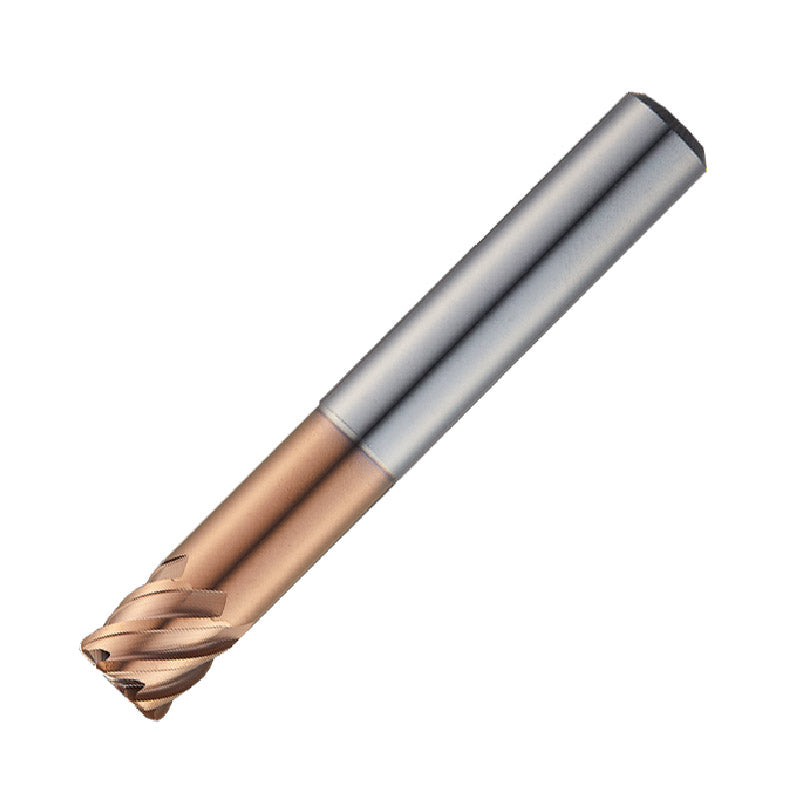

Widin Carbide Corner Radius End Mill - 6 Flute Neck Type - 8mm x 24mm x R1.0

Widin's Carbide Corner Radius End Mill is a precision cutting tool built for machinists and shops tackling hard materials. The 8 mm diameter, 24 mm length, 6‑flute neck‑type end mill delivers clean corners and smooth radii for intricate pocketing, profiling, and contouring tasks.

• Diameter: 8 mm
• Length: 24 mm (working length) — designed to reach tight features with stability
• Corner radius: R1.0
• Flutes: 6‑flute geometry for efficient material removal and improved surface finish
• Neck type: Neck‑type design provides extra reach and reduced deflection in tall pockets
• Material: Solid carbide for hardness, wear resistance, and consistent performance
• Series: ZR704 family offers multiple corner radii and effective lengths for flexible machining

This end mill is designed to maintain accuracy on hard workpieces, enabling you to cut sharp corners or refined radii in a single pass. The carbide construction supports enduring edge life under demanding cuts, while the neck geometry enhances stability during deep or narrow cavity operations. Ideal for die/mold work, aerospace components, automotive parts, and other precision applications where consistent geometry matters.
