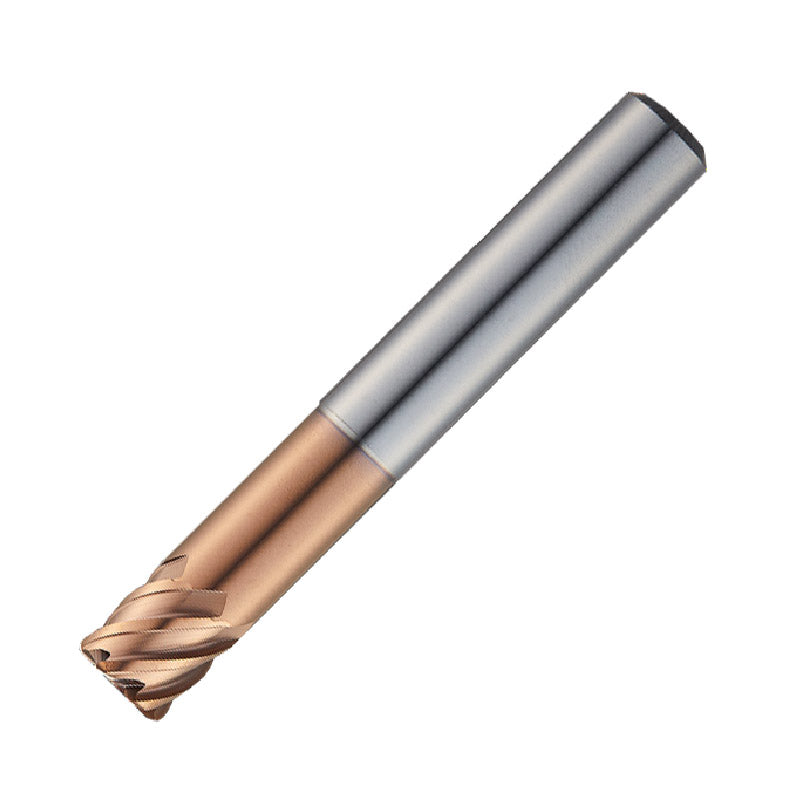

Widin Carbide Corner Radius End Mill - 6 Flute Neck Type - 10mm x 30mm x R0.5

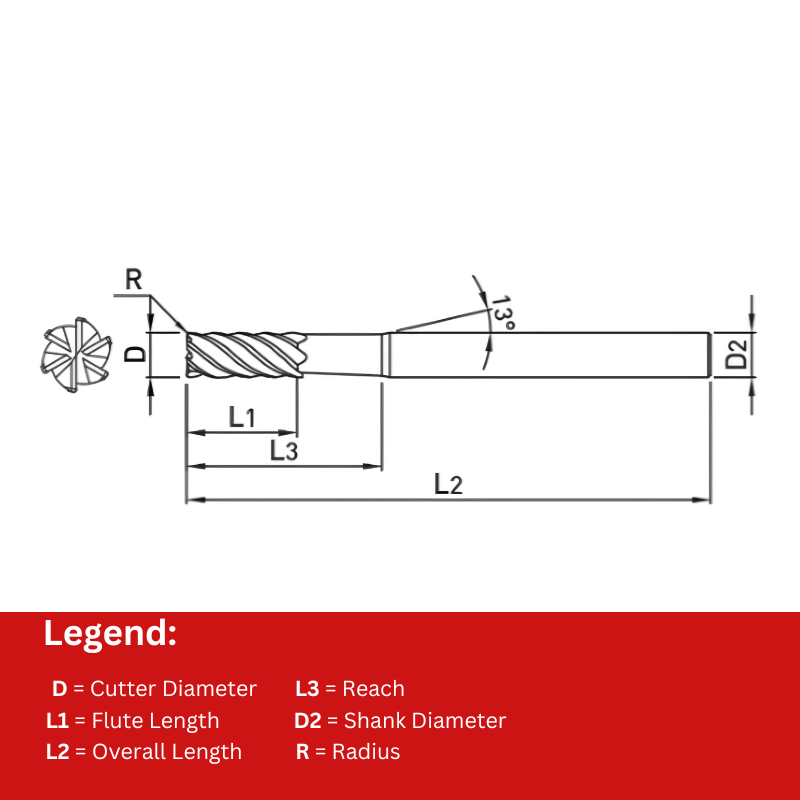

| Cutter Diameter | 10 |
| Number of Flutes | 6 |
| Flute Length | 10 |
| Overall Length | 70 |
| Shank Diameter | 10 |
| Reach | 30 |
Learn more about Klarna
The Widin Carbide Corner Radius End Mill is a precision cutting tool designed for machinists working with hard materials. With a 10 mm diameter, 30 mm length, and a neck-type design, it delivers clean corners and controlled radii across demanding milling tasks.
- Diameter: 10 mm
- Overall length: 30 mm
- Corner radius: R0.5
- Flute count: 6-flute design for efficient material removal and a smooth finish
- Neck-type design: Enhanced reach and rigidity for cutting in narrow pockets and contours
- Material: Carbide for exceptional hardness resistance and long tool life
- Model/Series: ZR704, offering a reliable, purpose-built end mill family for precision radii work
This end mill is engineered to handle high-hardness workpieces with consistency, enabling both sharp corners and precise radii. The 6-flute configuration provides efficient chip evacuation and a stable cutting action, while the carbide construction delivers wear resistance for extended performance in demanding materials. The neck-type geometry supports deeper reach without sacrificing rigidity, making it suitable for pocketing, contouring, and finishing tasks where accurate corner radii matter.
| Cutter Diameter | 10 |
| Number of Flutes | 6 |
| Flute Length | 10 |
| Overall Length | 70 |
| Shank Diameter | 10 |
| Reach | 30 |
| Corner Radius | 0.5 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Widin Carbide Corner Radius End Mill - 6 Flute Neck Type (ZR706)
View full collection →You are viewing ESR7061000530. Click any other SKU to view its full details.
| Product SKU | Cutter Diameter | Number of Flutes | Flute Length | Overall Length | Shank Diameter | Reach | Corner Radius | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|---|
| ESR7060600314 | 6 | 6 | 6 | 50 | 6 | 14 | 0.3 | £43.18 | 5 days | |
| ESR7061000530 Viewing | 10 | 6 | 10 | 70 | 10 | 30 | 0.5 | £78.85 | 5 days | |
| ESR7060801024 | 8 | 6 | 8 | 60 | 8 | 24 | 1 | £56.40 | 5 days | |
| ESR7060800524 | 8 | 6 | 8 | 60 | 8 | 24 | 0.5 | £56.40 | 5 days | |
| ESR7061001030 | 10 | 6 | 10 | 70 | 10 | 30 | 1 | £78.85 | 5 days | |
| ESR7061200530 | 12 | 6 | 12 | 75 | 12 | 30 | 0.5 | £112.49 | 5 days | |
| ESR7060600514 | 6 | 6 | 6 | 50 | 6 | 14 | 0.5 | £43.18 | 5 days | |
| ESR7061201030 | 12 | 6 | 12 | 75 | 12 | 30 | 1 | £112.49 | 5 days |
