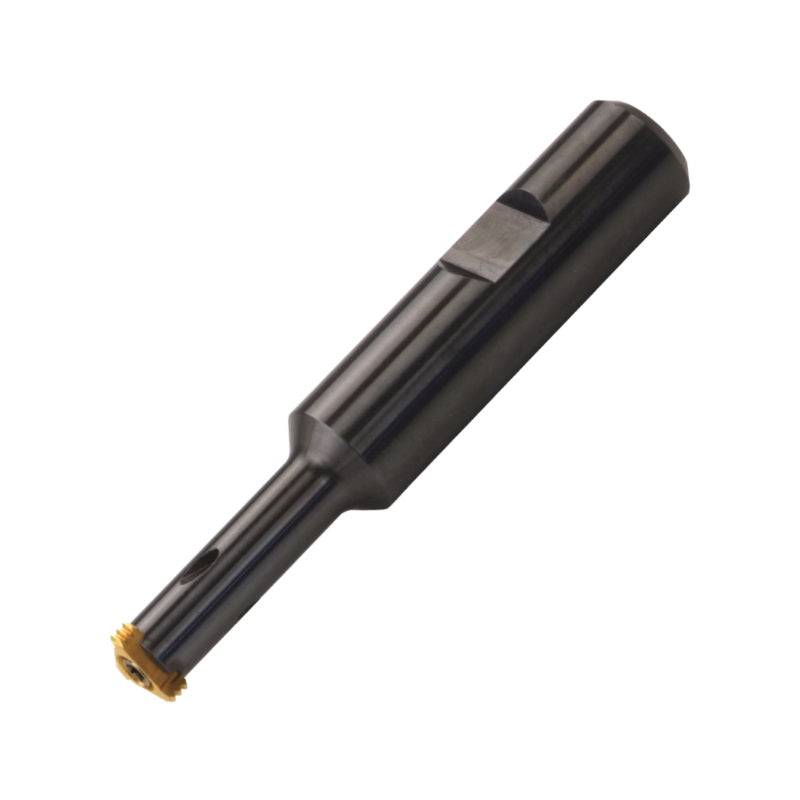

Carmex Steel Toolholders With Internal Coolant For CMT Inserts

Vertical milling indexable inserts and tool holders to perform a wide variety of threads, grooves, chamfers and more. Advantages of CMT - Vertical Mill-Thread: Ground profile inserts for high precision and excellent performance. Working at high machining parameters, with high surface quality. Solid and accurate clamping method enables full repeatability. Same insert for right-hand or left-hand threads. Toolholders include weldon shank and coolant bore. Chamfer inserts are also available.

Starting from
£100.68
inc. VAT
In this range
18
products
In stock now
8
ready to dispatch
Browse all 18 products

Click any SKU to view full product details, specifications and datasheets.

Product SKU Insert Size Shank Diameter Reach Overall Length Tool No Neck Diameter Insert Screw Torx Key Price Stock Order
SRC1210E C10 12 19 70 H1.1 7.3 S5 K5 £100.68 5 days
SRC1210F C10 12 25 80 H3 8 S5 K5 £100.68 5 days
SRC1212E C12 or S17 12 25 70 H3.1 9.0 S10 K10 £100.68 5 days
SRC1212G C12 or S17 12 40 90 H2 10 S10 K10 £100.68 5 days
SRC1610G C10 16 19 90 H4 7.3 S5 K5 £100.68 5 days
SRC1612G C12 or S17 16 25 90 H5 9.0 S10 K10 £100.68 In Stock
SRC1612H C12 or S17 16 35 100 H6 9.0 S10 K10 £110.78 5 days
SRC1618H C18 or S20 16 48 100 H7 13.8 S16 K16 £113.30 5 days
SRC2018H C18 or S20 20 32 100 H8 13.8 S16 K16 £113.30 5 days
SRC2018J C18 or S20 20 48 110 H9 13.8 S16 K16 £115.90 In Stock
SRC2018L C18 or S20 20 74 140 H12 13.8 S16 K16 £132.06 In Stock
SRC2035K S35 20 44 130 H10 22 S33 K33 £173.88 In Stock
SRC2525J C25 25 45 115 H11 17.5 S27 K27 £158.08 In Stock
SRC2525M C25 25 80 150 H19 17.5 S27 K27 £173.88 5 days
SRC2535H S35 25 40 100 H20 22 S33 K33 £158.08 In Stock
SRC2535K S35 25 60 130 H5.1 22 S33 K33 £173.88 In Stock
SRC1618F C18 or S20 16 25 80 H5.2 12 S16 K16 £113.30 In Stock
SRC1618G C18 or S20 16 40 90 Tool No 12 S16 K16 £113.30 5 days
