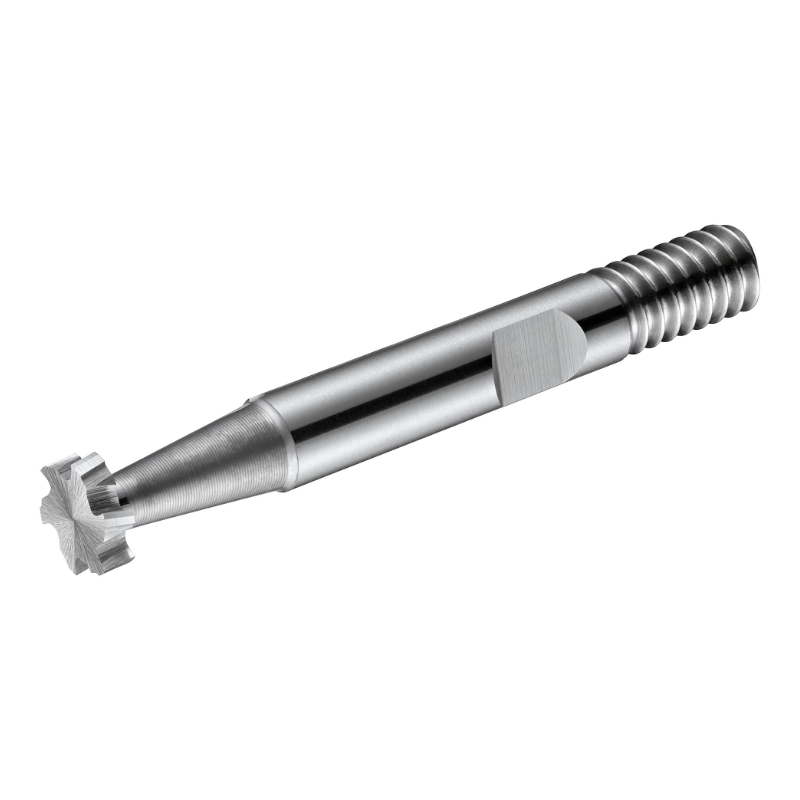

Dormer Pramet C822 HSS-E Screwed Shank Woodruff Cutters DIN 850
Our high-performance Woodruff cutters, manufactured to DIN 85 standards, are designed for precise keyway milling in a variety of materials, including steel, cast steel, stainless steel, cast iron, non-ferrous metals, and high-temperature alloys. Made from cobalt-based HSS-E with a bright finish, these cutters offer excellent wear resistance and durability. Featuring a 10° helix and 10° rake angle, they provide smooth cutting action and efficient chip evacuation. Available in multiple diameters and widths of cut, they come with a 6mm combi shank, including a Weldon flat and thread, ensuring secure tool holding for optimal performance.
Click any SKU to view full product details, specifications and datasheets.
| Product SKU | Cutter Diameter (DC) | Number Of Flutes | Flute Length | Overall Length (OAL) | Shank Diameter (DCON MS) | Groove Width (APMX) | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|
| DOR-C8224.5X1.0 | 4.5 | 6 | 50 | 50 | 6 | 1 | £103.27 | 2 days |
|
| DOR-C8227.5X1.5 | 7.5 | 6 | 50 | 50 | 6 | 1.5 | £84.97 | 2 days |
|
| DOR-C8227.5X2.0 | 7.5 | 6 | 50 | 50 | 6 | 2 | £84.97 | 2 days |
|
| DOR-C82210.5X2.0 | 10.5 | 8 | 50 | 50 | 6 | 2 | £78.43 | 2 days |
|
| DOR-C82210.5X2.5 | 10.5 | 8 | 50 | 50 | 6 | 2.5 | £78.43 | 2 days |
|
| DOR-C82210.5X3.0 | 10.5 | 8 | 50 | 50 | 6 | 3 | £78.43 | 2 days |
|
| DOR-C82213.5X3.0 | 13.5 | 8 | 56 | 56 | 10 | 3 | £88.89 | 2 days |
|
| DOR-C82213.5X4.0 | 13.5 | 8 | 56 | 56 | 10 | 4 | £88.89 | 2 days |
|
| DOR-C82216.5X3.0 | 16.5 | 8 | 56 | 56 | 10 | 3 | £101.31 | 2 days |
|
| DOR-C82216.5X4.0 | 16.5 | 8 | 56 | 56 | 10 | 4 | £101.31 | 2 days |
|
| DOR-C82216.5X5.0 | 16.5 | 8 | 56 | 56 | 10 | 5 | £101.31 | 2 days |
|
| DOR-C82219.5X3.0 | 19.5 | 10 | 63 | 63 | 10 | 3 | £115.03 | 2 days |
|
| DOR-C82219.5X4.0 | 19.5 | 10 | 63 | 63 | 10 | 4 | £115.03 | 2 days |
|
| DOR-C82219.5X5.0 | 19.5 | 10 | 63 | 63 | 10 | 5 | £115.03 | 2 days |
|
| DOR-C82222.5X5.0 | 22.5 | 10 | 63 | 63 | 10 | 5 | £130.72 | 2 days |
|
| DOR-C82222.5X6.0 | 22.5 | 10 | 63 | 63 | 10 | 6 | £130.72 | 2 days |
|
| DOR-C82222.5X8.0 | 22.5 | 10 | 63 | 63 | 10 | 8 | £130.72 | 2 days |
|
| DOR-C82225.5X6.0 | 25.5 | 12 | 63 | 63 | 10 | 6 | £149.02 | 2 days |
|
| DOR-C82228.5X6.0 | 28.5 | 12 | 63 | 63 | 10 | 6 | £172.55 | 2 days |
|
| DOR-C82228.5X8.0 | 28.5 | 12 | 63 | 63 | 10 | 8 | £172.55 | 2 days |
|
| DOR-C82228.5X10.0 | 28.5 | 12 | 71 | 71 | 12 | 10 | £173.86 | 2 days |
|
| DOR-C82232.5X8.0 | 32.5 | 12 | 71 | 71 | 12 | 8 | £198.69 | 2 days |
|
| DOR-C82232.5X10.0 | 32.5 | 12 | 71 | 71 | 12 | 10 | £200.66 | 2 days |
|
| DOR-C82245.5X10.0 | 45.5 | 12 | 71 | 71 | 12 | 10 | £277.13 | 2 days |
|
