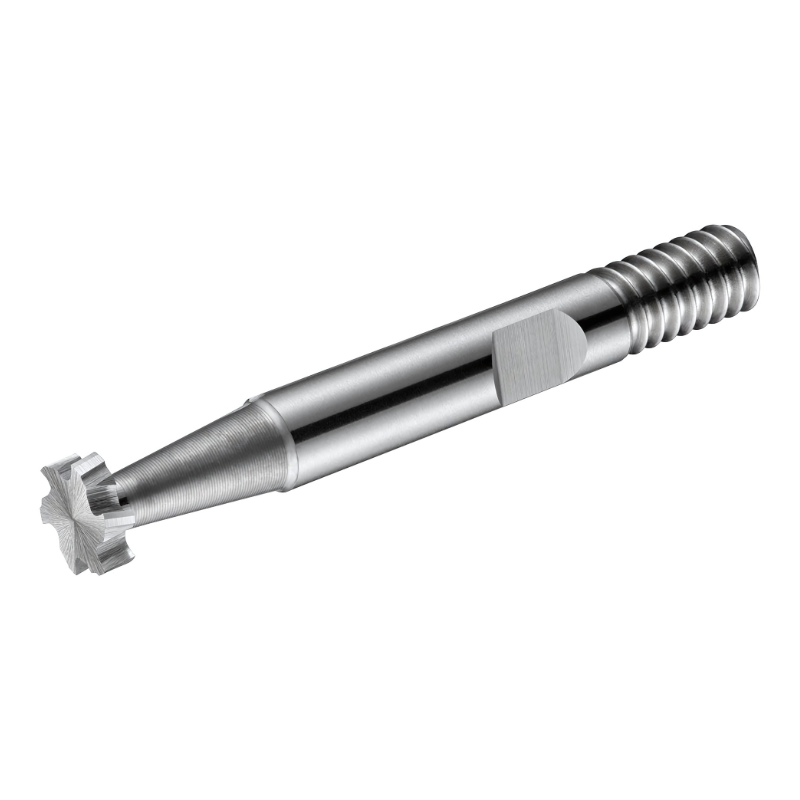

Dormer Pramet C822 19.5mm x 3.mm HSS-E Screwed Shank Woodruff Cutter DIN 850

The Dormer Pramet C822 Woodruff Cutter is a precision single-tooth milling solution designed for accurate keyway creation in steel and a range of other metals. Crafted with a cobalt-based HSS-E core and a bright finish, it delivers dependable performance in demanding machining environments.

• Diameter: 19.5 mm
• Width of cut: 3.0 mm
• Overall length: 63 mm
• Tooth count: 1
• Material: Cobalt-based high-speed steel (HSS-E)
• Finish: Bright finish
• Shank: 10 mm combi shank with Weldon flat and thread
• DIN standard: DIN 850
• Helix angle: 10°
• Rake angle: 10°
• Application: Keyway milling in steel, stainless steel, cast iron, non-ferrous metals, and high-temperature alloys

With its 1-tooth geometry, this Woodruff cutter delivers clean, predictable chip formation and precise keyway slots, minimizing burrs and reducing finishing passes. The cobalt-based HSS-E composition provides enhanced wear resistance and toughness for demanding materials, including stainless steels and high-temperature alloys. A 10° helix and 10° rake angle optimize cutting forces and chip evacuation, promoting smoother operation and stable feeds. The 10 mm combi shank with Weldon flat and threading secures reliable seating in compatible holders, supporting stable milling even at higher feeds. DIN 850 compliance ensures compatibility with standard toolholders, making integration into existing setups straightforward. This tool is ideal for gear keys, pulleys, and shaft keyways where accurate, consistent results matter.
