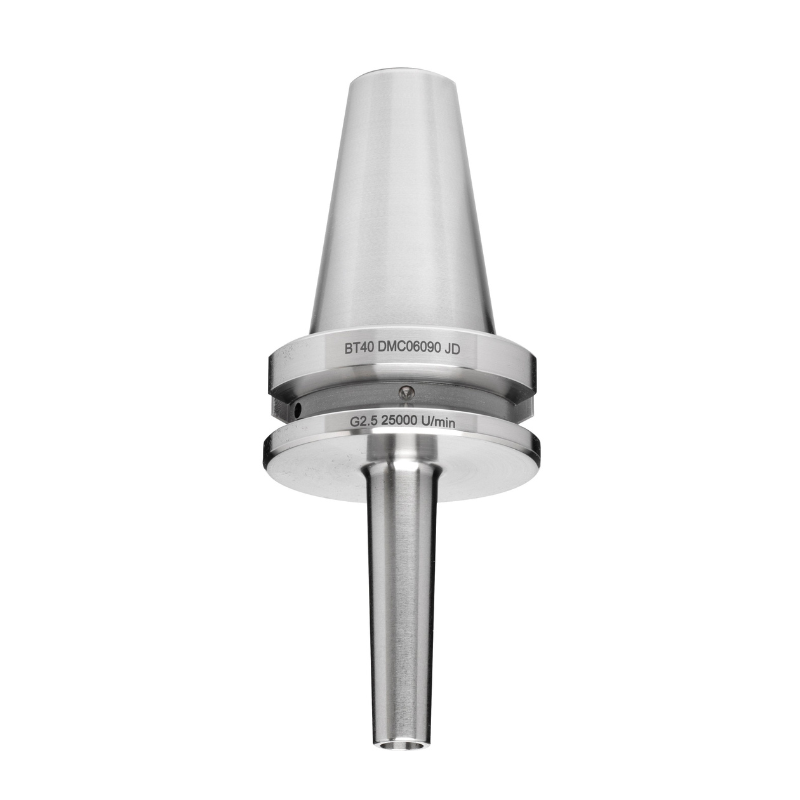

Omega Products BT40 DMC Collet Chuck - DMC06 - 25,000RPM - G2.5 - 120mm Gauge Length

Omega Products BT40 DMC Collet Chucks - 25,000RPM - G2.5


From
£91.42
View Products
Need Help?
Contact Sales

BT40 DMC Collet Chucks are designed to provide precise and reliable tool holding for BT40 spindle systems. With a maximum speed of 25,000 RPM, these collet chucks offer high-speed machining capabilities for a wide range of applications. The G2.5 precision rating ensures minimal runout, allowing for accurate and consistent machining results. The DMC (Double-Margin Collet) design provides enhanced gripping force and improved concentricity, resulting in superior cutting performance and surface finish.


Product SKU Taper Collet Size Gauge Length Nose Diameter Clamping Range Angle Balance Price Stock
OM32293 BT40 DMC06 120 13 3-6 3 G2.5@25000RPM £103.00 19
OM32294 BT40 DMC06 160 13 3-6 3 G2.5@25000RPM £108.79 11
OM32291 BT40 DMC06 60 13 3-6 3 G2.5@25000RPM £91.42 10
OM32292 BT40 DCM06 90 13 3-6 3 G2.5@25000RPM £91.42 23
OM32296 BT40 DMC08 120 22 3-8 3 G2.5@25000RPM £103.00 15
OM32295 BT40 DMC08 90 22 3-8 3 G2.5@25000RPM £91.42 13
OM32298 BT40 DMC10 120 28 3-10 3 G2.5@25000RPM £103.00 21
OM32297 BT40 DMC10 90 28 3-10 3 G2.5@25000RPM £91.42 10
