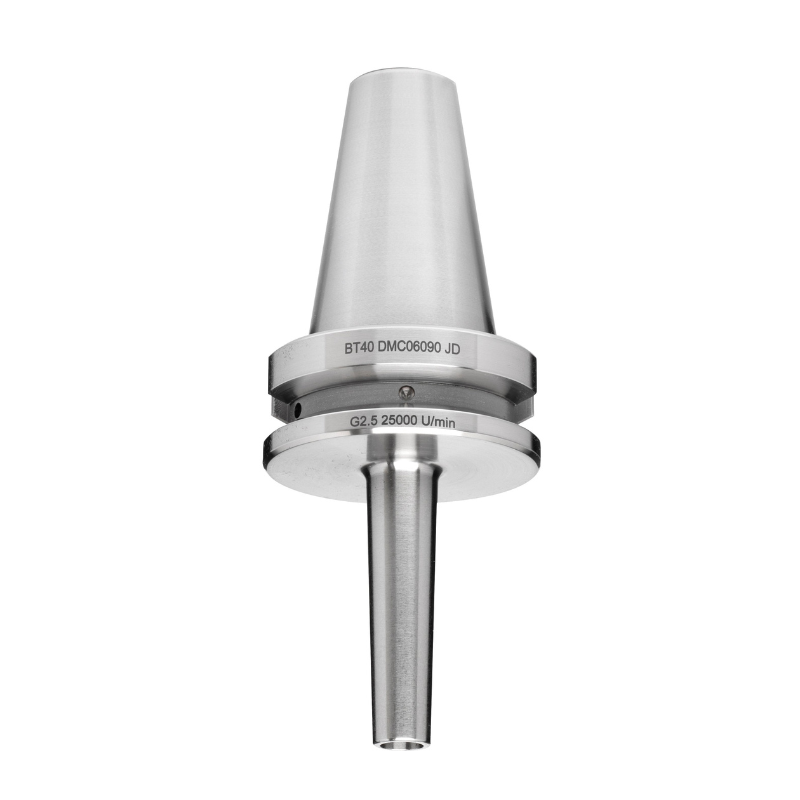

Omega Products BT40 DMC Collet Chuck - DMC06 - 25,000RPM - G2.5 - 160mm Gauge Length
| Taper | BT40 |
| Collet Size | DMC06 |
| Gauge Length (L) | 160 |
| Nose Diameter (D1) | 13 |
| Clamping Range | 3-6 |
| Angle | 3 |
Learn more about Klarna
Omega BT40 DMC Collet Chuck (DMC06) is a precision tool holder designed for BT40 spindle systems. It targets engineers, machinists, and fabrication professionals who require reliable, high-speed tool holding for a wide range of milling tasks. With a maximum speed of 25,000 RPM and a 160 mm gauge length, it delivers stable performance and versatility, while the DMC (Double-Margin Collet) design and G2.5 precision rating minimize runout for consistent cutting quality.
- High-speed machining ready: Engineered for up to 25,000 RPM, this collet chuck maintains tool centering at speed, enabling faster cycles without sacrificing precision.
- Double-Margin Collet (DMC) gripping for true concentricity: The DMC design provides stronger grip and improved concentricity, reducing runout and delivering cleaner finishes across a range of materials.
- G2.5 precision for repeatable accuracy: Tight G2.5 tolerances ensure minimal runout and consistent results across setups, supporting tight tolerances and longer tool life.
With the BT40 DMC Collet Chuck, you gain secure, reliable tool alignment that helps reduce scrap and rework while delivering repeatable, high-quality milling results. The 160 mm gauge length adds rigidity for longer tools and heavier cuts, making this chuck a dependable choice for job shops, contract manufacturers, and fabrication teams that value consistent performance and long-term reliability on BT40 spindles.
| Taper | BT40 |
| Collet Size | DMC06 |
| Gauge Length (L) | 160 |
| Nose Diameter (D1) | 13 |
| Clamping Range | 3-6 |
| Angle | 3 |
| Balance | G2.5@25000RPM |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Omega Products BT40 DMC Collet Chucks - 25,000RPM - G2.5
View full collection →You are viewing OM32294. Click any other SKU to view its full details.
| Product SKU | Collet Size | Gauge Length (L) | Nose Diameter (D1) | Clamping Range | Angle | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| OM32293 | DMC06 | 120 | 13 | 3-6 | 3 | £105.06 | In Stock | |
| OM32294 Viewing | DMC06 | 160 | 13 | 3-6 | 3 | £110.97 | In Stock | |
| OM32291 | DMC06 | 60 | 13 | 3-6 | 3 | £93.25 | In Stock | |
| OM32292 | DCM06 | 90 | 13 | 3-6 | 3 | £93.25 | In Stock | |
| OM32296 | DMC08 | 120 | 22 | 3-8 | 3 | £105.06 | In Stock | |
| OM32295 | DMC08 | 90 | 22 | 3-8 | 3 | £93.25 | In Stock | |
| OM32298 | DMC10 | 120 | 28 | 3-10 | 3 | £105.06 | In Stock | |
| OM32297 | DMC10 | 90 | 28 | 3-10 | 3 | £93.25 | In Stock |
