Omega Products BT40 DMC Collet Chuck - DMC06 - 25,000RPM - G2.5 - 60mm Gauge Length
| Taper | BT40 |
| Collet Size | DMC06 |
| Gauge Length (L) | 60 |
| Nose Diameter (D1) | 13 |
| Clamping Range | 3-6 |
| Angle | 3 |
Learn more about Klarna

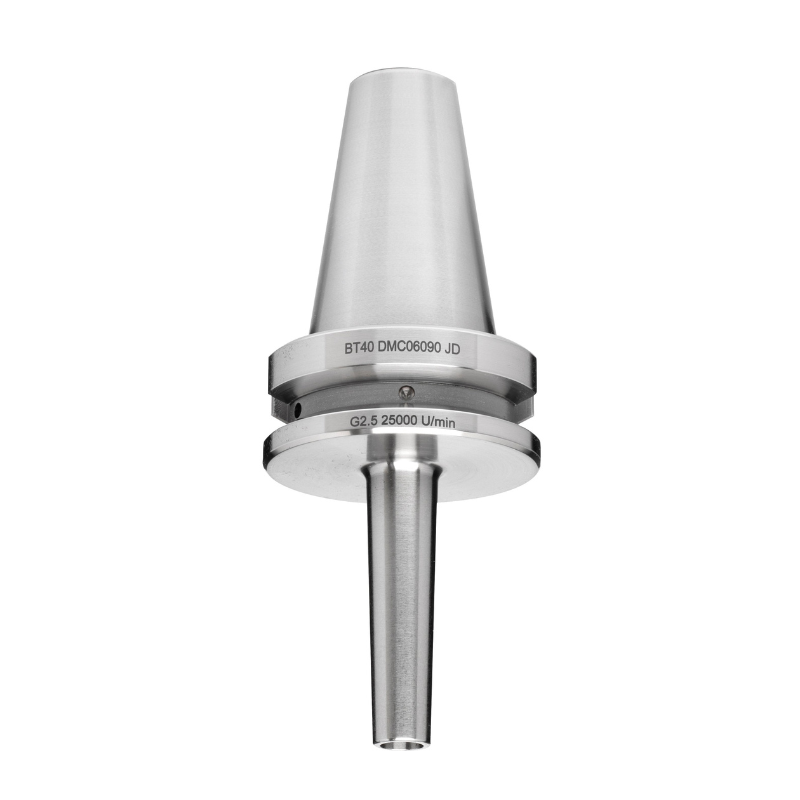

The Omega BT40 DMC Collet Chuck (DMC06) is a precision tool holder designed for BT40 spindle systems. It provides secure tool retention and reliable performance in high-speed milling and drilling tasks.
With a maximum speed of 25,000 RPM and a G2.5 precision rating, it delivers tight runout and repeatable results. The DMC (Double-Margin Collet) design provides enhanced gripping force and improved concentricity, while the 60mm gauge length helps maintain stiffness and balance during demanding cuts.
- Ultra-precise runout control: G2.5 tolerance minimizes runout for accurate, repeatable machining and superior surface finishes.
- Enhanced grip and concentricity with DMC: Double-Margin Collet design delivers stronger clamping and tighter concentricity, reducing tool slip and improving part quality.
- BT40 compatibility at high speed: Designed for BT40 spindles and up to 25,000 RPM, with a 60mm gauge length for rigid, dependable toolholding in a variety of materials and applications.
This combination of precision, strength, and speed helps you streamline workflows, reduce setup and rework, and achieve consistent, high-quality results across a wide range of machining tasks.
| Taper | BT40 |
| Collet Size | DMC06 |
| Gauge Length (L) | 60 |
| Nose Diameter (D1) | 13 |
| Clamping Range | 3-6 |
| Angle | 3 |
| Balance | G2.5@25000RPM |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Omega Products BT40 DMC Collet Chucks - 25,000RPM - G2.5
View full collection →You are viewing OM32291. Click any other SKU to view its full details.
| Product SKU | Collet Size | Gauge Length (L) | Nose Diameter (D1) | Clamping Range | Angle | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| OM32293 | DMC06 | 120 | 13 | 3-6 | 3 | £105.06 | In Stock | |
| OM32294 | DMC06 | 160 | 13 | 3-6 | 3 | £110.97 | In Stock | |
| OM32291 Viewing | DMC06 | 60 | 13 | 3-6 | 3 | £93.25 | In Stock | |
| OM32292 | DCM06 | 90 | 13 | 3-6 | 3 | £93.25 | In Stock | |
| OM32296 | DMC08 | 120 | 22 | 3-8 | 3 | £105.06 | In Stock | |
| OM32295 | DMC08 | 90 | 22 | 3-8 | 3 | £93.25 | In Stock | |
| OM32298 | DMC10 | 120 | 28 | 3-10 | 3 | £105.06 | In Stock | |
| OM32297 | DMC10 | 90 | 28 | 3-10 | 3 | £93.25 | In Stock |
