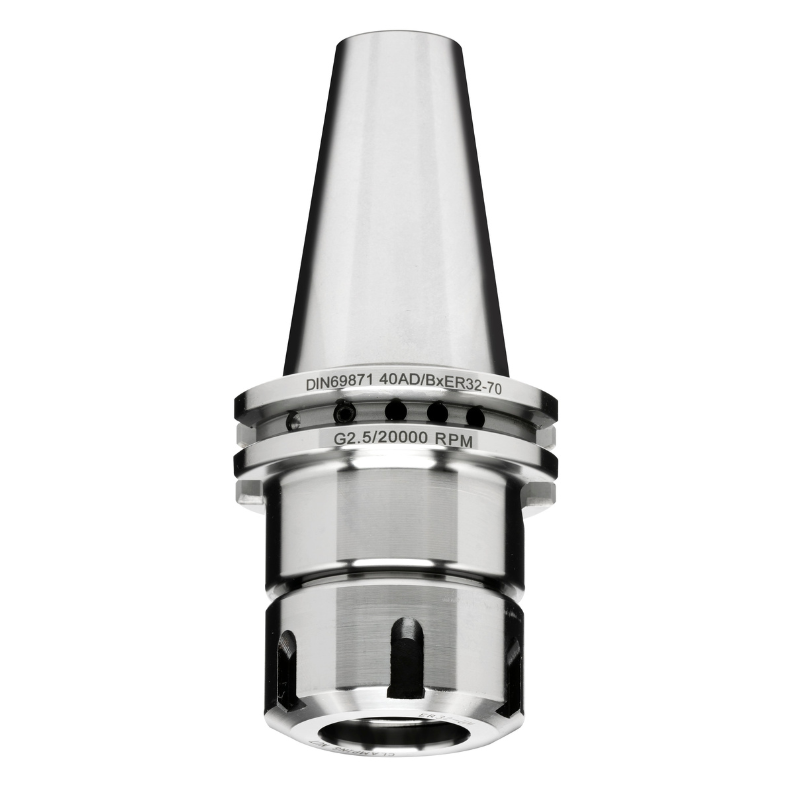

Omega Products DV40 ER Collet Chuck ER16 - 20,000RPM - G2.5 - DIN69871 - 70mm Gauge Length - Form AD

Omega Products DV40 ER Collet Chucks - 15,000RPM - 25,000RPM - G2.5/G6.3 - DIN69871


From
£26.97
View Products
Need Help?
Contact Sales

With a speed range of 15,000 to 25,000 RPM, these collet chucks offer excellent versatility and adaptability to meet various machining requirements. They conform to the DIN69871 standard, ensuring compatibility with DV40 spindle systems. These mini collet chucks are available in two precision balance ratings, G2.5 and G6.3, allowing users to choose the level of accuracy needed for their specific machining tasks. The ER collet system employed by these chucks provides superior gripping force and concentricity, ensuring secure tool holding during high-speed operations. The compact design of the DV40 Mini ER Collet Chucks allows for better access in tight machining spaces, making them suitable for applications where space is limited.


Product SKU Taper Collet Size Gauge Length Form Balance Price Stock
OM31180 DV40 ER16 70 AD G2.5@20000RPM £26.97 316
OM31706 DV40 ER16 70 AD/B G2.5@25000RPM £39.35 15
OM31179 DV40 ER16 100 AD G2.5@20000RPM £30.34 151
OM31707 DV40 ER16 100 AD/B G2.5@25000RPM £42.82 16
OM31708 DV40 ER16 120 AD/B G2.5@25000RPM £50.92 24
OM31447 DV40 ER16 160 AD G2.5@20000RPM £54.39 44
OM31709 DV40 ER16 160 AD/B G2.5@25000RPM £64.81 16
OM31710 DV40 ER16 200 AD/B G2.5@25000RPM £96.06 6
OM31568 DV40 ER20 70 AD G6.3@15000RPM £26.97 9
OM31569 DV40 ER20 100 AD G6.3@15000RPM £30.34 3
OM31570 DV40 ER20 160 AD G6.3@15000RPM £60.18 12
OM31184 DV40 ER25 70 AD G2.5@20000RPM £26.97 224
OM31711 DV40 ER25 70 AD/B G2.5@25000RPM £39.35 26
OM31181 DV40 ER25 100 AD G2.5@20000RPM £30.34 54
OM31712 DV40 ER25 100 AD/B G2.5@25000RPM £42.82 22
OM31713 DV40 ER25 120 AD/B G2.5@25000RPM £50.92 10
OM31182 DV40 ER25 150 AD G2.5@20000RPM £54.39 13
OM31714 DV40 ER25 160 AD/B G2.5@25000RPM £64.81 7
OM31715 DV40 ER25 200 AD/B G2.5@25000RPM £96.06 5
OM31188 DV40 ER32 70 AD G2.5@20000RPM £26.97 433
OM31716 DV40 ER32 70 AD/B G2.5@25000RPM £39.35 30
OM31185 DV40 ER32 100 AD G2.5@20000RPM £30.34 193
OM31717 DV40 ER32 100 AD/B G2.5@25000RPM £42.82 26
OM31718 DV40 ER32 120 AD/B G2.5@25000RPM £50.92 20
OM31186 DV40 ER32 150 AD G2.5@20000RPM £54.39 30
OM31187 DV40 ER32 160 AD G2.5@20000RPM £54.39 30
OM31719 DV40 ER32 160 AD/B G2.5@25000RPM £64.81 20
OM31478 DV40 ER32 200 AD G2.5@20000RPM £96.06 16
OM31720 DV40 ER32 200 AD/B G2.5@25000RPM £101.85 20
OM31721 DV40 ER32 250 AD/B G2.5@25000RPM £107.62 15
OM31722 DV40 ER32 300 AD/B G2.5@25000RPM £120.36 7
OM31191 DV40 ER32 80 AD G2.5@20000RPM £26.97 70
OM31723 DV40 ER40 80 AD/B G2.5@25000RPM £39.35 12
OM31724 DV40 ER40 100 AD/B G2.5@25000RPM £42.82 15
OM31725 DV40 ER40 160 AD/B G2.5@25000RPM £64.81 16
OM31726 DV40 ER50 100 AD/B G2.5@25000RPM £71.75 6
