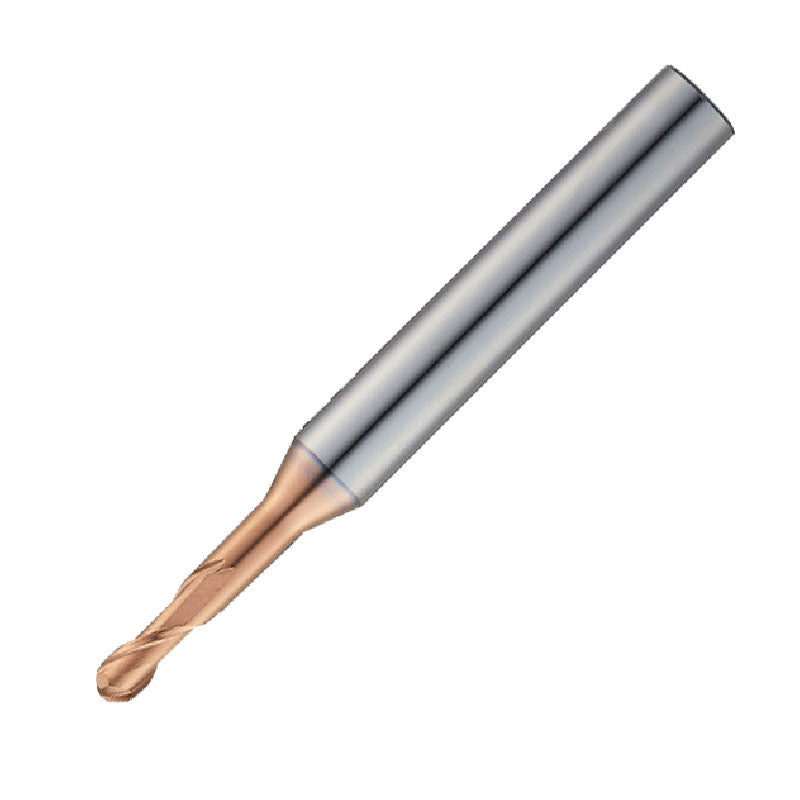

Widin Carbide End Mill - 2 Flute Tapered Neck Type - Ball Nose - 0.2mm x 1mm x0.4Ø

Widin Carbide End Mill - 2 Flute Tapered Neck Type - Ball Nose (ZSTNB20)


From
£41.14
View Products
Need Help?
Contact Sales

This specialized end mill is designed to tackle deep grooves and sloped surfaces with precision and efficiency. Equipped with a tapered neck, this end mill reduces tool vibration and minimizes chattering during cutting operations, ensuring a smoother and more stable machining process. The taper type neck design also provides enhanced flexibility and adaptability for various machining applications. The effective neck length of the end mill is designed to follow the rake angle, allowing for optimal chip evacuation and improved performance. This ensures that the end mill can effectively handle a wide range of materials and machining requirements.


Product SKU Cutter Diameter Number of Flutes Flute Length Overall Length Shank Diameter Reach Radius Neck Diameter Taper Angle Price Stock
ESTNB2002-1-04 0.2 2 0.15 50 4 1 0.1 0.17 0.4° £70.79 0
ESTNB2002-1.5-04 0.2 2 0.15 50 4 1.5 0.1 0.17 0.4° £70.79 0
ESTNB2002-2-09 0.2 2 0.15 50 4 2 0.1 0.17 0.9° £73.65 0
ESTNB2002-2.5-09 0.2 2 0.15 50 4 2.5 0.1 0.17 0.9° £73.65 0
ESTNB2003-2-04 0.3 2 0.25 50 4 2 0.15 0.28 0.4° £55.47 0
ESTNB2003-3-09 0.3 2 0.25 50 4 3 0.15 0.28 0.9° £55.47 0
ESTNB2003-4-09 0.3 2 0.25 50 4 4 0.15 0.28 0.9° £58.36 0
ESTNB2004-2-04 0.4 2 0.3 50 4 2 0.2 0.37 0.4° £55.47 0
ESTNB2004-3-04 0.4 2 0.3 50 4 3 0.2 0.37 0.4° £55.47 0
ESTNB2004-4-04 0.4 2 0.3 50 4 4 0.2 0.37 0.4° £55.47 0
ESTNB2004-4-09 0.4 2 0.3 50 4 4 0.2 0.37 0.9° £55.47 0
ESTNB2004-5-04 0.4 2 0.3 50 4 5 0.2 0.37 0.4° £58.36 0
ESTNB2004-5-09 0.4 2 0.3 50 4 5 0.2 0.37 0.9° £58.36 0
ESTNB2005-4-04 0.5 2 0.35 50 4 4 0.25 0.47 0.4° £44.00 0
ESTNB2005-8-09 0.5 2 0.35 50 4 8 0.25 0.57 0.9° £45.93 0
ESTNB2005-12-09 0.5 2 0.35 50 4 12 0.25 0.47 0.9° £47.82 0
ESTNB2006-2-04 0.6 2 0.4 50 4 2 0.3 0.57 0.4° £42.21 0
ESTNB2006-4-04 0.6 2 0.4 50 4 4 0.3 0.57 0.4° £44.00 0
ESTNB2006-6-04 0.6 2 0.4 50 4 6 0.3 0.57 0.4° £44.00 0
ESTNB2006-6-09 0.6 2 0.4 50 4 6 0.3 0.57 0.9° £44.00 0
ESTNB2006-8-09 0.6 2 0.4 50 4 8 0.3 0.57 0.9° £45.93 0
ESTNB2006-10-04 0.6 2 0.4 50 4 10 0.3 0.57 0.4° £47.82 0
ESTNB2006-10-09 0.6 2 0.4 50 4 10 0.3 0.57 0.9° £47.82 0
ESTNB2006-12-09 0.6 2 0.4 55 4 12 0.3 0.57 0.9° £47.82 0
ESTNB2006-15-04 0.6 2 0.4 55 4 15 0.3 0.57 0.4° £50.68 0
ESTNB2006-15-09 0.6 2 0.4 55 4 15 0.3 0.57 0.9° £50.68 0
ESTNB2008-4-04 0.8 2 0.5 50 4 4 0.4 0.77 0.4° £44.00 0
ESTNB2008-6-04 0.8 2 0.5 50 4 6 0.4 0.77 0.4° £44.00 0
ESTNB2008-8-09 0.8 2 0.5 50 4 8 0.4 0.77 0.9° £45.82 0
ESTNB2008-12-09 0.8 2 0.5 55 4 12 0.4 0.77 0.9° £47.82 0
ESTNB2008-16-09 0.8 2 0.5 55 4 16 0.4 0.77 0.9° £50.68 0
ESTNB2009-4-04 0.9 2 0.6 50 4 4 0.45 0.86 0.4° £44.00 0
ESTNB2009-8-04 0.9 2 0.6 55 4 8 0.45 0.86 0.4° £45.82 0
ESTNB2009-12-04 0.9 2 0.6 55 4 12 0.45 0.86 0.4° £47.82 0
ESTNB2009-16-04 0.9 2 0.6 60 4 16 0.45 0.86 0.4° £50.68 0
ESTNB2009-18-04 0.9 2 0.6 65 4 18 0.45 0.86 0.4° £52.61 0
ESTNB2009-20-04 0.9 2 0.6 65 4 20 0.45 0.86 0.4° £52.61 0
ESTNB2009-22-04 0.9 2 0.6 65 4 22 0.45 0.86 0.4° £52.61 0
ESTNB2009-24-04 0.9 2 0.6 70 4 24 0.45 0.86 0.4° £55.47 0
ESTNB2010-6-04 1 2 0.8 50 6 6 0.5 0.94 0.4° £41.14 0
ESTNB2010-8-04 1 2 0.8 55 6 8 0.5 0.94 0.4° £41.14 0
ESTNB2010-10-04 1 2 0.8 55 6 10 0.5 0.94 0.4° £41.14 0
ESTNB2010-10-09 1 2 0.8 55 6 10 0.5 0.94 0.9° £41.14 0
ESTNB2010-15-09 1 2 0.8 60 6 15 0.5 0.94 0.9° £41.14 0
ESTNB2010-20-04 1 2 0.8 65 6 20 0.5 0.94 0.4° £44.00 0
ESTNB2010-20-09 1 2 0.8 55 6 25 0.5 0.94 0.9° £44.00 0
ESTNB2010-25-09 1 2 0.8 70 6 25 0.5 0.94 0.9° £44.00 0
ESTNB2010-30-04 1 2 0.8 75 6 30 0.5 0.94 0.4° £45.93 0
ESTNB2010-30-09 1 2 0.8 75 6 30 0.5 0.94 0.9° £45.93 0
ESTNB2010-35-09 1 2 0.8 80 6 35 0.5 0.94 0.9° £47.82 0
ESTNB2010-40-09 1 2 0.8 85 6 40 0.5 0.94 0.9° £49.75 0
ESTNB2010-50-09 1 2 0.8 95 6 50 0.5 0.94 0.9° £52.61 0
ESTNB2010-60-09 1 2 0.8 105 6 60 0.5 0.94 0.9° £55.47 0
ESTNB2010-70-09 1 2 0.8 115 6 70 0.5 0.94 0.9° £59.32 0
ESTNB2015-8-04 1.5 2 1.35 55 6 8 0.75 1.42 0.4° £41.14 0
ESTNB2015-10-04 1.5 2 1.35 55 6 10 0.75 1.42 0.4° £41.14 0
ESTNB2015-12-04 1.5 2 1.35 55 6 12 0.75 1.42 0.4° £41.14 0
ESTNB2015-15-09 1.5 2 1.35 60 6 15 0.75 1.42 0.9° £41.14 0
ESTNB2015-20-09 1.5 2 1.35 65 6 20 0.75 1.42 0.9° £44.00 0
ESTNB2015-30-09 1.5 2 1.35 75 6 30 0.75 1.42 0.9° £45.93 0
ESTNB2018-4-04 1.8 2 1.6 50 6 4 0.9 1.73 0.4° £42.27 0
ESTNB2018-8-04 1.8 2 1.6 50 6 8 0.9 1.73 0.4° £44.00 0
ESTNB2018-12-04 1.8 2 1.6 55 6 12 0.9 1.73 0.4° £44.00 0
ESTNB2018-16-04 1.8 2 1.6 60 6 16 0.9 1.73 0.4° £45.93 0
ESTNB2018-20-04 1.8 2 1.6 65 6 20 0.9 1.73 0.4° £47.82 0
ESTNB2018-24-04 1.8 2 1.6 65 6 24 0.9 1.73 0.4° £47.82 0
ESTNB2018-28-04 1.8 2 1.6 70 6 28 0.9 1.73 0.4° £47.82 0
ESTNB2018-32-04 1.8 2 1.6 70 6 32 0.9 1.73 0.4° £47.82 0
ESTNB2018-36-04 1.8 2 1.6 75 6 36 0.9 1.73 0.4° £49.75 0
ESTNB2018-38-04 1.8 2 1.6 80 6 38 0.9 1.73 0.4° £53.57 0
ESTNB2018-40-04 1.8 2 1.6 80 6 40 0.9 1.73 0.4° £53.57 0
ESTNB2020-8-04 2 2 1.7 50 6 8 1 1.92 0.4° £41.14 0
ESTNB2020-12-04 2 2 1.7 55 6 12 1 1.92 0.4° £41.14 0
ESTNB2020-16-04 2 2 1.7 60 6 16 1 1.92 0.4° £41.14 0
ESTNB2020-20-04 2 2 1.7 65 6 20 1 1.92 0.4° £43.04 0
ESTNB2020-25-09 2 2 1.7 65 6 25 1 1.92 0.9° £44.00 0
ESTNB2020-30-04 2 2 1.7 70 6 30 1 1.92 0.4° £45.93 0
ESTNB2020-30-09 2 2 1.7 70 6 30 1 1.92 0.9° £45.93 0
ESTNB2030-8-04 3 2 2.5 50 6 8 1.5 2.86 0.4° £41.14 0
ESTNB2030-16-04 3 2 2.5 55 6 16 1.5 2.86 0.4° £41.14 0
ESTNB2030-20-04 3 2 2.5 60 6 20 1.5 2.86 0.4° £43.04 0
ESTNB2030-30-04 3 2 2.5 70 6 30 1.5 2.86 0.4° £45.93 0
ESTNB2030-40-04 3 2 2.5 80 6 40 1.5 2.86 0.4° £49.75 0
ESTNB2030-50-09 3 2 2.5 90 6 50 1.5 2.86 0.9° £52.61 0
ESTNB2030-60-09 3 2 2.5 100 6 60 1.5 2.86 0.9° £55.47 0
ESTNB2030-70-09 3 2 2.5 110 6 70 1.5 2.86 0.9° £59.32 0
ESTNB2040-20-10 4 2 8 70 8 20 2 3.86 £45.93 0
ESTNB2040-30-10 4 2 8 80 8 30 2 3.86 £47.82 0
ESTNB2040-40-10 4 2 8 90 8 40 2 3.86 £50.68 0
ESTNB2040-50-10 4 2 8 100 8 50 2 3.86 £55.47 0
ESTNB2040-60-10 4 2 8 110 8 60 2 3.86 £59.32 0
ESTNB2050-30-10 5 2 10 80 8 30 2.5 4.86 £47.82 0
ESTNB2050-40-10 5 2 10 90 8 40 2.5 4.86 £50.68 0
ESTNB2050-60-10 5 2 10 110 8 60 2.5 4.86 £59.32 0
ESTNB2060-30-10 6 2 12 80 8 30 3 5.86 £47.82 0
ESTNB2060-40-10 6 2 12 90 8 40 3 5.86 £50.68 0
ESTNB2060-50-10 6 2 12 100 8 50 3 5.86 £55.47 0
ESTNB2060-60-10 6 2 12 110 10 60 3 5.86 £86.08 0
ESTNB2060-70-10 6 2 12 120 10 70 3 5.86 £95.65 0
ESTNB2060-80-10 6 2 12 130 10 80 3 5.86 £105.22 0
ESTNB2080-50-10 8 2 14 110 10 50 4 7.86 £86.08 0
ESTNB2080-60-10 8 2 14 120 10 60 4 7.86 £95.65 0
ESTNB2080-70-10 8 2 14 130 10 70 4 7.86 £105.22 0
ESTNB2080-80-10 8 2 14 140 12 80 4 7.86 £133.93 0
ESTNB2100-60-10 10 2 18 130 12 60 5 9.86 £124.36 0
ESTNB2100-75-10 10 2 18 140 12 75 5 9.86 £133.93 0
