Widin Carbide End Mill - 2 Flute Tapered Neck Type - Ball Nose - 5mm x 40mm x 1.0Ã˜

Please log in here to access all benefits, including promotional discounts and faster checkouts.

Widin Carbide End Mill - 2 Flute Tapered Neck Type - Ball Nose - 5mm x 40mm x 1.0Ã˜

Name: Widin Carbide End Mill - 2 Flute Tapered Neck Type - Ball Nose - 5mm x 40mm x 1.0Ã˜
Brand: Widin
SKU: ESTNB2050-40-10
Price: 58.8 GBP
Availability: InStock

SKU:ESTNB2050-40-10

Material Compatibility

Specifications at a glance

Cutter Diameter	5
Number of Flutes	2
Flute Length	10
Overall Length	90

View all specifications ↓

£58.80

Prices shown ex. VAT

5 days estimated lead time — subject to availability

View Other Sizes →

Free delivery over £50 ex VAT

Secure checkout

14-day returns

30+ years expertise

Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna

Speak to our team

01732 887334

Mon – Thurs 8:30 – 17:30 · Fri 8:30 – 16:30

Description

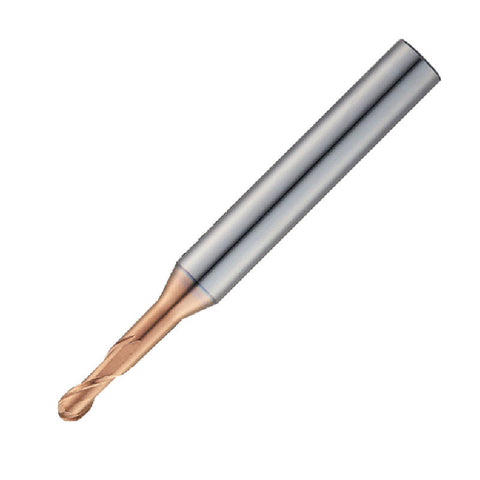

The Widin Carbide End Mill is a 2‑flute ball‑nose cutter with a tapered neck, sized for a 5 mm cutting diameter and 40 mm overall length. It’s designed for engineers, machinists, and hobbyists who need reliable contouring and deep groove capabilities, with an effective neck length that follows the rake angle for flexible use across different workpieces. It’s built to cut hard materials up to HRc70 and supports dry/high‑speed cutting thanks to its newly developed raw material and coating.

Tapered neck for reduced vibration: The tapered profile minimizes chatter, delivering stable, smooth cuts in deep grooves and on angled surfaces.
Ball-nose geometry for precise contours: The rounded tip provides smooth transitions and accurate radii on curved features, improving finish quality.
Durable carbide with advanced coating: Engineered to cut hard materials up to HRc70 and optimized for dry and high‑speed cutting, helping resist wear and extend edge life.

By combining vibration control, precise contouring, and proven durability, this end mill helps you complete complex parts faster with fewer passes and reliable finishes. Its robust construction supports demanding cutting conditions, enhancing productivity and consistency across a wide range of applications.

Part Numbers

Protool Part Number: ESTNB2050-40-10
Brand: Widin
Category: End Mill

No downloads are attached to this product yet.
Need cutting data? Call 01732 887334 or email sales@protool-ltd.co.uk.

Delivery

Free UK mainland delivery on orders over £50 ex VAT. In-stock items ordered before 4:30pm are dispatched the same working day. Full delivery information.

Returns

14-day returns on unused stock items in original packaging. Special-order and bespoke tooling is non-returnable. Read our returns policy.

Technical Support

Over 30 years of machining experience behind the counter. Call 01732 887334, Mon–Thurs 8:30–17:30, Fri 8:30–16:30.

Trade Accounts

Credit accounts, contract pricing and scheduled call-off orders available for trade customers. Apply for an account.

What time are Protool open?

We are open Monday to Friday between 8:30am and 5pm.

Do you offer Free Next Day delivery?

Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.

We also offer the following:

Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.

For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.

*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.

Ask our technical team about this tool

Full Range: Widin Carbide End Mill - 2 Flute Tapered Neck Type - Ball Nose (ZSTNB20)

View full collection →

You are viewing ESTNB2050-40-10. Click any other SKU to view its full details.

Product SKU	Cutter Diameter	Number of Flutes	Flute Length	Overall Length	Shank Diameter	Reach	Radius	Neck Diameter	Taper Angle	Price	Stock

ESTNB2002-1-04	0.2	2	0.15	50	4	1	0.1	0.17	0.4°	£71.00	5 days
ESTNB2002-1.5-04	0.2	2	0.15	50	4	1.5	0.1	0.17	0.4°	£71.00	5 days
ESTNB2002-2-09	0.2	2	0.15	50	4	2	0.1	0.17	0.9°	£73.88	5 days
ESTNB2002-2.5-09	0.2	2	0.15	50	4	2.5	0.1	0.17	0.9°	£73.88	5 days
ESTNB2003-2-04	0.3	2	0.25	50	4	2	0.15	0.28	0.4°	£55.65	5 days
ESTNB2003-3-09	0.3	2	0.25	50	4	3	0.15	0.28	0.9°	£55.65	5 days
ESTNB2003-4-09	0.3	2	0.25	50	4	4	0.15	0.28	0.9°	£58.55	5 days
ESTNB2004-2-04	0.4	2	0.3	50	4	2	0.2	0.37	0.4°	£55.65	5 days
ESTNB2004-3-04	0.4	2	0.3	50	4	3	0.2	0.37	0.4°	£55.65	5 days
ESTNB2004-4-04	0.4	2	0.3	50	4	4	0.2	0.37	0.4°	£55.65	5 days
ESTNB2004-4-09	0.4	2	0.3	50	4	4	0.2	0.37	0.9°	£55.65	5 days
ESTNB2004-5-04	0.4	2	0.3	50	4	5	0.2	0.37	0.4°	£58.55	5 days
ESTNB2004-5-09	0.4	2	0.3	50	4	5	0.2	0.37	0.9°	£58.55	5 days
ESTNB2005-4-04	0.5	2	0.35	50	4	4	0.25	0.47	0.4°	£44.13	5 days
ESTNB2005-8-09	0.5	2	0.35	50	4	8	0.25	0.57	0.9°	£46.05	5 days
ESTNB2005-12-09	0.5	2	0.35	50	4	12	0.25	0.47	0.9°	£47.98	5 days
ESTNB2006-2-04	0.6	2	0.4	50	4	2	0.3	0.57	0.4°	£42.35	5 days
ESTNB2006-4-04	0.6	2	0.4	50	4	4	0.3	0.57	0.4°	£44.13	5 days
ESTNB2006-6-04	0.6	2	0.4	50	4	6	0.3	0.57	0.4°	£44.13	5 days
ESTNB2006-6-09	0.6	2	0.4	50	4	6	0.3	0.57	0.9°	£44.13	5 days
ESTNB2006-8-09	0.6	2	0.4	50	4	8	0.3	0.57	0.9°	£46.05	5 days
ESTNB2006-10-04	0.6	2	0.4	50	4	10	0.3	0.57	0.4°	£47.98	5 days
ESTNB2006-10-09	0.6	2	0.4	50	4	10	0.3	0.57	0.9°	£47.98	5 days
ESTNB2006-12-09	0.6	2	0.4	55	4	12	0.3	0.57	0.9°	£47.98	5 days
ESTNB2006-15-04	0.6	2	0.4	55	4	15	0.3	0.57	0.4°	£50.85	5 days
ESTNB2006-15-09	0.6	2	0.4	55	4	15	0.3	0.57	0.9°	£50.85	5 days
ESTNB2008-4-04	0.8	2	0.5	50	4	4	0.4	0.77	0.4°	£44.13	5 days
ESTNB2008-6-04	0.8	2	0.5	50	4	6	0.4	0.77	0.4°	£44.13	5 days
ESTNB2008-8-09	0.8	2	0.5	50	4	8	0.4	0.77	0.9°	£45.95	5 days
ESTNB2008-12-09	0.8	2	0.5	55	4	12	0.4	0.77	0.9°	£47.98	5 days
ESTNB2008-16-09	0.8	2	0.5	55	4	16	0.4	0.77	0.9°	£50.85	5 days
ESTNB2009-4-04	0.9	2	0.6	50	4	4	0.45	0.86	0.4°	£44.13	5 days
ESTNB2009-8-04	0.9	2	0.6	55	4	8	0.45	0.86	0.4°	£45.95	5 days
ESTNB2009-12-04	0.9	2	0.6	55	4	12	0.45	0.86	0.4°	£47.98	5 days
ESTNB2009-16-04	0.9	2	0.6	60	4	16	0.45	0.86	0.4°	£50.85	5 days
ESTNB2009-18-04	0.9	2	0.6	65	4	18	0.45	0.86	0.4°	£52.78	5 days
ESTNB2009-20-04	0.9	2	0.6	65	4	20	0.45	0.86	0.4°	£52.78	5 days
ESTNB2009-22-04	0.9	2	0.6	65	4	22	0.45	0.86	0.4°	£52.78	5 days
ESTNB2009-24-04	0.9	2	0.6	70	4	24	0.45	0.86	0.4°	£55.65	5 days
ESTNB2010-6-04	1	2	0.8	50	6	6	0.5	0.94	0.4°	£44.03	5 days
ESTNB2010-8-04	1	2	0.8	55	6	8	0.5	0.94	0.4°	£44.03	5 days
ESTNB2010-10-04	1	2	0.8	55	6	10	0.5	0.94	0.4°	£44.03	5 days
ESTNB2010-10-09	1	2	0.8	55	6	10	0.5	0.94	0.9°	£44.03	5 days
ESTNB2010-15-09	1	2	0.8	60	6	15	0.5	0.94	0.9°	£44.03	5 days
ESTNB2010-20-04	1	2	0.8	65	6	20	0.5	0.94	0.4°	£47.08	5 days
ESTNB2010-20-09	1	2	0.8	55	6	25	0.5	0.94	0.9°	£47.08	5 days
ESTNB2010-25-09	1	2	0.8	70	6	25	0.5	0.94	0.9°	£47.08	5 days
ESTNB2010-30-04	1	2	0.8	75	6	30	0.5	0.94	0.4°	£49.13	5 days
ESTNB2010-30-09	1	2	0.8	75	6	30	0.5	0.94	0.9°	£49.13	5 days
ESTNB2010-35-09	1	2	0.8	80	6	35	0.5	0.94	0.9°	£51.18	5 days
ESTNB2010-40-09	1	2	0.8	85	6	40	0.5	0.94	0.9°	£53.23	5 days
ESTNB2010-50-09	1	2	0.8	95	6	50	0.5	0.94	0.9°	£56.30	5 days
ESTNB2010-60-09	1	2	0.8	105	6	60	0.5	0.94	0.9°	£59.38	5 days
ESTNB2010-70-09	1	2	0.8	115	6	70	0.5	0.94	0.9°	£63.45	5 days
ESTNB2015-8-04	1.5	2	1.35	55	6	8	0.75	1.42	0.4°	£44.03	5 days
ESTNB2015-10-04	1.5	2	1.35	55	6	10	0.75	1.42	0.4°	£44.03	5 days
ESTNB2015-12-04	1.5	2	1.35	55	6	12	0.75	1.42	0.4°	£44.03	5 days
ESTNB2015-15-09	1.5	2	1.35	60	6	15	0.75	1.42	0.9°	£44.03	5 days
ESTNB2015-20-09	1.5	2	1.35	65	6	20	0.75	1.42	0.9°	£47.08	5 days
ESTNB2015-30-09	1.5	2	1.35	75	6	30	0.75	1.42	0.9°	£49.13	5 days
ESTNB2018-4-04	1.8	2	1.6	50	6	4	0.9	1.73	0.4°	£45.25	5 days
ESTNB2018-8-04	1.8	2	1.6	50	6	8	0.9	1.73	0.4°	£47.08	5 days
ESTNB2018-12-04	1.8	2	1.6	55	6	12	0.9	1.73	0.4°	£47.08	5 days
ESTNB2018-16-04	1.8	2	1.6	60	6	16	0.9	1.73	0.4°	£49.13	5 days
ESTNB2018-20-04	1.8	2	1.6	65	6	20	0.9	1.73	0.4°	£51.18	5 days
ESTNB2018-24-04	1.8	2	1.6	65	6	24	0.9	1.73	0.4°	£51.18	5 days
ESTNB2018-28-04	1.8	2	1.6	70	6	28	0.9	1.73	0.4°	£51.18	5 days
ESTNB2018-32-04	1.8	2	1.6	70	6	32	0.9	1.73	0.4°	£51.18	5 days
ESTNB2018-36-04	1.8	2	1.6	75	6	36	0.9	1.73	0.4°	£53.23	5 days
ESTNB2018-38-04	1.8	2	1.6	80	6	38	0.9	1.73	0.4°	£57.30	5 days
ESTNB2018-40-04	1.8	2	1.6	80	6	40	0.9	1.73	0.4°	£57.30	5 days
ESTNB2020-8-04	2	2	1.7	50	6	8	1	1.92	0.4°	£44.03	5 days
ESTNB2020-12-04	2	2	1.7	55	6	12	1	1.92	0.4°	£44.03	5 days
ESTNB2020-16-04	2	2	1.7	60	6	16	1	1.92	0.4°	£44.03	5 days
ESTNB2020-20-04	2	2	1.7	65	6	20	1	1.92	0.4°	£46.05	5 days
ESTNB2020-25-09	2	2	1.7	65	6	25	1	1.92	0.9°	£47.08	5 days
ESTNB2020-30-04	2	2	1.7	70	6	30	1	1.92	0.4°	£49.13	5 days
ESTNB2020-30-09	2	2	1.7	70	6	30	1	1.92	0.9°	£49.13	5 days
ESTNB2030-8-04	3	2	2.5	50	6	8	1.5	2.86	0.4°	£44.03	5 days
ESTNB2030-16-04	3	2	2.5	55	6	16	1.5	2.86	0.4°	£44.03	5 days
ESTNB2030-20-04	3	2	2.5	60	6	20	1.5	2.86	0.4°	£46.05	5 days
ESTNB2030-30-04	3	2	2.5	70	6	30	1.5	2.86	0.4°	£49.13	5 days
ESTNB2030-40-04	3	2	2.5	80	6	40	1.5	2.86	0.4°	£53.23	5 days
ESTNB2030-50-09	3	2	2.5	90	6	50	1.5	2.86	0.9°	£56.30	5 days
ESTNB2030-60-09	3	2	2.5	100	6	60	1.5	2.86	0.9°	£59.38	5 days
ESTNB2030-70-09	3	2	2.5	110	6	70	1.5	2.86	0.9°	£63.45	5 days
ESTNB2040-20-10	4	2	8	70	8	20	2	3.86	1°	£53.28	5 days
ESTNB2040-30-10	4	2	8	80	8	30	2	3.86	1°	£55.48	5 days
ESTNB2040-40-10	4	2	8	90	8	40	2	3.86	1°	£58.80	5 days
ESTNB2040-50-10	4	2	8	100	8	50	2	3.86	1°	£64.38	5 days
ESTNB2040-60-10	4	2	8	110	8	60	2	3.86	1°	£68.80	5 days
ESTNB2050-30-10	5	2	10	80	8	30	2.5	4.86	1°	£55.48	5 days
ESTNB2050-40-10 Viewing	5	2	10	90	8	40	2.5	4.86	1°	£58.80	5 days
ESTNB2050-60-10	5	2	10	110	8	60	2.5	4.86	1°	£68.80	5 days
ESTNB2060-30-10	6	2	12	80	8	30	3	5.86	1°	£55.48	5 days
ESTNB2060-40-10	6	2	12	90	8	40	3	5.86	1°	£58.80	5 days
ESTNB2060-50-10	6	2	12	100	8	50	3	5.86	1°	£64.38	5 days
ESTNB2060-60-10	6	2	12	110	10	60	3	5.86	1°	£107.00	5 days
ESTNB2060-70-10	6	2	12	120	10	70	3	5.86	1°	£118.88	5 days
ESTNB2060-80-10	6	2	12	130	10	80	3	5.86	1°	£130.80	5 days
ESTNB2080-50-10	8	2	14	110	10	50	4	7.86	1°	£107.00	5 days
ESTNB2080-60-10	8	2	14	120	10	60	4	7.86	1°	£118.88	5 days
ESTNB2080-70-10	8	2	14	130	10	70	4	7.86	1°	£130.80	5 days
ESTNB2080-80-10	8	2	14	140	12	80	4	7.86	1°	£188.45	5 days
ESTNB2100-60-10	10	2	18	130	12	60	5	9.86	1°	£175.00	5 days
ESTNB2100-75-10	10	2	18	140	12	75	5	9.86	1°	£188.45	5 days
