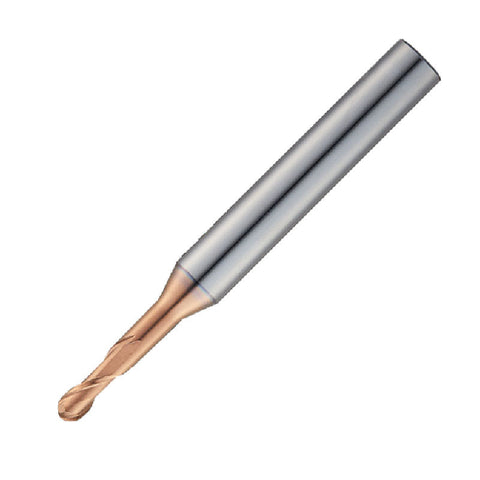

Widin Carbide End Mill - 2 Flute Tapered Neck Type - Ball Nose - 3mm x 20mm x 0.4Ø
SKU:ESTNB2030-20-04
The Widin Carbide End Mill is a 3 mm diameter, 20 mm overall-length, 2-flute ball-nose milling tool designed for precise contouring, deep grooves, and sloped surfaces. Its tapered neck helps main...
Read more ↓
Material Compatibility
P
H
Specifications at a glance
View all specifications ↓
| Cutter Diameter | 3 |
| Number of Flutes | 2 |
| Flute Length | 2.5 |
| Overall Length | 60 |
£46.05
Prices shown ex. VAT
5 days estimated lead time
— subject to availability
View Other Sizes →
Free delivery over £50 ex VAT
Secure checkout
14-day returns
30+ years expertise
Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna
Learn more about Klarna
Description
The Widin Carbide End Mill is a 3 mm diameter, 20 mm overall-length, 2-flute ball-nose milling tool designed for precise contouring, deep grooves, and sloped surfaces. Its tapered neck helps maintain rigidity and reduces vibrations, delivering smooth, stable cuts in challenging profiles.
- Tapered neck for stable cutting: Reduces tool vibration and chatter, enabling smooth, accurate finishes in deep grooves and angled surfaces.
- Ball nose geometry for precise contours: Provides gentle transitions and rounded finishes on complex profiles with consistent results.
- Extreme hardness capability with durable coating: Built to cut hard materials up to HRc70, supported by a premium raw material and coating for reliable dry and high-speed cutting and longer tool life.
This end mill is engineered to enhance productivity by delivering dependable performance across demanding materials and geometries, helping you finish parts with fewer passes, less rework, and more consistent surface quality.
Part Numbers
- Protool Part Number
- ESTNB2030-20-04
- Brand
- Widin
- Category
- End Mill
No downloads are attached to this product yet.
Need cutting data? Call 01732 887334 or email sales@protool-ltd.co.uk.
Need cutting data? Call 01732 887334 or email sales@protool-ltd.co.uk.
Delivery
Free UK mainland delivery on orders over £50 ex VAT. In-stock items ordered before 4:30pm are dispatched the same working day. Full delivery information.
Returns
14-day returns on unused stock items in original packaging. Special-order and bespoke tooling is non-returnable. Read our returns policy.
Technical Support
Over 30 years of machining experience behind the counter. Call 01732 887334, Mon–Thurs 8:30–17:30, Fri 8:30–16:30.
Trade Accounts
Credit accounts, contract pricing and scheduled call-off orders available for trade customers. Apply for an account.
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Ask our technical team about this tool
Full Range: Widin Carbide End Mill - 2 Flute Tapered Neck Type - Ball Nose (ZSTNB20)
View full collection →You are viewing ESTNB2030-20-04. Click any other SKU to view its full details.
| Product SKU | Cutter Diameter | Number of Flutes | Flute Length | Overall Length | Shank Diameter | Reach | Radius | Neck Diameter | Taper Angle | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ESTNB2002-1-04 | 0.2 | 2 | 0.15 | 50 | 4 | 1 | 0.1 | 0.17 | 0.4° | £71.00 | 5 days | |
| ESTNB2002-1.5-04 | 0.2 | 2 | 0.15 | 50 | 4 | 1.5 | 0.1 | 0.17 | 0.4° | £71.00 | 5 days | |
| ESTNB2002-2-09 | 0.2 | 2 | 0.15 | 50 | 4 | 2 | 0.1 | 0.17 | 0.9° | £73.88 | 5 days | |
| ESTNB2002-2.5-09 | 0.2 | 2 | 0.15 | 50 | 4 | 2.5 | 0.1 | 0.17 | 0.9° | £73.88 | 5 days | |
| ESTNB2003-2-04 | 0.3 | 2 | 0.25 | 50 | 4 | 2 | 0.15 | 0.28 | 0.4° | £55.65 | 5 days | |
| ESTNB2003-3-09 | 0.3 | 2 | 0.25 | 50 | 4 | 3 | 0.15 | 0.28 | 0.9° | £55.65 | 5 days | |
| ESTNB2003-4-09 | 0.3 | 2 | 0.25 | 50 | 4 | 4 | 0.15 | 0.28 | 0.9° | £58.55 | 5 days | |
| ESTNB2004-2-04 | 0.4 | 2 | 0.3 | 50 | 4 | 2 | 0.2 | 0.37 | 0.4° | £55.65 | 5 days | |
| ESTNB2004-3-04 | 0.4 | 2 | 0.3 | 50 | 4 | 3 | 0.2 | 0.37 | 0.4° | £55.65 | 5 days | |
| ESTNB2004-4-04 | 0.4 | 2 | 0.3 | 50 | 4 | 4 | 0.2 | 0.37 | 0.4° | £55.65 | 5 days | |
| ESTNB2004-4-09 | 0.4 | 2 | 0.3 | 50 | 4 | 4 | 0.2 | 0.37 | 0.9° | £55.65 | 5 days | |
| ESTNB2004-5-04 | 0.4 | 2 | 0.3 | 50 | 4 | 5 | 0.2 | 0.37 | 0.4° | £58.55 | 5 days | |
| ESTNB2004-5-09 | 0.4 | 2 | 0.3 | 50 | 4 | 5 | 0.2 | 0.37 | 0.9° | £58.55 | 5 days | |
| ESTNB2005-4-04 | 0.5 | 2 | 0.35 | 50 | 4 | 4 | 0.25 | 0.47 | 0.4° | £44.13 | 5 days | |
| ESTNB2005-8-09 | 0.5 | 2 | 0.35 | 50 | 4 | 8 | 0.25 | 0.57 | 0.9° | £46.05 | 5 days | |
| ESTNB2005-12-09 | 0.5 | 2 | 0.35 | 50 | 4 | 12 | 0.25 | 0.47 | 0.9° | £47.98 | 5 days | |
| ESTNB2006-2-04 | 0.6 | 2 | 0.4 | 50 | 4 | 2 | 0.3 | 0.57 | 0.4° | £42.35 | 5 days | |
| ESTNB2006-4-04 | 0.6 | 2 | 0.4 | 50 | 4 | 4 | 0.3 | 0.57 | 0.4° | £44.13 | 5 days | |
| ESTNB2006-6-04 | 0.6 | 2 | 0.4 | 50 | 4 | 6 | 0.3 | 0.57 | 0.4° | £44.13 | 5 days | |
| ESTNB2006-6-09 | 0.6 | 2 | 0.4 | 50 | 4 | 6 | 0.3 | 0.57 | 0.9° | £44.13 | 5 days | |
| ESTNB2006-8-09 | 0.6 | 2 | 0.4 | 50 | 4 | 8 | 0.3 | 0.57 | 0.9° | £46.05 | 5 days | |
| ESTNB2006-10-04 | 0.6 | 2 | 0.4 | 50 | 4 | 10 | 0.3 | 0.57 | 0.4° | £47.98 | 5 days | |
| ESTNB2006-10-09 | 0.6 | 2 | 0.4 | 50 | 4 | 10 | 0.3 | 0.57 | 0.9° | £47.98 | 5 days | |
| ESTNB2006-12-09 | 0.6 | 2 | 0.4 | 55 | 4 | 12 | 0.3 | 0.57 | 0.9° | £47.98 | 5 days | |
| ESTNB2006-15-04 | 0.6 | 2 | 0.4 | 55 | 4 | 15 | 0.3 | 0.57 | 0.4° | £50.85 | 5 days | |
| ESTNB2006-15-09 | 0.6 | 2 | 0.4 | 55 | 4 | 15 | 0.3 | 0.57 | 0.9° | £50.85 | 5 days | |
| ESTNB2008-4-04 | 0.8 | 2 | 0.5 | 50 | 4 | 4 | 0.4 | 0.77 | 0.4° | £44.13 | 5 days | |
| ESTNB2008-6-04 | 0.8 | 2 | 0.5 | 50 | 4 | 6 | 0.4 | 0.77 | 0.4° | £44.13 | 5 days | |
| ESTNB2008-8-09 | 0.8 | 2 | 0.5 | 50 | 4 | 8 | 0.4 | 0.77 | 0.9° | £45.95 | 5 days | |
| ESTNB2008-12-09 | 0.8 | 2 | 0.5 | 55 | 4 | 12 | 0.4 | 0.77 | 0.9° | £47.98 | 5 days | |
| ESTNB2008-16-09 | 0.8 | 2 | 0.5 | 55 | 4 | 16 | 0.4 | 0.77 | 0.9° | £50.85 | 5 days | |
| ESTNB2009-4-04 | 0.9 | 2 | 0.6 | 50 | 4 | 4 | 0.45 | 0.86 | 0.4° | £44.13 | 5 days | |
| ESTNB2009-8-04 | 0.9 | 2 | 0.6 | 55 | 4 | 8 | 0.45 | 0.86 | 0.4° | £45.95 | 5 days | |
| ESTNB2009-12-04 | 0.9 | 2 | 0.6 | 55 | 4 | 12 | 0.45 | 0.86 | 0.4° | £47.98 | 5 days | |
| ESTNB2009-16-04 | 0.9 | 2 | 0.6 | 60 | 4 | 16 | 0.45 | 0.86 | 0.4° | £50.85 | 5 days | |
| ESTNB2009-18-04 | 0.9 | 2 | 0.6 | 65 | 4 | 18 | 0.45 | 0.86 | 0.4° | £52.78 | 5 days | |
| ESTNB2009-20-04 | 0.9 | 2 | 0.6 | 65 | 4 | 20 | 0.45 | 0.86 | 0.4° | £52.78 | 5 days | |
| ESTNB2009-22-04 | 0.9 | 2 | 0.6 | 65 | 4 | 22 | 0.45 | 0.86 | 0.4° | £52.78 | 5 days | |
| ESTNB2009-24-04 | 0.9 | 2 | 0.6 | 70 | 4 | 24 | 0.45 | 0.86 | 0.4° | £55.65 | 5 days | |
| ESTNB2010-6-04 | 1 | 2 | 0.8 | 50 | 6 | 6 | 0.5 | 0.94 | 0.4° | £44.03 | 5 days | |
| ESTNB2010-8-04 | 1 | 2 | 0.8 | 55 | 6 | 8 | 0.5 | 0.94 | 0.4° | £44.03 | 5 days | |
| ESTNB2010-10-04 | 1 | 2 | 0.8 | 55 | 6 | 10 | 0.5 | 0.94 | 0.4° | £44.03 | 5 days | |
| ESTNB2010-10-09 | 1 | 2 | 0.8 | 55 | 6 | 10 | 0.5 | 0.94 | 0.9° | £44.03 | 5 days | |
| ESTNB2010-15-09 | 1 | 2 | 0.8 | 60 | 6 | 15 | 0.5 | 0.94 | 0.9° | £44.03 | 5 days | |
| ESTNB2010-20-04 | 1 | 2 | 0.8 | 65 | 6 | 20 | 0.5 | 0.94 | 0.4° | £47.08 | 5 days | |
| ESTNB2010-20-09 | 1 | 2 | 0.8 | 55 | 6 | 25 | 0.5 | 0.94 | 0.9° | £47.08 | 5 days | |
| ESTNB2010-25-09 | 1 | 2 | 0.8 | 70 | 6 | 25 | 0.5 | 0.94 | 0.9° | £47.08 | 5 days | |
| ESTNB2010-30-04 | 1 | 2 | 0.8 | 75 | 6 | 30 | 0.5 | 0.94 | 0.4° | £49.13 | 5 days | |
| ESTNB2010-30-09 | 1 | 2 | 0.8 | 75 | 6 | 30 | 0.5 | 0.94 | 0.9° | £49.13 | 5 days | |
| ESTNB2010-35-09 | 1 | 2 | 0.8 | 80 | 6 | 35 | 0.5 | 0.94 | 0.9° | £51.18 | 5 days | |
| ESTNB2010-40-09 | 1 | 2 | 0.8 | 85 | 6 | 40 | 0.5 | 0.94 | 0.9° | £53.23 | 5 days | |
| ESTNB2010-50-09 | 1 | 2 | 0.8 | 95 | 6 | 50 | 0.5 | 0.94 | 0.9° | £56.30 | 5 days | |
| ESTNB2010-60-09 | 1 | 2 | 0.8 | 105 | 6 | 60 | 0.5 | 0.94 | 0.9° | £59.38 | 5 days | |
| ESTNB2010-70-09 | 1 | 2 | 0.8 | 115 | 6 | 70 | 0.5 | 0.94 | 0.9° | £63.45 | 5 days | |
| ESTNB2015-8-04 | 1.5 | 2 | 1.35 | 55 | 6 | 8 | 0.75 | 1.42 | 0.4° | £44.03 | 5 days | |
| ESTNB2015-10-04 | 1.5 | 2 | 1.35 | 55 | 6 | 10 | 0.75 | 1.42 | 0.4° | £44.03 | 5 days | |
| ESTNB2015-12-04 | 1.5 | 2 | 1.35 | 55 | 6 | 12 | 0.75 | 1.42 | 0.4° | £44.03 | 5 days | |
| ESTNB2015-15-09 | 1.5 | 2 | 1.35 | 60 | 6 | 15 | 0.75 | 1.42 | 0.9° | £44.03 | 5 days | |
| ESTNB2015-20-09 | 1.5 | 2 | 1.35 | 65 | 6 | 20 | 0.75 | 1.42 | 0.9° | £47.08 | 5 days | |
| ESTNB2015-30-09 | 1.5 | 2 | 1.35 | 75 | 6 | 30 | 0.75 | 1.42 | 0.9° | £49.13 | 5 days | |
| ESTNB2018-4-04 | 1.8 | 2 | 1.6 | 50 | 6 | 4 | 0.9 | 1.73 | 0.4° | £45.25 | 5 days | |
| ESTNB2018-8-04 | 1.8 | 2 | 1.6 | 50 | 6 | 8 | 0.9 | 1.73 | 0.4° | £47.08 | 5 days | |
| ESTNB2018-12-04 | 1.8 | 2 | 1.6 | 55 | 6 | 12 | 0.9 | 1.73 | 0.4° | £47.08 | 5 days | |
| ESTNB2018-16-04 | 1.8 | 2 | 1.6 | 60 | 6 | 16 | 0.9 | 1.73 | 0.4° | £49.13 | 5 days | |
| ESTNB2018-20-04 | 1.8 | 2 | 1.6 | 65 | 6 | 20 | 0.9 | 1.73 | 0.4° | £51.18 | 5 days | |
| ESTNB2018-24-04 | 1.8 | 2 | 1.6 | 65 | 6 | 24 | 0.9 | 1.73 | 0.4° | £51.18 | 5 days | |
| ESTNB2018-28-04 | 1.8 | 2 | 1.6 | 70 | 6 | 28 | 0.9 | 1.73 | 0.4° | £51.18 | 5 days | |
| ESTNB2018-32-04 | 1.8 | 2 | 1.6 | 70 | 6 | 32 | 0.9 | 1.73 | 0.4° | £51.18 | 5 days | |
| ESTNB2018-36-04 | 1.8 | 2 | 1.6 | 75 | 6 | 36 | 0.9 | 1.73 | 0.4° | £53.23 | 5 days | |
| ESTNB2018-38-04 | 1.8 | 2 | 1.6 | 80 | 6 | 38 | 0.9 | 1.73 | 0.4° | £57.30 | 5 days | |
| ESTNB2018-40-04 | 1.8 | 2 | 1.6 | 80 | 6 | 40 | 0.9 | 1.73 | 0.4° | £57.30 | 5 days | |
| ESTNB2020-8-04 | 2 | 2 | 1.7 | 50 | 6 | 8 | 1 | 1.92 | 0.4° | £44.03 | 5 days | |
| ESTNB2020-12-04 | 2 | 2 | 1.7 | 55 | 6 | 12 | 1 | 1.92 | 0.4° | £44.03 | 5 days | |
| ESTNB2020-16-04 | 2 | 2 | 1.7 | 60 | 6 | 16 | 1 | 1.92 | 0.4° | £44.03 | 5 days | |
| ESTNB2020-20-04 | 2 | 2 | 1.7 | 65 | 6 | 20 | 1 | 1.92 | 0.4° | £46.05 | 5 days | |
| ESTNB2020-25-09 | 2 | 2 | 1.7 | 65 | 6 | 25 | 1 | 1.92 | 0.9° | £47.08 | 5 days | |
| ESTNB2020-30-04 | 2 | 2 | 1.7 | 70 | 6 | 30 | 1 | 1.92 | 0.4° | £49.13 | 5 days | |
| ESTNB2020-30-09 | 2 | 2 | 1.7 | 70 | 6 | 30 | 1 | 1.92 | 0.9° | £49.13 | 5 days | |
| ESTNB2030-8-04 | 3 | 2 | 2.5 | 50 | 6 | 8 | 1.5 | 2.86 | 0.4° | £44.03 | 5 days | |
| ESTNB2030-16-04 | 3 | 2 | 2.5 | 55 | 6 | 16 | 1.5 | 2.86 | 0.4° | £44.03 | 5 days | |
| ESTNB2030-20-04 Viewing | 3 | 2 | 2.5 | 60 | 6 | 20 | 1.5 | 2.86 | 0.4° | £46.05 | 5 days | |
| ESTNB2030-30-04 | 3 | 2 | 2.5 | 70 | 6 | 30 | 1.5 | 2.86 | 0.4° | £49.13 | 5 days | |
| ESTNB2030-40-04 | 3 | 2 | 2.5 | 80 | 6 | 40 | 1.5 | 2.86 | 0.4° | £53.23 | 5 days | |
| ESTNB2030-50-09 | 3 | 2 | 2.5 | 90 | 6 | 50 | 1.5 | 2.86 | 0.9° | £56.30 | 5 days | |
| ESTNB2030-60-09 | 3 | 2 | 2.5 | 100 | 6 | 60 | 1.5 | 2.86 | 0.9° | £59.38 | 5 days | |
| ESTNB2030-70-09 | 3 | 2 | 2.5 | 110 | 6 | 70 | 1.5 | 2.86 | 0.9° | £63.45 | 5 days | |
| ESTNB2040-20-10 | 4 | 2 | 8 | 70 | 8 | 20 | 2 | 3.86 | 1° | £53.28 | 5 days | |
| ESTNB2040-30-10 | 4 | 2 | 8 | 80 | 8 | 30 | 2 | 3.86 | 1° | £55.48 | 5 days | |
| ESTNB2040-40-10 | 4 | 2 | 8 | 90 | 8 | 40 | 2 | 3.86 | 1° | £58.80 | 5 days | |
| ESTNB2040-50-10 | 4 | 2 | 8 | 100 | 8 | 50 | 2 | 3.86 | 1° | £64.38 | 5 days | |
| ESTNB2040-60-10 | 4 | 2 | 8 | 110 | 8 | 60 | 2 | 3.86 | 1° | £68.80 | 5 days | |
| ESTNB2050-30-10 | 5 | 2 | 10 | 80 | 8 | 30 | 2.5 | 4.86 | 1° | £55.48 | 5 days | |
| ESTNB2050-40-10 | 5 | 2 | 10 | 90 | 8 | 40 | 2.5 | 4.86 | 1° | £58.80 | 5 days | |
| ESTNB2050-60-10 | 5 | 2 | 10 | 110 | 8 | 60 | 2.5 | 4.86 | 1° | £68.80 | 5 days | |
| ESTNB2060-30-10 | 6 | 2 | 12 | 80 | 8 | 30 | 3 | 5.86 | 1° | £55.48 | 5 days | |
| ESTNB2060-40-10 | 6 | 2 | 12 | 90 | 8 | 40 | 3 | 5.86 | 1° | £58.80 | 5 days | |
| ESTNB2060-50-10 | 6 | 2 | 12 | 100 | 8 | 50 | 3 | 5.86 | 1° | £64.38 | 5 days | |
| ESTNB2060-60-10 | 6 | 2 | 12 | 110 | 10 | 60 | 3 | 5.86 | 1° | £107.00 | 5 days | |
| ESTNB2060-70-10 | 6 | 2 | 12 | 120 | 10 | 70 | 3 | 5.86 | 1° | £118.88 | 5 days | |
| ESTNB2060-80-10 | 6 | 2 | 12 | 130 | 10 | 80 | 3 | 5.86 | 1° | £130.80 | 5 days | |
| ESTNB2080-50-10 | 8 | 2 | 14 | 110 | 10 | 50 | 4 | 7.86 | 1° | £107.00 | 5 days | |
| ESTNB2080-60-10 | 8 | 2 | 14 | 120 | 10 | 60 | 4 | 7.86 | 1° | £118.88 | 5 days | |
| ESTNB2080-70-10 | 8 | 2 | 14 | 130 | 10 | 70 | 4 | 7.86 | 1° | £130.80 | 5 days | |
| ESTNB2080-80-10 | 8 | 2 | 14 | 140 | 12 | 80 | 4 | 7.86 | 1° | £188.45 | 5 days | |
| ESTNB2100-60-10 | 10 | 2 | 18 | 130 | 12 | 60 | 5 | 9.86 | 1° | £175.00 | 5 days | |
| ESTNB2100-75-10 | 10 | 2 | 18 | 140 | 12 | 75 | 5 | 9.86 | 1° | £188.45 | 5 days |
