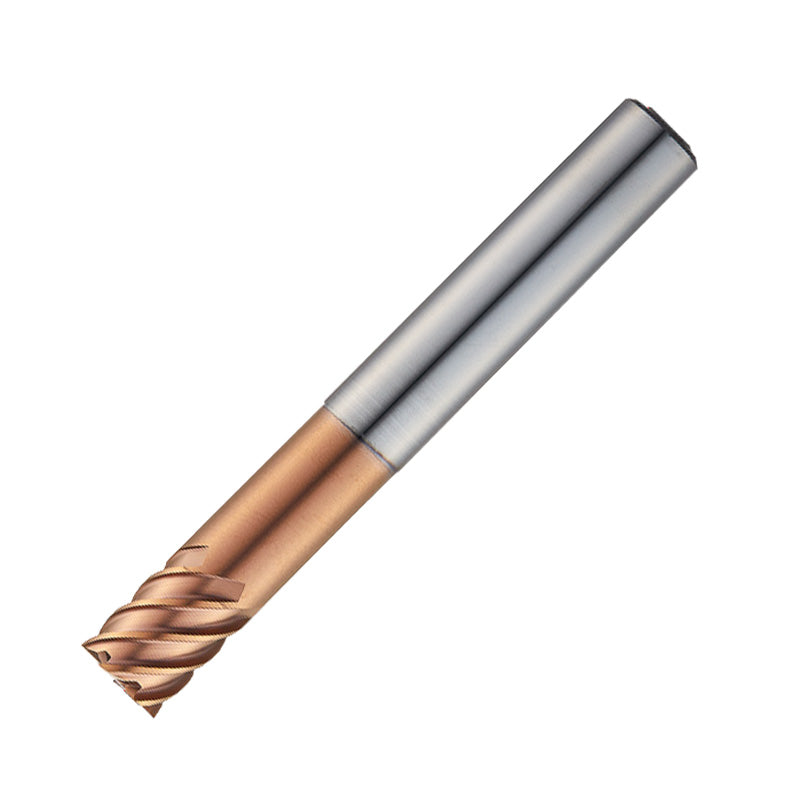

Widin Carbide End Mill
4 & 6 Flute Finishing For Mold & Die (ZE724/ZE726)
This versatile end mill is engineered to machine high hardened materials up to HRc70, offering exceptional durability and performance. With its newly developed raw-material and advanced coating, it is well-suited for dry cutting and high-speed operations, ensuring efficient chip evacuation and minimizing heat generation. The high helix angle employed in these end mills makes them particularly effective for semi-finishing and finishing tasks, delivering precise and smooth cuts. The result is an excellent workpiece finish with minimal post-processing required.
Click any SKU to view full product details, specifications and datasheets.
| Product SKU | Cutter Diameter | Number of Flutes | Flute Length | Overall Length | Shank Diameter | Reach | Corner Radius | Neck Diameter | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|---|---|
| ESE724010 | 1 | 4 | 1.5 | 45 | 6 | 5 | N/A | 0.95 |
£11.81 |
In Stock |
|
| ESE724015 | 1.5 | 4 | 2.2 | 45 | 6 | 6 | N/A | 1.45 | £29.55 | 5 days |
|
| ESE724020 | 2 | 4 | 3 | 45 | 6 | 8 | 0.05 | 1.9 | £29.55 | 5 days |
|
| ESE724030 | 3 | 4 | 4 | 50 | 6 | 9 | 0.05 | 2.9 | £30.69 | 5 days |
|
| ESE724040 | 4 | 4 | 5 | 50 | 6 | 12 | 0.05 | 3.8 | £30.69 | 5 days |
|
| ESE724050 | 5 | 4 | 6 | 50 | 6 | 15 | 0.05 | 4.8 | £31.82 | 5 days |
|
| ESE726060 | 6 | 6 | 7 | 60 | 6 | 20 | 0.05 | 5.8 | £47.73 | 5 days |
|
| ESE726080 | 8 | 6 | 9 | 70 | 8 | 25 | 0.05 | 7.8 | £62.40 | 5 days |
|
| ESE726100 | 10 | 6 | 12 | 75 | 10 | 32 | 0.05 | 9.7 | £80.08 | 5 days |
|
| ESE726120 | 12 | 6 | 15 | 80 | 12 | 38 | 0.05 | 11.7 | £112.49 | 5 days |
|
