Widin Carbide End Mill - 4 Flute Finishing For Mold & Die - 1mm
| Cutter Diameter | 1 |
| Number of Flutes | 4 |
| Flute Length | 1.5 |
| Overall Length | 45 |
Learn more about Klarna
Description

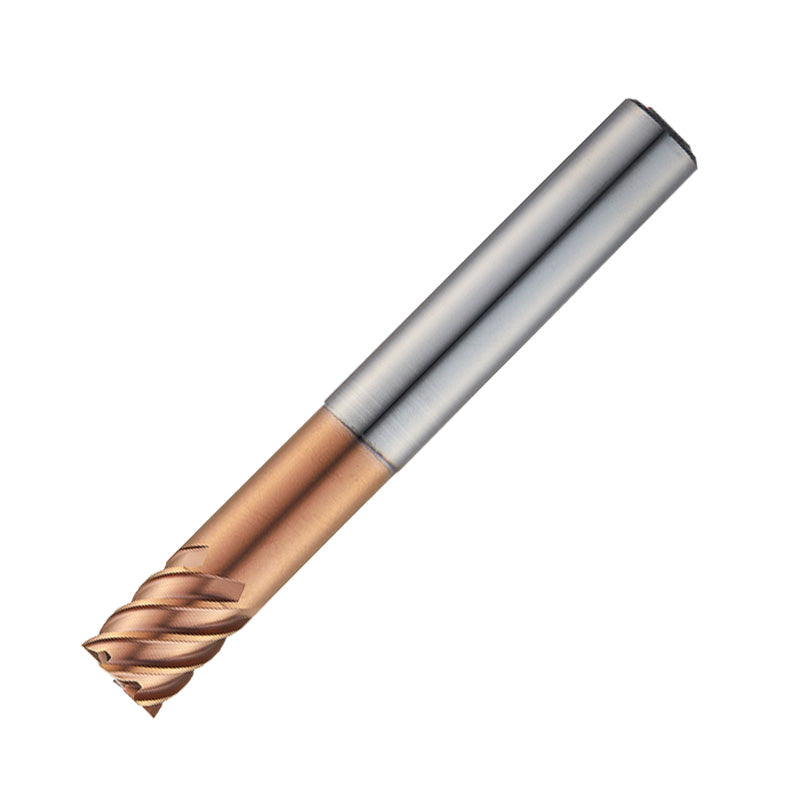

Widin Carbide End Mill — 1 mm, 4 Flute Finishing for Mold & Die — is a precision cutting tool designed for challenging finishing work in hard materials. Built for mold and die applications, it delivers accurate semi-finishing and finishing passes with consistently smooth results.
Featuring a newly developed raw-material and an advanced coating, this end mill excels in dry cutting and high-speed operations. The design promotes efficient chip evacuation and minimizes heat generation, helping maintain tool life during demanding finishing tasks. The high helix angle further enhances precision and creates consistently smooth cuts with minimal post-processing.
- Cuts Hard Materials Up to HRc70: Engineered to machine ultra-hard steels while preserving sharpness and precision for longer life in mold and die finishing tasks.
- Dry-Cutting Ready with Advanced Coating: Lowers friction and heat buildup, supports high-speed cutting, and ensures efficient chip evacuation for productive, coolant-free operation.
- High-Helix Finishing Geometry: Optimized for semi-finishing and finishing passes to deliver precise, smooth surfaces with minimal post-processing.
This end mill helps you complete mold and die work faster and more reliably. By pairing toughness with finishing-focused geometry, it reduces rework, lowers downtime, and delivers repeatable, high-quality surfaces across complex cavity features and fine details.
Part Numbers
- Protool Part Number
- ESE724010
- Brand
- Widin
- Category
- End Mill
Delivery
Free UK mainland delivery on orders over £50 ex VAT. In-stock items ordered before 4:30pm are dispatched the same working day. Full delivery information.
Returns
14-day returns on unused stock items in original packaging. Special-order and bespoke tooling is non-returnable. Read our returns policy.
Technical Support
Over 30 years of machining experience behind the counter. Call 01732 887334, Mon–Thurs 8:30–17:30, Fri 8:30–16:30.
Trade Accounts
Credit accounts, contract pricing and scheduled call-off orders available for trade customers. Apply for an account.
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Widin Carbide End Mill - 4 & 6 Flute Finishing For Mold & Die (ZE724/ZE726)
View full collection →You are viewing ESE724010. Click any other SKU to view its full details.

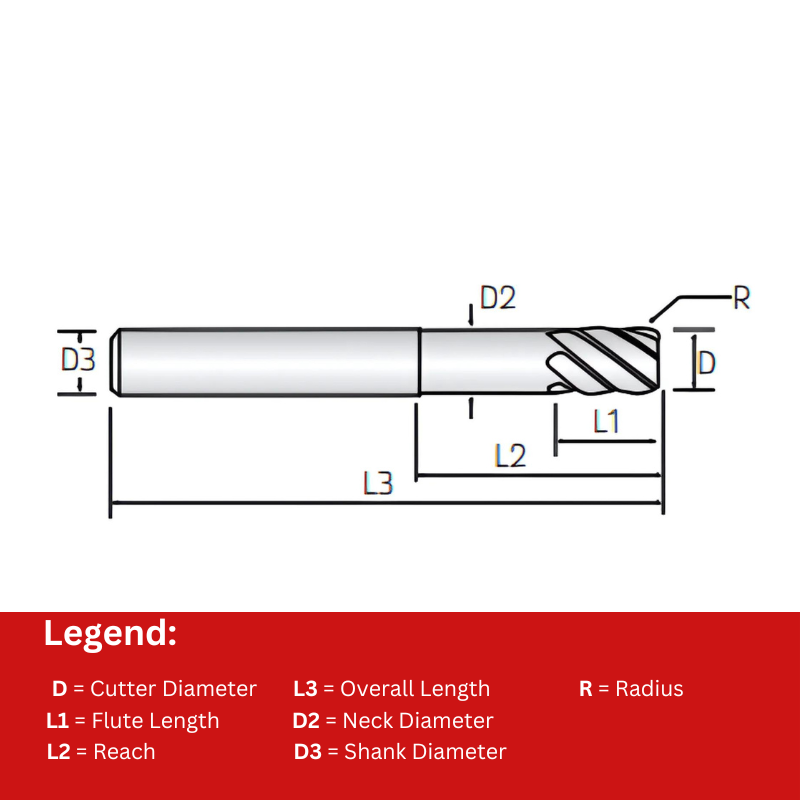

| Product SKU | Cutter Diameter | Number of Flutes | Flute Length | Overall Length | Shank Diameter | Reach | Corner Radius | Neck Diameter | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|---|---|
| ESE724010 Viewing | 1 | 4 | 1.5 | 45 | 6 | 5 | N/A | 0.95 | £26.63 | In Stock | |
| ESE724015 | 1.5 | 4 | 2.2 | 45 | 6 | 6 | N/A | 1.45 | £26.63 | 5 days | |
| ESE724020 | 2 | 4 | 3 | 45 | 6 | 8 | 0.05 | 1.9 | £26.63 | 5 days | |
| ESE724030 | 3 | 4 | 4 | 50 | 6 | 9 | 0.05 | 2.9 | £27.63 | 5 days | |
| ESE724040 | 4 | 4 | 5 | 50 | 6 | 12 | 0.05 | 3.8 | £27.63 | 5 days | |
| ESE724050 | 5 | 4 | 6 | 50 | 6 | 15 | 0.05 | 4.8 | £28.65 | 5 days | |
| ESE726060 | 6 | 6 | 7 | 60 | 6 | 20 | 0.05 | 5.8 | £42.98 | 5 days | |
| ESE726080 | 8 | 6 | 9 | 70 | 8 | 25 | 0.05 | 7.8 | £57.70 | 5 days | |
| ESE726100 | 10 | 6 | 12 | 75 | 10 | 32 | 0.05 | 9.7 | £77.30 | 5 days | |
| ESE726120 | 12 | 6 | 15 | 80 | 12 | 38 | 0.05 | 11.7 | £113.08 | 5 days |
