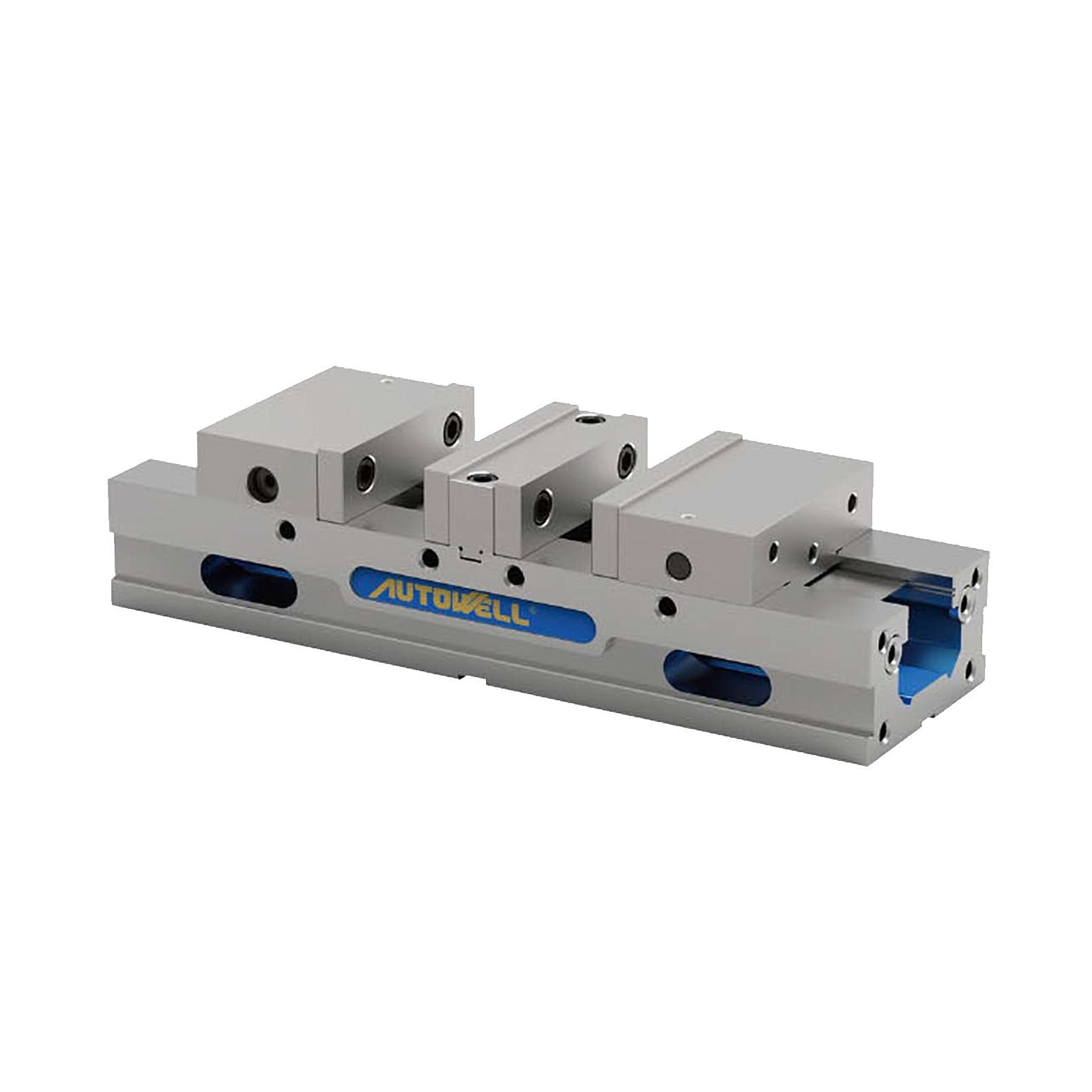

100mm/4 inch Double Station Lockwell Machine Vice - TLD Series (Autowell) - TLD-40G

The 100mm/4 inch Double Station Lockwell Machine Vice (TLD-40G) from Autowell is a precision fixture designed for CNC machining, enabling the simultaneous clamping of two workpieces with equal force. Built for a wide audience—from engineers and buyers to tradespeople and hobbyists—the vice helps you boost productivity without sacrificing accuracy.

Its patented clamping system ensures equal force on two different-sized or shaped parts, minimizing deflection and lift during machining. An anti-lift mechanism keeps pieces securely in place, while the automatic return feature speeds up workpiece changes and reduces downtime between operations.

• Patented equal-clamping force for two pieces: Clamps two dissimilar workpieces with equal force, reducing deflection and lift to deliver consistent, repeatable milling accuracy.
• Anti-lift mechanism: Keeps both workpieces firmly seated during cutting, preserving critical dimensions and finish across long cycles.
• Automatic return for faster setup: Smooth, automatic return after unclamping cuts setup time, enabling quicker part changes and higher overall throughput.

This rugged vice is built for durability: the rigid FCD-60 ductile iron body is rated at 80,000 PSI, with slide surfaces flame-hardened to HS65 for extended life. The S50C jaw plates are carburized and heat-treated to HRC54 to deliver reliable, repeatable gripping, and a purpose-built chip evacuation design keeps the working area clear for consistent performance across back-to-back jobs.
