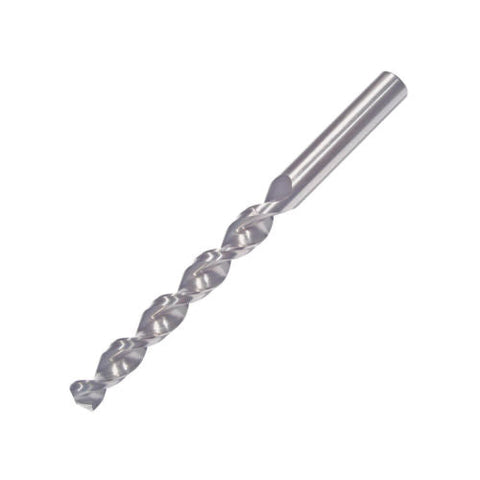

Somta Long Series Drill - HSS-E Parabolic Flute - 9.9mm
SKU:1100990
Meet the Somta Long Series Drill — HSS-E Parabolic Flute, 9.9 mm — a purpose-built solution for deep-hole drilling where your workpiece is thick, demanding, or holds tight tolerances. This drill ...
Read more ↓
Material Compatibility
P
M
K
N
Specification
View all specifications ↓
| Drill Diameter | 9.90 |
| Flute Length | 121 |
| Overall Length | 184 |
| Substrate | HSS-E |
| Type | Long Series |
| Shank Diameter | 9.9 |
£18.40
Prices shown ex. VAT
In Stock— only 8 left
View Other Sizes →
Free delivery over £50 ex VAT
Secure checkout
14-day returns
30+ years expertise
Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna
Learn more about Klarna
Meet the Somta Long Series Drill — HSS-E Parabolic Flute, 9.9 mm — a purpose-built solution for deep-hole drilling where your workpiece is thick, demanding, or holds tight tolerances. This drill combines a long profile with a robust HSS-E composition and a parabolic flute geometry to deliver reliable starts, steady cutting forces, and clean, precise holes in challenging materials.
Why this drill excels for demanding deep-hole work
- Long Series design: Extended flute length and overall length mean deeper holes can be drilled in a single setup, reducing rework and increasing productivity on thick workpieces.
- HSS-E construction: High-Speed Steel with enhanced alloying delivers superior heat resistance and edge retention, letting you maintain a sharp cut through tougher metals at practical speeds.
- Parabolic flute geometry: Wide, polished parabolic flutes promote rapid chip evacuation, lower cutting friction, and cooler operation — key to preventing chip packing and diverting heat away from the cutting edge.
- 110° point angle for confident starts: The precise starting geometry minimizes walking on tough or misaligned materials, ensuring you hit center more consistently and begin cutting cleanly from the first stroke.
- Clean hole quality under load: Sharp cutting edges combined with reinforced flute web provide smooth entry and reduced burr formation, even when drilling through thick steel, cast iron, or stainless workpieces.
- Versatile material compatibility: Well-suited for metals commonly encountered in fabrication and production environments, including steel, stainless steel, cast iron, and select aluminum alloys, where deep-hole accuracy matters most.
Practical usage insights: for best results, pair the drill with appropriate feeds and speeds for the material and machine, maintain firm workpiece clamping to prevent deflection, and use coolant or generous lubrication to sustain edge life during prolonged drilling. Clear chips regularly to preserve hole concentricity and finish.
| Drill Diameter | 9.90 |
| Flute Length | 121 |
| Overall Length | 184 |
| Substrate | HSS-E |
| Type | Long Series |
| Shank Diameter | 9.9 |
| Coated | No |
| Standard | DIN 340 |
| Helix Angle | 40° |
| Point Angle | 130° |
| Point Geometry | Split Point |
| Coating | Uncoated |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
★★★★★
Nice experience staff are very helpful and interested...
Staff are very helpful and interested in providing a good service making us the customer feel valued.
★★★★★
first place we look
honest about stock and prices are competitive.
★★★★★
Polite and helpful
Staff are very helpful and polite.Goods that were in stock were dispatched same day and back orders were quick in coming through .
★★★★★
Buying experience
Phone requests are handled quickly and without any fuss. The website is easy to use and straightforward to order from. It’s especially helpful that it shows real‑time availability, so we don’t need to call to confirm whether parts will arrive.
Full Range: Somta Long Series Drill - HSS-E Parabolic Flute (110)
View full collection →You are viewing 1100990. Click any other SKU to view its full details.
| Product SKU | Drill Diameter | Flute Length | Overall Length | Shank Diameter | Price | Stock | Order |
|---|---|---|---|---|---|---|---|
| 1100100 | 1.00 | 33 | 56 | 1 | £2.42 | 1-2 days | |
| 1100110 | 1.10 | 37 | 60 | 1.1 | £2.37 | 1-2 days | |
| 1100120 | 1.20 | 41 | 65 | 1.2 | £2.57 | 1-2 days | |
| 1100130 | 1.30 | 41 | 65 | 1.3 | £2.61 | In Stock | |
| 1100140 | 1.40 | 41 | 70 | 1.4 | £3.88 | In Stock | |
| 1100150 | 1.50 | 45 | 70 | 1.5 | £4.52 | 1-2 days | |
| 1100160 | 1.60 | 50 | 76 | 1.6 | £5.02 | 1-2 days | |
| 1100170 | 1.70 | 50 | 76 | 1.7 | £4.98 | 1-2 days | |
| 1100180 | 1.80 | 53 | 80 | 1.8 | £4.90 | In Stock | |
| 1100190 | 1.90 | 53 | 80 | 1.9 | £4.90 | In Stock | |
| 1100200 | 2.00 | 56 | 85 | 2 | £4.90 | 1-2 days | |
| 1100210 | 2.10 | 56 | 85 | 2.1 | £4.90 | 1-2 days | |
| 1100220 | 2.20 | 59 | 90 | 2.2 | £5.07 | In Stock | |
| 1100230 | 2.30 | 59 | 90 | 2.3 | £5.07 | In Stock | |
| 1100240 | 2.40 | 62 | 95 | 2.4 | £5.30 | In Stock | |
| 1100250 | 2.50 | 62 | 95 | 2.5 | £4.47 | 1-2 days | |
| 1100260 | 2.60 | 66 | 100 | 2.6 | £4.43 | 1-2 days | |
| 1100270 | 2.70 | 66 | 100 | 2.7 | £4.66 | In Stock | |
| 1100280 | 2.80 | 66 | 100 | 2.8 | £4.66 | In Stock | |
| 1100290 | 2.90 | 66 | 100 | 2.9 | £4.58 | 1-2 days | |
| 1100300 | 3.00 | 66 | 100 | 3 | £4.47 | In Stock | |
| 1100310 | 3.10 | 69 | 106 | 3.1 | £4.75 | In Stock | |
| 1100320 | 3.20 | 69 | 106 | 3.2 | £4.66 | In Stock | |
| 1100330 | 3.30 | 69 | 106 | 3.3 | £4.66 | 1-2 days | |
| 1100340 | 3.40 | 73 | 112 | 3.4 | £5.30 | 1-2 days | |
| 1100350 | 3.50 | 73 | 112 | 3.5 | £5.26 | In Stock | |
| 1100360 | 3.60 | 73 | 112 | 3.6 | £5.19 | In Stock | |
| 1100370 | 3.70 | 73 | 112 | 3.7 | £5.19 | In Stock | |
| 1100380 | 3.80 | 78 | 119 | 3.8 | £5.38 | In Stock | |
| 1100390 | 3.90 | 78 | 119 | 3.9 | £5.38 | In Stock | |
| 1100400 | 4.00 | 78 | 119 | 4 | £5.38 | 1-2 days | |
| 1100410 | 4.10 | 78 | 119 | 4.1 | £5.94 | In Stock | |
| 1100420 | 4.20 | 78 | 119 | 4.2 | £5.94 | 1-2 days | |
| 1100430 | 4.30 | 82 | 126 | 4.3 | £6.49 | In Stock | |
| 1100440 | 4.40 | 82 | 126 | 4.4 | £6.42 | In Stock | |
| 1100450 | 4.50 | 82 | 126 | 4.5 | £6.42 | In Stock | |
| 1100460 | 4.60 | 82 | 126 | 4.6 | £7.02 | In Stock | |
| 1100470 | 4.70 | 82 | 126 | 4.7 | £6.81 | In Stock | |
| 1100480 | 4.80 | 87 | 132 | 4.8 | £7.57 | In Stock | |
| 1100490 | 4.90 | 87 | 132 | 4.9 | £7.50 | In Stock | |
| 1100500 | 5.00 | 87 | 132 | 5 | £7.00 | In Stock | |
| 1100510 | 5.10 | 87 | 132 | 5.1 | £7.57 | 1-2 days | |
| 1100520 | 5.20 | 87 | 132 | 5.2 | £7.50 | In Stock | |
| 1100530 | 5.30 | 87 | 132 | 5.3 | £6.93 | In Stock | |
| 1100540 | 5.40 | 91 | 139 | 5.4 | £9.18 | In Stock | |
| 1100550 | 5.50 | 91 | 139 | 5.5 | £9.18 | In Stock | |
| 1100560 | 5.60 | 91 | 139 | 5.6 | £9.14 | 1-2 days | |
| 1100570 | 5.70 | 91 | 139 | 5.7 | £9.14 | In Stock | |
| 1100580 | 5.80 | 91 | 139 | 5.8 | £8.99 | In Stock | |
| 1100590 | 5.90 | 91 | 139 | 5.9 | £8.90 | In Stock | |
| 1100600 | 6.00 | 91 | 139 | 6 | £8.35 | 1-2 days | |
| 1100610 | 6.10 | 97 | 148 | 6.1 | £11.07 | In Stock | |
| 1100620 | 6.20 | 97 | 148 | 6.2 | £10.13 | In Stock | |
| 1100630 | 6.30 | 97 | 148 | 6.3 | £9.54 | In Stock | |
| 1100640 | 6.40 | 97 | 148 | 6.4 | £10.88 | In Stock | |
| 1100650 | 6.50 | 97 | 148 | 6.5 | £11.70 | In Stock | |
| 1100660 | 6.60 | 97 | 148 | 6.6 | £10.73 | In Stock | |
| 1100670 | 6.70 | 97 | 148 | 6.7 | £10.09 | In Stock | |
| 1100680 | 6.80 | 102 | 156 | 6.8 | £12.64 | In Stock | |
| 1100690 | 6.90 | 102 | 156 | 6.9 | £12.51 | In Stock | |
| 1100700 | 7.00 | 102 | 156 | 7 | £12.36 | In Stock | |
| 1100710 | 7.10 | 102 | 156 | 7.1 | £11.77 | In Stock | |
| 1100720 | 7.20 | 102 | 156 | 7.2 | £12.78 | In Stock | |
| 1100730 | 7.30 | 102 | 156 | 7.3 | £12.64 | In Stock | |
| 1100740 | 7.40 | 102 | 156 | 7.4 | £12.51 | In Stock | |
| 1100750 | 7.50 | 102 | 156 | 7.5 | £11.77 | In Stock | |
| 1100760 | 7.60 | 109 | 165 | 7.6 | £13.53 | 1-2 days | |
| 1100770 | 7.70 | 109 | 165 | 7.7 | £13.53 | In Stock | |
| 1100780 | 7.80 | 109 | 165 | 7.8 | £13.42 | In Stock | |
| 1100790 | 7.90 | 109 | 165 | 7.9 | £13.23 | In Stock | |
| 1100800 | 8.00 | 109 | 165 | 8 | £12.57 | In Stock | |
| 1100810 | 8.10 | 109 | 165 | 8.1 | £14.42 | In Stock | |
| 1100820 | 8.20 | 109 | 165 | 8.2 | £14.42 | In Stock | |
| 1100830 | 8.30 | 109 | 165 | 8.3 | £14.42 | In Stock | |
| 1100840 | 8.40 | 109 | 165 | 8.4 | £14.29 | In Stock | |
| 1100850 | 8.50 | 109 | 165 | 8.5 | £13.53 | In Stock | |
| 1100860 | 8.60 | 115 | 175 | 8.6 | £15.84 | In Stock | |
| 1100870 | 8.70 | 115 | 175 | 8.7 | £15.90 | In Stock | |
| 1100880 | 8.80 | 115 | 175 | 8.8 | £15.71 | In Stock | |
| 1100890 | 8.90 | 115 | 175 | 8.9 | £15.56 | In Stock | |
| 1100900 | 9.00 | 115 | 175 | 9 | £14.80 | In Stock | |
| 1100910 | 9.10 | 115 | 175 | 9.1 | £16.94 | In Stock | |
| 1100920 | 9.20 | 115 | 175 | 9.2 | £16.94 | In Stock | |
| 1100930 | 9.30 | 115 | 175 | 9.3 | £16.79 | In Stock | |
| 1100940 | 9.40 | 115 | 175 | 9.4 | £16.62 | In Stock | |
| 1100950 | 9.50 | 115 | 175 | 9.5 | £15.84 | 1-2 days | |
| 1100960 | 9.60 | 121 | 184 | 9.6 | £18.72 | In Stock | |
| 1100970 | 9.70 | 121 | 184 | 9.7 | £18.72 | In Stock | |
| 1100980 | 9.80 | 121 | 184 | 9.8 | £18.53 | In Stock | |
| 1100990 Viewing | 9.90 | 121 | 184 | 9.9 | £18.40 | In Stock | |
| 1101000 | 10.00 | 121 | 184 | 10 | £17.81 | In Stock |
