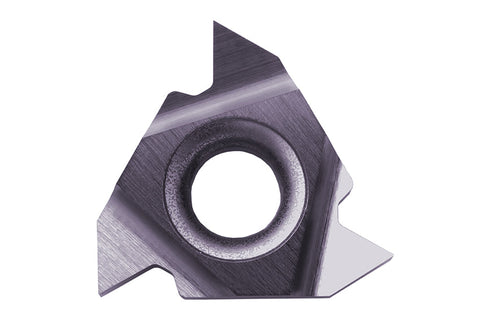

Carmex Thread Turning Internal Insert - UN (UNC,UNF,UNEF,UNS) - Left Hand - 16IL13UNBMA
SKU:16IL13UNBMA
Carmex Thread Turning Internal Insert – UN (UNC, UNF, UNEF, UNS) Left Hand, 16IL13UNBMA is part of our recognized line of thread turning inserts. These laydown triangular inserts are designed to ...
Read more ↓
Material Compatibility
P
M
K
S
H
Specifications at a glance
View all specifications ↓
Download Cutting Data
| Thread Type | Internal |
| Thread Direction | Left Hand |
| Thread Form | UN (UNC UNF UNEF UNS) |
| Pitch | 13 |
£9.50
Prices shown ex. VAT
5 days estimated lead time
— subject to availability
View Other Sizes →
Free delivery over £50 ex VAT
Secure checkout
14-day returns
30+ years expertise
Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna
Learn more about Klarna
Compatible holders
The ones our customers buy most.
Description
Carmex Thread Turning Internal Insert – UN (UNC, UNF, UNEF, UNS) Left Hand, 16IL13UNBMA is part of our recognized line of thread turning inserts. These laydown triangular inserts are designed to cover the major internal thread standards used today, giving you a single, dependable tool for most projects.
Whether you’re an engineer, machinist, or production buyer, this insert supports clean, accurate internal threads across simple to challenging tasks with less tool swapping and more consistent results.
- Broad compatibility with UNC/UNF/UNEF/UNS: One insert family that covers major internal thread standards, reducing the need for multiple tools and streamlining setup.
- Left-Hand threading capability: Engineered specifically for left-handed threads, delivering reliable, consistent internal threads even in reverse-cut operations.
- Reliable, laydown triangular design: The laydown geometry provides stable performance across a wide range of applications, helping you achieve clean finishes and repeatable results.
This versatile insert helps speed up production, reduce downtime, and improve thread quality across your range of parts. By simplifying tool selection and minimizing changes, it supports smoother workflows from prototyping to production with greater overall reliability.
Part Numbers
- Protool Part Number
- 16IL13UNBMA
- Brand
- Carmex
- Category
- Thread Turning
Delivery
Free UK mainland delivery on orders over £50 ex VAT. In-stock items ordered before 4:30pm are dispatched the same working day. Full delivery information.
Returns
14-day returns on unused stock items in original packaging. Special-order and bespoke tooling is non-returnable. Read our returns policy.
Technical Support
Over 30 years of machining experience behind the counter. Call 01732 887334, Mon–Thurs 8:30–17:30, Fri 8:30–16:30.
Trade Accounts
Credit accounts, contract pricing and scheduled call-off orders available for trade customers. Apply for an account.
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Ask our technical team about this tool
Full Range: Carmex Thread Turning Internal Inserts - Unified - Right/Left Hand
View full collection →You are viewing 16IL13UNBMA. Click any other SKU to view its full details.
| Product SKU | Thread Type | Thread Direction | Thread Form | Pitch | Insert Size | Grade | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|
| 06IL18UNBMA | Internal | Left Hand | UN (UNC UNF UNEF UNS) | 18 | 6 | BMA | £8.90 | 5 days | |
| 06IL18UNBXC | Internal | Left Hand | UN (UNC UNF UNEF UNS) | 18 | 6 | BXC | £13.88 | 5 days | |
| 06IL18WBMA | Internal | Left Hand | W (BSW BSF BSP BSB) | 18 | 6 | BMA | £8.90 | 5 days | |
| 06IL20UNBMA | Internal | Left Hand | UN (UNC UNF UNEF UNS) | 20 | 6 | BMA | £8.90 | In Stock | |
| 06IL20UNBXC | Internal | Left Hand | UN (UNC UNF UNEF UNS) | 20 | 6 | BXC | £13.88 | In Stock | |
| 06IL20WBMA | Internal | Left Hand | W (BSW BSF BSP BSB) | 20 | 6 | BMA | £8.90 | 5 days | |
| 06IL22WBMA | Internal | Left Hand | W (BSW BSF BSP BSB) | 22 | 6 | BMA | £8.90 | 5 days | |
| 06IL24UNBMA | Internal | Left Hand | UN (UNC UNF UNEF UNS) | 24 | 6 | BMA | £13.93 | 5 days | |
| 06IL24UNBXC | Internal | Left Hand | UN (UNC UNF UNEF UNS) | 24 | 6 | BXC | £13.88 | 5 days | |
| 06IL28UNBMA | Internal | Left Hand | UN (UNC UNF UNEF UNS) | 28 | 6 | BMA | £8.90 | 5 days | |
| 06IL28UNBXC | Internal | Left Hand | UN (UNC UNF UNEF UNS) | 28 | 6 | BXC | £13.88 | 5 days | |
| 06IL32UNBMA | Internal | Left Hand | UN (UNC UNF UNEF UNS) | 32 | 6 | BMA | £13.93 | In Stock | |
| 06IL32UNBXC | Internal | Left Hand | UN (UNC UNF UNEF UNS) | 32 | 6 | BXC | £13.88 | 5 days | |
| 06IR18UNBMA | Internal | Right Hand | UN (UNC UNF UNEF UNS) | 18 | 6 | BMA | £11.60 | In Stock | |
| 06IR18UNBXC | Internal | Right Hand | UN (UNC UNF UNEF UNS) | 18 | 6 | BXC | £11.60 | In Stock | |
| 06IR20UNBMA | Internal | Right Hand | UN (UNC UNF UNEF UNS) | 20 | 6 | BMA | £11.60 | In Stock | |
| 06IR20UNBXC | Internal | Right Hand | UN (UNC UNF UNEF UNS) | 20 | 6 | BXC | £11.60 | 5 days | |
| 06IR24UNBMA | Internal | Right Hand | UN (UNC UNF UNEF UNS) | 24 | 6 | BMA | £11.60 | 5 days | |
| 06IR28UNBMA | Internal | Right Hand | UN (UNC UNF UNEF UNS) | 28 | 6 | BMA | £11.60 | In Stock | |
| 06IR32UNBMA | Internal | Right Hand | UN (UNC UNF UNEF UNS) | 32 | 6 | BMA | £11.60 | In Stock | |
| 08IL14UNBMA | Internal | Left Hand | UN (UNC UNF UNEF UNS) | 14 | 8 | BMA | £13.88 | 5 days | |
| 08IL16UNBMA | Internal | Left Hand | UN (UNC UNF UNEF UNS) | 16 | 8 | BMA | £8.90 | 5 days | |
| 08IL18UNBMA | Internal | Left Hand | UN (UNC UNF UNEF UNS) | 18 | 8 | BMA | £13.88 | 5 days | |
| 08IL20UNBMA | Internal | Left Hand | UN (UNC UNF UNEF UNS) | 20 | 8 | BMA | £13.88 | 5 days | |
| 08IL24UNBMA | Internal | Left Hand | UN (UNC UNF UNEF UNS) | 24 | 8 | BMA | £13.88 | 5 days | |
| 08IL28UNBMA | Internal | Left Hand | UN (UNC UNF UNEF UNS) | 28 | 8 | BMA | £13.88 | 5 days | |
| 08IL32UNBMA | Internal | Left Hand | UN (UNC UNF UNEF UNS) | 32 | 8 | BMA | £13.88 | 5 days | |
| 08IR13UNBMA | Internal | Right Hand | UN (UNC UNF UNEF UNS) | 13 | 8 | BMA | £11.60 | In Stock | |
| 08IR14UNBMA | Internal | Right Hand | UN (UNC UNF UNEF UNS) | 14 | 8 | BMA | £11.60 | In Stock | |
| 08IR16UNBMA | Internal | Right Hand | UN (UNC UNF UNEF UNS) | 16 | 8 | BMA | £11.60 | 5 days | |
| 08IR18UNBMA | Internal | Right Hand | UN (UNC UNF UNEF UNS) | 18 | 8 | BMA | £11.60 | In Stock | |
| 08IR20UNBMA | Internal | Right Hand | UN (UNC UNF UNEF UNS) | 20 | 8 | BMA | £11.60 | In Stock | |
| 08IR24UNBMA | Internal | Right Hand | UN (UNC UNF UNEF UNS) | 24 | 8 | BMA | £11.60 | 5 days | |
| 08IR28UNBMA | Internal | Right Hand | UN (UNC UNF UNEF UNS) | 28 | 8 | BMA | £11.60 | 5 days | |
| 08IR32UNBMA | Internal | Right Hand | UN (UNC UNF UNEF UNS) | 32 | 8 | BMA | £11.60 | 5 days | |
| 11IL11UNBMA | Internal | Left Hand | UN (UNC UNF UNEF UNS) | 11 | 11 | BMA | £8.10 | 5 days | |
| 11IL12UNBMA | Internal | Left Hand | UN (UNC UNF UNEF UNS) | 12 | 11 | BMA | £8.10 | 5 days | |
| 11IL13UNBMA | Internal | Left Hand | UN (UNC UNF UNEF UNS) | 13 | 11 | BMA | £10.55 | 5 days | |
| 11IL14UNBMA | Internal | Left Hand | UN (UNC UNF UNEF UNS) | 14 | 11 | BMA | £8.10 | 5 days | |
| 11IL16UNBMA | Internal | Left Hand | UN (UNC UNF UNEF UNS) | 16 | 11 | BMA | £10.55 | In Stock | |
| 11IL18UNBMA | Internal | Left Hand | UN (UNC UNF UNEF UNS) | 18 | 11 | BMA | £10.55 | In Stock | |
| 11IL20UNBMA | Internal | Left Hand | UN (UNC UNF UNEF UNS) | 20 | 11 | BMA | £8.10 | 5 days | |
| 11IL24UNBMA | Internal | Left Hand | UN (UNC UNF UNEF UNS) | 24 | 11 | BMA | £8.10 | In Stock | |
| 11IL27UNBMA | Internal | Left Hand | UN (UNC UNF UNEF UNS) | 27 | 11 | BMA | £8.10 | 5 days | |
| 11IL28UNBMA | Internal | Left Hand | UN (UNC UNF UNEF UNS) | 28 | 11 | BMA | £10.55 | 5 days | |
| 11IL32UNBMA | Internal | Left Hand | UN (UNC UNF UNEF UNS) | 32 | 11 | BMA | £8.10 | 5 days | |
| 11IL36UNBMA | Internal | Left Hand | UN (UNC UNF UNEF UNS) | 36 | 11 | BMA | £10.53 | 5 days | |
| 11IL40UNBMA | Internal | Left Hand | UN (UNC UNF UNEF UNS) | 40 | 11 | BMA | £10.53 | 5 days | |
| 11IL44UNBMA | Internal | Left Hand | UN (UNC UNF UNEF UNS) | 44 | 11 | BMA | £10.53 | 5 days | |
| 11IL48UNBMA | Internal | Left Hand | UN (UNC UNF UNEF UNS) | 48 | 11 | BMA | £10.53 | 5 days | |
| 11IL56UNBMA | Internal | Left Hand | UN (UNC UNF UNEF UNS) | 56 | 11 | BMA | £10.53 | 5 days | |
| 11IL64UNBMA | Internal | Left Hand | UN (UNC UNF UNEF UNS) | 64 | 11 | BMA | £10.53 | 5 days | |
| 11IL72UNBMA | Internal | Left Hand | UN (UNC UNF UNEF UNS) | 72 | 11 | BMA | £10.53 | 5 days | |
| 11IR11UNBMA | Internal | Right Hand | UN (UNC UNF UNEF UNS) | 11 | 11 | BMA | £10.55 | 5 days | |
| 11IR12UNBMA | Internal | Right Hand | UN (UNC UNF UNEF UNS) | 12 | 11 | BMA | £10.55 | In Stock | |
| 11IR13UNBMA | Internal | Right Hand | UN (UNC UNF UNEF UNS) | 13 | 11 | BMA | £10.55 | In Stock | |
| 11IR14UNBMA | Internal | Right Hand | UN (UNC UNF UNEF UNS) | 14 | 11 | BMA | £10.55 | 5 days | |
| 11IR16UNBMA | Internal | Right Hand | UN (UNC UNF UNEF UNS) | 16 | 11 | BMA | £10.55 | In Stock | |
| 11IR18UNBMA | Internal | Right Hand | UN (UNC UNF UNEF UNS) | 18 | 11 | BMA | £10.55 | In Stock | |
| 11IR20UNBMA | Internal | Right Hand | UN (UNC UNF UNEF UNS) | 20 | 11 | BMA | £10.55 | 5 days | |
| 11IR24UNBMA | Internal | Right Hand | UN (UNC UNF UNEF UNS) | 24 | 11 | BMA | £10.55 | In Stock | |
| 11IR27UNBMA | Internal | Right Hand | UN (UNC UNF UNEF UNS) | 27 | 11 | BMA | £10.55 | In Stock | |
| 11IR28UNBMA | Internal | Right Hand | UN (UNC UNF UNEF UNS) | 28 | 11 | BMA | £10.55 | In Stock | |
| 11IR32UNBMA | Internal | Right Hand | UN (UNC UNF UNEF UNS) | 32 | 11 | BMA | £10.55 | In Stock | |
| 11IR36UNBMA | Internal | Right Hand | UN (UNC UNF UNEF UNS) | 36 | 11 | BMA | £13.68 | In Stock | |
| 11IR40UNBMA | Internal | Right Hand | UN (UNC UNF UNEF UNS) | 40 | 11 | BMA | £10.55 | In Stock | |
| 11IR44UNBMA | Internal | Right Hand | UN (UNC UNF UNEF UNS) | 44 | 11 | BMA | £10.53 | 5 days | |
| 11IR48UNBMA | Internal | Right Hand | UN (UNC UNF UNEF UNS) | 48 | 11 | BMA | £13.68 | 5 days | |
| 11IR56UNBMA | Internal | Right Hand | UN (UNC UNF UNEF UNS) | 56 | 11 | BMA | £10.53 | 5 days | |
| 11IR64UNBMA | Internal | Right Hand | UN (UNC UNF UNEF UNS) | 64 | 11 | BMA | £10.53 | 5 days | |
| 11IR72UNBMA | Internal | Right Hand | UN (UNC UNF UNEF UNS) | 72 | 11 | BMA | £10.53 | 5 days | |
| 16IL10UNBMA | Internal | Left Hand | UN (UNC UNF UNEF UNS) | 10 | 16 | BMA | £9.50 | 5 days | |
| 16IL11.5UNBMA | Internal | Left Hand | UN (UNC UNF UNEF UNS) | 11.5 | 16 | BMA | £7.29 | 5 days | |
| 16IL11UNBMA | Internal | Left Hand | UN (UNC UNF UNEF UNS) | 11 | 16 | BMA | £9.50 | 5 days | |
| 16IL12UNBMA | Internal | Left Hand | UN (UNC UNF UNEF UNS) | 12 | 16 | BMA | £9.50 | 5 days | |
| 16IL13UNBMA Viewing | Internal | Left Hand | UN (UNC UNF UNEF UNS) | 13 | 16 | BMA | £9.50 | 5 days | |
| 16IL14UNBMA | Internal | Left Hand | UN (UNC UNF UNEF UNS) | 14 | 16 | BMA | £9.50 | 5 days | |
| 16IL16UNBMA | Internal | Left Hand | UN (UNC UNF UNEF UNS) | 16 | 16 | BMA | £9.50 | 5 days | |
| 16IL18UNBMA | Internal | Left Hand | UN (UNC UNF UNEF UNS) | 18 | 16 | BMA | £9.50 | 5 days | |
| 16IL20UNBMA | Internal | Left Hand | UN (UNC UNF UNEF UNS) | 20 | 16 | BMA | £9.50 | 5 days | |
| 16IL24UNBMA | Internal | Left Hand | UN (UNC UNF UNEF UNS) | 24 | 16 | BMA | £7.29 | In Stock | |
| 16IL27UNBMA | Internal | Left Hand | UN (UNC UNF UNEF UNS) | 27 | 16 | BMA | £7.29 | 5 days | |
| 16IL28UNBMA | Internal | Left Hand | UN (UNC UNF UNEF UNS) | 28 | 16 | BMA | £7.29 | 5 days | |
| 16IL32UNBMA | Internal | Left Hand | UN (UNC UNF UNEF UNS) | 32 | 16 | BMA | £7.29 | 5 days | |
| 16IL36UNBMA | Internal | Left Hand | UN (UNC UNF UNEF UNS) | 36 | 16 | BMA | £9.47 | 5 days | |
| 16IL40UNBMA | Internal | Left Hand | UN (UNC UNF UNEF UNS) | 40 | 16 | BMA | £9.47 | 5 days | |
| 16IL44UNBMA | Internal | Left Hand | UN (UNC UNF UNEF UNS) | 44 | 16 | BMA | £9.47 | 5 days | |
| 16IL48UNBMA | Internal | Left Hand | UN (UNC UNF UNEF UNS) | 48 | 16 | BMA | £9.47 | 5 days | |
| 16IL56UNBMA | Internal | Left Hand | UN (UNC UNF UNEF UNS) | 56 | 16 | BMA | £9.47 | 5 days | |
| 16IL64UNBMA | Internal | Left Hand | UN (UNC UNF UNEF UNS) | 64 | 16 | BMA | £9.47 | 5 days | |
| 16IL72UNBMA | Internal | Left Hand | UN (UNC UNF UNEF UNS) | 72 | 16 | BMA | £9.47 | 5 days | |
| 16IL8UNBMA | Internal | Left Hand | UN (UNC UNF UNEF UNS) | 8 | 16 | BMA | £9.50 | In Stock | |
| 16IL9UNBMA | Internal | Left Hand | UN (UNC UNF UNEF UNS) | 9 | 16 | BMA | £9.50 | 5 days | |
| 16IR10UNBMA | Internal | Right Hand | UN (UNC UNF UNEF UNS) | 10 | 16 | BMA | £9.50 | In Stock | |
| 16IR11.5UNBMA | Internal | Right Hand | UN (UNC UNF UNEF UNS) | 11.5 | 16 | BMA | £9.50 | In Stock | |
| 16IR11UNBMA | Internal | Right Hand | UN (UNC UNF UNEF UNS) | 11 | 16 | BMA | £9.50 | In Stock | |
| 16IR12UNBMA | Internal | Right Hand | UN (UNC UNF UNEF UNS) | 12 | 16 | BMA | £9.50 | In Stock | |
| 16IR13UNBMA | Internal | Right Hand | UN (UNC UNF UNEF UNS) | 13 | 16 | BMA | £9.50 | In Stock | |
| 16IR14UNBMA | Internal | Right Hand | UN (UNC UNF UNEF UNS) | 14 | 16 | BMA | £9.50 | In Stock | |
| 16IR16UNBMA | Internal | Right Hand | UN (UNC UNF UNEF UNS) | 16 | 16 | BMA | £9.50 | 5 days | |
| 16IR18UNBMA | Internal | Right Hand | UN (UNC UNF UNEF UNS) | 18 | 16 | BMA | £9.50 | In Stock | |
| 16IR20UNBMA | Internal | Right Hand | UN (UNC UNF UNEF UNS) | 20 | 16 | BMA | £9.50 | In Stock | |
| 16IR24UNBMA | Internal | Right Hand | UN (UNC UNF UNEF UNS) | 24 | 16 | BMA | £9.50 | In Stock | |
| 16IR27UNBMA | Internal | Right Hand | UN (UNC UNF UNEF UNS) | 27 | 16 | BMA | £9.50 | In Stock | |
| 16IR28UNBMA | Internal | Right Hand | UN (UNC UNF UNEF UNS) | 28 | 16 | BMA | £9.50 | In Stock | |
| 16IR32UNBMA | Internal | Right Hand | UN (UNC UNF UNEF UNS) | 32 | 16 | BMA | £9.50 | In Stock | |
| 16IR36UNBMA | Internal | Right Hand | UN (UNC UNF UNEF UNS) | 36 | 16 | BMA | £12.31 | In Stock | |
| 16IR40UNBMA | Internal | Right Hand | UN (UNC UNF UNEF UNS) | 40 | 16 | BMA | £12.31 | In Stock | |
| 16IR44UNBMA | Internal | Right Hand | UN (UNC UNF UNEF UNS) | 44 | 16 | BMA | £12.31 | 5 days | |
| 16IR48UNBMA | Internal | Right Hand | UN (UNC UNF UNEF UNS) | 48 | 16 | BMA | £12.31 | 5 days | |
| 16IR56UNBMA | Internal | Right Hand | UN (UNC UNF UNEF UNS) | 56 | 16 | BMA | £12.31 | 5 days | |
| 16IR64UNBMA | Internal | Right Hand | UN (UNC UNF UNEF UNS) | 64 | 16 | BMA | £12.31 | 5 days | |
| 16IR72UNBMA | Internal | Right Hand | UN (UNC UNF UNEF UNS) | 72 | 16 | BMA | £12.31 | 5 days | |
| 16IR8UNBMA | Internal | Right Hand | UN (UNC UNF UNEF UNS) | 8 | 16 | BMA | £9.50 | In Stock | |
| 16IR9UNBMA | Internal | Right Hand | UN (UNC UNF UNEF UNS) | 9 | 16 | BMA | £9.50 | In Stock | |
| 22IL5UNBMA | Internal | Left Hand | UN (UNC UNF UNEF UNS) | 5 | 22 | BMA | £10.69 | 5 days | |
| 22IL6UNBMA | Internal | Left Hand | UN (UNC UNF UNEF UNS) | 6 | 22 | BMA | £10.69 | 5 days | |
| 22IL7UNBMA | Internal | Left Hand | UN (UNC UNF UNEF UNS) | 7 | 22 | BMA | £10.69 | 5 days | |
| 22IR5UNBMA | Internal | Right Hand | UN (UNC UNF UNEF UNS) | 5 | 22 | BMA | £13.93 | 5 days | |
| 22IR6UNBMA | Internal | Right Hand | UN (UNC UNF UNEF UNS) | 6 | 22 | BMA | £13.93 | In Stock | |
| 22IR7UNBMA | Internal | Right Hand | UN (UNC UNF UNEF UNS) | 7 | 22 | BMA | £13.93 | In Stock | |
| 27IL4.5UNBMA | Internal | Left Hand | UN (UNC UNF UNEF UNS) | 4.5 | 27 | BMA | £15.10 | 5 days | |
| 27IL4UNBMA | Internal | Left Hand | UN (UNC UNF UNEF UNS) | 4 | 27 | BMA | £15.10 | 5 days | |
| 27IR4.5UNBMA | Internal | Right Hand | UN (UNC UNF UNEF UNS) | 4.5 | 27 | BMA | £19.64 | 5 days | |
| 27IR4UNBMA | Internal | Right Hand | UN (UNC UNF UNEF UNS) | 4 | 27 | BMA | £19.64 | 5 days |
No products match your filters.
