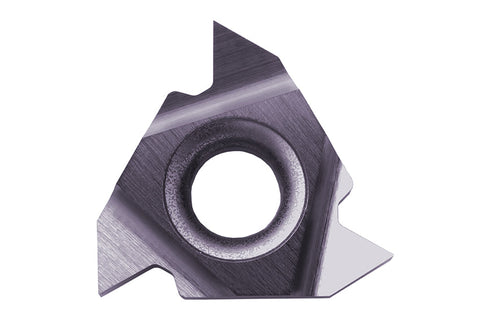

Carmex Thread Turning Internal Insert - UN (UNC,UNF,UNEF,UNS) - Right Hand - 22IR5UNBMA
SKU:22IR5UNBMA
The Carmex Thread Turning Internal Insert is a dedicated cutting insert designed for creating internal threads in metal. Engineered for right-hand threads and compatible with UNC, UNF, UNEF, and ...
Read more ↓
Material Compatibility
P
M
K
S
H
Specifications at a glance
View all specifications ↓
Download Cutting Data
| Thread Type | Internal |
| Thread Direction | Right Hand |
| Thread Form | UN (UNC UNF UNEF UNS) |
| Pitch | 5 |
£13.93
Prices shown ex. VAT
5 days estimated lead time
— subject to availability
View Other Sizes →
Free delivery over £50 ex VAT
Secure checkout
14-day returns
30+ years expertise
Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna
Learn more about Klarna
Compatible holders
The ones our customers buy most.
Description
The Carmex Thread Turning Internal Insert is a dedicated cutting insert designed for creating internal threads in metal. Engineered for right-hand threads and compatible with UNC, UNF, UNEF, and UNS standards, it offers a versatile, single-tool solution for a wide range of threading tasks—from simple to demanding. Its laydown triangular geometry supports stable engagement and consistently clean thread forms.
- Broad UN thread compatibility: Covers UNC, UNF, UNEF and UNS internal threads with a single insert, simplifying selection and minimizing tool changes.
- Triangular laydown geometry for stability: The laydown triangle design provides stable cutting engagement and predictable results, helping you achieve clean, accurate threads in a variety of applications.
- Right‑hand orientation for versatile use: Specifically designed for right-hand internal threading, making it easy to integrate into standard machining workflows and setups.
With this insert, you gain a reliable, flexible tool that streamlines internal threading work and reduces setup time. Its broad compatibility and stable geometry help you complete projects efficiently, maintain consistent thread quality, and keep production moving smoothly.
Part Numbers
- Protool Part Number
- 22IR5UNBMA
- Brand
- Carmex
- Category
- Thread Turning
