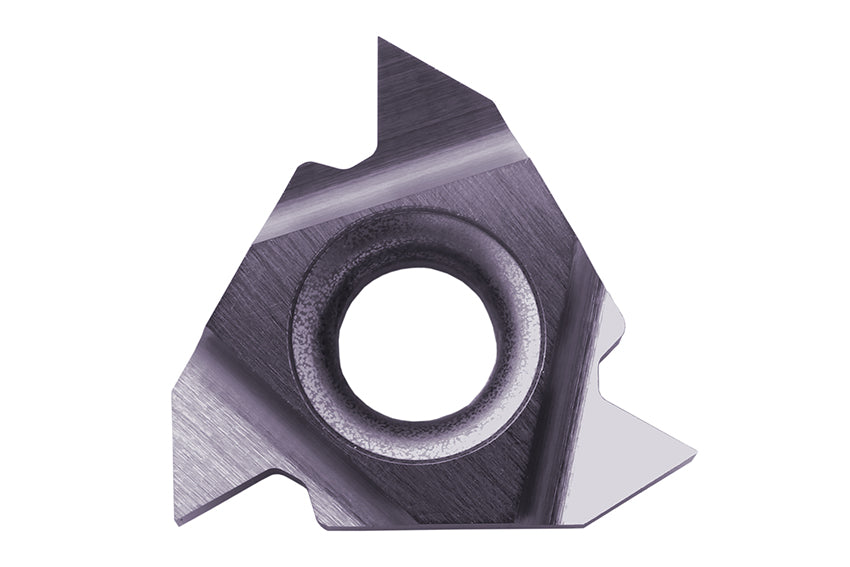

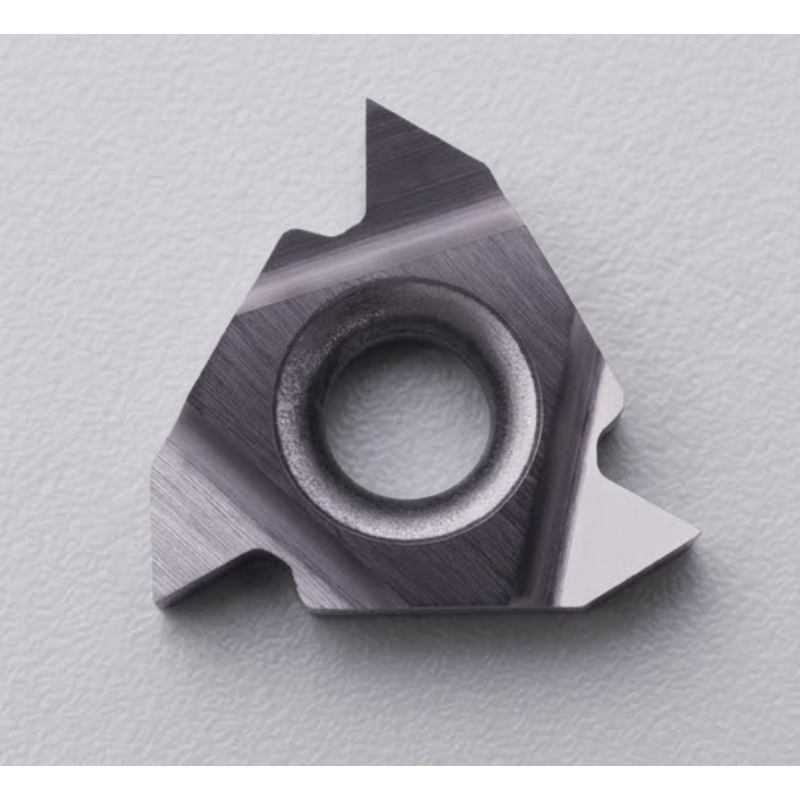

Carmex Thread Turning Internal Insert - UN (UNC,UNF,UNEF,UNS) - Right Hand - 16IR20UNBMA
SKU:16IR20UNBMA
The Carmex Thread Turning Internal Insert - UN (UNC, UNF, UNEF, UNS) - Right Hand - 16IR20UNBMA is a precision cutting insert designed for internal threading. Built to handle a wide range of UN s...
Read more ↓
Material Compatibility
P
M
K
S
H
Specification
Download Cutting Data
| Thread Type | Internal |
| Thread Direction | Right Hand |
| Thread Form | UN (UNC UNF UNEF UNS) |
| Pitch | 20 |
| Insert Size | 16 |
| Grade | BMA |
£8.44
Prices shown ex. VAT
In Stock— only 6 left
View Other Sizes →
Free delivery over £50 ex VAT
Secure checkout
14-day returns
30+ years expertise
Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna
Learn more about Klarna
The Carmex Thread Turning Internal Insert - UN (UNC, UNF, UNEF, UNS) - Right Hand - 16IR20UNBMA is a precision cutting insert designed for internal threading. Built to handle a wide range of UN standards, it provides a reliable solution for machinists, engineers, and hobbyists working on parts that require clean, accurate internal threads.

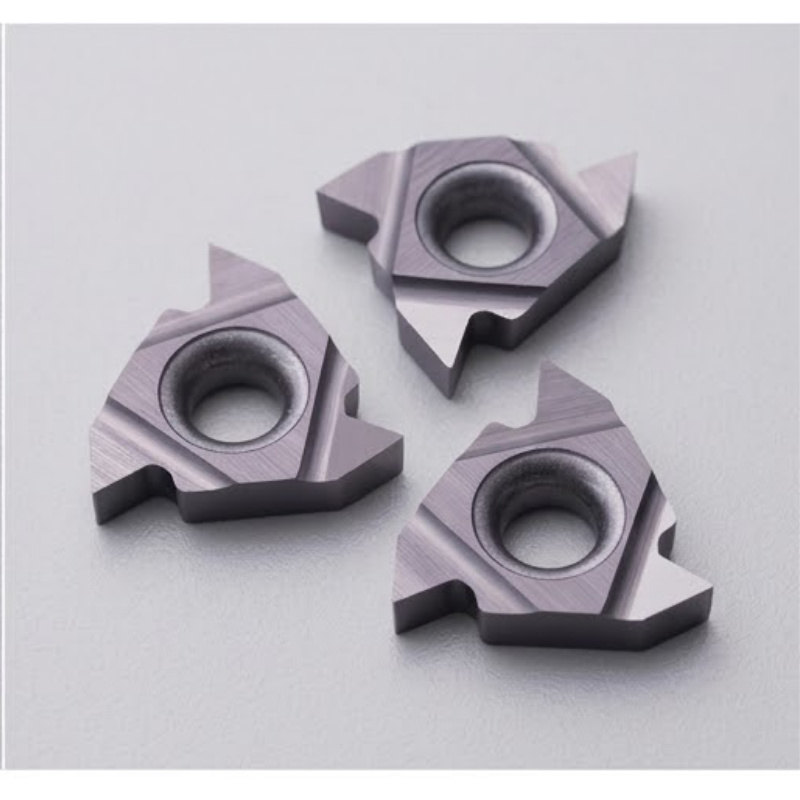

These high-quality laydown triangular inserts are recognized worldwide for their versatility. They can accommodate the majority of internal thread standards today, from simple through holes to more demanding features, helping you simplify your tool lineup and keep projects moving.
- Broad UN standards compatibility: Supports UNC, UNF, UNEF, and UNS internal threads with a single insert, simplifying stocking and setup.
- Triangular laydown geometry for stability: The laydown triangular design provides steady cutting engagement and even wear, promoting consistent thread quality and longer tool life.
- Right-hand threading optimization: Specifically engineered for right-hand internal threads, delivering reliable, predictable results across a wide range of applications.
Used in busy production environments or workshop settings, this insert helps streamline internal threading tasks. It enables faster setup, reduces tool-change downtime, and delivers dependable results across multiple UN thread standards, giving you confidence in every part you produce.
| Thread Type | Internal |
| Thread Direction | Right Hand |
| Thread Form | UN (UNC UNF UNEF UNS) |
| Pitch | 20 |
| Insert Size | 16 |
| Grade | BMA |
